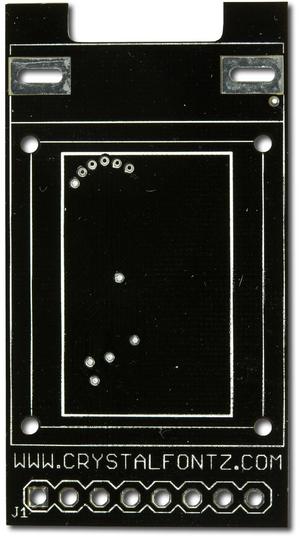

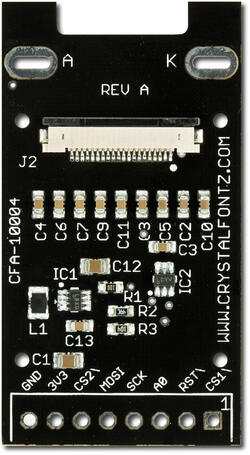

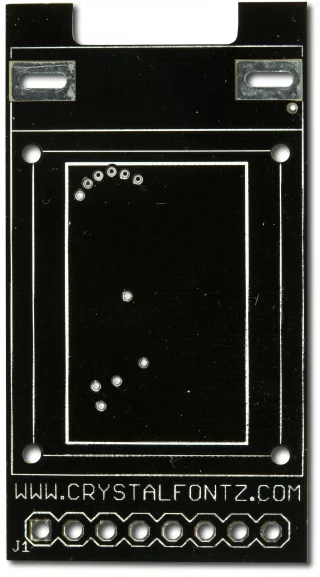

One Inch Carrier Board

Part Number: CFA10004

Description

This carrier board includes a current-controlled switching LED driver, which allows for SPI control of the LED brightness. All external components for panel voltage generation are included.
Need a small LCD display for this carrier board? We have a one inch LCD display that fits perfectly!
The header you need is a standard 8-pin, 0.100 inch pitch.

TECHNICAL SPECS

Physical Characteristics

PCB Outline width height depth
millimeters 23 43 1
inches 0.906 1.693 0.039
Weight 4g

Backlight Electrical Specifications

Forward Current Typical 5mA

Electronics

Interface SPI

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA10004 or RSS RSS feed for changes to CFA10004

Product Update #10890: (New Product) CFA10004

New Product: CFA10004
Date Issued: October 30, 2017
Summary: (New Product) CFA10004
Description: Development Kit / Demonstration Board: Carrier board for our one-inch graphic LCD. Contains everything you need to get started.
