42x65 One Inch LCD Module

Part Number: CFAG4265A0-TFK

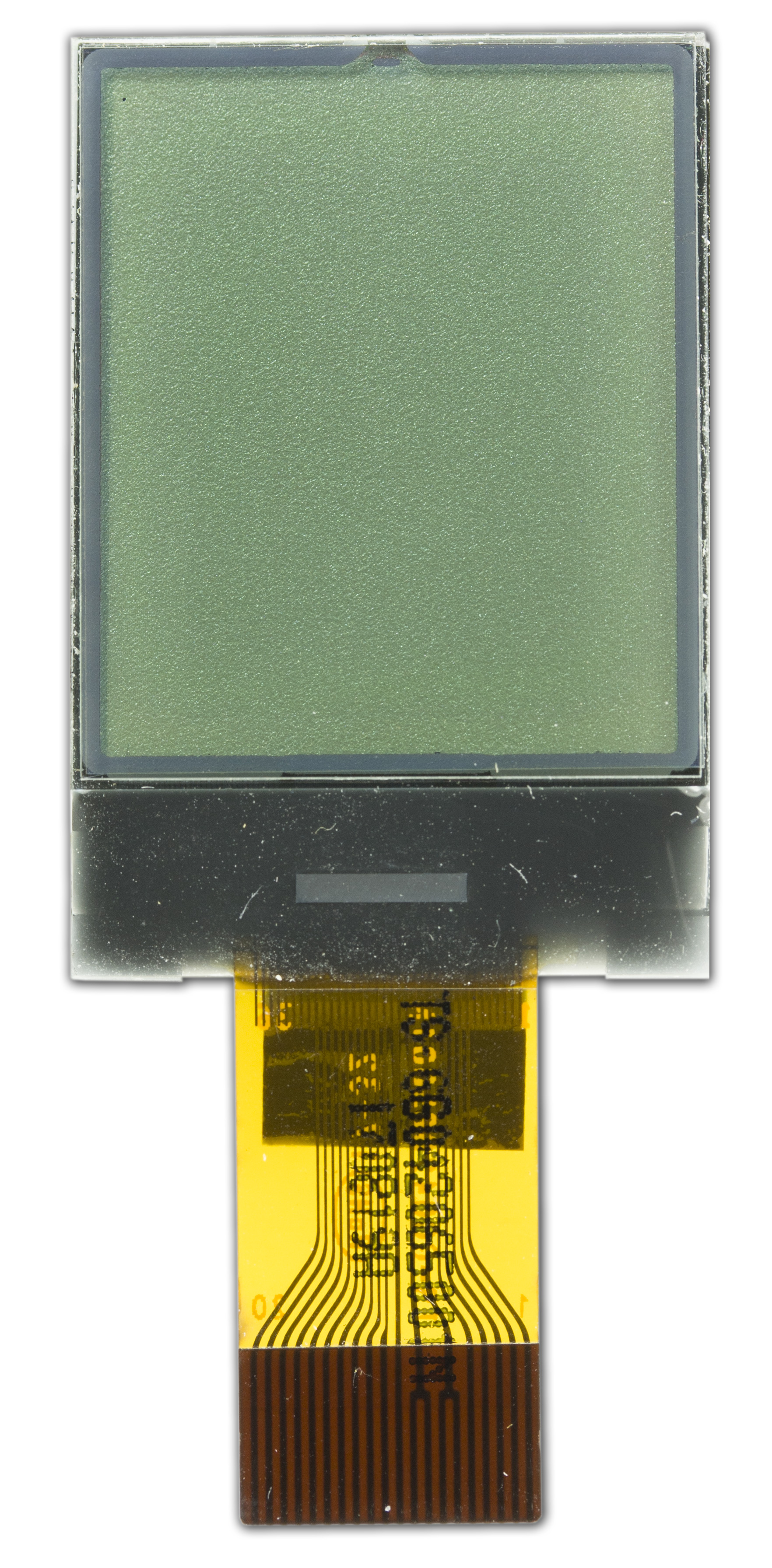

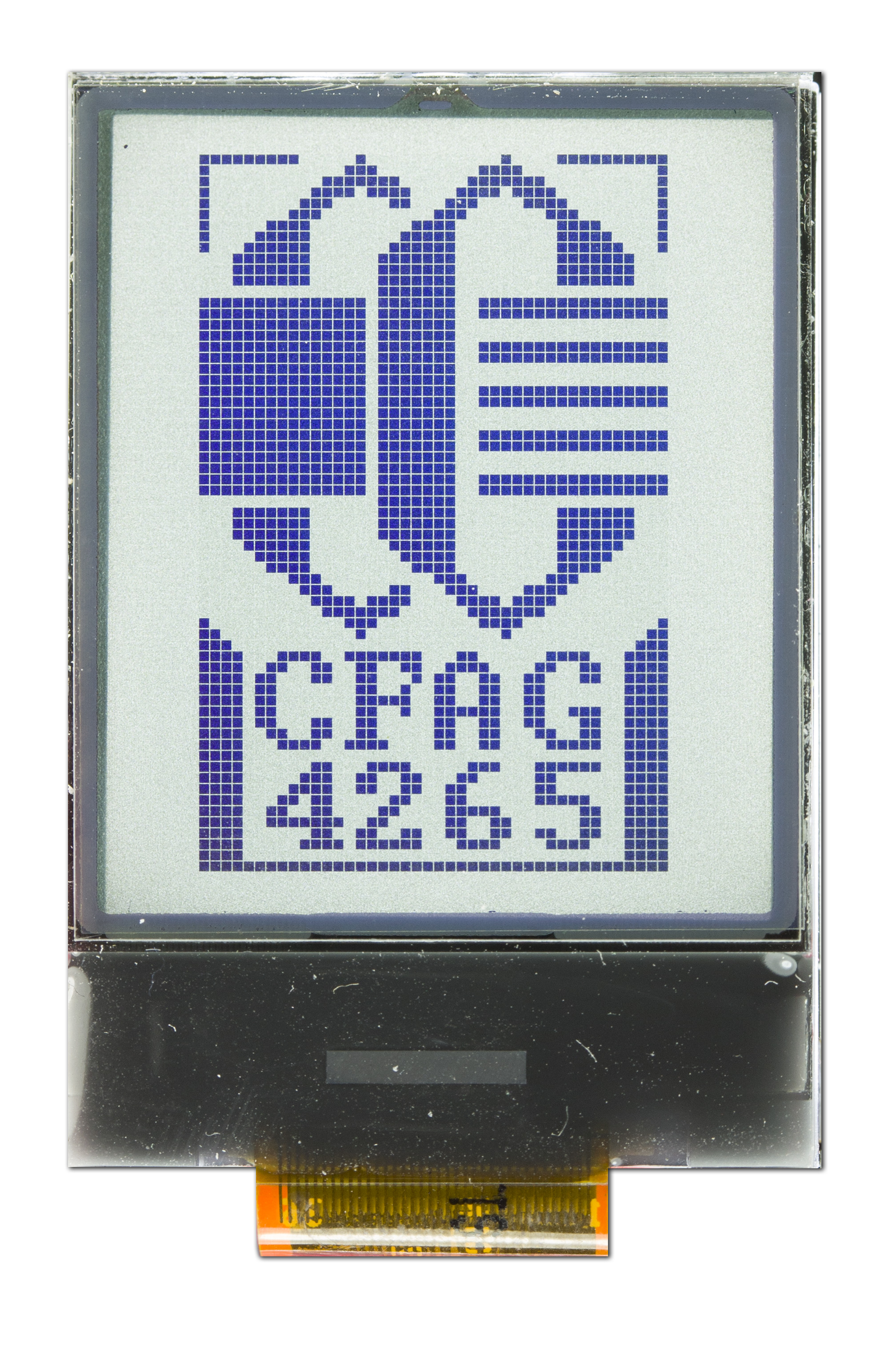

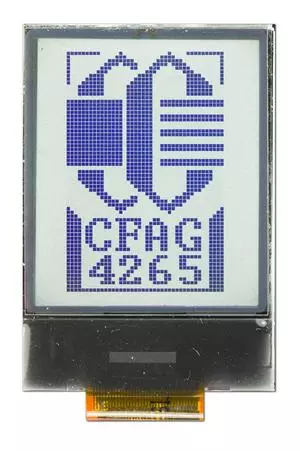

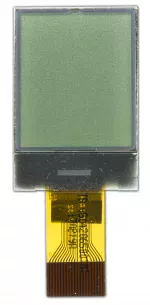

42x65 One Inch Graphic LCD - Dark On Light Gray

  • 42 pixels by 65 pixels.
  • 12 o'clock view direction can be used in portrait or landscape mode.
  • SPI interface (4-wire Serial Peripheral Interface).
  • Sitronix ST7565R or compatible controller.

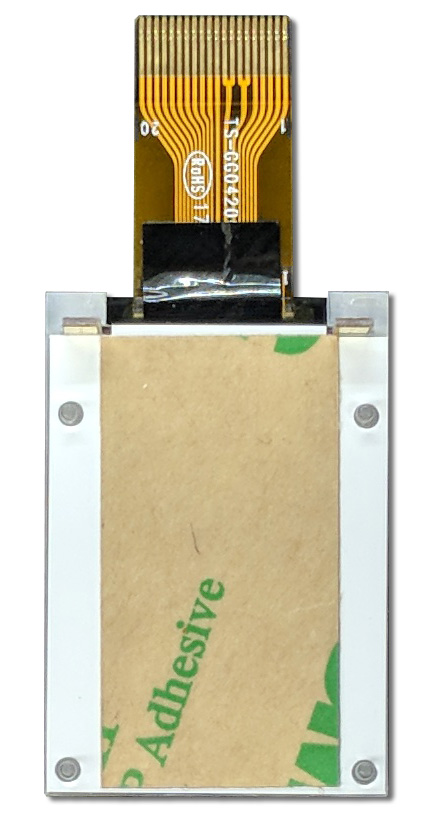

  • The FFC/FPC flexible tail is easy to connect with any standard 20 pin 0.5mm pitch ZIF connector.
  • Show off your creativity by tiling multiple displays on 1-inch centers.

We designed this 42x65 graphic LCD display module so it fits on the face of 1-inch wide devices such as blade servers, disk drive carriers, and expansion cards.

The 0.88-inch (22.40 mm) width leaves room for the metalwork and mechanical clearance.

This economical COG (Chip-On-Glass) FSTN transflective display is suitable for use in direct sunlight and is easy to see in dimly lit areas.

This graphic LCD display uses three long-life white LEDs for its backlight. The forward voltage is 9.6v to 10.8v. For long life, we recommend driving the backlight at 12mA.

Product Variants

CFAO4265A-TTL42x65 White on Dark Graphic LCD
CFAG4265A0-TFK42x65 One Inch LCD Module
42x65 One Inch LCD Module (CFAG4265A0-TFK)
Qty:
Quantity Price
1 $6.82
5 $5.69
10 $5.54
20 $5.35
50 $5.16
100 $5.09
200 $5.05
300 $5.01
500 * $4.98
1000 * $4.95
* For quantites over this amount the lead time may be up to 60 days. Contact us about potential lead times.
Components worth considering
4634 20 position, 0.50mm pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.89 ea.
4478 One Inch LCD on Carrier Board
Purchase mounted on a breakout board. $22.39 ea.
4825 20-Position ZIF Breakout Board
Add a 20-pin ZIF Breakout Board? $6.15 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG4265A0-TFK or RSS RSS feed for changes to CFAG4265A0-TFK for CFAG4265A0-TFK

Compliance Documents

TECHNICAL SPECS

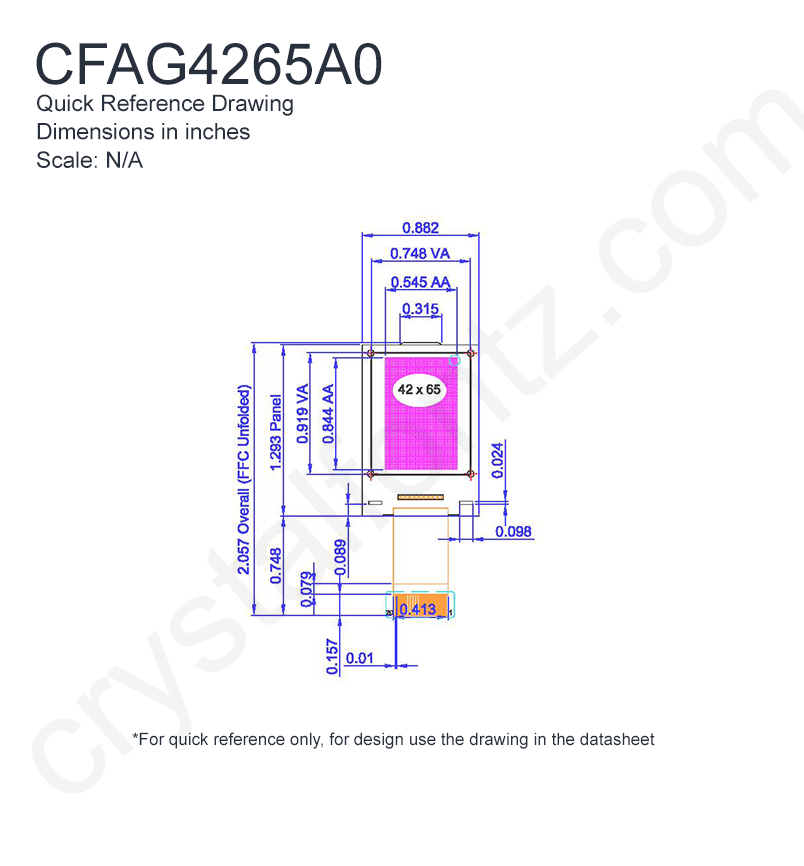

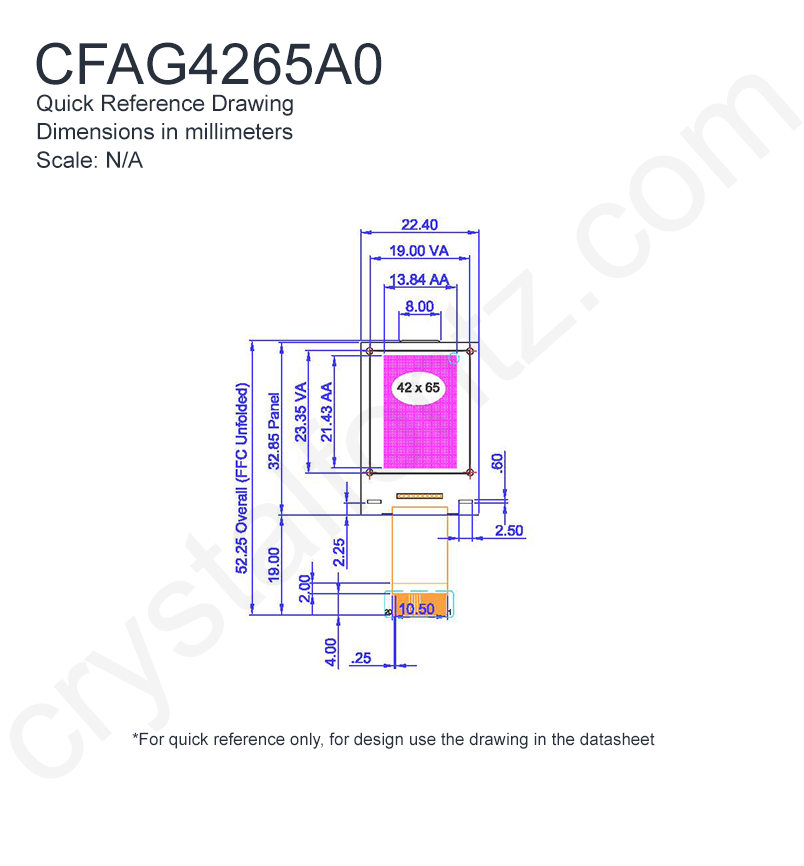

Physical Characteristics

Column Dots x Row Dots 42 x 65
Module Overall width height depth
millimeters 22.4 32.85 4.8
inches 0.882 1.293 0.189
*width / height does not include Foldable Tab
Diagonal Dimension 1."
Viewing Area width height
millimeters 19 23.35
inches 0.748 0.919
Active Area width height
millimeters 13.84 21.43
inches 0.545 0.844
Dot Size width height
millimeters 0.31 0.31
inches 0.012 0.012
Dot Pitch width height
millimeters 0.33 0.33
inches 0.013 0.013
Optional Connectors CS050Z20GA0
Weight 6g

Optical Characteristics

Glass Type/Glass Color FSTN/Light Gray
Polarizer Transflective
View Direction 12 o'clock
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color White

Electrical Specifications

Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 9.5V
Supply Current Typical 0.5mA

Backlight Electrical Specifications

Forward Voltage Maximum 10.8V
Forward Voltage Typical 9V
Forward Current Typical 16mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sitronix ST7565R
ST7565R
65 x 132 Dot Matrix LCD Controller/Driver
Interface SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Need to get up and running quickly? Combine this module with a breakout board or a complete development kit.

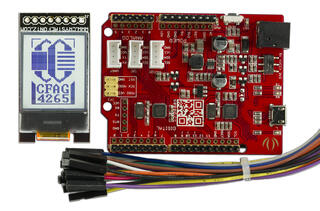

Complete One Inch LCD Dev Kit
Part Number: CFAG4265A0-TFK-E1-2

This is a complete, assembled demonstration kit for our 42x65 one inch lcd display. The kit includes the display with the carrier board, connecting wires and a 3.3v Seeeduino v4.2, The Seeduino v4.2 is an Arduino compatible board that supports 3.3v.

The Seeduino comes pre-programmed with the open-source Arduino sketch (download link in the files section) and with the wires connected. Just supply 5v to the Seeduino through a standard micro-USB cable and the display will power up.

Since the source Arduino sketch is included, you can easily understand the initialization code and the routines that are used to update the display.

Details
Quantity 1 10 20 50 100 * 200 * 500 * 1000 *
Price $45.94 $43.60 $43.36 $43.09 $42.26 $41.99 $41.57 $41.35
Quantity:

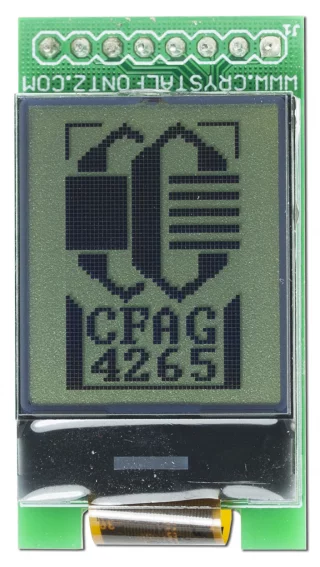

One Inch LCD on Carrier Board
Part Number: CFAG4265A0-TFK-E1-1

Quickly develop with this small graphic display module mounted to a CFA10004 carrier board. The carrier board includes a current-controlled, switching LED driver, including SPI control of the LED backlight brightness. All external components for panel voltage generation are also included.

  • COG (Chip-On-Glass) display module is mounted on the carrier board with the ZIF connector, the adhesive protection liner is removed, and backlight connections are already soldered.
  • Carrier board only adds 4 grams, for a total weight of 10 grams for this module.

Details
Quantity 1 10 20 50 100 200 500 * 1000 *
Price $22.39 $20.03 $19.81 $19.54 $18.70 $18.45 $18.02 $17.80
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG4265A0-TFK or RSS RSS feed for changes to CFAG4265A0-TFK

Product Update #10887: (New Product) CFAG4265A0-TFK

New Product: CFAG4265A0-TFK
Date Issued: October 30, 2017
Summary: (New Product) CFAG4265A0-TFK
Description: Standard Graphic Modules: 42x65 Graphic LCD, Dark pixels on light gray background, Carrier board and demo kit available
For reference only. For design purposes, please use the specifications in the datasheet.
