EVE Breakout Board

Part Number: CFA10098

This EVE Breakout Board simplifies connecting any of our EVE TFT displays to the controller of your choice. The 30-pin ZIF connector is reduced to a 14-pin 0.1" header that can easily be used with our jumper wires.

Add a set of jumper wires for wiring between this breakout board and your controller. The 30-pin FFC for connecting between this breakout board and any of our EVE boards is available in a 6-inch ribbon cable and a 12-inch ribbon cable.

All of our EVE TFT modules have a demonstration kit available using this PCB. We'll wire the EVE module of your choice to this breakout board and a Seeeduino so all you have to do to see a functional demonstration is apply power. If you're having trouble finding the demonstration kit you're looking for, reach out to our support team.

The schematic for this breakout board is available in the datasheet to make moving from prototyping with this board to your custom PCB as easy as possible.

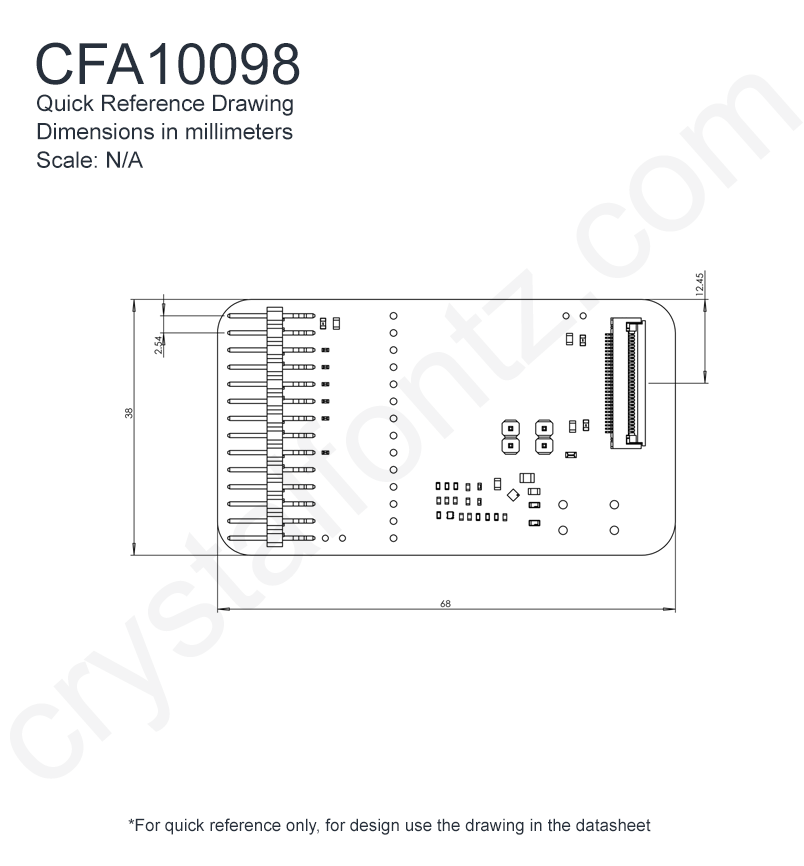

Physical Characteristics
Physical Characteristics

Module Overall width height

millimeters 68 38

inches 2.677 1.496

Optional Connectors CS050Y30TB0

Weight 8.6g

Pin Count 14
Datasheets

picture_as_pdf
CFA10098 Datasheet
(Hardware 1v0)
Compliance Documents

picture_as_pdf Declaration of Conformity RoHS2

Module Overall	width	height
millimeters	68	38
inches	2.677	1.496

Quantity	Price
1	$24.63
10	$21.41
20 *	$20.65
50 *	$19.88
100 *	$19.57
200 *	$19.27
500 *	$14.56
1000 *	$12.31

* Pricing is subject to change. Contact us about potential lead times.

Components worth considering

12-inch 30-pin FFC
Add a 12-inch ribbon cable? $2.30 ea.

6-inch 30-pin FFC Cable
Add a 6-inch Ribbon Cable? $2.30 ea.

6-inch Female to Female Jumper Wires
Add jumper wires? $3.38 ea.

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11202: Audio Power Supply Removed

Products Affected:	CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480-E3050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	May 25, 2023
Summary:	Audio Power Supply Removed
Description:	The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally. Hardware Version Changes: h0v2 to h1v0
Reason:	The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
