                This product has reached end of lifeThe epaper display in this kit is no longer available. While we do not offer any direct replacements, perhaps one of our other epaper displays will fit your needs. Please contact our technical support team to get assistance in finding the right display.

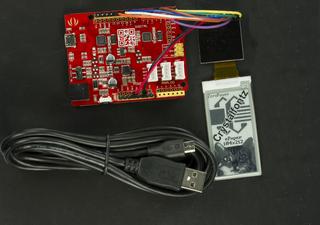

Complete ePaper Demonstration Kit - 2.13",  3-Level GrayPart Number: CFA214A0-0213Complete ePaper demonstration kit is assembled and programmed for the 2.13-inch 3-level grayscale display module. Kit includes a Seeeduino development board, a breakout board, connection assembly, and a WR-USB-Y27 cable (USB-A to Micro-B, 1.85m feet long). The Seeeduino is a 3.3v capable Arduino derivative programmed for the CFAP104212A0-0213.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            104 x 212

    Module Overall        width
        height
        depth

        millimeters
        29.2
        59.2
        0.98

        inches
        1.15
        2.33
        0.04

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.13"

    Active Area        Width
        Height

        millimeters
        23.712
        48.55

        inches
        0.93
        1.91

    Dot Size        Width
        Height

        millimeters
        0.228
        0.229

        inches
        0.0090
        0.0090

    Dot Pitch        Width
        Height

        millimeters
        0.228
        0.229

        inches
        0.0090
        0.0090

        Weight
            80g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            e ink
Polarizer
            Reflective
Sunlight Readable
            Yes

        Foreground Color
            3-level grayscale
Background Color
            white

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        40°

        Fahrenheit
        32°
        104°

    Storage Temperatures        min
        max

        Celsius
        -25°
        70°

        Fahrenheit
        -13°
        158°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            SPI

Complete ePaper Demonstration Kit - 2.13", 3-Level Gray

Part Number: CFA214A0-0213

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

LCD Software

User Forum

Tech Support

Module Overall	width	height	depth
millimeters	29.2	59.2	0.98
inches	1.15	2.33	0.04
*width / height does not include Foldable Tab

Glass Type	e ink
Polarizer	Reflective
Sunlight Readable	Yes

Foreground Color	3-level grayscale
Background Color	white

Supply Voltage for Logic Minimum	3V
Supply Voltage for Logic Maximum	3.6V
