This product is discontinued and has been replaced by CFA632-YFH-KU

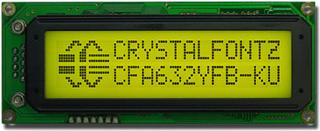

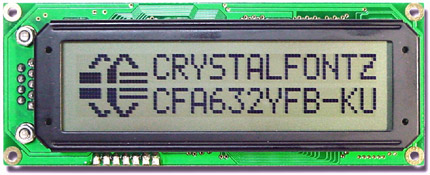

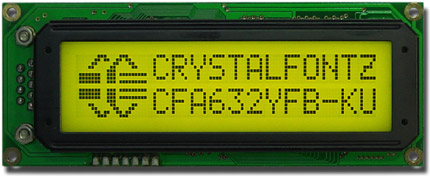

16x2 USB Character LCD

Part Number: CFA632-YFB-KU

Datasheets

CFA632 Data Sheet v2.1.pdf
(Datasheet V 2.1, Hardware 2.2, Firmware 2.0)
CFA632 v2.0.pdf
(Datasheet V 2.0, Hardware 2.1, Firmware 2.0)
632full.pdf
(Datasheet V 1.5, Hardware 2.0, Firmware 2.0)

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA632-YFB-KU or RSS RSS feed for changes to CFA632-YFB-KU for CFA632-YFB-KU


Description

CFA-632 USB LCD 16x2, Yellow/Green LED Backlight, FSTN Positive, Transflective 0°C to +50°C, 6:00

The CFA632 can use any of SIX interfaces on any modules in the family by simply changing the interface selection using a command setting and making the appropriate jumper configurations. The interfaces are:

Large easy-to-read LCD in a compact size can display 16 characters x 2 lines. Overall module size is 108.00 mm width x 42.00 mm height x 19.90 mm depth (4.25" x 1.65" x 0.78"). Character height is 7.30 mm (0.29").

Optional PC CDROM mounting bracket with three choices of overlay for a single bay is available. Mounting dimensions are 5.25" (W) x 1" (H).

The CFA632 family has two colors choices:

  1. CFA632-YDI-Kx: Yellow-green array LED backlight with negative FFSTN transmissive mode LCD. Displays yellow-green characters on a dark (near-black) background. The display can be read in normal office lighting and in dark areas. May be difficult to read in direct sunlight.
  2. CFA632-YFH-Kx: Yellow-green array LED backlight with positive FSTN transflective mode LCD. Displays dark(near-black) characters on yellow-green background. The display can be read in normal office lighting, in dark areas, and in bright sunlight.

Use any of six interfaces on any module in the CFA632 family by simply changing the interface selection in a command and using the appropriate jumper configurations.

The displays have a 6 o’clock viewing angle (polarizer viewing direction)

Adjustable contrast. The module’s default contrast value will be acceptable for many applications. If necessary, you can adjust the contrast by using control command.

The modules have a RockWorks RW1067 controller.

.

Extended voltage (9-15 volts for interfaces using DB9 connector) and 5 volts power inputs standard for the controller. Backlight is 5 volts only.

Use the nonvolatile memory capability (EEPROM) to customize the “power-on” display settings.

Wide temperature range for operation is -20°C to +70°C.

RoHS compliant. You can download the Certificate of Compliance for ISO, RoHS, and REACH from the Doc/Files tab on the part number’s website page.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 108 42 19.9
inches 4.252 1.654 0.783
PCB Outline width height depth
millimeters 108 42 19.9
inches 4.252 1.654 0.783
Viewing Area width height
millimeters 82.3 22.5
inches 3.240 0.886
Active Area width height
millimeters 74.82 15.8
inches 2.946 0.622
Character Size width height
millimeters 3.9 6.38
inches 0.154 0.251
Character Pitch width height
millimeters 3.9 8.5
inches 0.154 0.335
Dot Size width height
millimeters 0.72 0.86
inches 0.028 0.034
Dot Pitch width height
millimeters 0.78 0.92
inches 0.031 0.036
Weight 151g

Optical Characteristics

Glass Type/Glass Color FSTN/Light Gray
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color Yellow-Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -10° 60°
Fahrenheit 14° 140°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents CFA 632/634
Interface USB

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA632-YFB-KU or RSS RSS feed for changes to CFA632-YFB-KU

Part Change Notice #10579: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.

Products Affected: CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP
Date Issued: December 20, 2013
Summary: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.
Last revision: v3.2.5
Description: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation where the SPI_BUSY line is used as a busy indicator instead of the module's unused transmit line. Firmware will migrate from v3.2.5 to v3.2.6
Reason: To maintain legacy functionality.
Impact: Impact to customers utilizing SPI functionality only.
Recommendation: For questions please contact Technical Service at 1-888-206-9720.

Part Change Notice #10307: Update CFA632 series to firmware v2.2 and wide temperature LCD.

Products Affected: CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
Date Issued: January 10, 2011
Summary: Update CFA632 series to firmware v2.2 and wide temperature LCD.
Last revision: Hardware v2.2, Firmware v2.0
Description: In a continuation of product improvement the CFA632 series has the following improvements:
  1. Wide temperature support with -20°C to +70°C operation / -30°C to +80°C storage

  2. The bezel changed from black painted metal to stainless steel. Stainless steel has lower environmental impact and improves ESD protection. If your design has the bezel exposed, it will show the silver color of the stainless steel rather than the previous painted black bezel.

  3. The previous CFA632-YMC-KS and CFA632-YMC-KU (new CFA632-YDI-KS and CFA632-YDI-KU) changed from STN to double negative (FFSTN) LCD for improved appearance.

  4. Firmware revision to match hardware revision and is now displayed on the boot screen

Reason: Improvements in design allow for better manufacturing, ESD protection, and appearance.
Impact: The new version is designed to be Fit, Form, and Function compatible with previous versions of the CFA632 series. Semi-Custom and Defined Parts will have updated part numbers.
Recommendation: Engineering samples should be available by the end of Quarter 1, 2011. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
Availability: Volume availability Second Quarter 2011.
Price Change: No price change at this time
Attachment: 632_Wide_Temp_PCN.pdf (244KB)

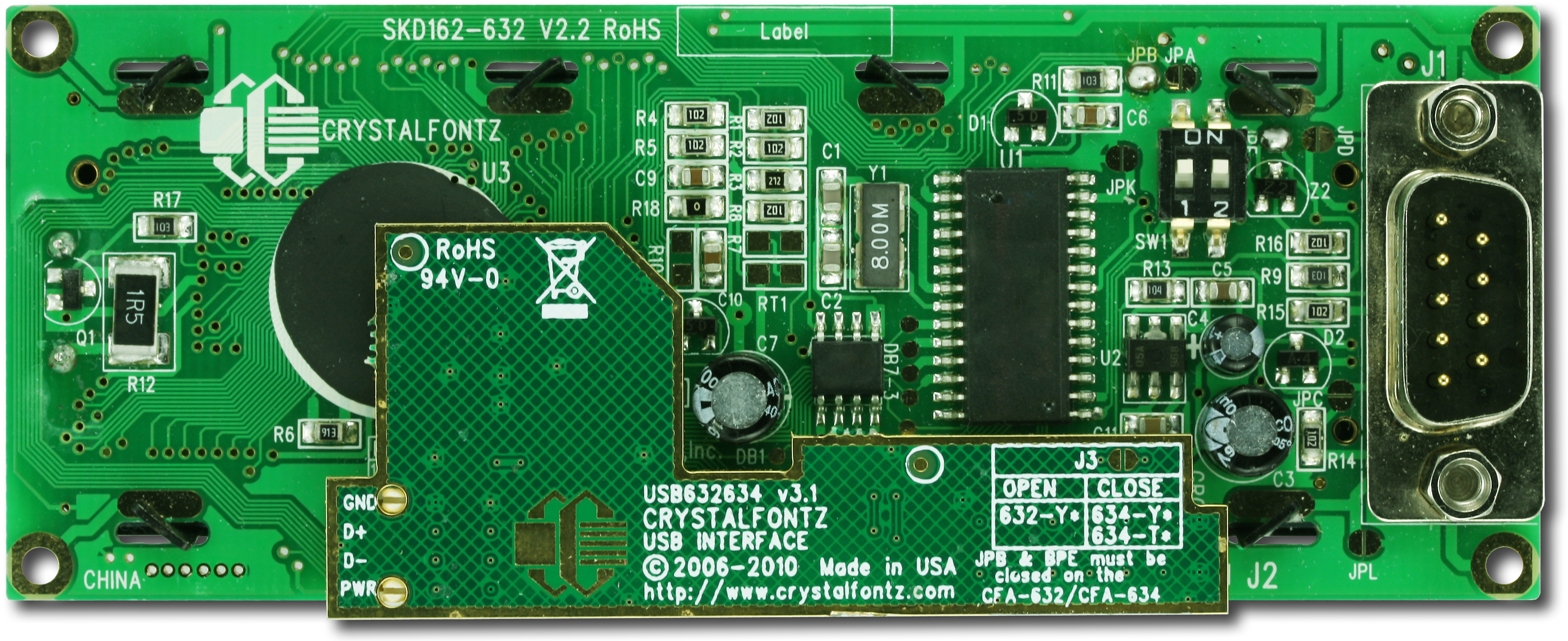

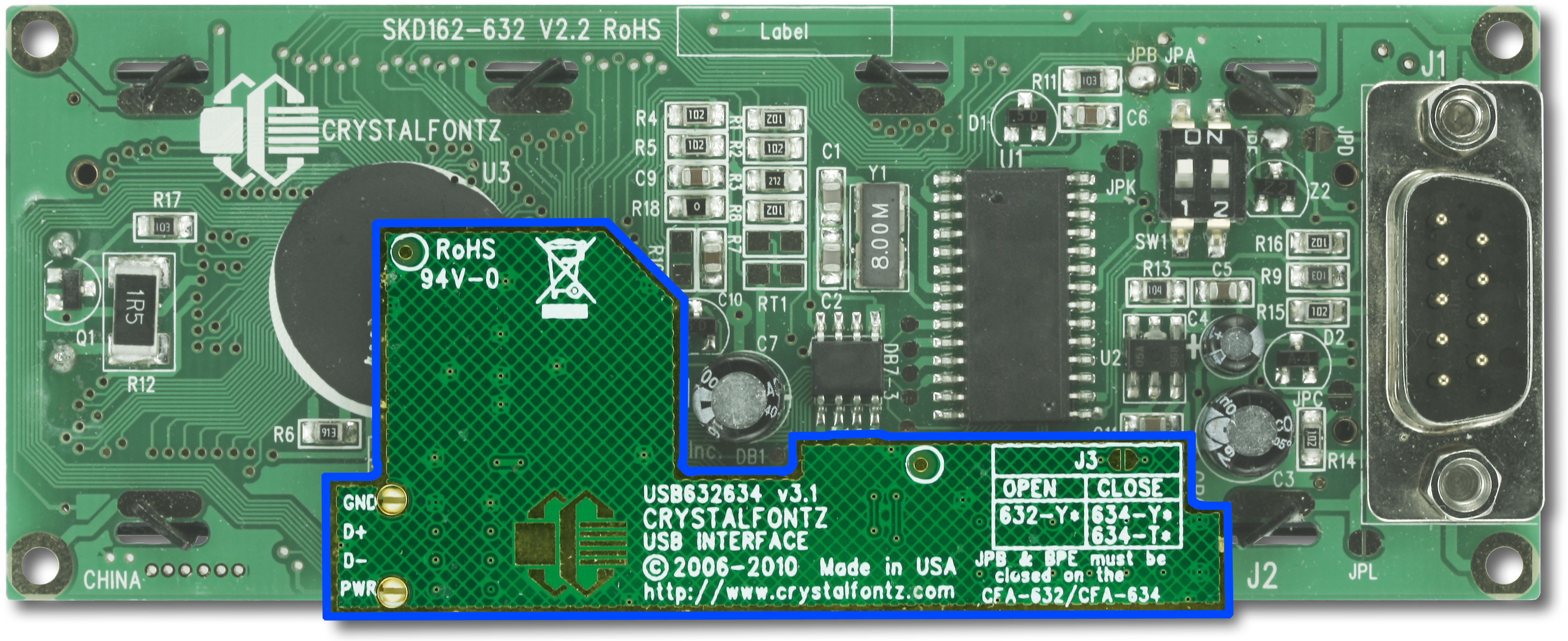

Part Change Notice #10281: Revision change for USB board because we have changed the layout of the board, also the silk screen.

Products Affected: CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA634-YFB-KU, CFA634-YMC-KU, CFA634-NFA-KU, CFA634-TFB-KU, CFA634-TMC-KU
Date Issued: May 14, 2010
Summary: Revision change for USB board because we have changed the layout of the board, also the silk screen.
Description: Changed from v3.0 to v3.1, added ground trace around outside of PCB, changed layout, made aesthetic changes to the silk screen.
Reason: Wanted to add 94v0 and WEEE symbol (trash can with "X") to the silk screen.
Impact: Put new photos of the changed USB board on the site on the LCD modules which have the change.
Availability: Immediately
Price Change: None.

Part Change Notice #10021: Change from version 2.0 to 2.2 on PCB

Products Affected: CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU
Date Issued: October 12, 2009
Summary: Change from version 2.0 to 2.2 on PCB
Description: Silk screen change / RoHS compliance
Reason: Datasheet updated to reflect a change made in 2005
