CFAF240320A-032T TFT With Carrier Board from Crystalfontz

Product

Home » Products » Accessories » Carrier Boards

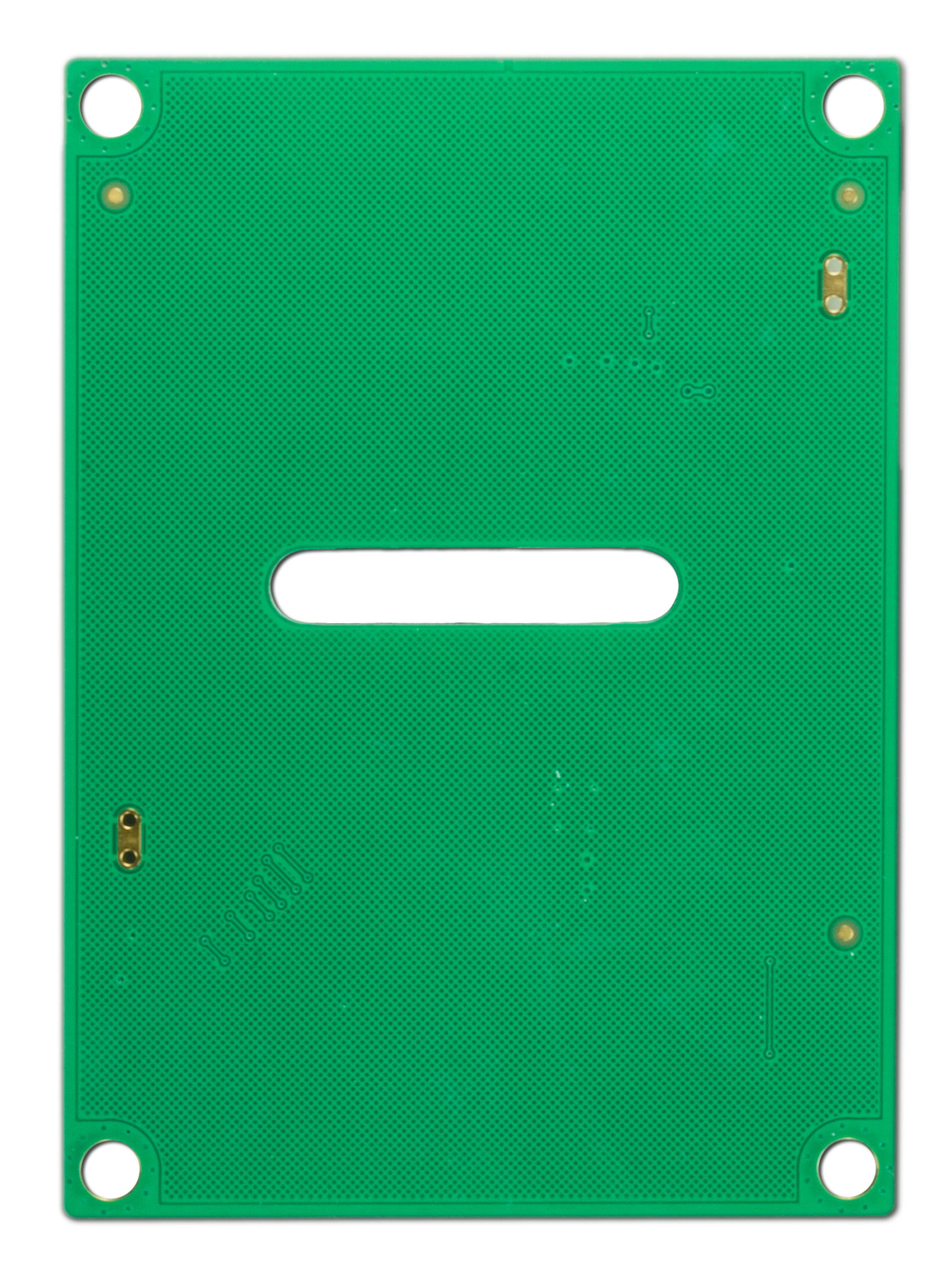

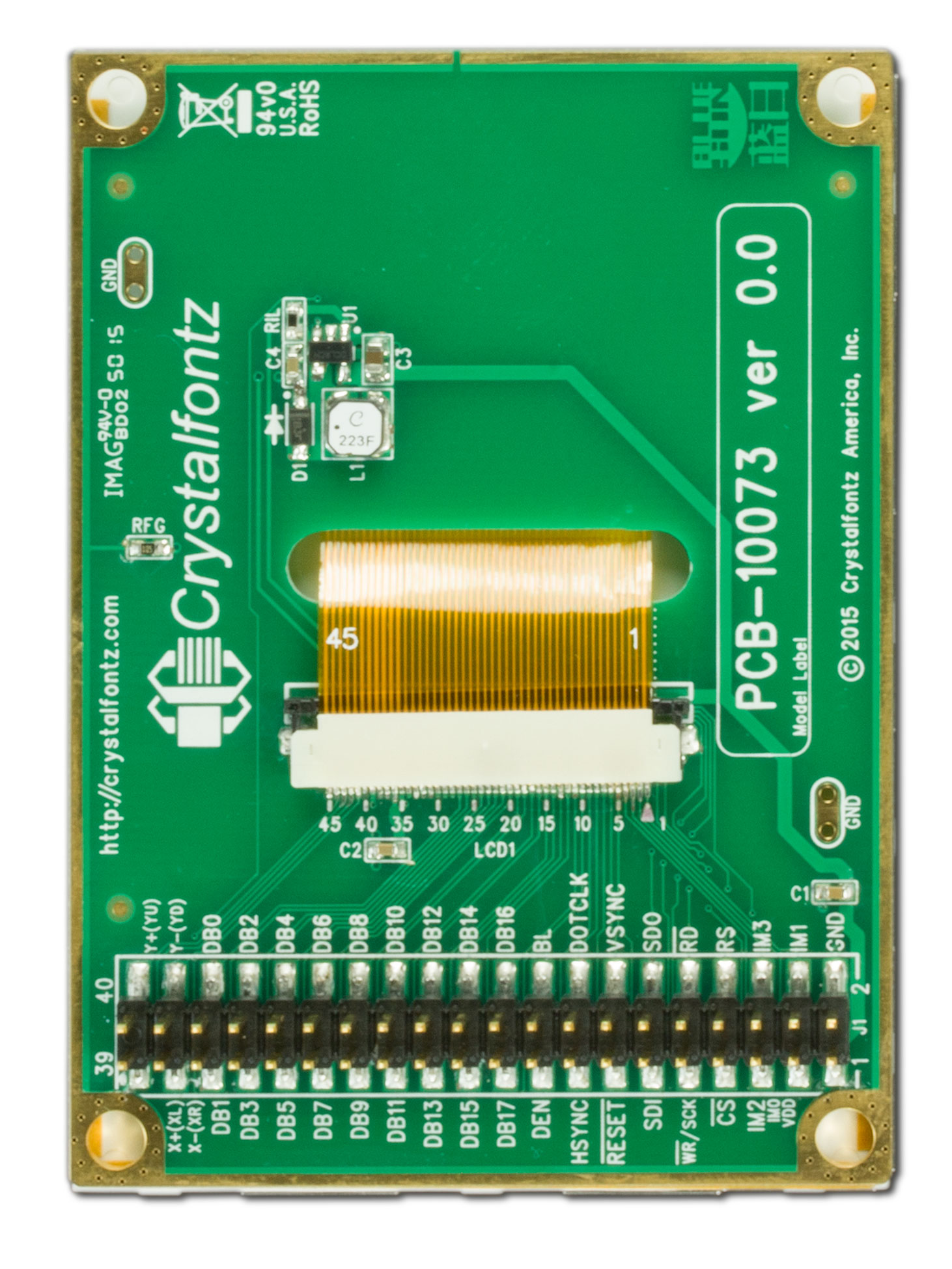

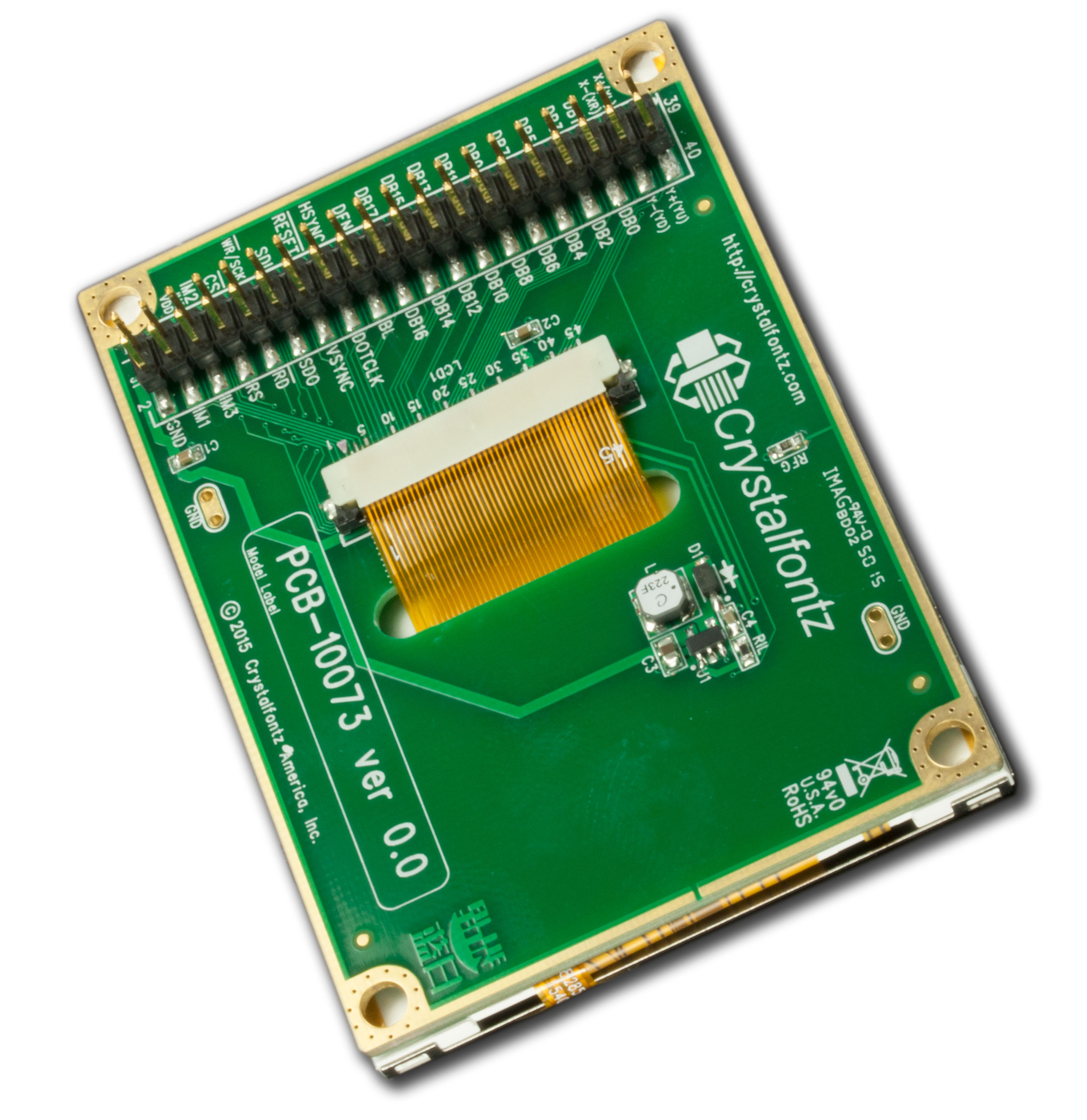

CFAF240320A-032T TFT With Carrier BoardPart Number: CFAF240320A-032T-CBThis kit consists of a CFAF240320A-032T TFT LCD module mounted on a carrier board. The carrier board supports a current driver for the LED backlight of the display. It is also available under Additional Options on the website page for CFAF240320A-032T.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height
        depth

        millimeters
        57.54
        79.3
        5.39

        inches
        2.27
        3.12
        0.21

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.19"

    Viewing Area        Width
        Height

        millimeters
        50.6
        71.26

        inches
        1.99
        2.81

    Active Area        Width
        Height

        millimeters
        48.6
        64.8

        inches
        1.91
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.21
        0.21

        inches
        0.008
        0.008

        Weight
            113.1g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            9 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            2.8V

        Supply Current Typical
            8mA
Module Connector Pitch
            0.2mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            12.3V
Forward Voltage Maximum
            13.3V

        Forward Voltage Typical
            12.8V
Forward Current Typical
            20mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -30°
        75°

        Fahrenheit
        -22°
        167°

    Storage Temperatures        min
        max

        Celsius
        -40°
        85°

        Fahrenheit
        -40°
        185°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Orise Tech OTM3225C
OTM3225C

720-channel 6-bit source driver and

320-channel gate driver

with System-On-Chip (SOC) for color

amorphous TFT LCD

download Files and Downloads
folder_zip Hardware Design - CFA10073 Carrier Board Hardware Files BOM Gerber v0p0

Module Overall	width	height	depth
millimeters	57.54	79.3	5.39
inches	2.27	3.12	0.21
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	50.6	71.26
inches	1.99	2.81

Active Area	Width	Height
millimeters	48.6	64.8
inches	1.91	2.55

Dot Pitch	Width	Height
millimeters	0.21	0.21
inches	0.008	0.008

Operating Temperatures	min	max
Celsius	-30°	75°
Fahrenheit	-22°	167°

Storage Temperatures	min	max
Celsius	-40°	85°
Fahrenheit	-40°	185°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10703: CFA-10073 replacing 2BM-10009

Products Affected:	CFAF240320A-032T-CB, CFAF240320B1-032T-TS
Date Issued:	June 16, 2016
Summary:	CFA-10073 replacing 2BM-10009
Description:	2BM-10009 carrier board being replaced by CFA-10073 carrier board.
Reason:	As part of our continuous improvement, the design and manufacture of carrier board has been brought under in-house control.
Impact:	None.
Recommendation:	The CFA-10073 has been designed and tested to be Fit, Form, and Functional compatible with the 2BM-10009. Testing in systems is encouraged, as with any product update.
Availability:	Immediate.
Price Change:	Price for the TFT display and carrier board has decreased.

Part Change Notice #10674: CFAF240320A-032T and CFAF240320A-032T-TS End of Life

Products Affected:	CFAF240320A-032T-TS-CB, CFAF240320A-032T-TS, CFAF240320A-032T-CB, CFAF240320A-032T
Date Issued:	October 7, 2015
Summary:	CFAF240320A-032T and CFAF240320A-032T-TS End of Life
Last revision:	A
Description:	CFAF240320A-032T and CFAF240320A-032T-TS is End Of Life as of 2015-10-07. This part is no longer being manufactured.
Reason:	Due to the discontinuation of this part's controller, this part can no longer be manufactured.
Impact:	Immediate.
Recommendation:	We are working diligently to source a replacement part. Once identified, we will issue a second PCN with the replacement part information.
Availability:	Current stock will be available until exhausted. Part will then be unavailable.
Price Change:	N/A

Product Update #10448: (New Product) CFAF240320A-032T-CB

New Product:	CFAF240320A-032T-CB
Date Issued:	November 20, 2012
Summary:	(New Product) CFAF240320A-032T-CB
Description:	Under TFT LCD Modules: CFAF240320A-032T TFT LCD module with 2BM-10009 carrier board. Includes driver for LCD's backlight.
