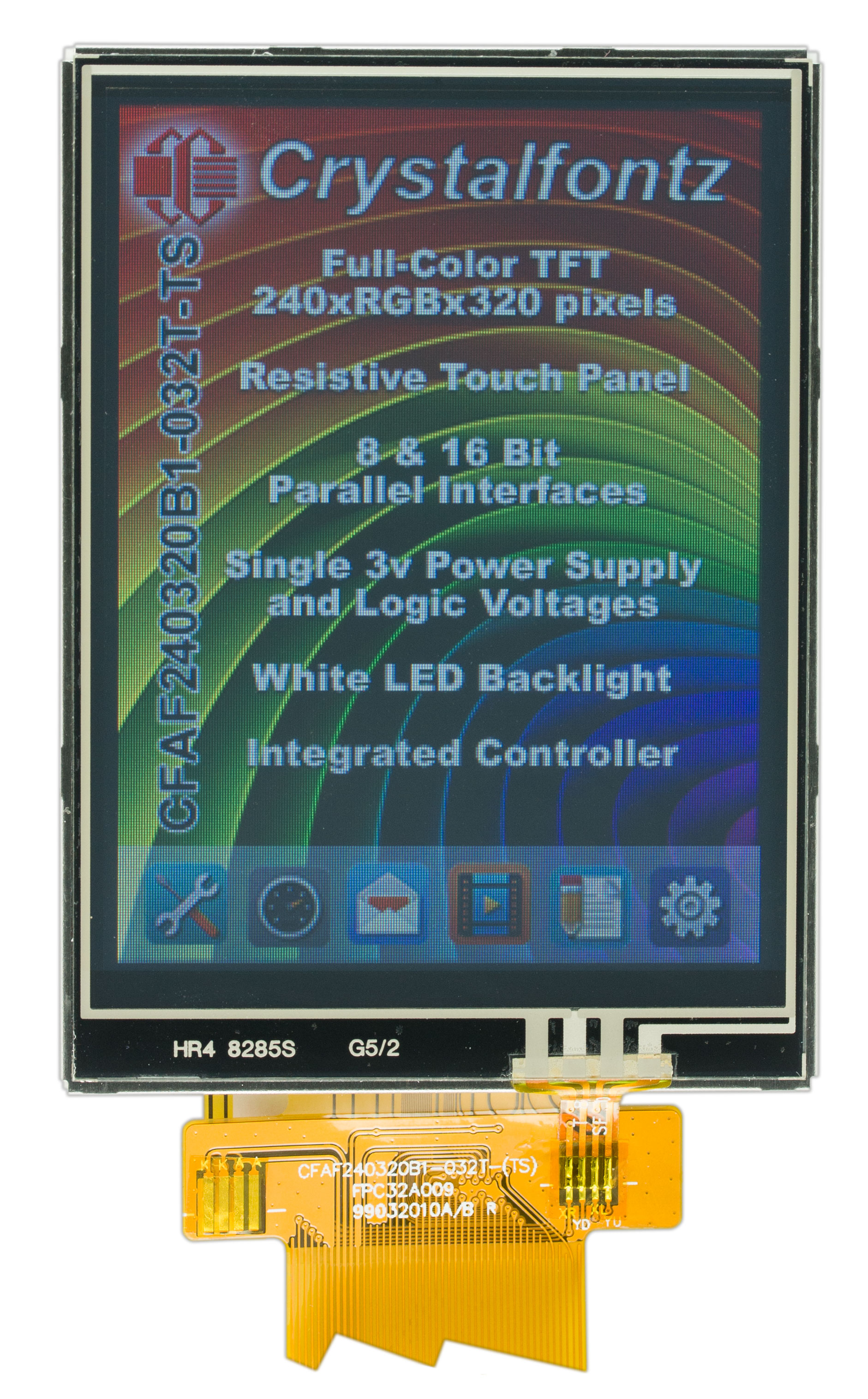

CFAF240320B1-032T-TS TFT With Carrier Board

Part Number: CFAF240320B1-032T-TS-CB

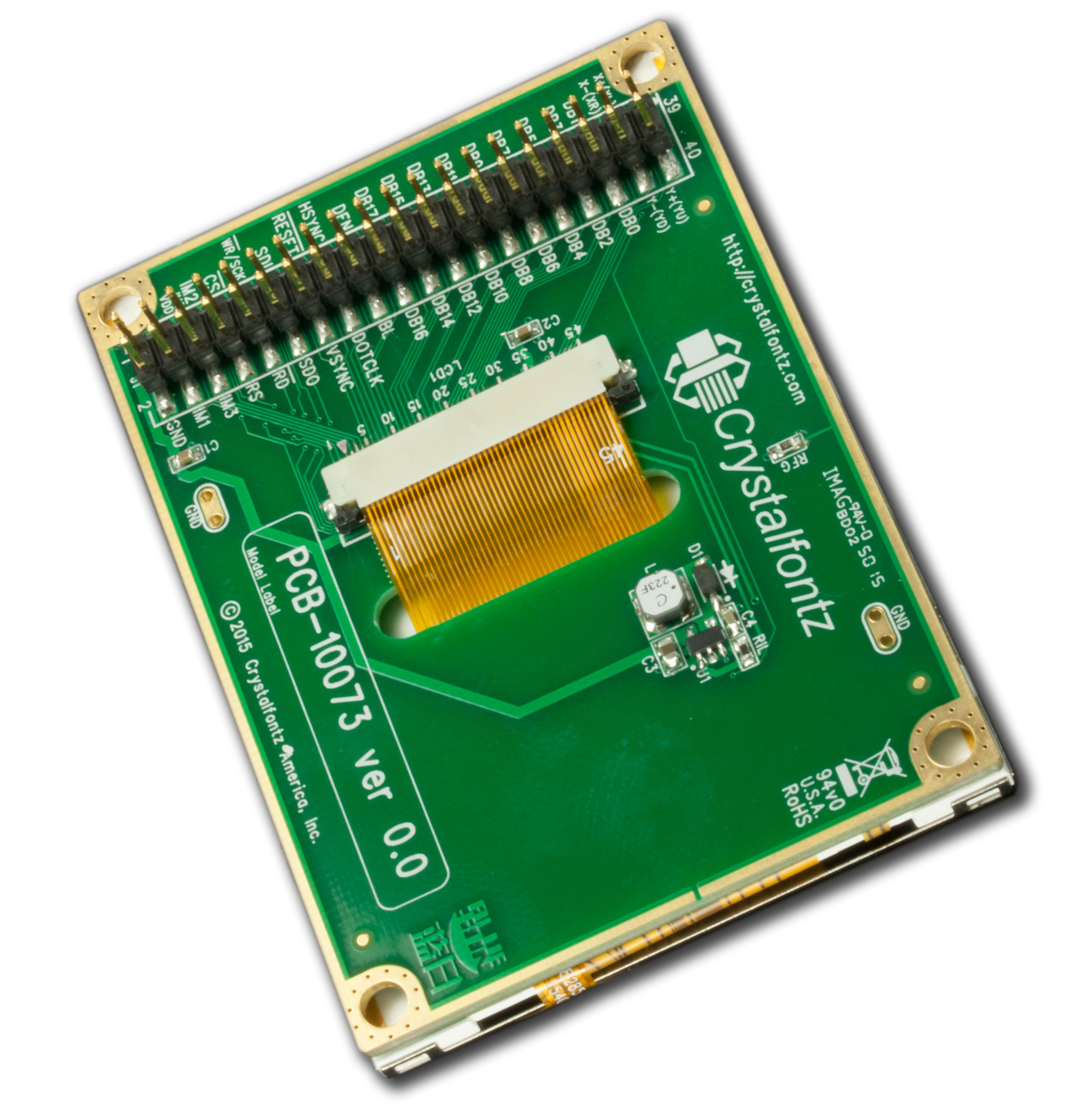

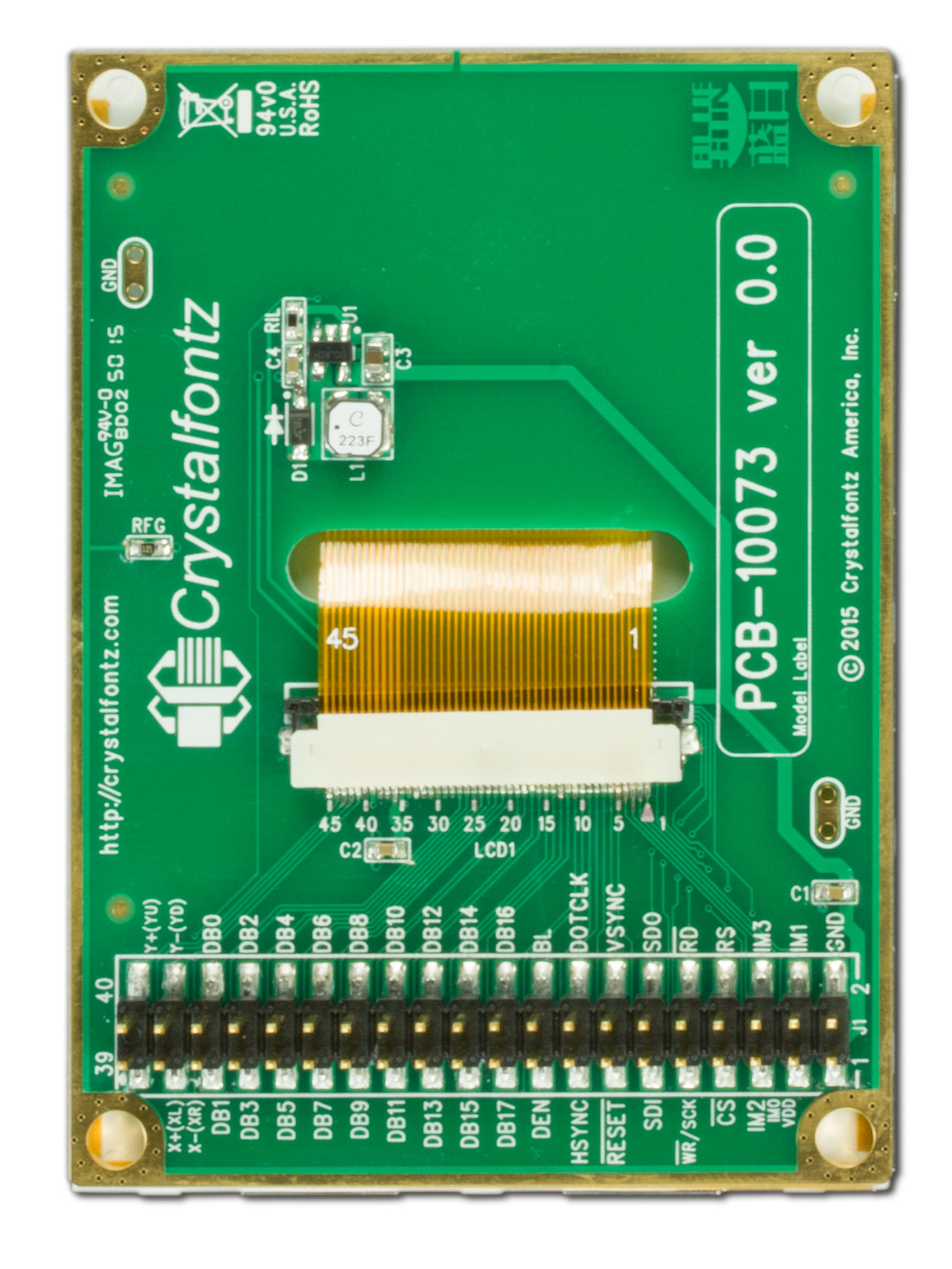

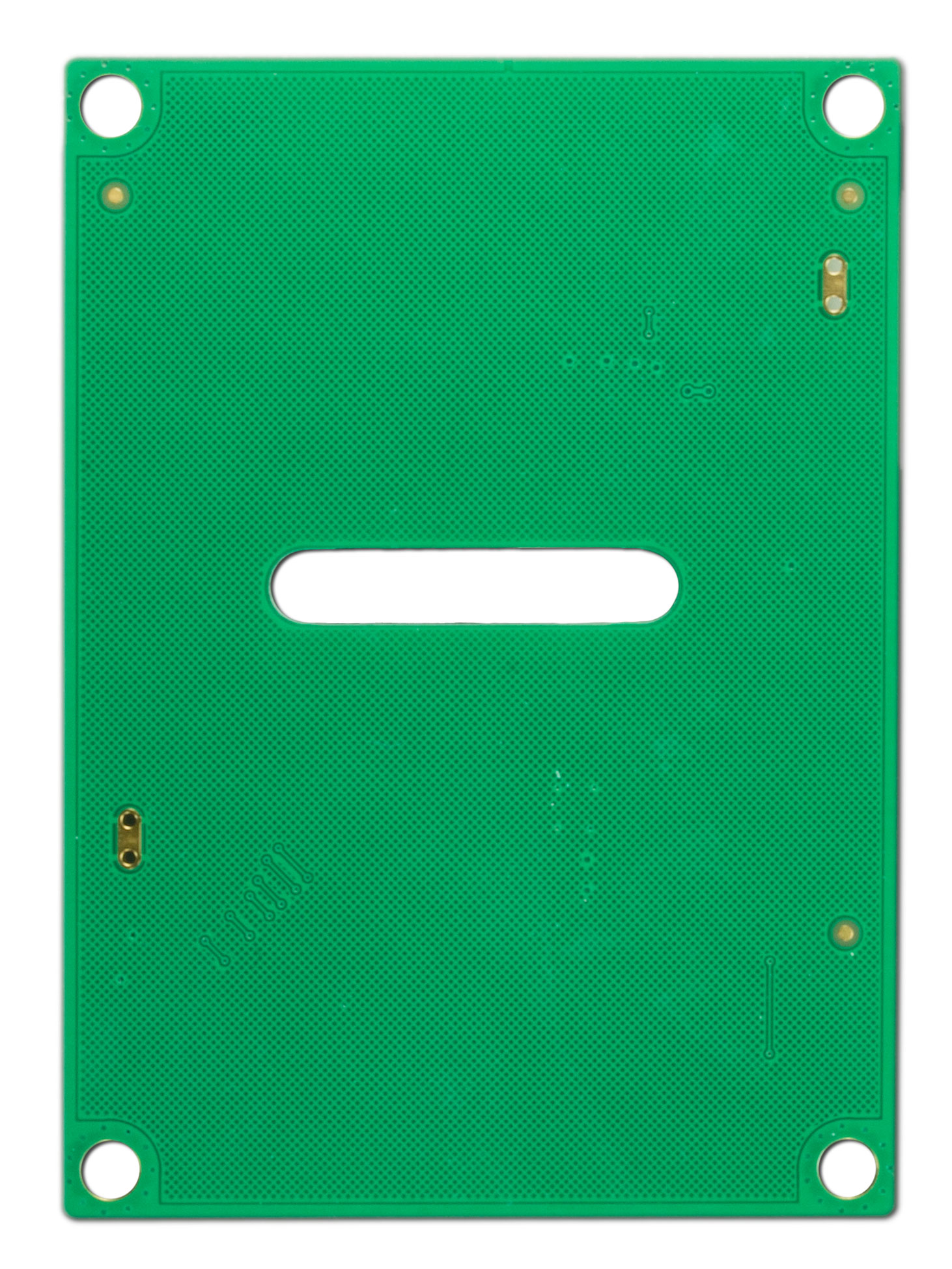

This kit consists of a CFAF240320B1-032T-TS TFT LCD module mounted on a carrier board. The carrier board supports a current driver for the LED backlight of the display. It is available under Additional Options on the website page for CFAF240320B1-032T-TS.

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 240 x 320
    Module Overall width height depth
    millimeters 57.04 78.7 4.2
    inches 2.246 3.098 0.165
    *width / height does not include Foldable Tab
    Diagonal Dimension 3.19"
    Viewing Area Width Height
    millimeters 50.6 66.52
    inches 1.992 2.619
    Active Area Width Height
    millimeters 48.6 64.8
    inches 1.913 2.551
    Dot Pitch Width Height
    millimeters 0.2025 0.2025
    inches 0.0080 0.0080
    Flexible Cable (FFC/FPC) length
    millimeters 50
    inches 1.969
    Weight 30g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TN
    Polarizer Transmissive
    View Direction 12 o'clock
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Typical 3.3V
    Supply Voltage for Driving Panel Typical 3.3V
    Supply Current Typical 8mA
    Module Connector Pitch 0.5mm
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Typical 12.8V
    Forward Current Typical 20mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7789V
    ST7789V Datasheet
    Sitronix ST7789V
    240RGB x 320 dot 262K Color with Frame Memory
    Single-Chip TFT Controller/Driver
    Sitronix ST7789V
    Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

    Interface 16-bit Parallel, 8-bit Parallel
