We are revising this part to the CFAF240320H1-022T. Please see the Product Notice posted at the bottom of this webpage and contact sales@crystalfontz.com with any additional questions.

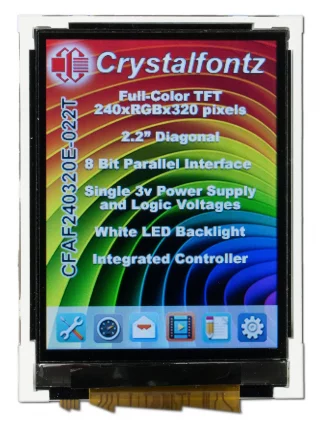

240x320 2.2" Full Color TFT LCD

Part Number: CFAF240320E-022T

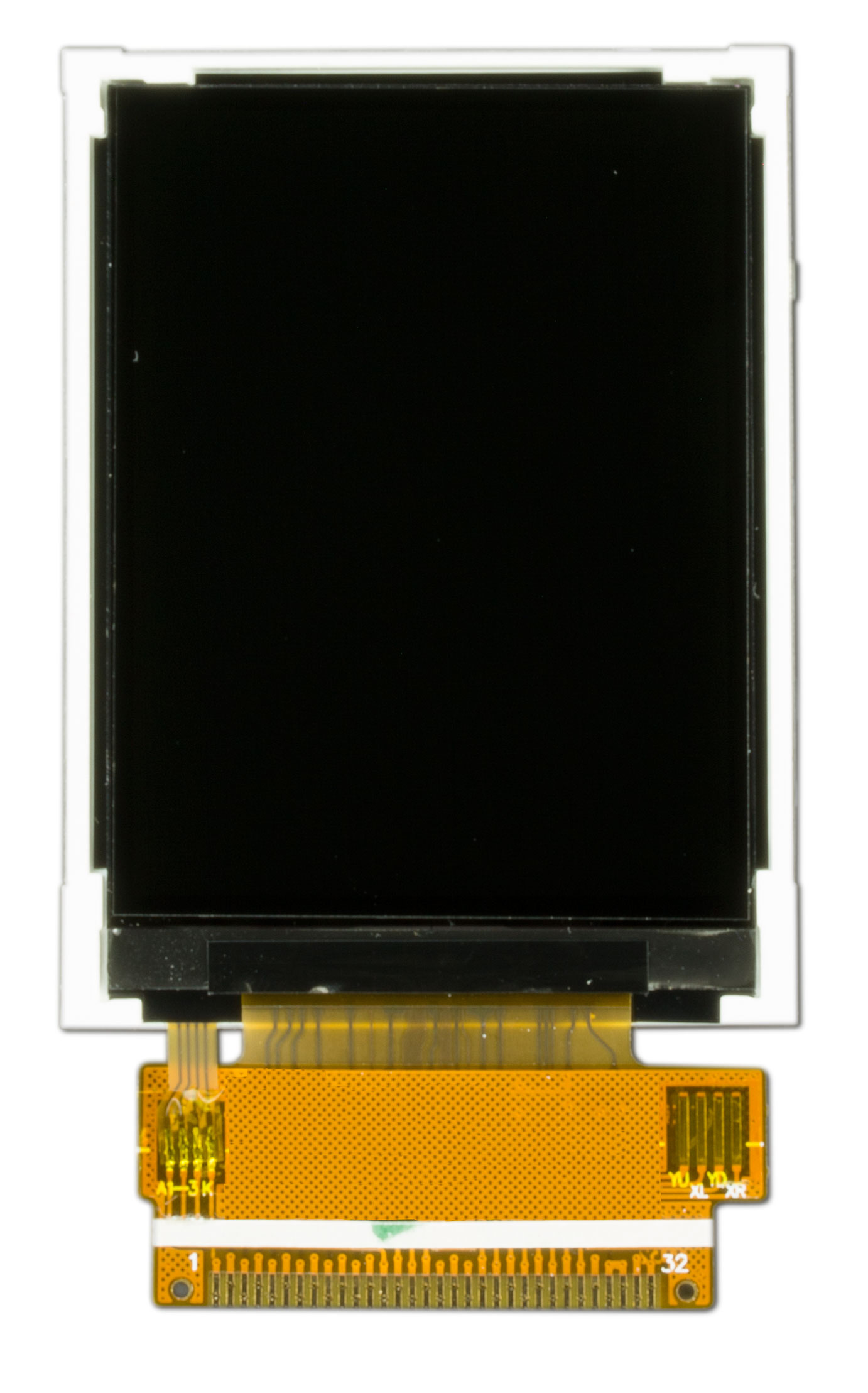

A full color 240xRGBx320 pixel TFT display module with 2.2" diagonal active area. Very small text and images look sharp on this graphic display, with its dense pixel pitch of 0.141 x 0.141 millimeters. The TFT's 6:00 o' clock viewing direction works well for devices that must be easy to read above eye level without fading, such as signal analyzers or other benchtop laboratory equipment.

Display Highlights

  • This TFT has the widely used 8-bit parallel interface.
  • With a built-in Sitronix ST7789V or compatible display controller, the logic voltage range of 2.5v to 3.3v allows direct connection to 3.3v processors.
  • Operating temperature range is -20°C to +70°C.
  • The A (anode) and K (cathode) backlight pins are brought out onto the display module's connector.
  • This active matrix display module is RoHS compliant.

Buy with confidence. Our Logistics department is experienced at sending products anywhere in the world where permitted. This TFT display module has a limited 1-year warranty and free technical support.

  • square_foot Physical Characteristics

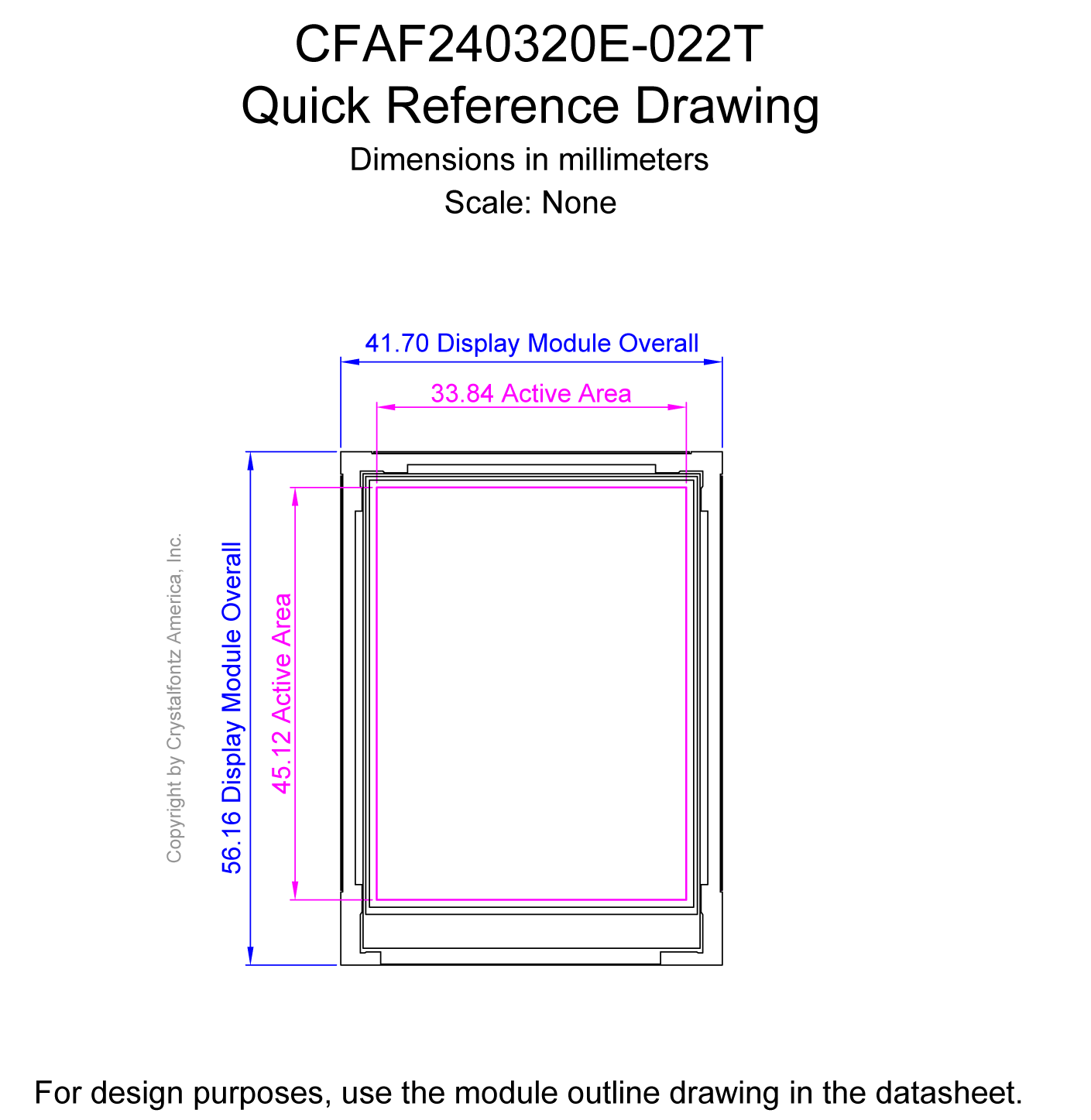

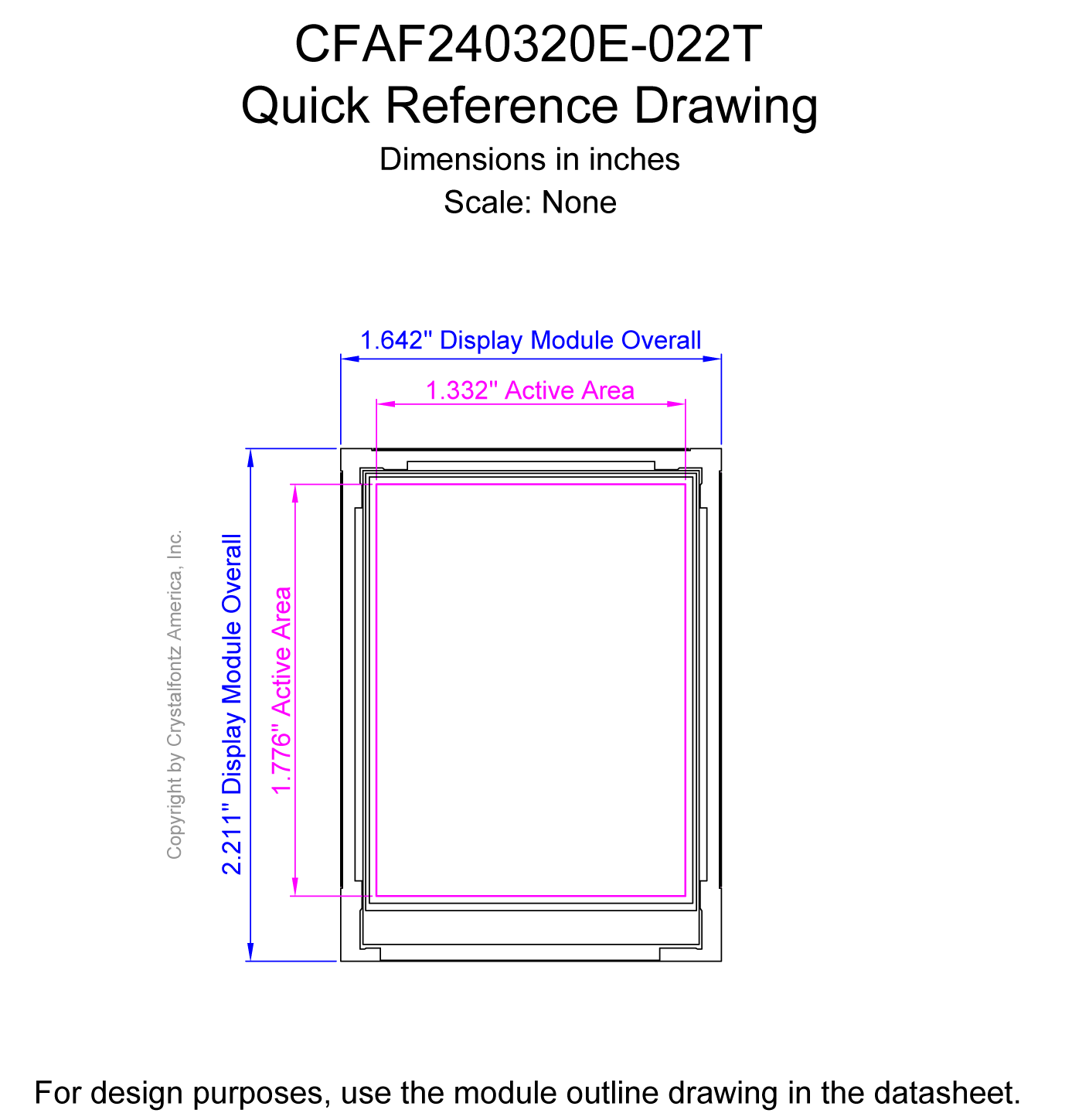

    Physical Characteristics

    Column Dots x Row Dots 240 x 320
    Module Overall width height depth
    millimeters 41.7 56.16 2.6
    inches 1.642 2.211 0.102
    *width / height does not include Foldable Tab
    Diagonal Dimension 2.22"
    Viewing Area Width Height
    millimeters 35.44 46.72
    inches 1.395 1.839
    Active Area Width Height
    millimeters 33.84 45.12
    inches 1.332 1.776
    Dot Pitch Width Height
    millimeters 0.141 0.141
    inches 0.0056 0.0056
    Flexible Cable (FFC/FPC) length
    millimeters 16.5
    inches 0.650
    Weight 10g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color TFT/Black
    Polarizer Transmissive
    View Direction 0.25 o'clock
    Backlight Color White
    Backlight Type LED
    Mode Negative
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2.4V
    Supply Voltage for Logic Maximum 4V
    Supply Voltage for Logic Typical 3.3V
    Supply Voltage for Driving Panel Typical 3.3V
    Supply Current Typical 7mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Typical 3.2V
    Forward Current Maximum 60mA
    Forward Current Typical 45mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7789V
    ST7789V Datasheet
    Sitronix ST7789V
    240RGB x 320 dot 262K Color with Frame Memory
    Single-Chip TFT Controller/Driver
    Sitronix ST7789V
    Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

    Interface 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads

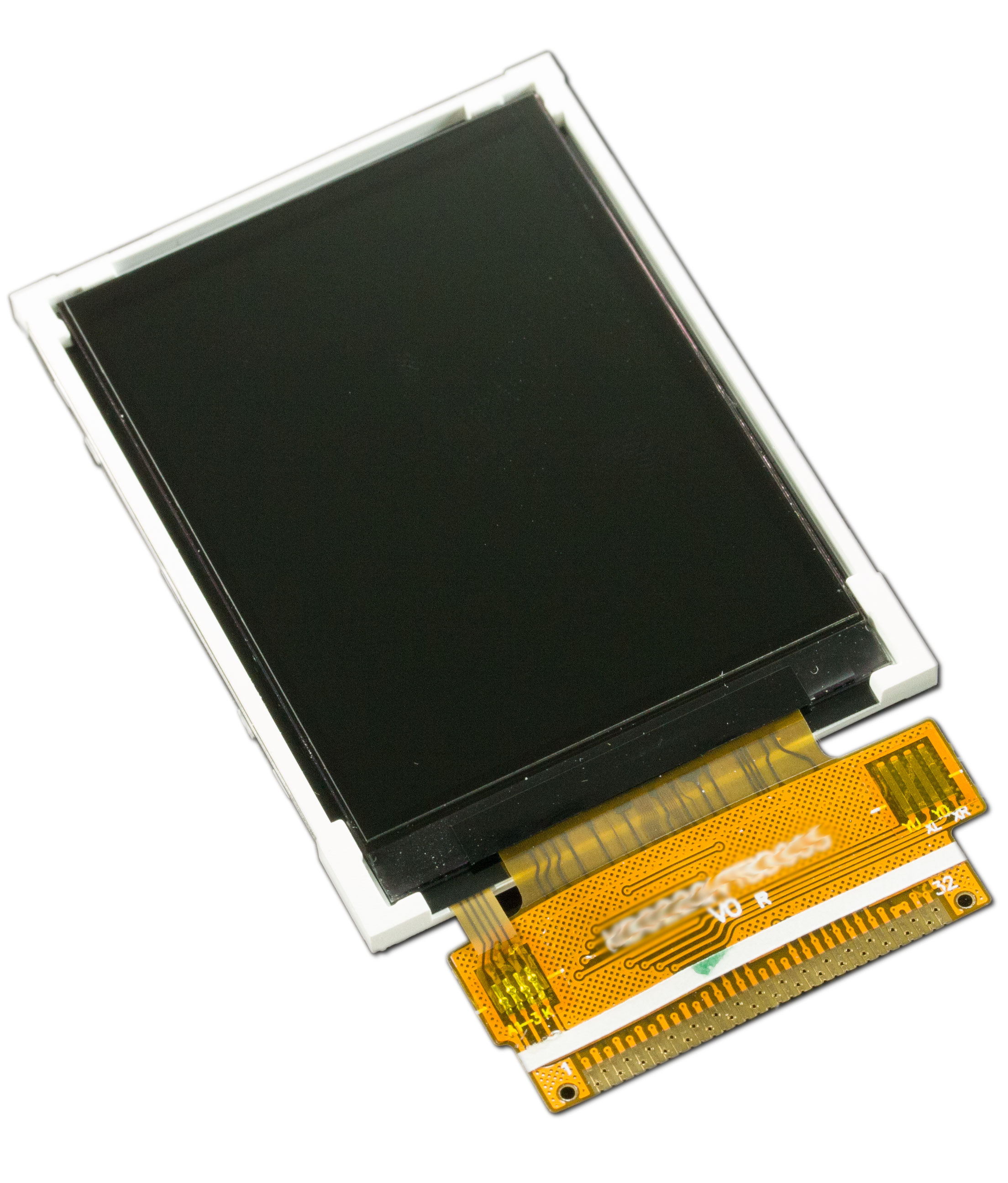

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240320E-022T or RSS RSS feed for changes to CFAF240320E-022T
  • text_snippet
    Part Change Notice #11085: End-Of-Life Notification
    Product Affected: CFAF240320E-022T
    Date Issued: April 29, 2021
    Summary: End-Of-Life Notification
    Description: This display is being replaced by the CFAF240320H1-022T.
    Reason: The CFAF240320H1-022T is a drop-in replacement and can be offered at a lower price.
    Availability: Available now.
  • text_snippet
    Product Update #10690: (New Product) CFAF240320E-022T
    New Product: CFAF240320E-022T
    Date Issued: January 13, 2016
    Summary: (New Product) CFAF240320E-022T
    Description: TFT LCD Modules: 2.2 inch 2.2" 240x320 Resolution TFT LCD Screen 8-bit parallel
