240x320 2.4" RGB TFT LCD from Crystalfontz

Product

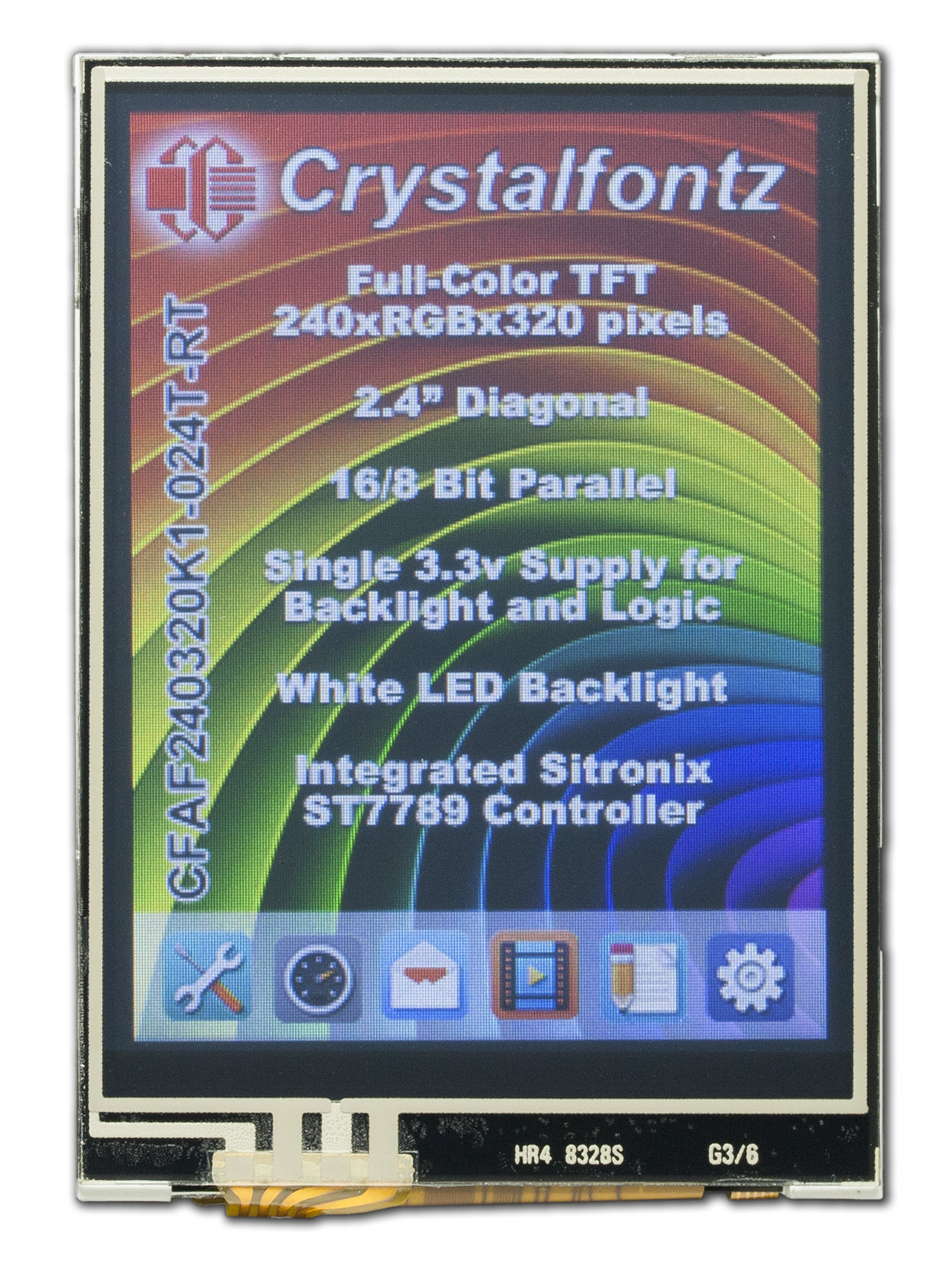

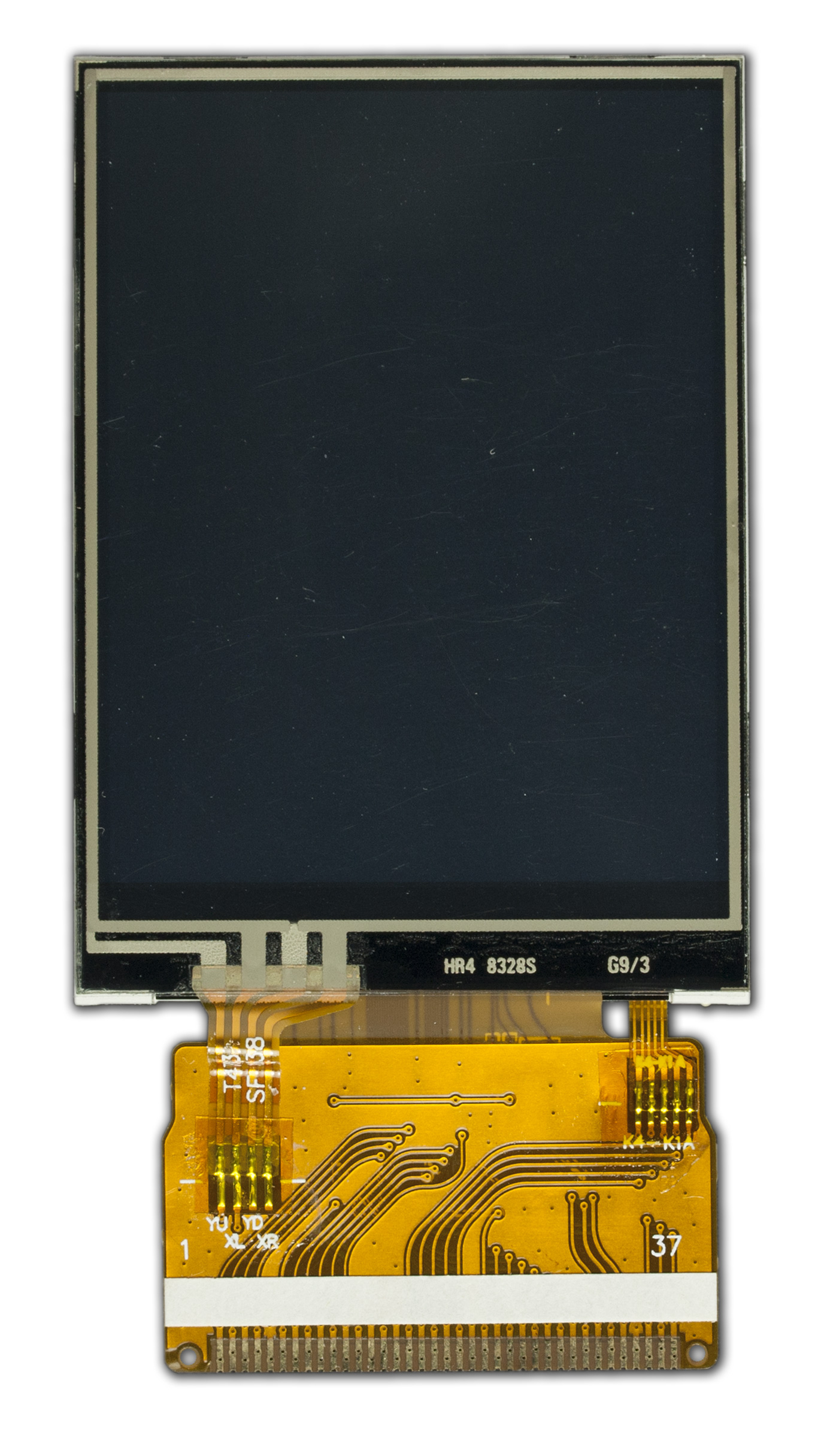

240x320 2.4" RGB TFT LCDPart Number: CFAF240320K1-024T-RTThis graphic TFT display module is a 2.4" diagonal, full-color TFT. This TFT LCD is low-power, uses a white LED backlight, and has an integrated resistive touch-screen with the connection brought out to the main TAB connector for the display.
This LCD TFT has an onboard controller and 3.3v single voltage for supply and logic. It uses an 8 or 16-bit parallel interface, specified via connections to the display.
This module looks awesome! Displaying all information in full-color.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

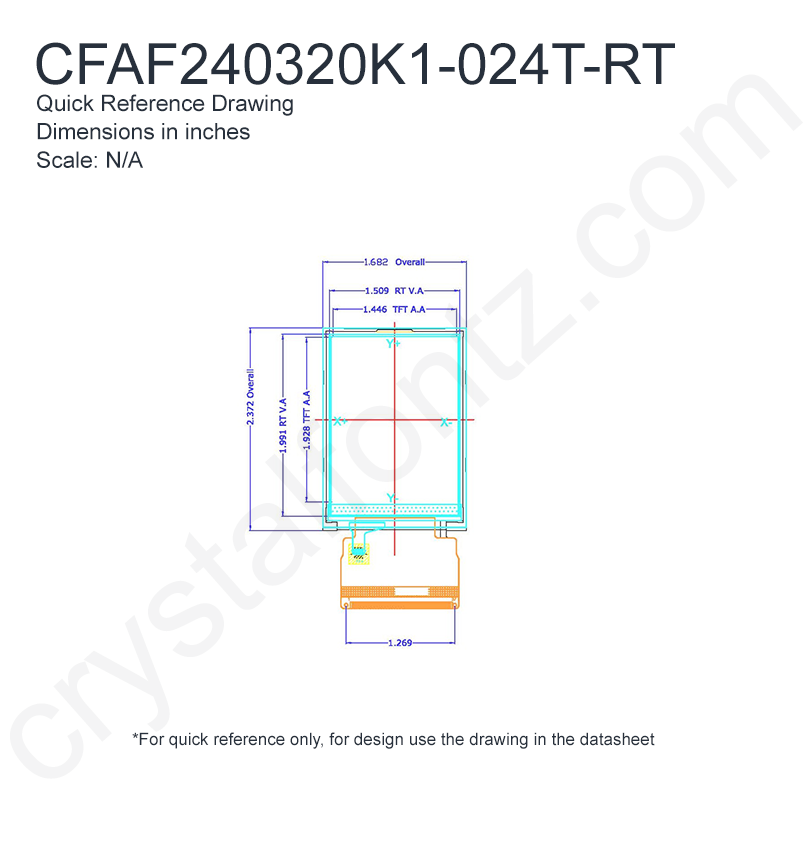

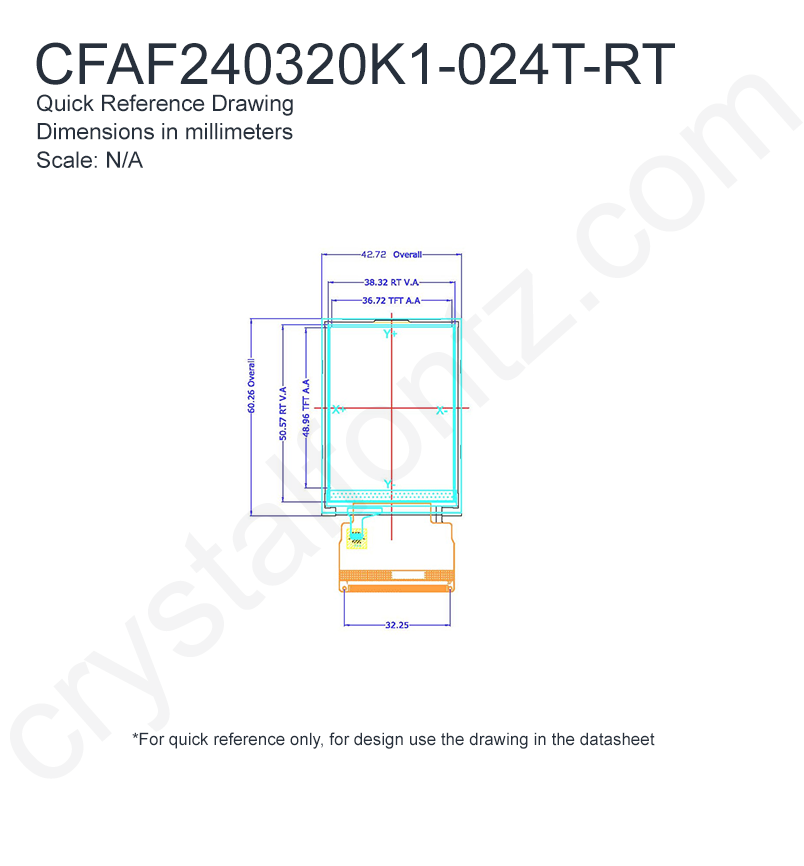

    Module Overall        width
        height
        depth

        millimeters
        42.72
        60.26
        3.8

        inches
        1.68
        2.37
        0.15

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.41"

    Viewing Area        Width
        Height

        millimeters
        38.32
        50.57

        inches
        1.51
        1.99

    Active Area        Width
        Height

        millimeters
        36.72
        48.96

        inches
        1.45
        1.93

    Dot Pitch        Width
        Height

        millimeters
        0.153
        0.153

        inches
        0.0060
        0.0060

        Weight
            18.3g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            3.3V

        Supply Current Typical
            8mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V

        Forward Current Typical
            80mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789V
Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

Interface
            16-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320K1024TRT Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Demonstration Code
picture_as_pdf Other Document - Application Schematic
link Fork this on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $36.16

            10
            $35.20

            20
            $34.02

            50
            $31.08

            100
            $28.95

            200 *
            $28.74

            300 *
            $26.84

            500 *
            $24.99

            1000 *
            $23.14

109 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Module Overall	width	height	depth
millimeters	42.72	60.26	3.8
inches	1.68	2.37	0.15
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	38.32	50.57
inches	1.51	1.99

Active Area	Width	Height
millimeters	36.72	48.96
inches	1.45	1.93

Dot Pitch	Width	Height
millimeters	0.153	0.153
inches	0.0060	0.0060

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$36.16
10	$35.20
20	$34.02
50	$31.08
100	$28.95
200 *	$28.74
300 *	$26.84
500 *	$24.99
1000 *	$23.14

Note
Notices

Product Note:

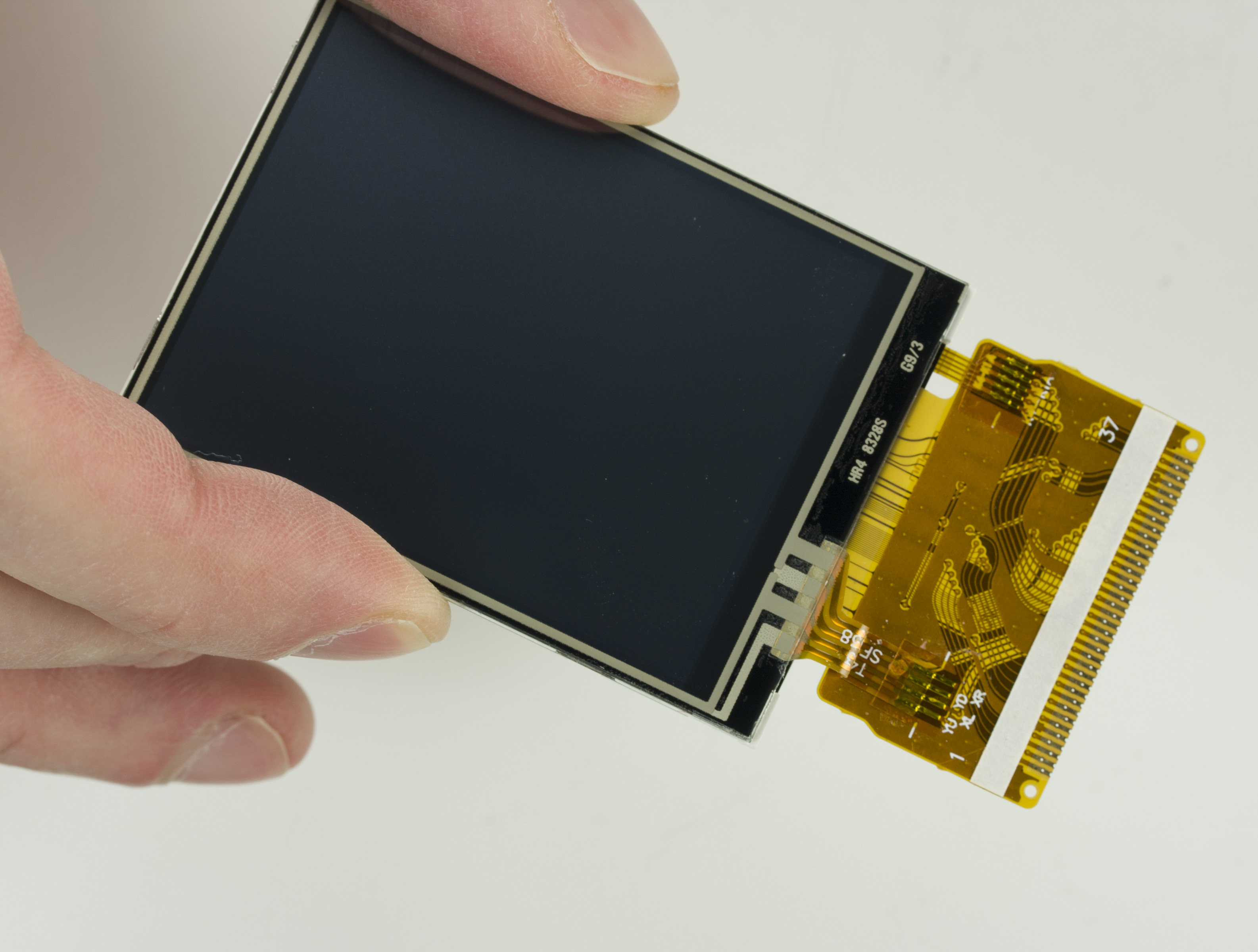

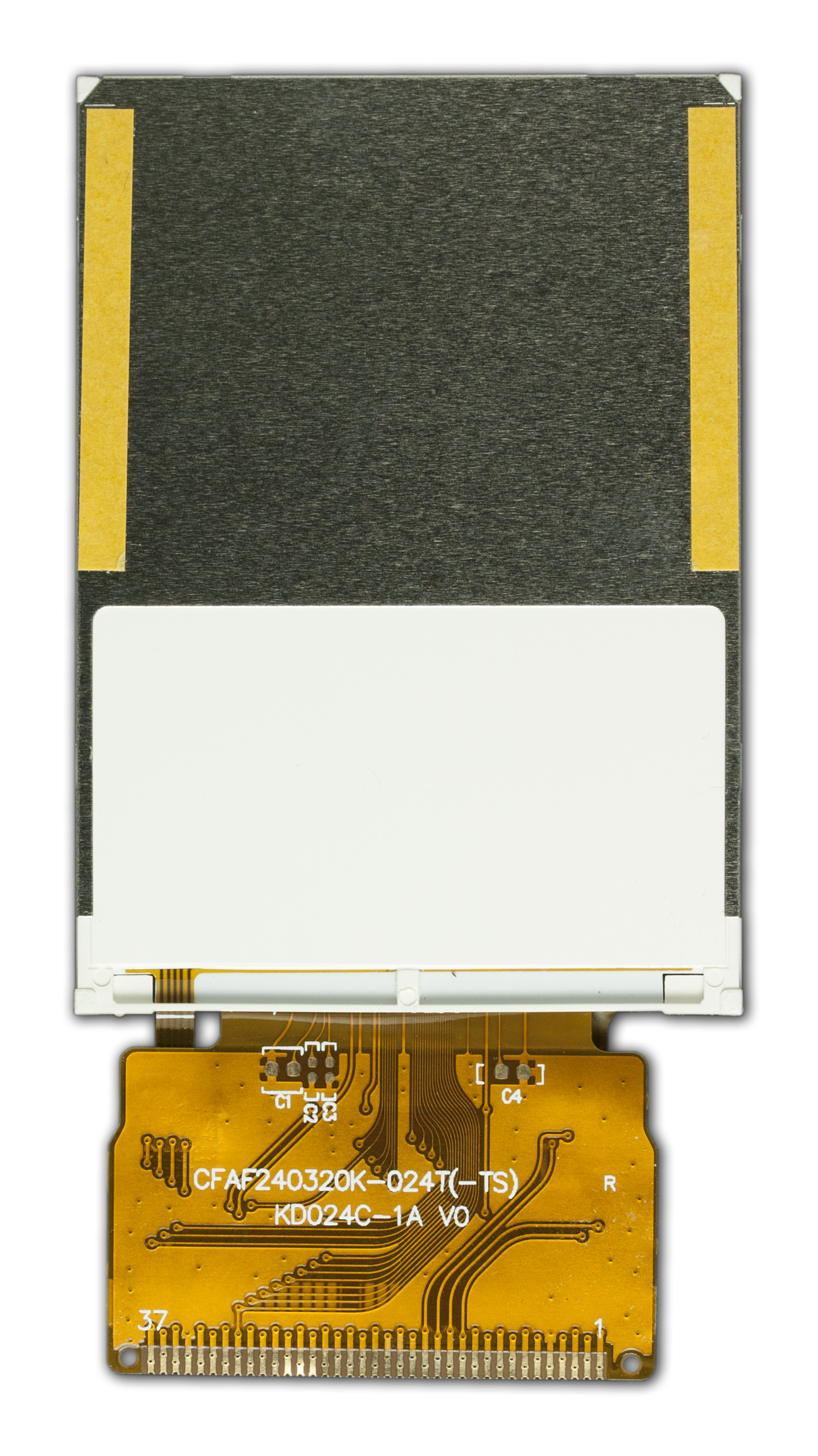

The connector on this TFT module is a flex tail mated with a "COG" (chip on glass) display construction. This style of connector is designed to be soldered directly to corresponding pads on your PCB by using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. There are hot-bar soldering machines made that are designed for prototype, rework or repair work of TAB connections.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10915: (New Product) CFAF240320K1-024T-RT

New Product:	CFAF240320K1-024T-RT
Date Issued:	December 26, 2017
Summary:	(New Product) CFAF240320K1-024T-RT
Description:	TFT LCD Module: 240x320 2.4-inch full-color TFT display with a resistive touchscreen. This LCD is meant to replace the end-of-life CFAF240320K-024T-TS. It is not a drop-in replacement as it requires changing the initialization code. See all product specifications here: https://www.crystalfontz.com/product/cfaf240320k1024trt-240x320-rgb-tft-lcd

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF240320K1-024T-RT

240x320 2.4" RGB TFT LCD

Part Number: CFAF240320K1-024T-RT

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Product Note:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10915: (New Product) CFAF240320K1-024T-RT

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	TFT/Black
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	RGB
Background Color	Dark

Controller Documents	Sitronix ST7789V Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver
Interface	16-bit Parallel, 8-bit Parallel
