[EOL] 3.2 inch Parallel TFT

Part Number: CFAF240320S-032T

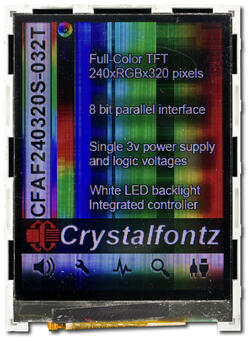

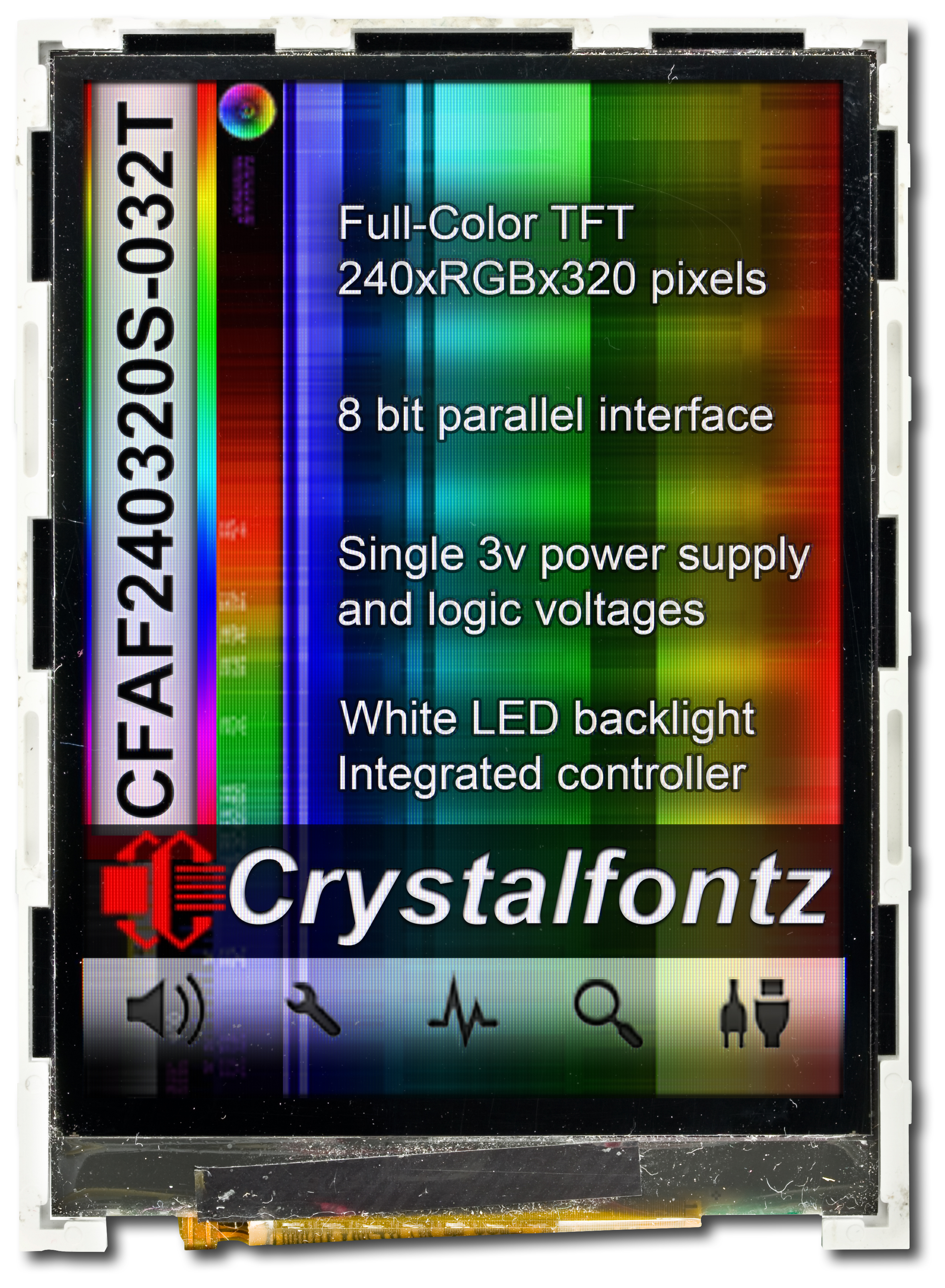

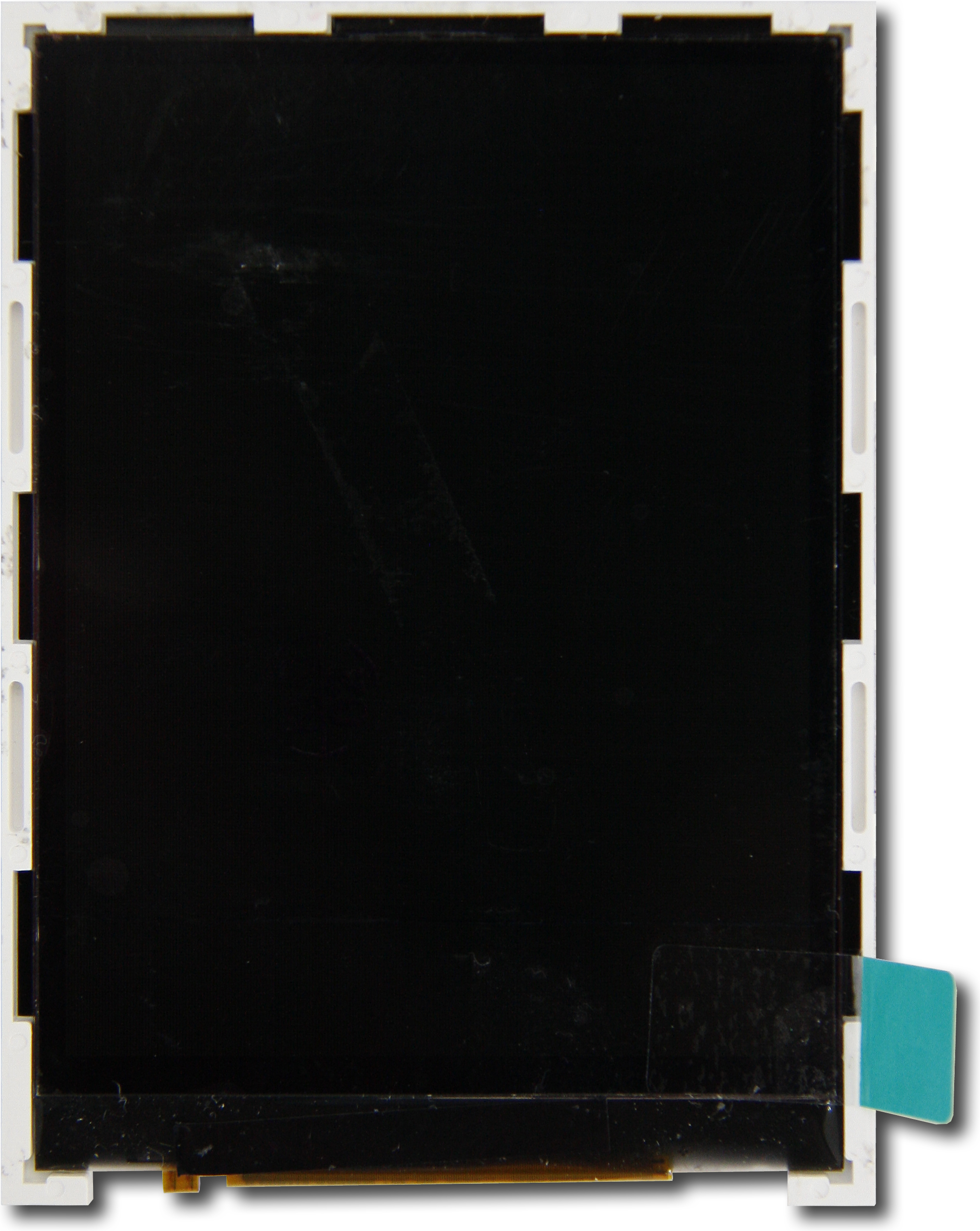

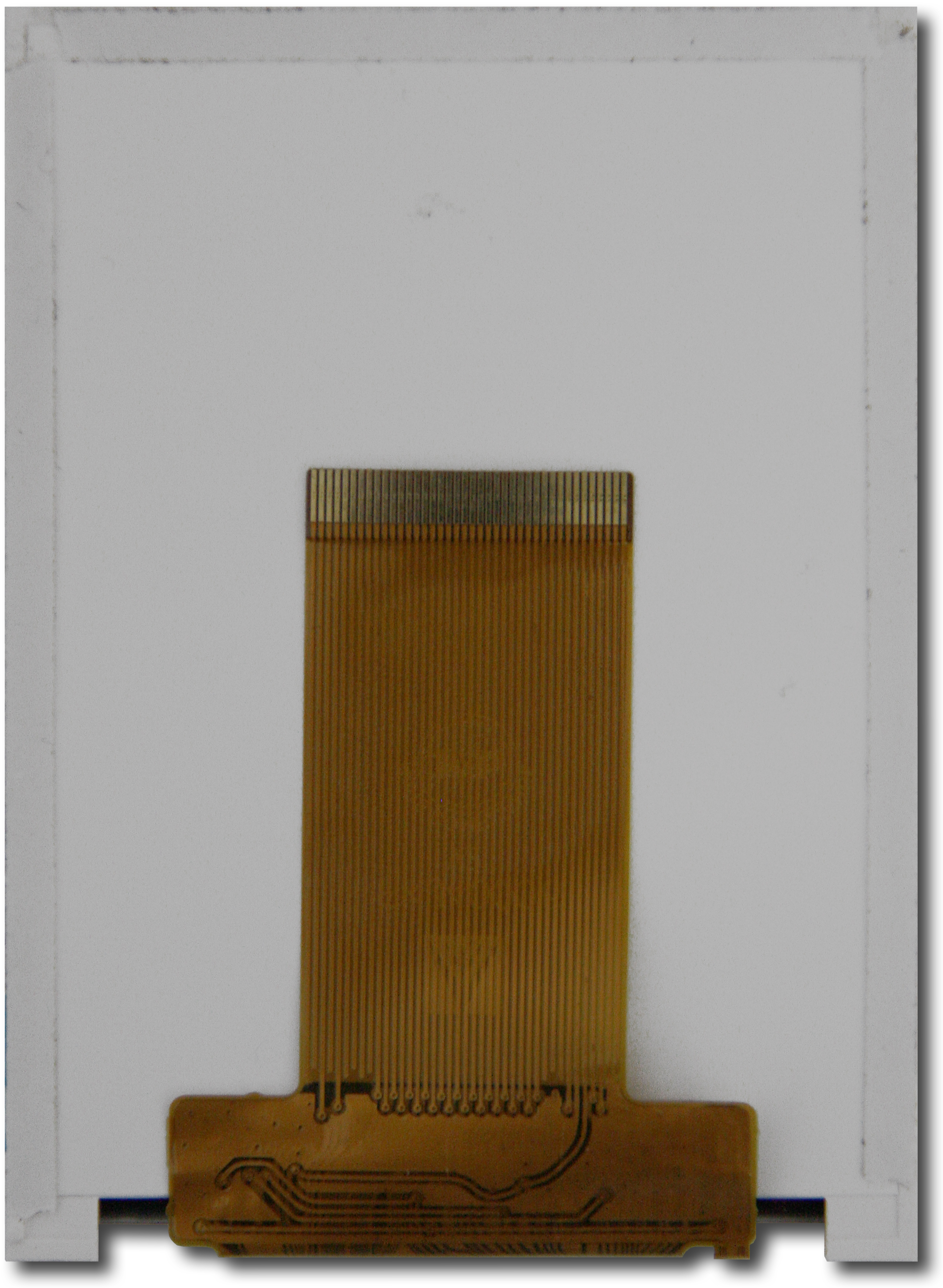

This is a 3.2" diagonal, 240x320 pixel graphic TFT display module. Colors are displayed vibrantly and accurately, with 262,000 possible shades to bring stunning detail to any image. Its low power consumption makes this module a great choice for the display in your handheld or embedded product. Attractive pricing reduces the cost of your bill of materials without compromising on quality. The display includes an on-board controller and integrated white LED backlight. A single 40 pin, 0.5mm pitch FPC makes all the connections to the display, including the backlight. A standard ZIF mating connector can easily be mounted to your PCB (609-1200-1-ND, 609-1195-1-ND or similar).

  • 240xRGBx320 Full color graphic TFT module
  • Built-in Orise OTM3225A controller. It is compatible with the ILITek ILI9325 controller.
  • 18/16-bit parallel interface
  • Wide Temperature Range
  • RoHS Compliant
  • square_foot Physical Characteristics

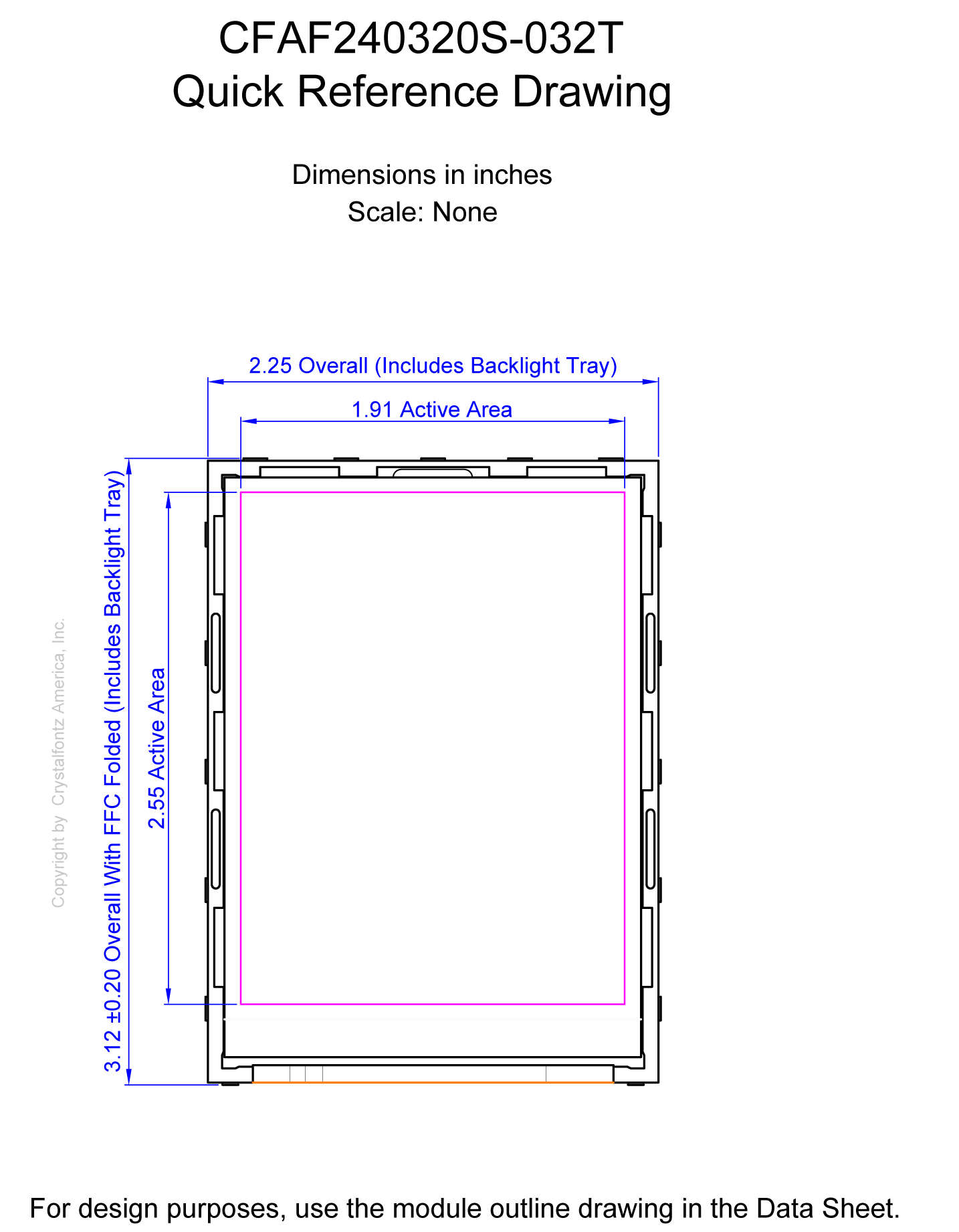

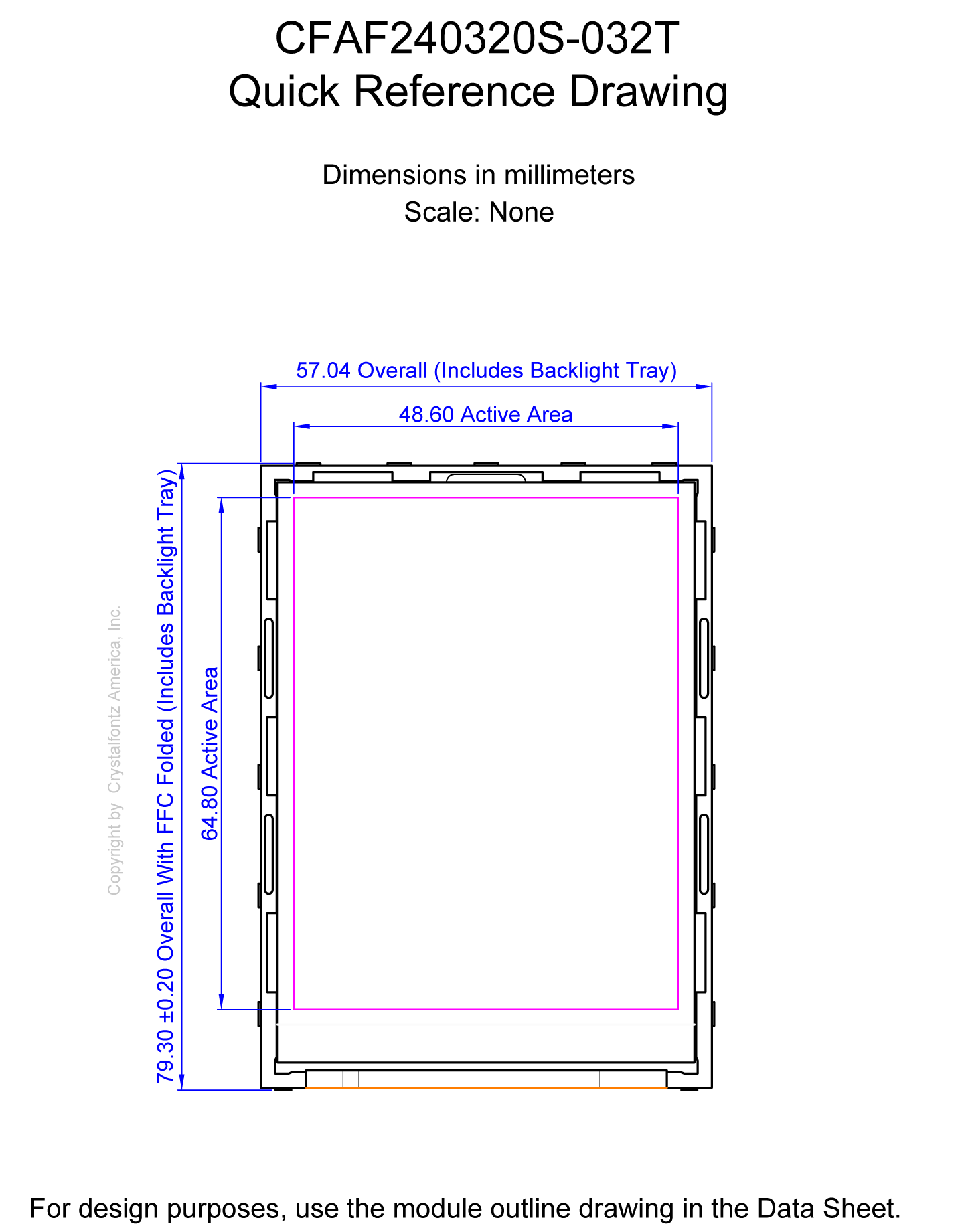

    Physical Characteristics

    Column Dots x Row Dots 240 x 320
    Module Overall width height depth
    millimeters 57.04 78.7 3.1
    inches 2.246 3.098 0.122
    *width / height does not include Foldable Tab
    Diagonal Dimension 3.2"
    Viewing Area Width Height
    millimeters 52.74 74.4
    inches 2.076 2.929
    Active Area Width Height
    millimeters 48.6 64.8
    inches 1.913 2.551
    Dot Pitch Width Height
    millimeters 0.2 0.2
    inches 0.008 0.008
    Weight 21g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color TFT/Black
    Polarizer Transmissive
    View Direction 9 o'clock
    Backlight Color White
    Backlight Type LED
    Mode Negative
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2.7V
    Supply Voltage for Logic Maximum 3.3V
    Supply Voltage for Logic Typical 2.8V
    Supply Current Typical 8mA
    Module Connector Pitch 0.5mm
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 12.4V
    Forward Voltage Maximum 13.2V
    Forward Voltage Typical 12.8V
    Forward Current Typical 15mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Orise Tech OTM3225A
    OTM3225A
    720-channel 6-bit source driver and
    320-channel gate driver
    with System-On-Chip (SOC) for color
    amorphous TFT LCD
    Interface 16-bit Parallel, 18-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240320S-032T or RSS RSS feed for changes to CFAF240320S-032T
  • text_snippet
    Part Change Notice #10675: CFAF240320S-032T End of Life
    Product Affected: CFAF240320S-032T
    Date Issued: October 7, 2015
    Summary: CFAF240320S-032T End of Life
    Last revision: S
    Description: CFAF240320S-032T is End Of Life as of 2015-10-07. This part is no longer being manufactured.
    Reason: Due to the discontinuation of this part's controller, this part can no longer be manufactured.
    Impact: Immediate.
    Recommendation: We are working diligently to source a replacement part. Once identified, we will issue a second PCN with the replacement part information.
    Availability: Current stock will be available until exhausted.
    Part will then be unavailable.
    Price Change: N/A
