CFAF240400D-030T TFT With Carrier Board

Part Number: CFAF240400D-030T-CB


Quantity Price
1 * $52.49
10 * $50.96
20 * $47.98
50 * $42.20
100 * $39.30
* Contact us about potential lead times.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

CFAF240400D-030T TFT With Carrier Board (CFAF240400D-030T-CB)

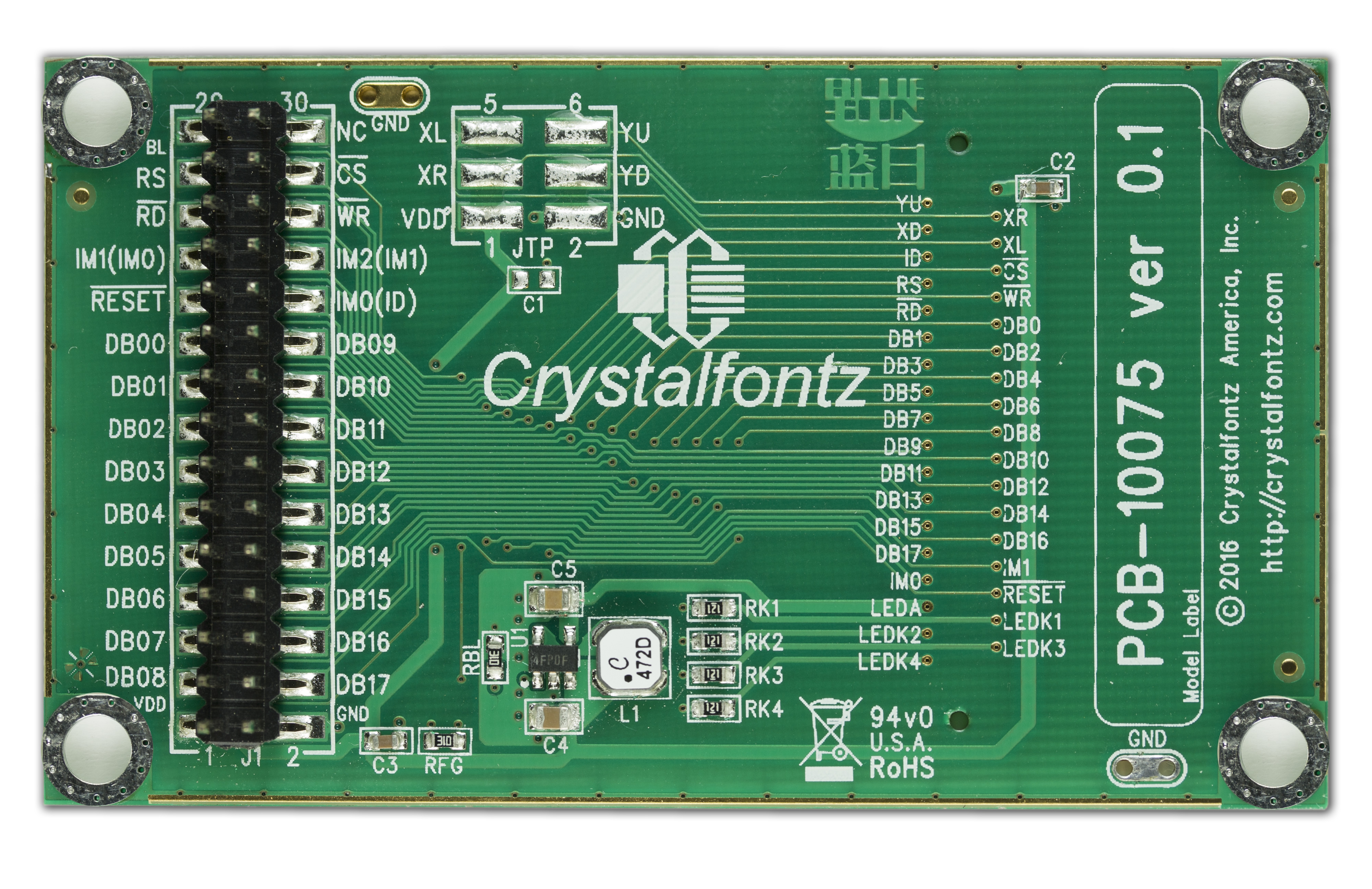

This kit consists of a CFAF240400D-030T TFT LCD module mounted on a carrier board. The carrier board supports a driver for the LED backlight of the display. It is available under Additional Options on the website page for CFAF240400D-030T.


Physical Characteristics

Column Dots x Row Dots 240 x 400
Module Overall width height depth
millimeters 45.04 77 2.6
inches 1.773 3.031 0.102
*width / height does not include Foldable Tab
Diagonal Dimension 3.000"
Viewing Area width height
millimeters 43 68.8
inches 1.693 2.709
Active Area width height
millimeters 38.88 64.8
inches 1.531 2.551
Dot Pitch width height
millimeters 0.16 0.16
inches 0.006 0.006
Weight 30g

Optical Characteristics

Glass Type/Glass Color TFT/Black
Polarizer Transmissive
View Direction 12 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.7V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 2.8V
Module Connector Pitch 0.8mm

Backlight Electrical Specifications

Forward Voltage Typical 3.2V
Forward Current Typical 60mA


Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%


Controller Orise Tech SPFD5420A
Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel


Foldable Tab Yes

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240400D-030T-CB or RSS RSS feed for changes to CFAF240400D-030T-CB

Part Change Notice #10981: End-Of-Life Notification for CFAF240400D-030T

Products Affected: CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1
Date Issued: August 9, 2018
Summary: End-Of-Life Notification for CFAF240400D-030T
Reason: The Orise Tech OTM4001A Controller chip has been discontinued by the manufacturer. No direct replacement is available.
Impact: This product will no longer be available when current stock is depleted. A last-time buy is not available.
Recommendation: Replacement parts will be available by the first quarter of 2019. Information regarding the replacement parts will be posted on our website and in our newsletter as it becomes available.
Availability: Contact Sales for more information on the availability of the CFAF240400D-030T. Availability of replacement parts is to be determined.

Product Update #10857: Update to PUN #10842: Functional change the BL (Pin 29)

Products Affected: CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1
Date Issued: June 1, 2017
Summary: Update to PUN #10842:
Functional change the BL (Pin 29)
Description: On the 2BM-10005, the pin that enabled and disabled the backlight (Pin 29) was left floating with the expectation that the host system would drive that line.

On the CFA-10075, that pin is tied to GND using a 1M Ohm resistor.

Reason: Customer feedback has shown that this pin is not always being driven in every situation and the cut over between the 2BM-10005 and the CFA-10075 has caused compatibility issues.
Impact: Customers not specifically enabling this pin, by driving it high, will find that the backlight does not illuminate.
Recommendation: It is important to ensure that when using this carrier board, the BL pin should be driven by the host system. Preferably using a GPO in order to actively toggle the backlight.
Availability: Immediate
Price Change: None at this time

Product Update #10842: CFA10075 replacing 2BM-10005

Products Affected: CFAF240400D-030T, CFAF240400D-030T-CB, CFAF240400D-030T-CB1
Date Issued: February 16, 2017
Summary: CFA10075 replacing 2BM-10005
Description: 2BM-10005 carrier board being replaced by CFA10075 carrier board
Reason: As part of our continuous improvement, the design and manufacture of carrier board has been brought under in-house control.
Impact: none
Recommendation: The CFA-10075 has been designed and tested to be Fit, Form, and Functional compatible with the 2BM-10005. Testing in systems is encouraged, as with any product update.
Availability: Immediate
Price Change: None at this time.

Product Update #10362: New Product in TFT LCD Modules: CFAF240400D-030T-CB

New Product: CFAF240400D-030T-CB
Date Issued: August 11, 2011
Summary: New Product in TFT LCD Modules: CFAF240400D-030T-CB
Description: 2BM-10005 carrier board plus CFAF240400D-030T TFT display module.
