CFAF480272C2-043T-TS TFT With Carrier Board

Part Number: CFAF480272C2-043T-TS-CB

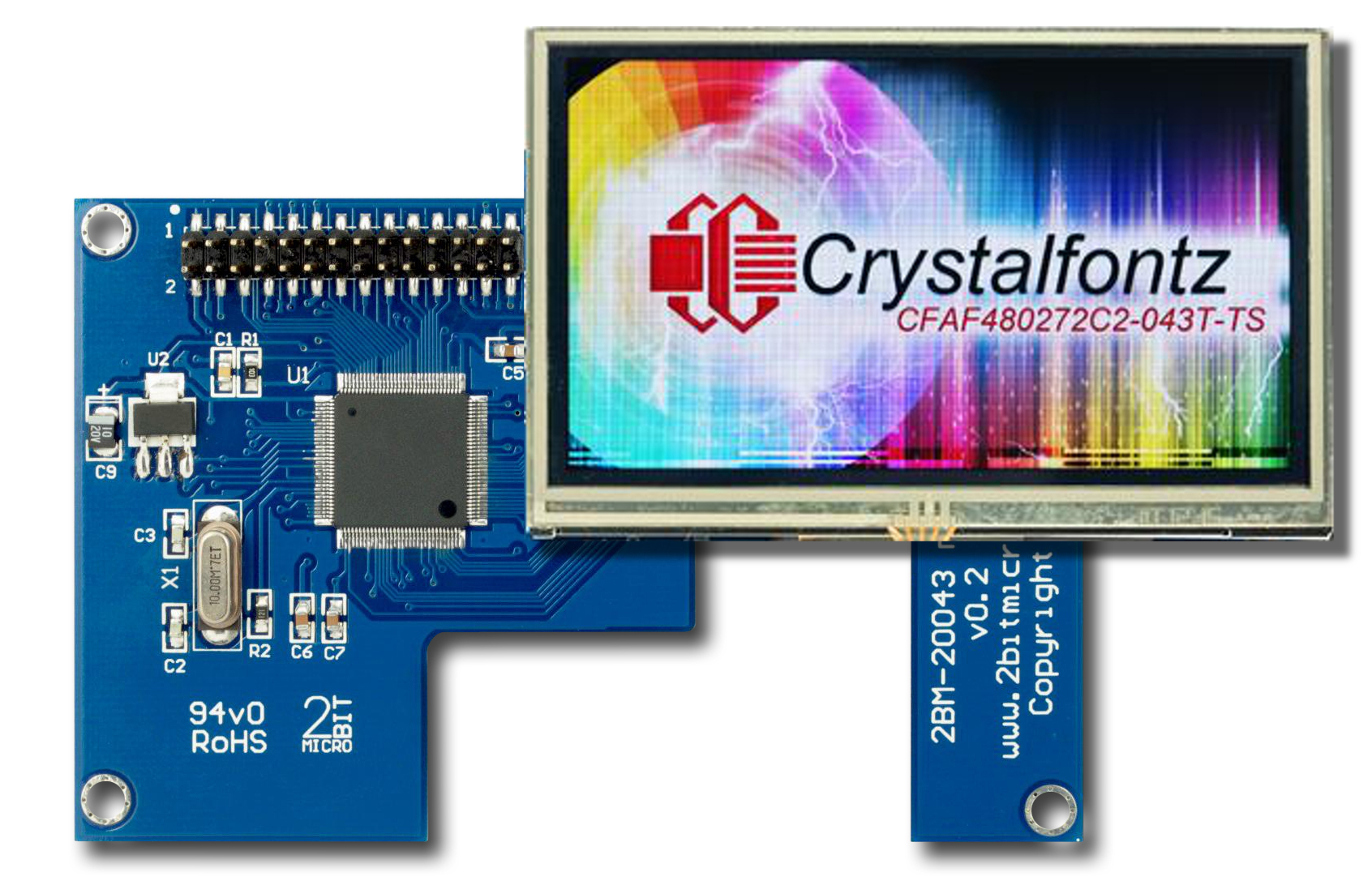

This kit consists of a CFAF480272C2-043T-TS touchscreen TFT LCD module mounted on a carrier board. The carrier board supports a current driver for the LED backlight of the display. It is available under Additional Options on the website page for CFAF480272C2-043T-TS.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 480 x 272
Module Overall width height depth
millimeters 105 67.2 4.05
inches 4.134 2.646 0.159
*width / height does not include Foldable Tab
Diagonal Dimension 4.3"
Viewing Area width height
millimeters 98.04 56.86
inches 3.860 2.239
Active Area width height
millimeters 95.04 53.85
inches 3.742 2.120
Dot Size width height
millimeters 0.2 0.2
inches 0.008 0.008
Weight 81g

Optical Characteristics

Glass Type TFT/Black
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Module Connector Pitch 0.35mm

Backlight Electrical Specifications

Forward Voltage Typical 19.8V
Forward Current Typical 40mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Miscellaneous

Foldable Tab Yes
Touch Screen yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF480272C2-043T-TS-CB or RSS RSS feed for changes to CFAF480272C2-043T-TS-CB

Product Update #10447: (New Product) CFAF480272C2-043T-TS-CB

New Product: CFAF480272C2-043T-TS-CB
Date Issued: November 16, 2012
Summary: (New Product) CFAF480272C2-043T-TS-CB
Description: Under TFT LCD Modules: CFAF480272C2-043-T-TS with 2BM-20043 carrier board.

Product Update #10416: (New Product) CFAF480272C2-043T-TS-CB

New Product: CFAF480272C2-043T-TS-CB
Date Issued: May 11, 2012
Summary: (New Product) CFAF480272C2-043T-TS-CB
Description: Under TFT LCD Modules: CFAF480272C2-043-T-TS with 2BM-20043 carrier board.
