4.3" 480x272 Capacitive Touch Screen

Part Number: CFAF480272G-043T-CTS

Datasheet

4.3" 480x272 Capacitive Touch Screen (CFAF480272G-043T-CTS)

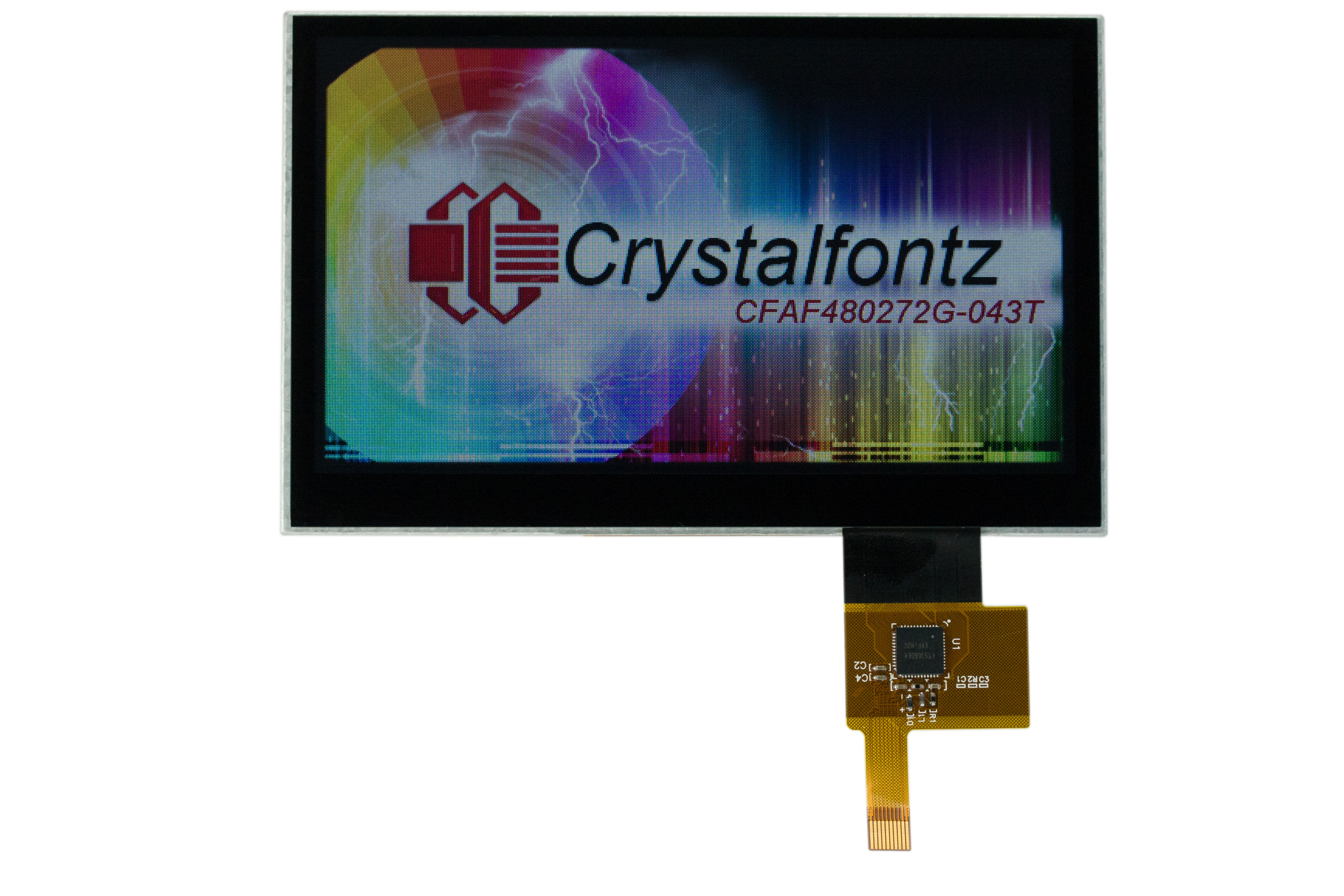

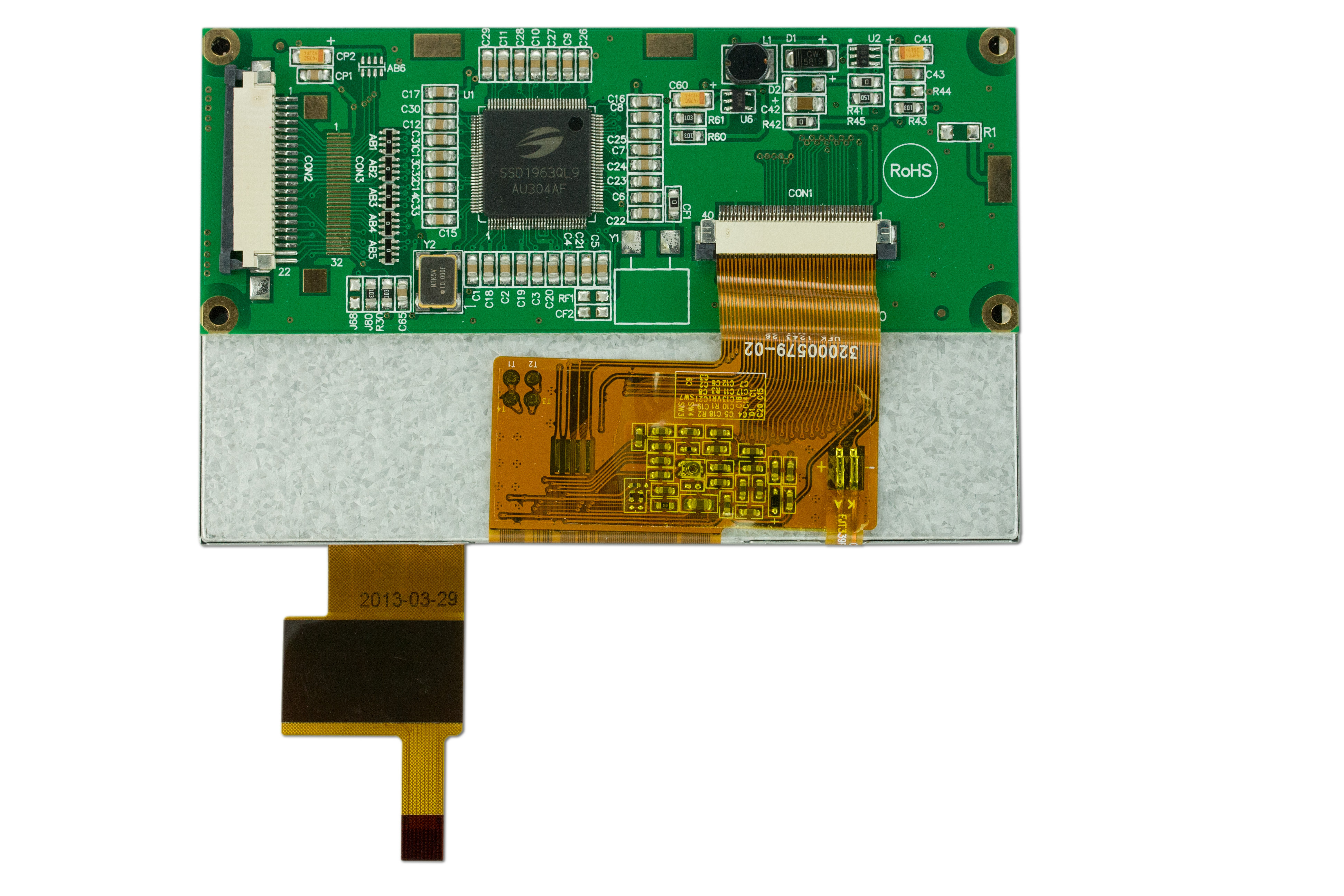

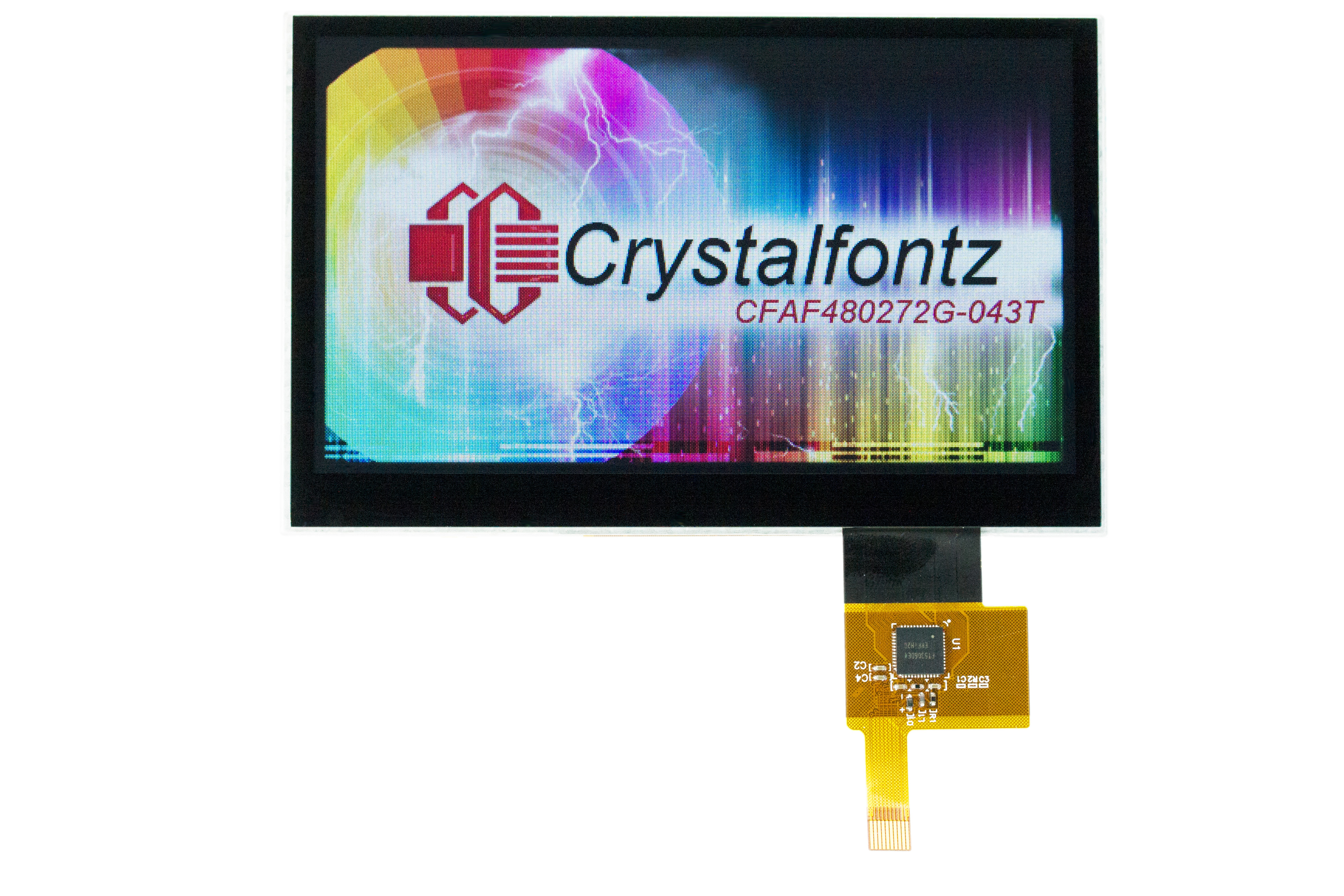

CFAF480272G-043TCTS Rear View w/ full tail 4.3 480x272 Resolution RGB Color TFT LCD Capacitive Touch Screen 8-bit parallel CFAF480272G-043TCTS Front View w/ full tail 4.3 480x272 Resolution RGB Color TFT LCD Capacitive Touch Screen 8-bit parallel

Description

  • 480xRGBx272 Full color graphic TFT module
  • Built-in Solomon Systech SSD1963 or compatible controller
  • Capacitive touch screen
  • 8-bit parallel interface
  • Wide Temperature Range
  • RoHS Compliant

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 480 x 272
Module Overall width height depth
millimeters 105.5 67.2 8.11
inches 4.154 2.646 0.319
Diagonal Dimension 4.300"
Viewing Area width height
millimeters 97 56
inches 3.819 2.205
Active Area width height
millimeters 95.04 53.85
inches 3.742 2.120
Dot Size width height
millimeters 0.07 0.2
inches 0.003 0.008
Weight 78g

Optical Characteristics

Glass Type TFT/Black
Polarizer Transmissive
View Direction 12 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Current Typical 213mA
Module Connector Pitch 1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Solomon Systech SSD1963
SSD1963 1215KB Embedded Display SRAM
LCD Display Controller (also known as KD45789)
Interface 8-bit Parallel

Miscellaneous

Touch Screen yes
