CFAF800480C1-050T TFT With Carrier Board

Part Number: CFAF800480C1-050T-CB

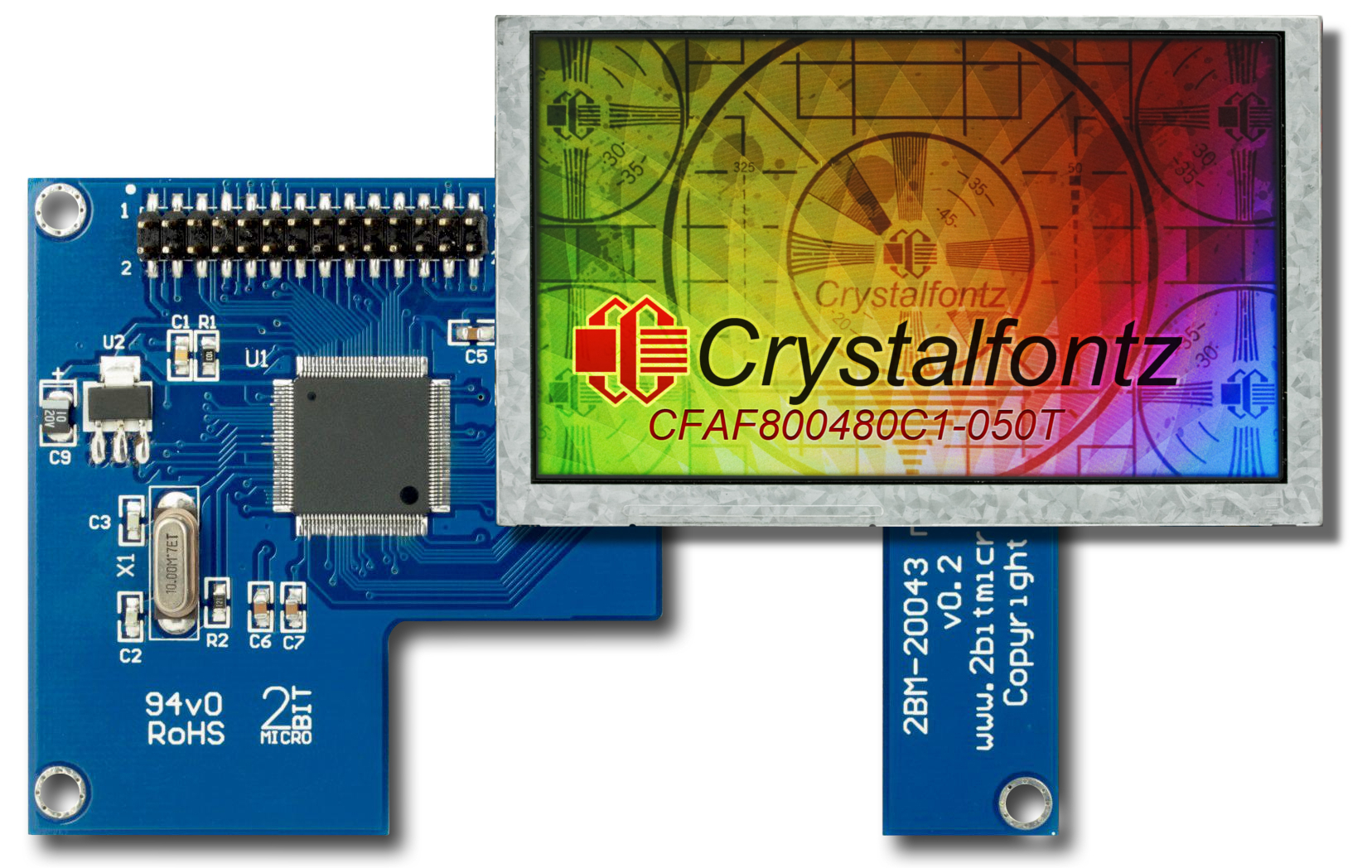

This kit consists of a CFAF800480C1-050T TFT LCD module mounted on a carrier board. The carrier board supports a current driver for the LED backlight of the display.

• grid_on Resolution

  Pixel Grid

  Column Dots	800 px
  Row Dots	480 px

• square_foot Physical Dimensions

  Module	Metric	Imperial
  Overall Width	118.50 mm	4.665 in
  Overall Height	77.55 mm	3.053 in
  Overall Depth	3.70 mm	0.146 in
  Diagonal Dimension	5 in
  Weight	92.8 g

  Display Area	Metric	Imperial
  Active Area Width	108.00 mm	4.252 in
  Active Area Height	64.80 mm	2.551 in
  Viewing Width	111.10 mm	4.374 in
  Viewing Height	87.90 mm	3.461 in

  Character Geometry	Metric	Imperial
  Character Width	0.14 mm	0.006 in
  Character Height	0.14 mm	0.006 in

  Dot Geometry	Metric	Imperial
  Dot Size Width	0.14 mm	0.006 in
  Dot Size Height	0.14 mm	0.006 in

• build Mechanical

  Connectors

  Module Connector Pitch	0.50 mm (0.02 in)
  Foldable Tab	Yes

• visibility Display Optics

  Technology

  Display Technology	TFT
  Display Addressing	Active
  Glass Type	TFT
  Mode	Transmissive
  Polarizer	Negative

  Viewing

  View Direction

  6 o'clock

• palette Color & Appearance

  Display Colors

  Foreground Color	RGB
  Background Color	Dark

  Backlight

  Backlight Type	LED
  Backlight Color	White

• electric_bolt Electrical

  Display	Min	Typ	Max	Unit
  Supply Voltage - Logic
  Supply Voltage for Logic	3	3.3	3.6	V
  Supply Current	—	—	220	mA

  Backlight	Min	Typ	Max	Unit
  Voltage
  Forward Voltage	—	23.1	—	V
  Current
  Forward Current	—	40	—	mA

• cable Interface

  Available Interfaces

  Standard Interface(s)

  DOT-CLK / Generic RGB

• nature Environmental

  Temperature

  	Min (°C)	Max (°C)	Min (°F)	Max (°F)
  Operating Temperature	-20°C	70°C	-4°F	158°F
  Storage Temperature	-30°C	80°C	-22°F	176°F

  Humidity

  Relative Humidity

  0% to 90% RH (non-condensing)
