800x480 5" Capacitive Touchscreen TFT

Part Number: CFAF800480E0-050SC

Pricing

Quantity Price
1 * $48.30
10 * $42.00
20 * $40.50
50 * $39.00
100 * $38.40
200 * $37.80
500 * $37.50
1000 * $35.34
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.


Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF800480E0-050SC or RSS RSS feed for changes to CFAF800480E0-050SC for CFAF800480E0-050SC


Description

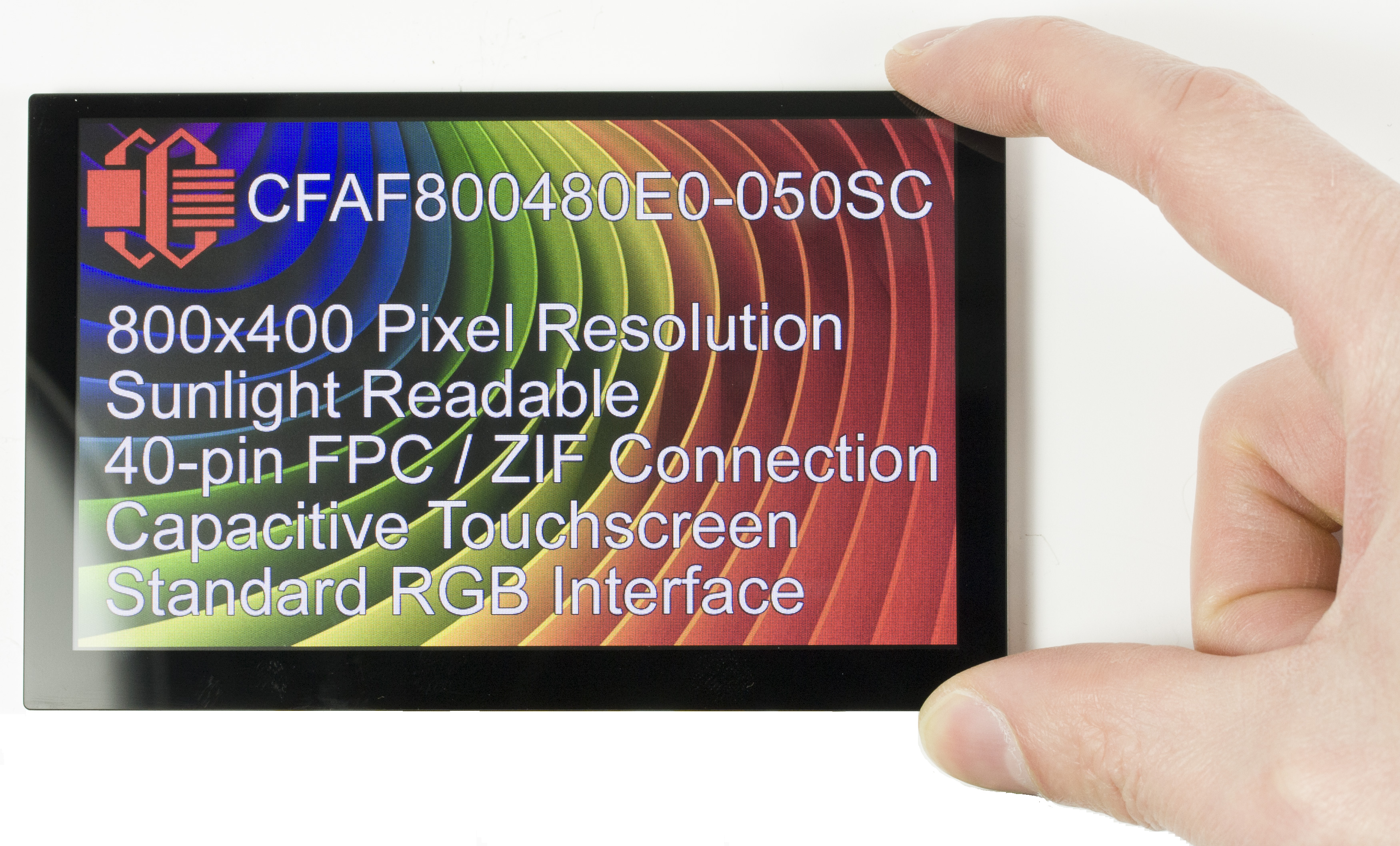

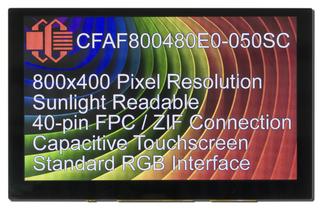

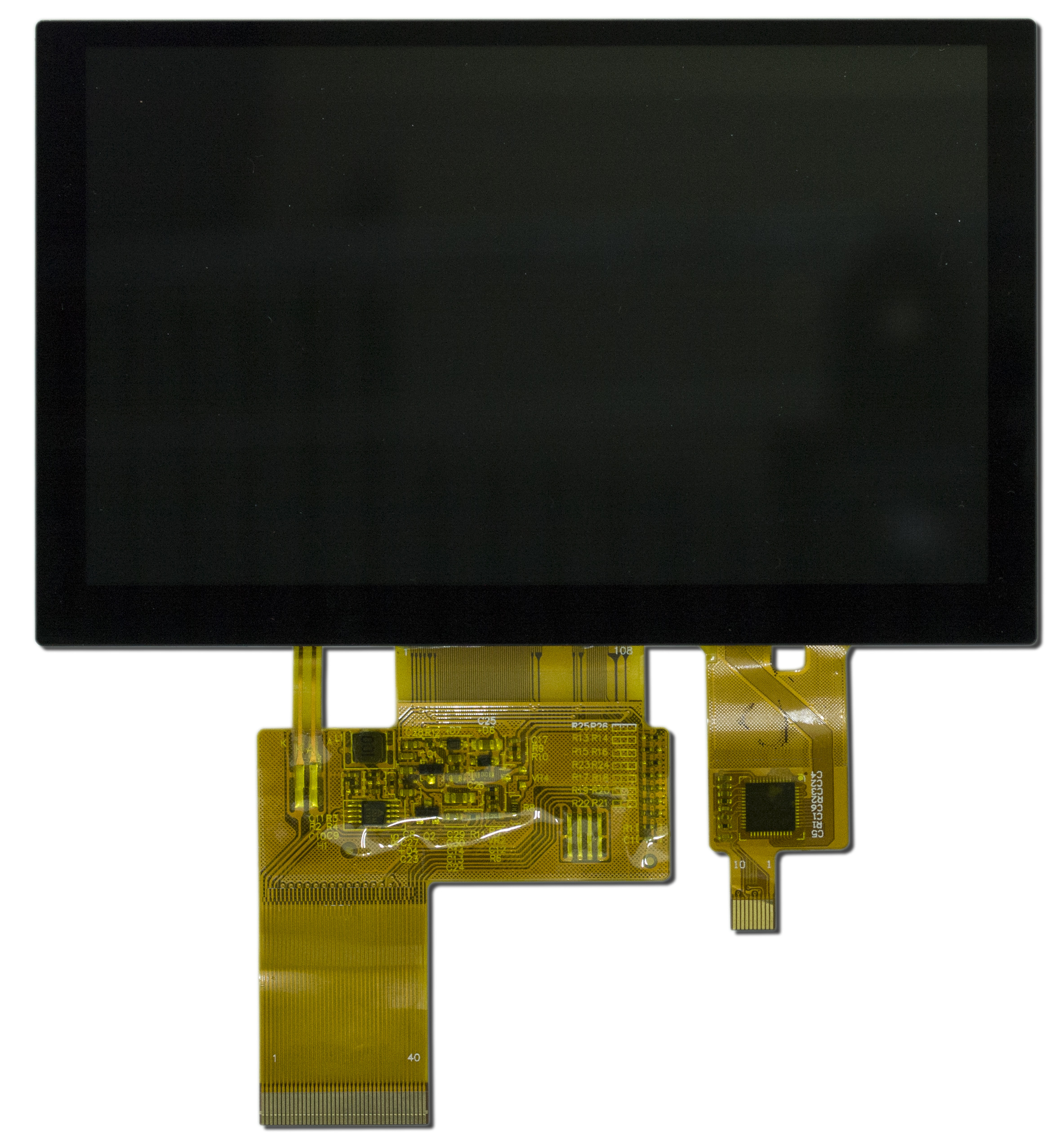

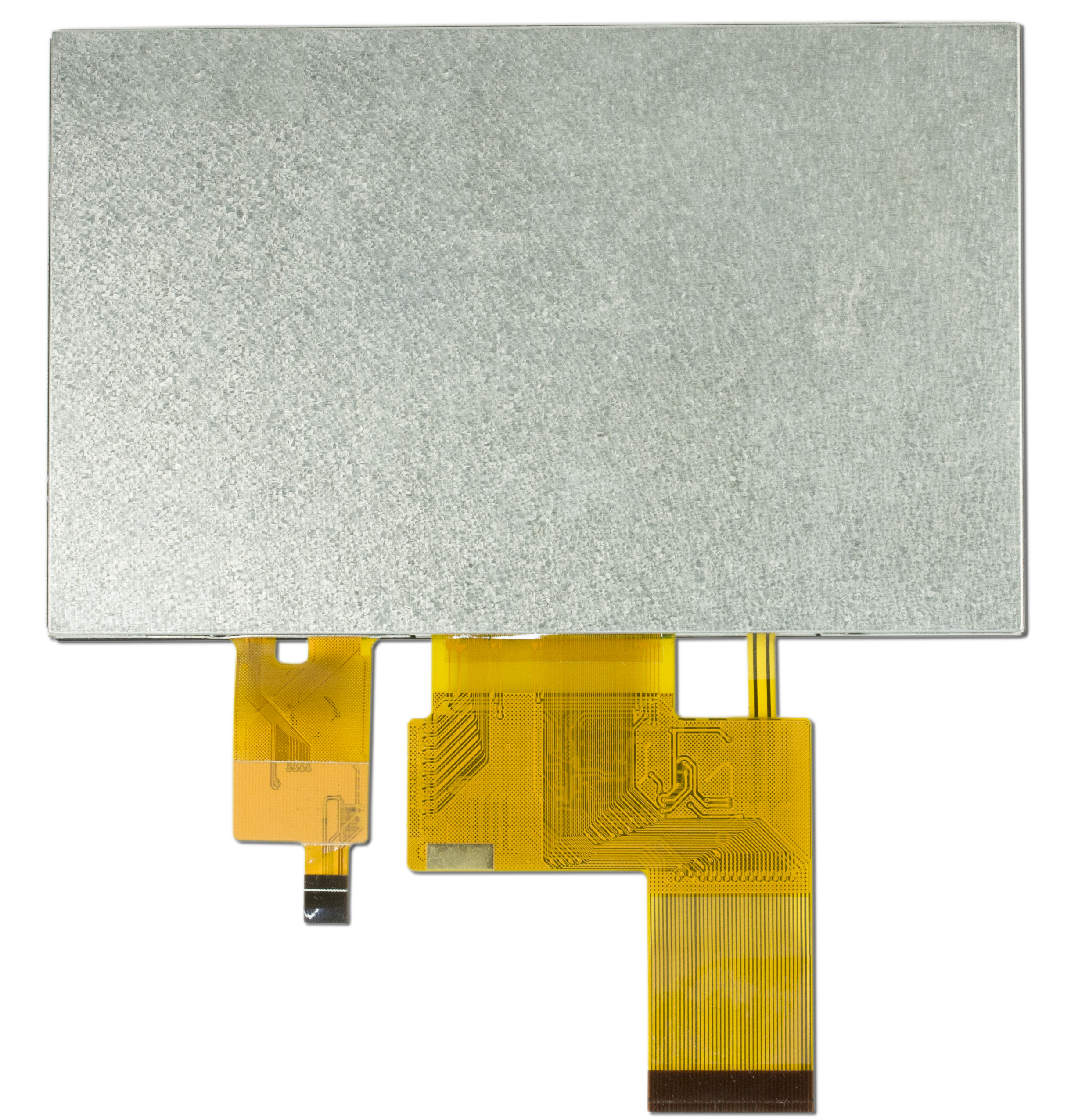

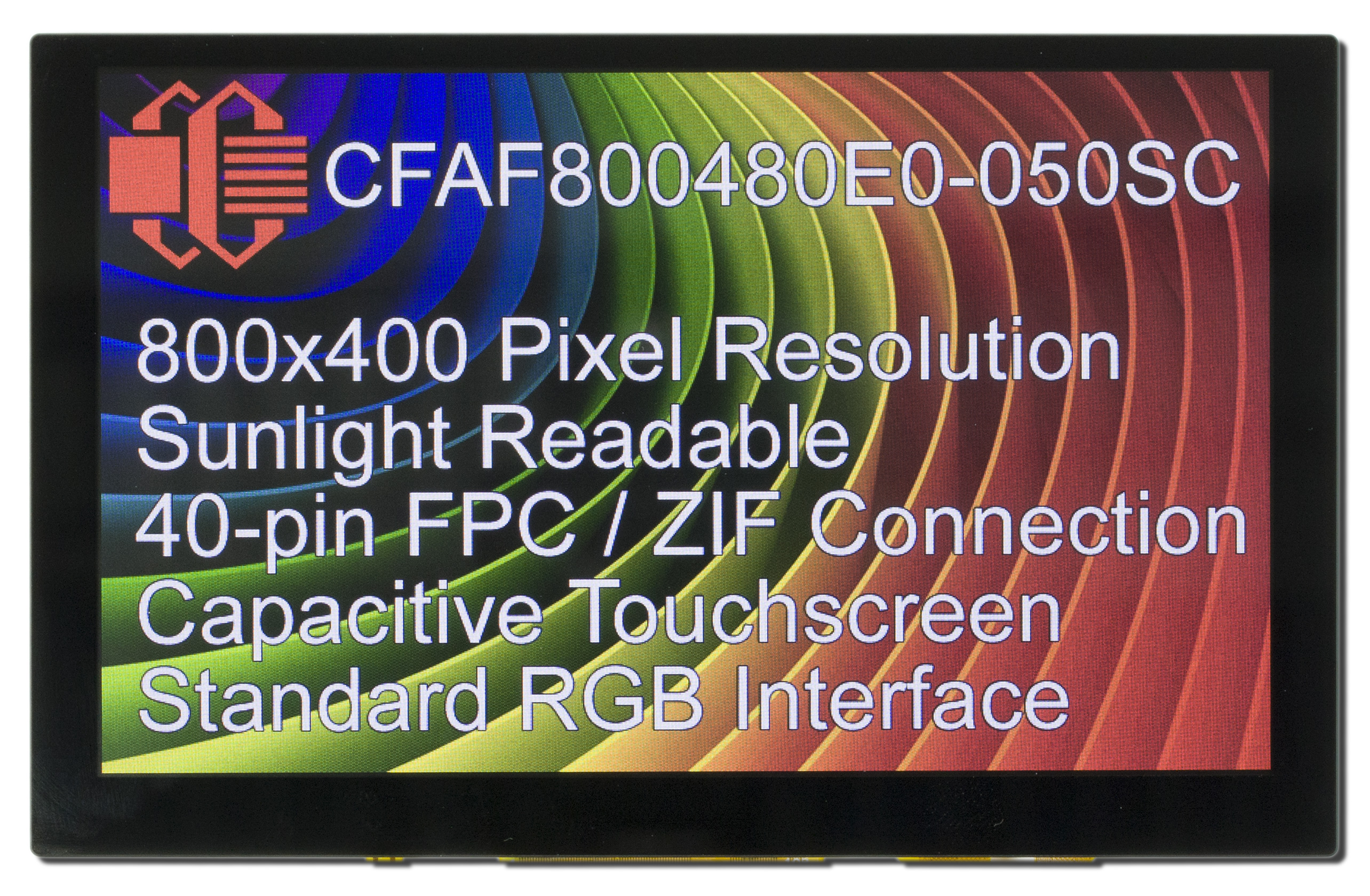

The CFAF800480E0-050SC is a 5-inch color TFT LCD graphic display module with high-brightness, sunlight-readable backlight and a capacitive touch panel (CTP).

This display uses a standard 40-pin RGB interface. It supports 16.7 million colors and has a 12 o'clock viewing angle and a white LED backlight.

The touch panel can detect up to 5 separate touch points. This TFT display is suitable for industrial, media, embedded and other general-purpose display applications.

This module uses an Ilitek ILI6122 LCD controller and a Goodix GT911 capacitive touch panel controller.

  • 5-inch 800x480 RGB TFT Dot Matrix LCD
  • Multi-Touch Capacitive Touch Panel (CTP)
  • 24-bit parallel RGB interface
  • +3.3V Logic Power Supply
  • Sunlight Readable
  • Transmissive LCD
  • Bright white LED Backlight
  • Operating Temperature: -20C to +70C
  • Storage Temperature: -30C to +80C

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

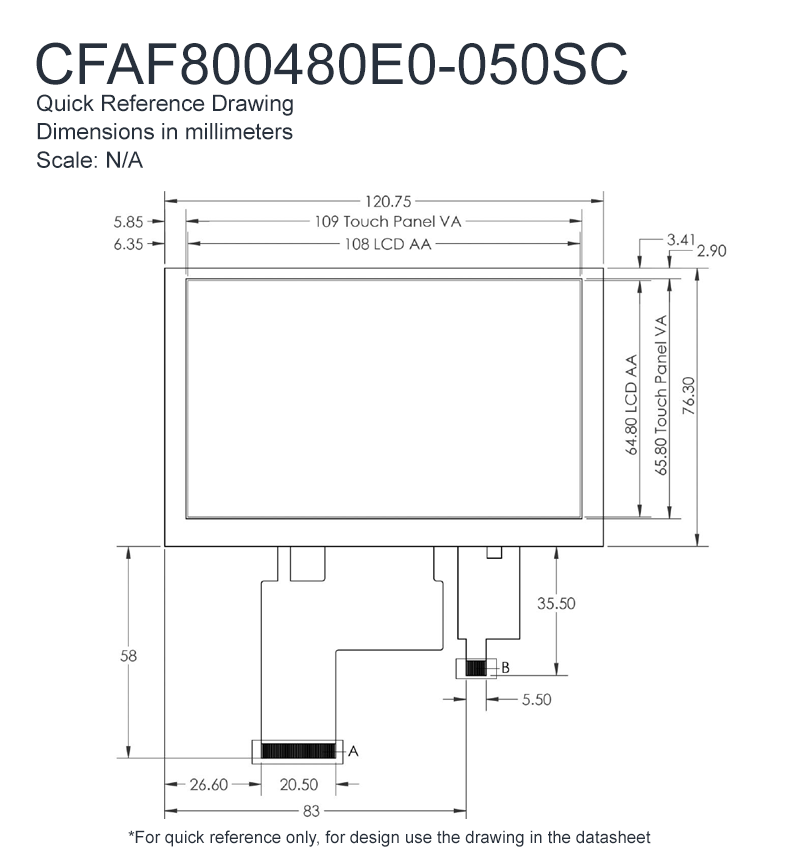

Physical Characteristics

Column Dots x Row Dots 800 x 480
Module Overall width height depth
millimeters 120.7 76.3 5
inches 4.752 3.004 0.197
*width / height does not include Foldable Tab
Diagonal Dimension 5.000"
Viewing Area width height
millimeters 109 65.8
inches 4.291 2.591
Active Area width height
millimeters 108 64.8
inches 4.252 2.551
Dot Pitch width height
millimeters 0.135 0.135
inches 0.0053 0.0053
Flexible Cable (FFC/FPC) length
millimeters 58
inches 2.283
Weight 97.7g
Pin Count 40

Optical Characteristics

Glass Type/Glass Color TFT/Dark
Polarizer Transmissive
View Direction 12 o'clock
View Angle 70°
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Current Typical 100mA

Backlight Electrical Specifications

Forward Voltage Typical 15V
Forward Current Typical 120mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Ilitek ILI6122
Interface 24-bit Parallel

Miscellaneous

Foldable Tab Yes
Touch Screen Capacitive

*Suggest a Correction

Additional Options

Speed up your development life-cycle by purchasing a product kit. This display can come attached to a Graphics Accelerator Board or in a complete demonstration kit.

800x480 TFT with Accelerated Development Kit
Part Number: CFAF800480E0-050SC-A1-2

A complete 800x480 TFT with Accelerator Board, Adapter Board, and a Seeeduino (5.5v Arduino clone). This kit has everything you need to start developing with the FT813 / EVE (Embeddeded Video Engine) platform.

This kit includes everything that the CFAF800480E0-050SC-A1-1 *PLUS a Seeeduino V4.2 and breakout board pre-configured and ready to demonstrate.

The included breakout board makes it simple to wire to the controller of your choice, it also includes audio outputs via pluggable terminals.

Module Features

  • 5-inch 800x480 sunlight readable TFT LCD
  • 5-point capacitive touch sensing screen
  • FTDI/BridgeTek FT813 EVE graphics accelerator
  • SPI Single or Quad host interface
  • Compact 30-position 0.5mm flat-cable ZIF host connection
  • Threaded mounting standoffs for simple mechanical design
  • Compact form-factor, overall size is no larger than LCD
  • Single +3.3V power supply (backlight supply van be 3.3v to 6v)
  • Bright 1000 cd/m2 backlight allows reading in sunlight

EVE Graphics Accelerator Features

  • Support multiple widgets for simplified design implementation
  • User interface design software (PC) simplifies the design process
  • Hardware engine can recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control


Details
Quantity 1
Price $99.97
Quantity:
800x480 TFT with Graphic Accelerator Board
Part Number: CFAF800480E0-050SC-A1-1

This is a revolutionary new 5", 800x480 TFT that boasts high-brightness, sunlight readability. It's based around an FTDI/BridgeTek FT813 Embedded Video Engine (EVE). All display, touch sensing, backlight control and audio features are controlled via the Embedded Video Engine which appears to the host MCU as a memory-mapped SPI device. The host MCU sends commands and data over the EVE SPI serial protocol.

For detailed information on the Embedded Video Engine, please see the FTDI FT81x Datasheet.
Further information including programming examples, interface design software, and more can be found on FTDIs website here: https://www.ftdichip.com/Support/Utilities.htm

TFT Display Module Features

  • 5-inch 800x480 sunlight readable TFT LCD
  • 5-point capacitive touch sensing screen
  • FTDI/BridgeTek FT813 EVE graphics accelerator
  • SPI Single or Quad host interface
  • Compact 30-position 0.5mm flat-cable ZIF host connection
  • Threaded mounting standoffs for simple mechanical design
  • Compact form-factor, overall size is no larger than LCD
  • Single +3.3V power supply (backlight supply van be 3.3v to 6v)
  • Bright 1000 cd/m2 backlight allows reading in sunlight

EVE Graphics Accelerator Features

  • Support multiple widgets for simplified design implementation
  • User interface design software (PC) simplifies the design process
  • Hardware engine can recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control

Need a complete Arduino/Seeeduino development kit that included this display, breakout board and Seeeduino v4.2 controller? You might consider our CFAF800480E0-050SC-A1-2.

Details
Quantity 1
Price $67.70
Quantity:

For reference only. For design purposes, please use the specifications in the datasheet.
