Product

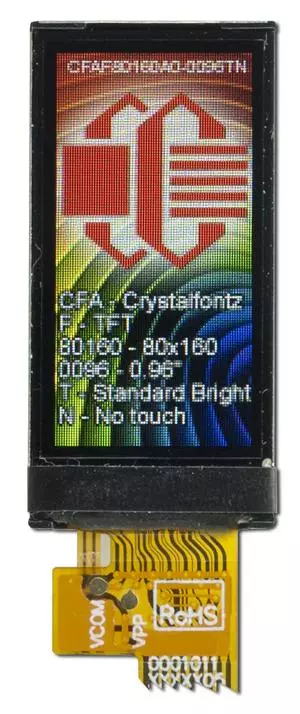

80x160 Small Full-Color TFT Display
Part Number: CFAF80160A0-0096TN
This tiny TFT can add a splash of color to your product. Use it in a wearable, as a status alert display, put it on a button, this little display can fit just about anywhere. Plus, this display is low voltage - both logic and backlight operate from 3.3v.The full color TFT uses SPI for communication, making it easy to communicate with. Check out our demo code for a getting started point!
This display has the same tail pinout, LCD controller, and backlight requirements as our 1.44" Full-Color TFT Display, so switching between the two sizes just requires code changes to account for the different resolutions.
Part Number:
CFA - Crystalfontz America
F - TFT
80160 - 80x160 pixel density
0096 - 0.96" diagonal
T - Standard brightness (500 nits)
N - No touchscreen
Quantity | Unit Price |
---|---|
1 | $10.53 |
10 | $10.23 |
20 | $8.19 |
50 | $7.89 |
100 | $7.80 |
200 | $7.75 |
300 | $7.65 |
500 * | $7.60 |
1000 * | $7.55 |
456 Units In-Stock & Ready To Ship
Pricing is subject to change.* Contact us about potential lead times.
