Tiny Capacitive Touchscreen Display

Part Number: CFAF80160A0-0096TW

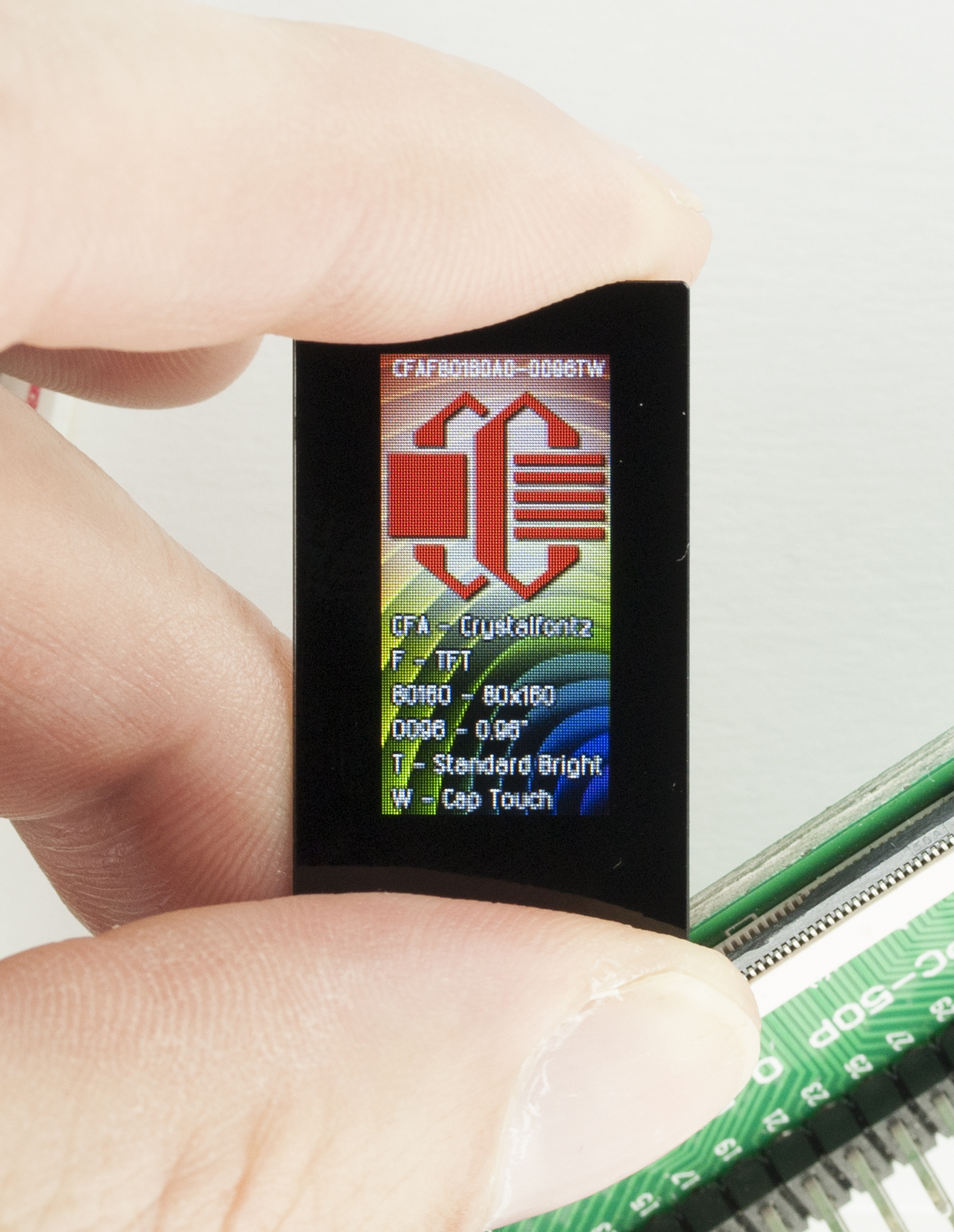

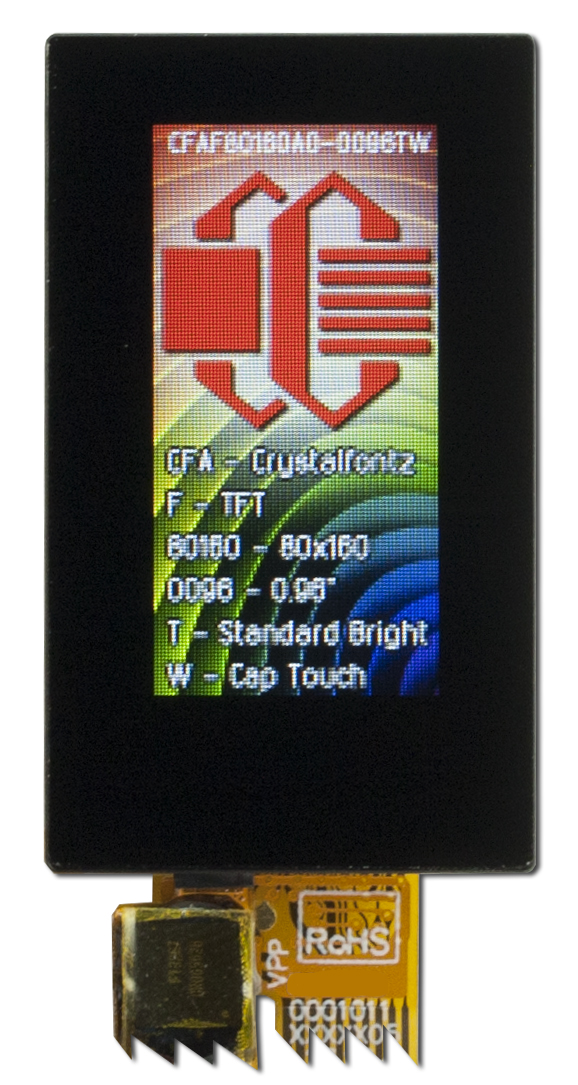

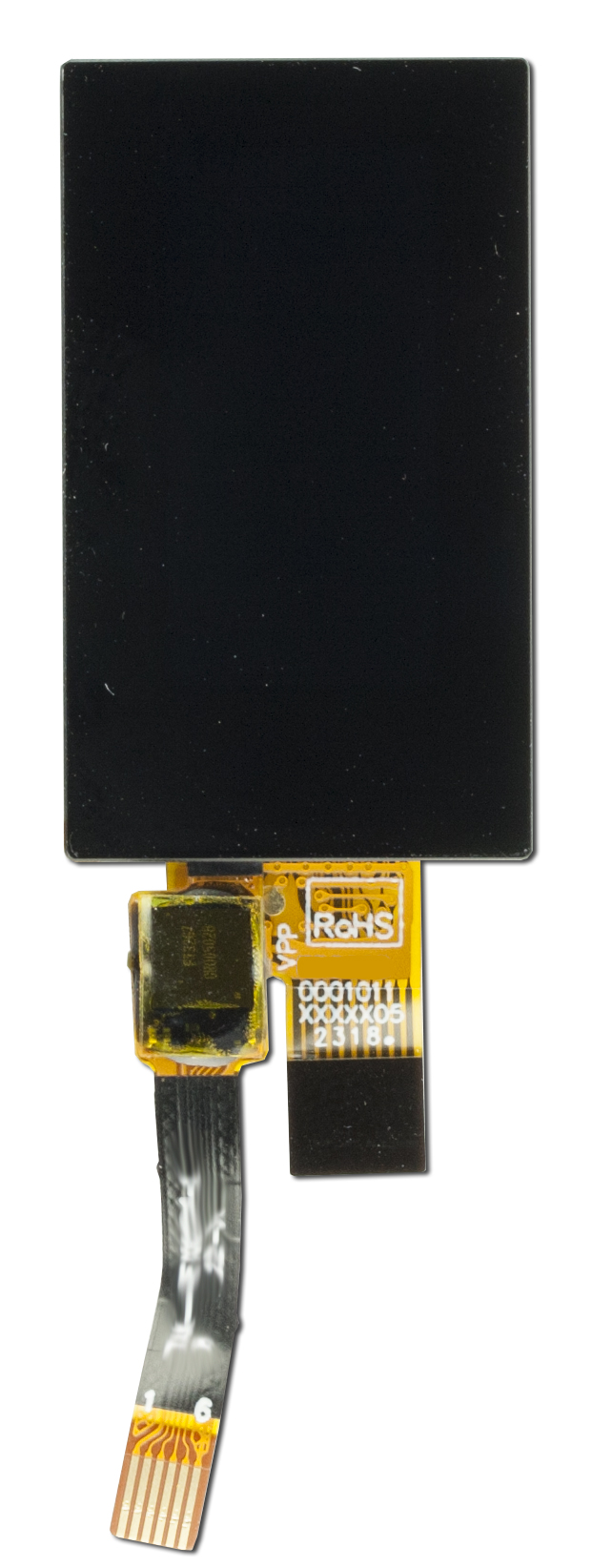

This tiny TFT with a capacitive touchscreen can add a splash of color to your product. The capacitive touchscreen makes this a perfect tiny interface, great for wearables, buttons, status indicators, and more. The capacitive touch glass overhangs the edge of the display making it easy to mount this TFT flush with your housing. Plus, 3M adhesive is included on the glass to further simplify the mounting.

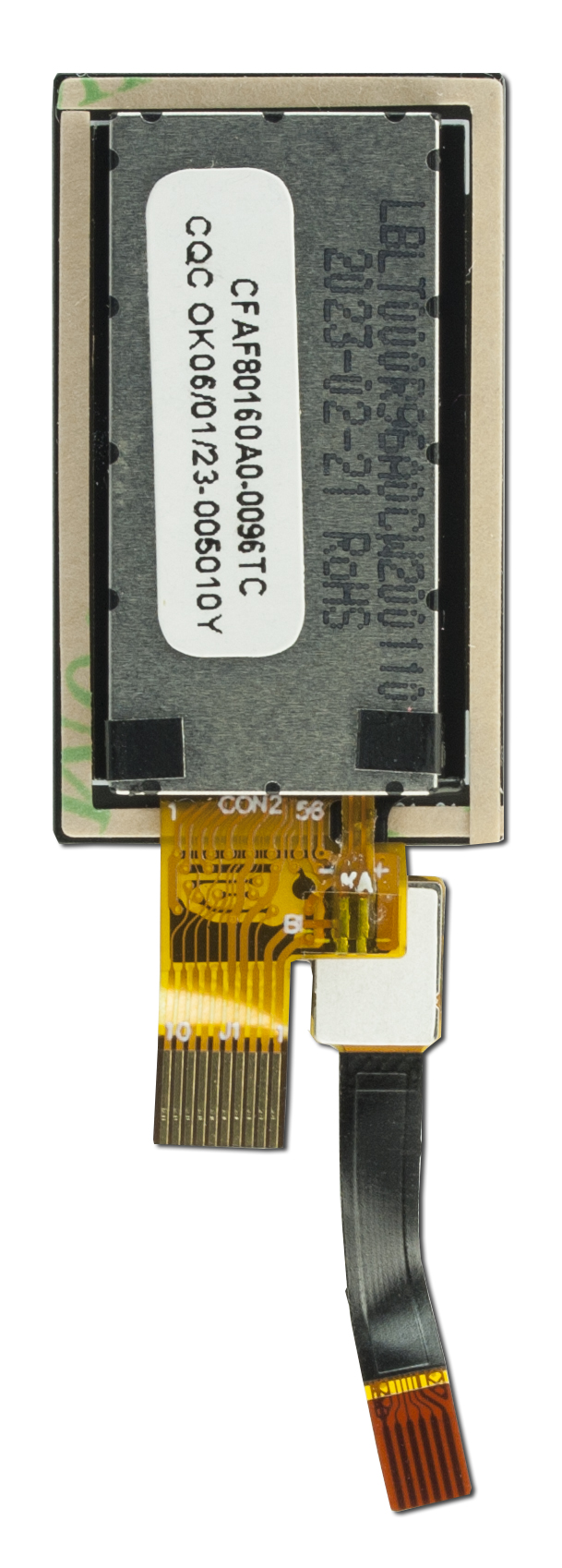

The full-color TFT interface is SPI via the 10-pin tail, and the capacitive touch interface is I2C via the 6-pin tail. You can download the capacitive touchscreen controller datasheet here: FocalTech FT3267 touchscreen controller datasheet.

Part Number:
CFA - Crystalfontz America
F - TFT
80160 - 80x160 pixel density
0096 - 0.96" diagonal
T - Standard brightness (400 nits)
W - Wide Capacitive touchscreen

Product Variants

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 80 x 160

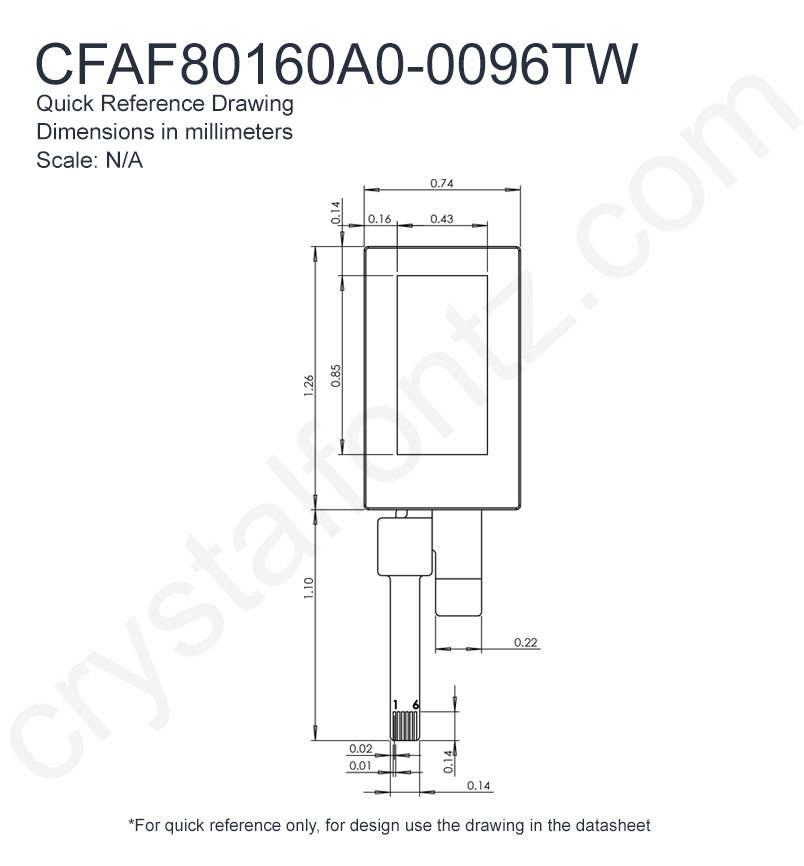

    Module Overall width height depth
    millimeters 18.7 31.9 2.64
    inches 0.736 1.256 0.104
    Diagonal Dimension 0.96"
    Active Area Width Height
    millimeters 10.8 21.696
    inches 0.425 0.8542
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Weight 2.4g
    Pin Count 10
  • visibility Optical Characteristics

    Optical Characteristics

    Polarizer Transmissive - IPS
    View Angle 160°
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Current Maximum 2mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 2.8V
    Forward Voltage Maximum 3.3V
    Forward Voltage Typical 3V
    Forward Current Typical 20mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -10° 60°
    Fahrenheit 14° 140°
    Storage Temperatures min max
    Celsius -10° 60°
    Fahrenheit 14° 140°
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7735S
    ST7735S
    132RGB x 162dot 262K Color with Frame Memory
    Single-Chip TFT Controller/Driver
    Sitronix ST7735S
    132RGB x 162dot 262K Color with Frame Memory Single-Chip TFT Controller/Drive
    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Price
1 $31.74
5 $26.57
10 $25.81
20 $20.49
50 $19.75
100 $19.50
200 $19.38
300 $19.13
500 * $19.00
1000 * $18.88
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4628 10 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Need 10 pin ZIFs? $0.62 ea.

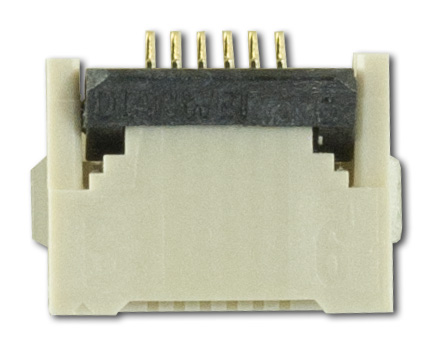

4672 6 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Need Touchscreen ZIF Connectors? $0.40 ea.

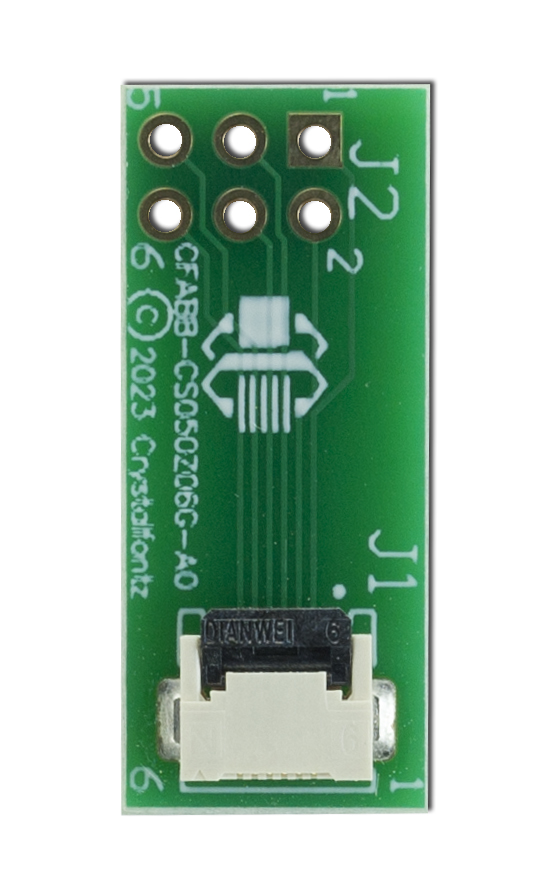

4828 6-Position ZIF Breakout Board
Add a 6-position breakout board? $6.08 ea.
4821 10-Position ZIF Breakout Board
Add a 10-pin ZIF Breakout Board? $6.08 ea.
