80x160 Small Full-Color TFT Display from Crystalfontz

Product

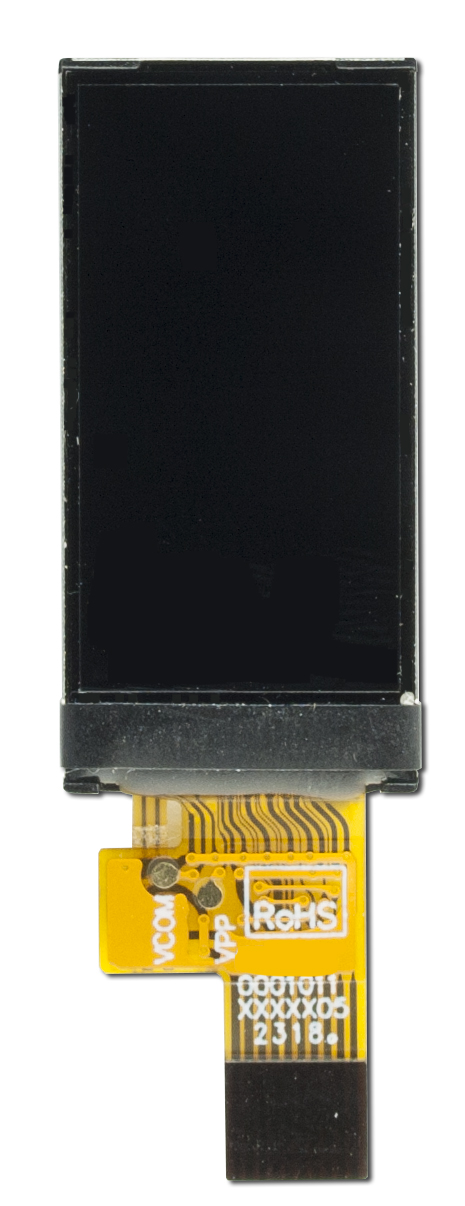

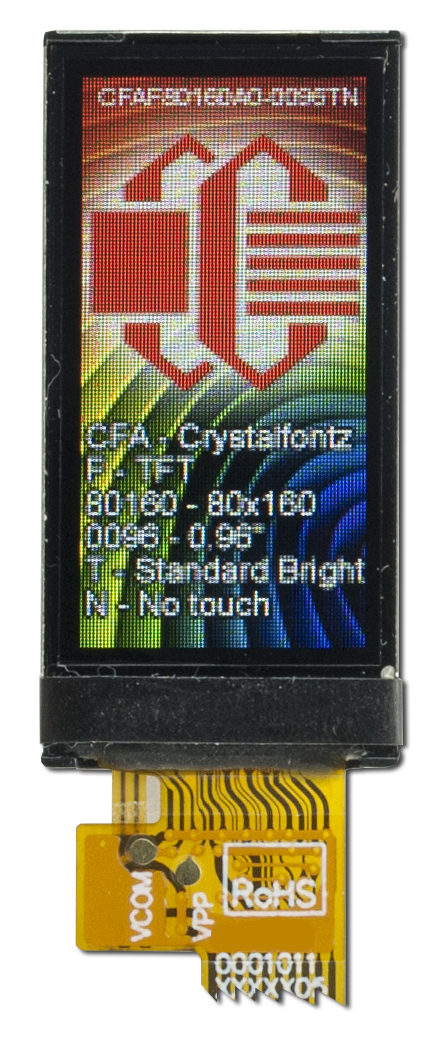

80x160 Small Full-Color TFT DisplayPart Number: CFAF80160A0-0096TN

                        This tiny TFT can add a splash of color to your product. Use it in a wearable, as a status alert display, put it on a button, this little display can fit just about anywhere. Plus, this display is low voltage - both logic and backlight operate from 3.3v.

The full color TFT uses SPI for communication, making it easy to communicate with. Check out our demo code for a getting started point!

This display has the same tail pinout, LCD controller, and backlight requirements as our 1.44" Full-Color TFT Display, so switching between the two sizes just requires code changes to account for the different resolutions.

Part Number:
CFA - Crystalfontz America
F - TFT
80160 - 80x160 pixel density
0096 - 0.96" diagonal
T - Standard brightness (500 nits)
N - No touchscreen
Product VariationsTouchscreenCapacitiveNone

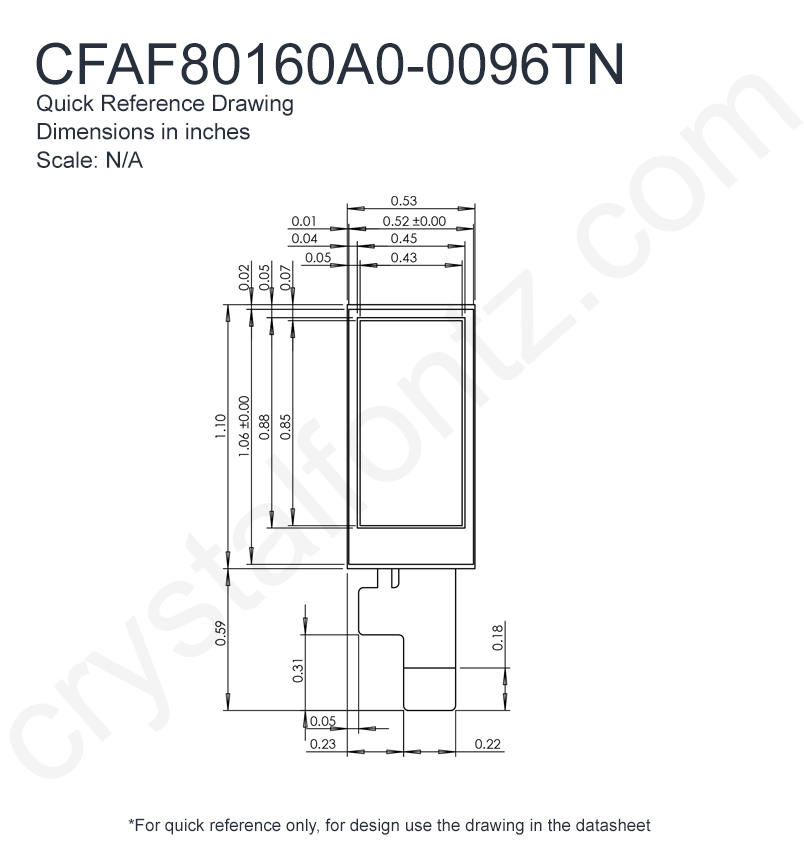

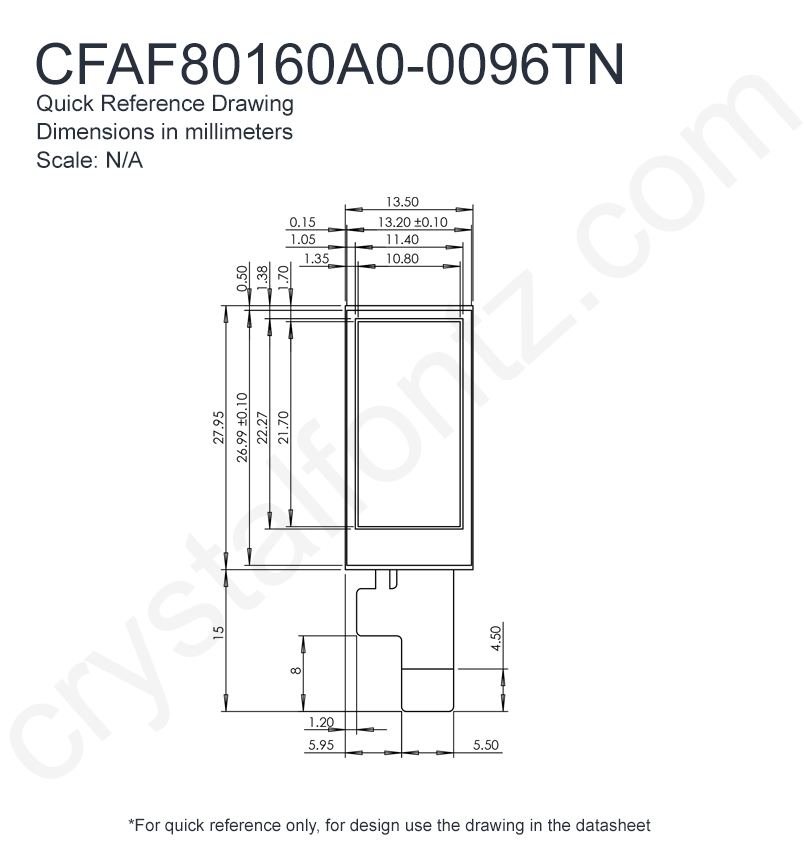

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            80 x 160

    Module Overall        width
        height
        depth

        millimeters
        13.5
        27.85
        1.54

        inches
        0.53
        1.10
        0.06

        Diagonal Dimension
            0.96"

    Active Area        Width
        Height

        millimeters
        10.8
        21.696

        inches
        0.43
        0.85

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Weight
            1.3g
Pin Count
            10

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive - IPS
View Angle
            160°

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Supply Current Maximum
            2mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.8V
Forward Voltage Maximum
            3.3V

        Forward Voltage Typical
            3V
Forward Current Typical
            20mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -10°
        60°

        Fahrenheit
        14°
        140°

    Storage Temperatures        min
        max

        Celsius
        -10°
        60°

        Fahrenheit
        14°
        140°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7735S
132RGB x 162dot 262K Color with Frame Memory Single-Chip TFT Controller/Drive
Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFAF80160A0-0096T Datasheet

download Files and Downloads
folder_zip Hardware Design - 3D Model
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $10.53

            10
            $10.23

            20
            $8.19

            50
            $7.89

            100
            $7.80

            200
            $7.75

            300
            $7.65

            500 *
            $7.60

            1000 *
            $7.55

456 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

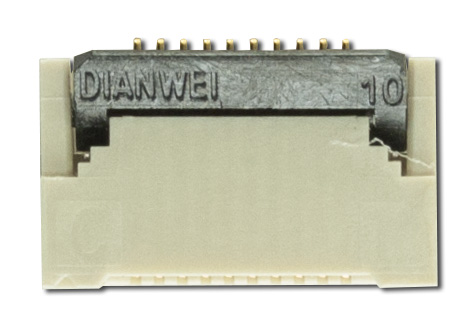

						10 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Need 10 pin ZIFs? $0.18 ea.

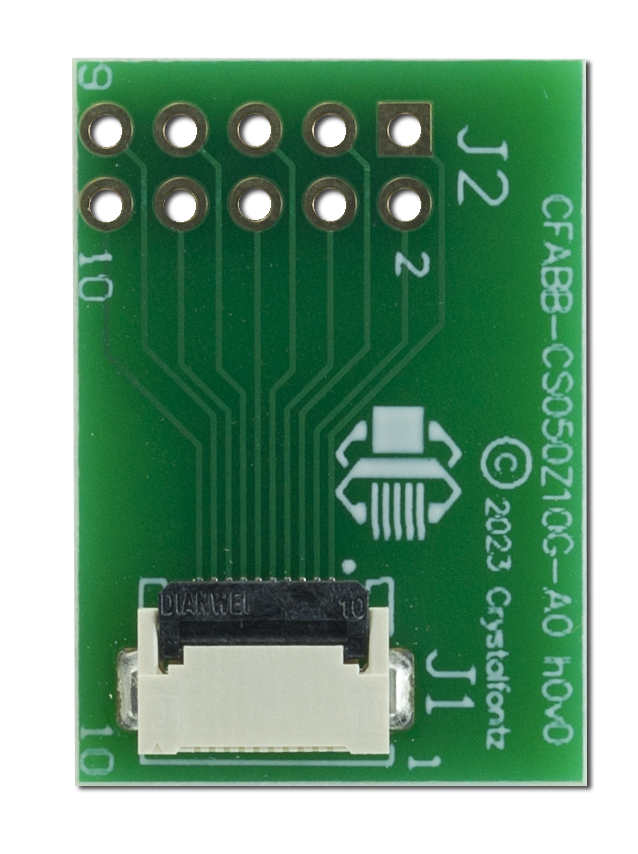

						10-Position ZIF Breakout Board
Add a 10-pin ZIF Breakout Board? $6.08 ea.

Module Overall	width	height	depth
millimeters	13.5	27.85	1.54
inches	0.53	1.10	0.06

Active Area	Width	Height
millimeters	10.8	21.696
inches	0.43	0.85

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Operating Temperatures	min	max
Celsius	-10°	60°
Fahrenheit	14°	140°

Storage Temperatures	min	max
Celsius	-10°	60°
Fahrenheit	14°	140°

Quantity	Unit Price
1	$10.53
10	$10.23
20	$8.19
50	$7.89
100	$7.80
200	$7.75
300	$7.65
500 *	$7.60
1000 *	$7.55

Pin Table
Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11229: 80x160 Small Full-Color TFT Display is now available.

New Product:	CFAF80160A0-0096TN
Date Issued:	September 6, 2023
Summary:	80x160 Small Full-Color TFT Display is now available.
Description:	CFAF80160A0-0096TN has been released on our website (https://www.crystalfontz.com/product/cfaf80160a00096tn-80x160-small-color-tft-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF80160A0-0096TN
