Home » Products » Accessories » ZIF Connectors

10 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector

Part Number: CS050Z10G-A0

Pricing

Quantity Price ea.
5 $0.54
100 $0.32
1500 $0.26
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z10G-A0 or RSS RSS feed for changes to CS050Z10G-A0 for CS050Z10G-A0

Compliance Documents

10 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector (CS050Z10G-A0)

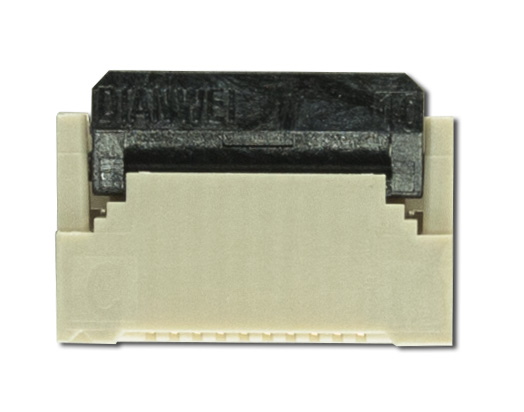

0.5mm pitch, 10 position, gold plated, top/bot, connector. Closed.

Description

This 0.5mm pitch, 10 position, gold plated, top/bottom ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 0.5mm pitch
  • 10 position
  • Gold plated
  • Top/bottom contacts

TECHNICAL SPECS

Physical Characteristics

Module Overall width height
millimeters 8.5 2
inches 0.335 0.079
Weight 0.418g
Pin Count 10

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
