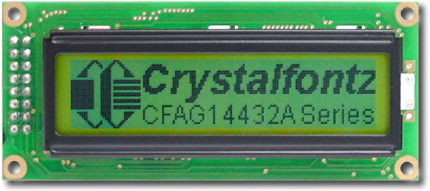

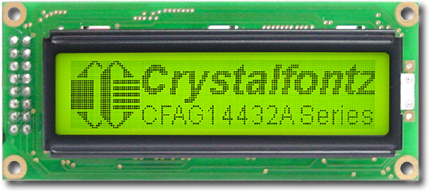

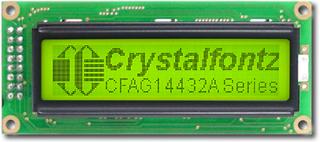

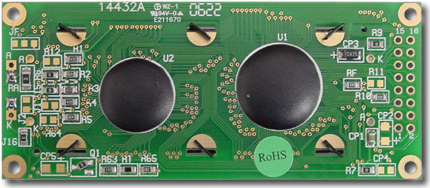

[EOL] Yellow Sunlight Readable 144x32 Graphic LCD

Part Number: CFAG14432A-YYH-TT

Sunlight readable 144x32 graphic LCD with negative voltage generator and temperature compensation.

  • Resolution: 144x32 pixels
  • Optics: 6:00 viewing direction
  • Backlight: Yellow-green LED
  • Glass: STN Positive, Transflective
  • Controller: Sitronix ST7920 (Hitachi HD44780 Compatible) Controller
  • Character Generator: Chinese and English
  • Operating Temp: -20°C to +70°C
  • Compliance: REACH & RoHS Compliant

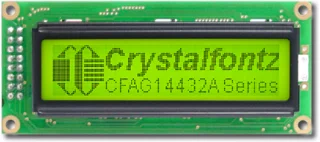

[EOL] Yellow Sunlight Readable 144x32 Graphic LCD (CFAG14432A-YYH-TT)

Datasheet

Files

TECHNICAL SPECS

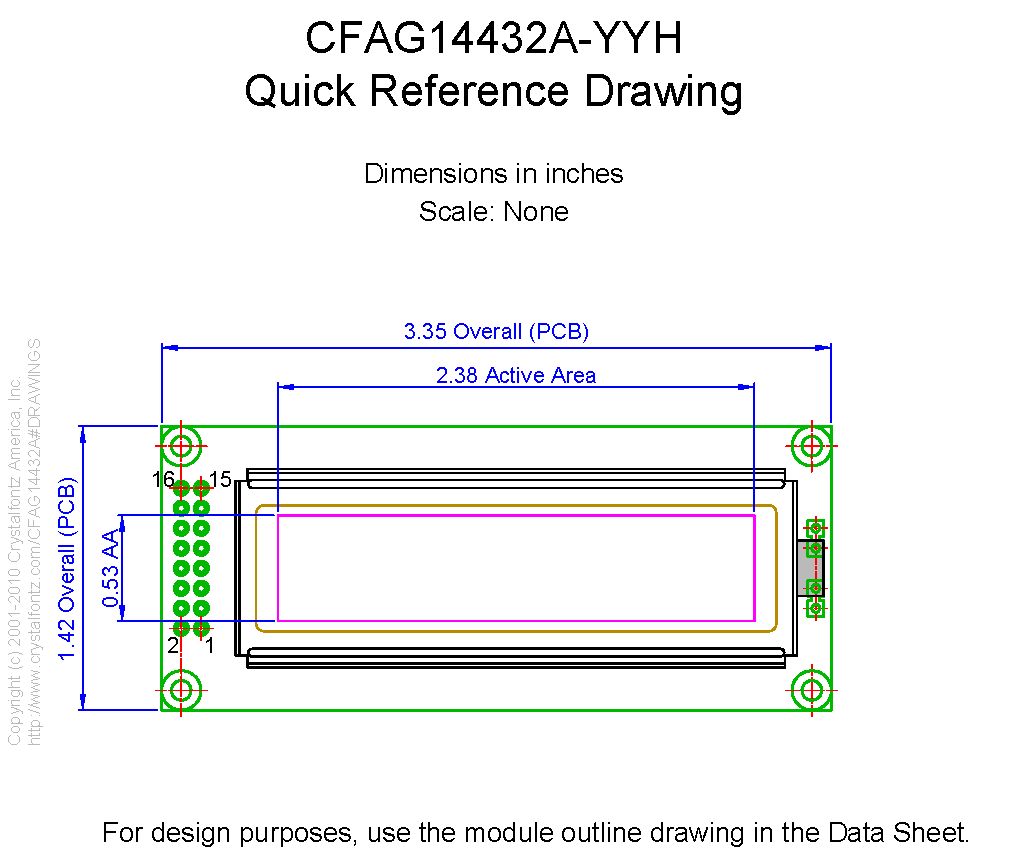

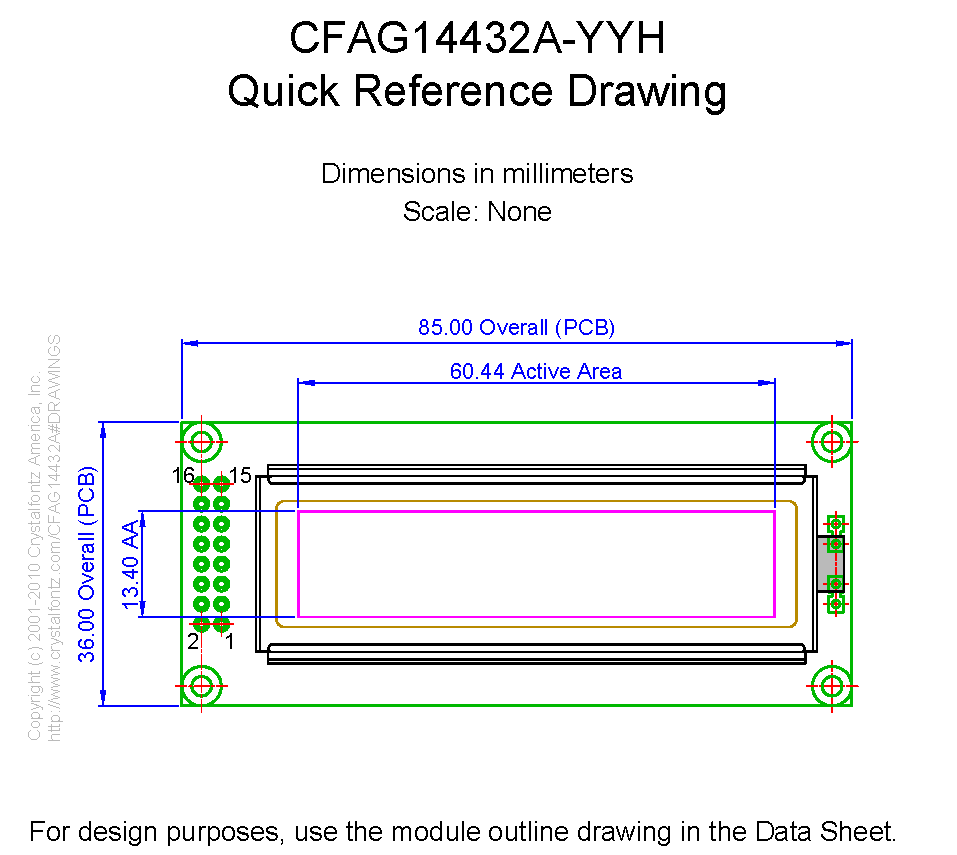

Physical Characteristics

Column Dots x Row Dots 144 x 32
Module Overall width height depth
millimeters 85 36 13.2
inches 3.346 1.417 0.520
PCB Outline width height depth
millimeters 85 36 13.2
inches 3.346 1.417 0.520
Diagonal Dimension 2.44"
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 60.44 13.4
inches 2.380 0.528
Dot Size width height
millimeters 0.38 0.38
inches 0.015 0.015
Dot Pitch width height
millimeters 0.42 0.42
inches 0.017 0.017
Weight 32g

Optical Characteristics

Glass Type/Glass Color STN/Yellow-Green
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color Yellow-Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sitronix ST7920
ST7920
Chinese Fonts built in LCD controller/driver
Interface 4-bit Parallel, 8-bit Parallel

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG14432A-YYH-TT or RSS RSS feed for changes to CFAG14432A-YYH-TT

Product Update #10910: End-of-Life Notification

Products Affected: CFAG14432A-YYH-TT, CFAG20232C-YYH-TT, CFAG14432A-TFH-TT, CFAG320240K-YYH-TZ, CFAG14432C-TFH-TT, CFAG12864I-TMI-TN, CFAG12864F-STI-TY, CFAG12864F-TMI-TY, CFAG12864G-STI-TY, CFAH0801Z-YYH-JP, CFAG19264A-STI-TN
Date Issued: December 13, 2017
Summary: End-of-Life Notification
Description: The parts listed have been set to End of Life Status.
Reason: Critical components have been discontinued by the manufacturer.
Impact: No replacements have been identified
Recommendation: These parts are not recommended for new designs.
Availability: Once current stock is depleted, these parts will no longer be available
Price Change: N/A
For reference only. For design purposes, please use the specifications in the datasheet.
