This product has reached end of life
[EOL] Green144x32 Parallel Graphic LCD
Part Number: CFAG14432D-GTI-TT
Graphic LCD, RoHS Compliant, Green LED Backlight, FSTN Negative, Transmissive -20°C to +70°C 6:00, Negative Voltage Generator, Temperature Compensation
- Fit, form and function compatible with the CFAH1602D Series of Character LCD modules. Upgrade your product that uses a CFAH1602D character display by switching to this graphic CFAG14432D, or, lower your costs by replacing this graphic with that character module
- 144x32 graphic LCD module
- Available in several variations of backlight and polarizer (minimum order may be required)
- Built-in Sitronix ST7920 or compatible controller
- 8-bit, 4-bit parallel interface

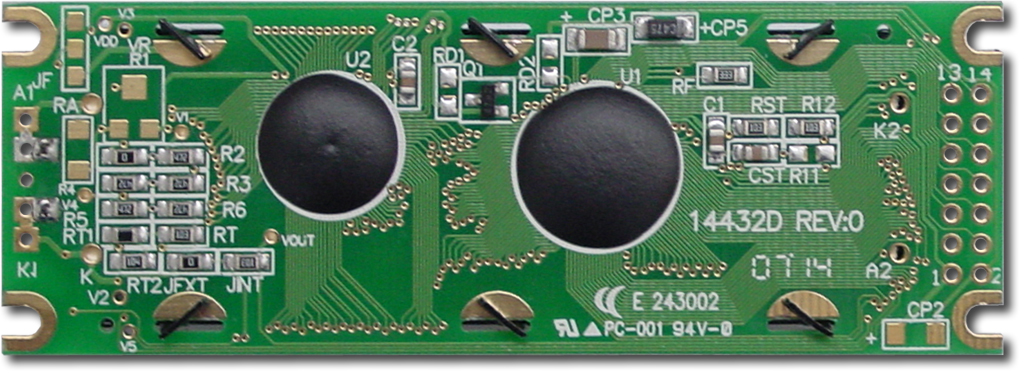

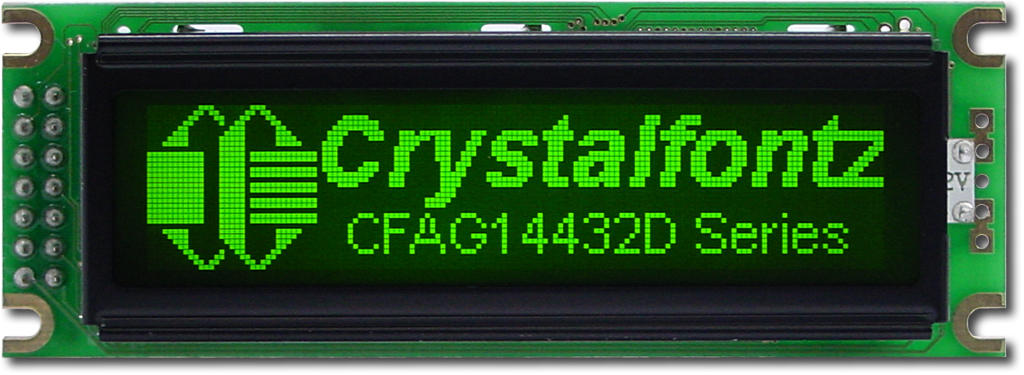

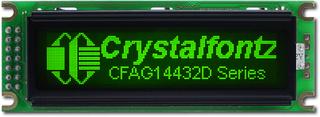

![[EOL] Green144x32 Parallel Graphic LCD (CFAG14432D-GTI-TT)](/images/products/CFAG14432DGTITT/CFAG14432DGTI_1024.jpg)
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Column Dots x Row Dots | 144 x 32 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 85 | 30 | 13.2 |
| inches | 3.346 | 1.181 | 0.520 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 85 | 30 | 13.2 |
| inches | 3.346 | 1.181 | 0.520 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 66 | 16 |
| inches | 2.598 | 0.630 |
| Active Area | width | height |
|---|---|---|
| millimeters | 60.44 | 13.4 |
| inches | 2.380 | 0.528 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.38 | 0.38 |
| inches | 0.015 | 0.015 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.42 | 0.42 |
| inches | 0.017 | 0.017 |
Optical Characteristics
| Glass Type/Glass Color | FSTN/Black |
| Polarizer | Transmissive |
| View Direction | 6 o'clock |
| Backlight Color | Green |
| Backlight Type | LED |
| Mode | Negative |
| Foreground Color | Green |
| Background Color | Dark |
Electrical Specifications
| Module Connector Pitch | 0.10mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sitronix ST7920 ST7920 Chinese Fonts built in LCD controller/driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Fit, form and function compatible with these 16x2 character modules:
