Product

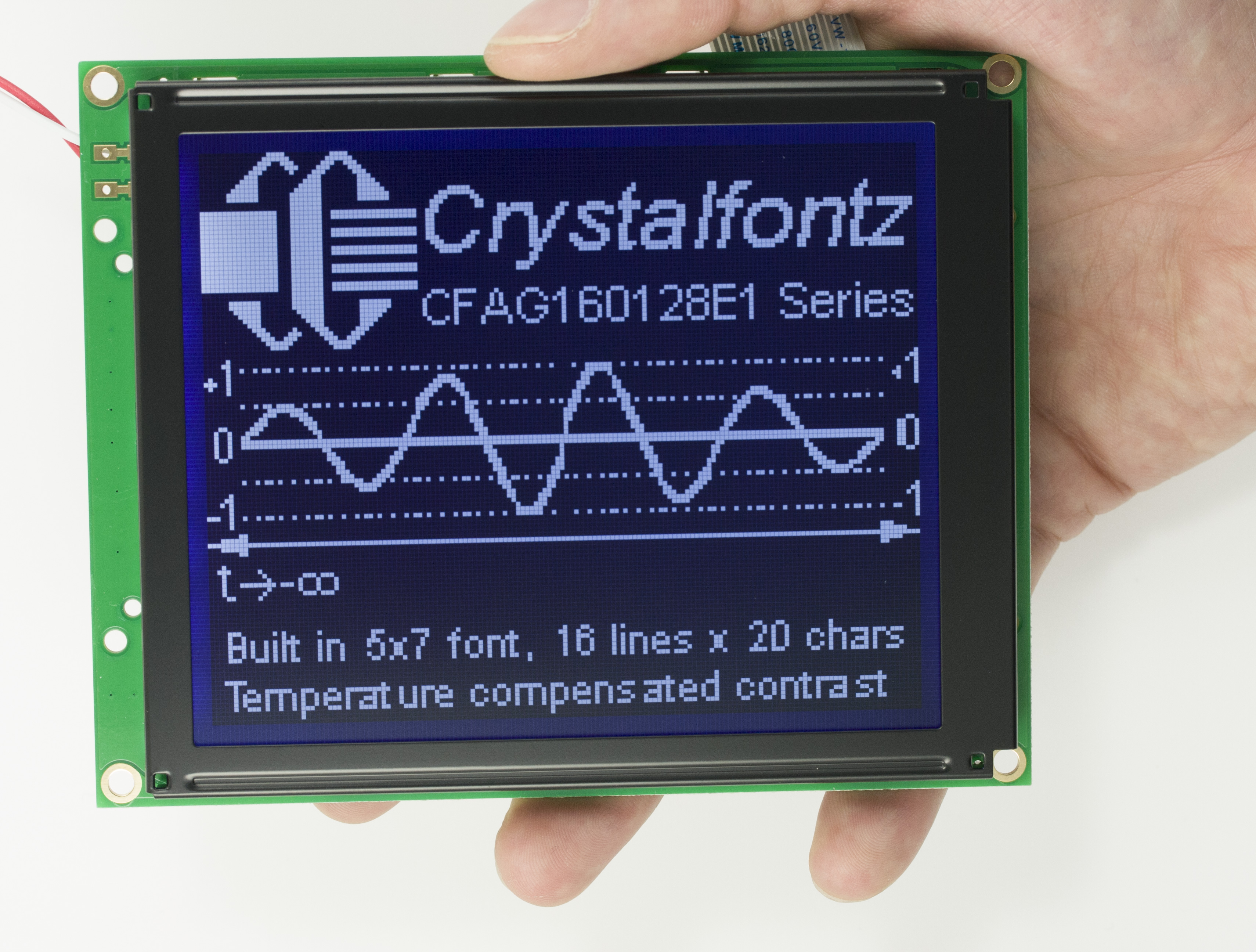

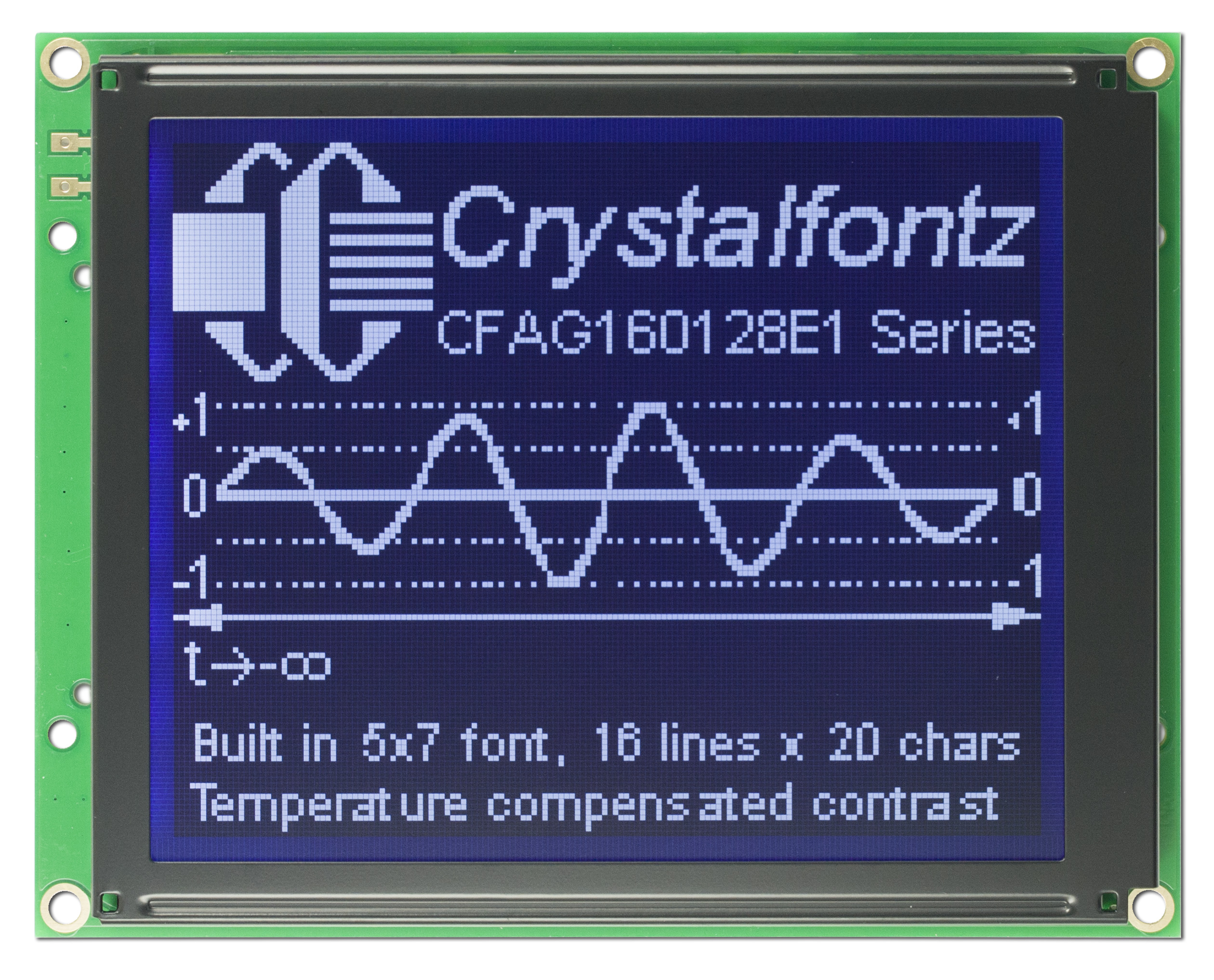

White on Dark Blue 160x128 Graphic LCD
Part Number: CFAG160128E1-STI-TZ
This white on dark blue graphic LCD is 4.7" diagonally and includes a built in font (check out the datasheet for a full font table). It also includes an onboard negative voltage generator.
Resolution: 160x128 pixels
Optics: 6:00 viewing direction
Backlight : White Edge LED
Glass: FSTN negative, Transmissive

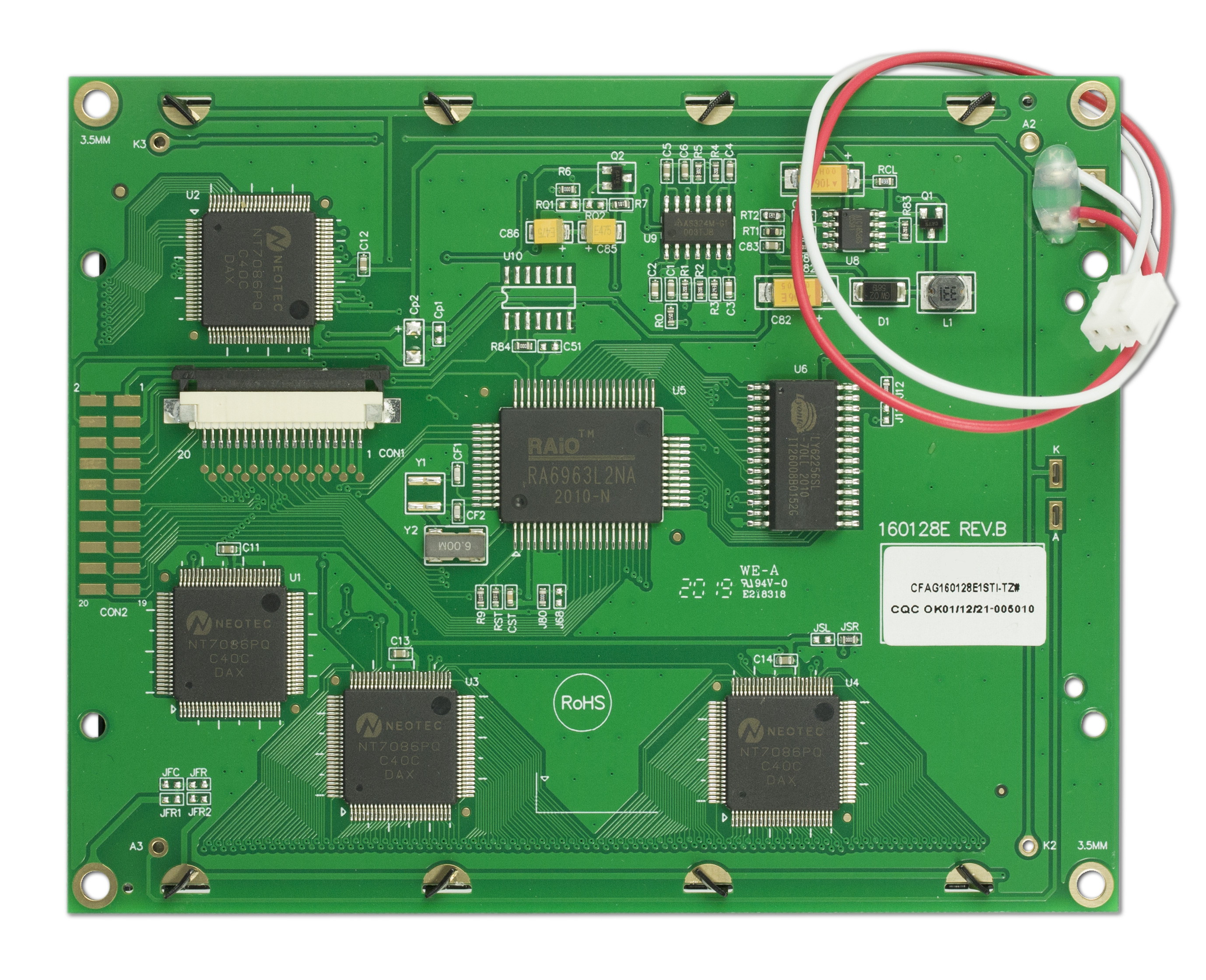

Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible)
Character Generator: 128-word ROM for ASCII or numeric display in text mode
Operating Temp: -20°C to +70°C
Pixel Grid
Column Dots
160 px
Row Dots
128 px

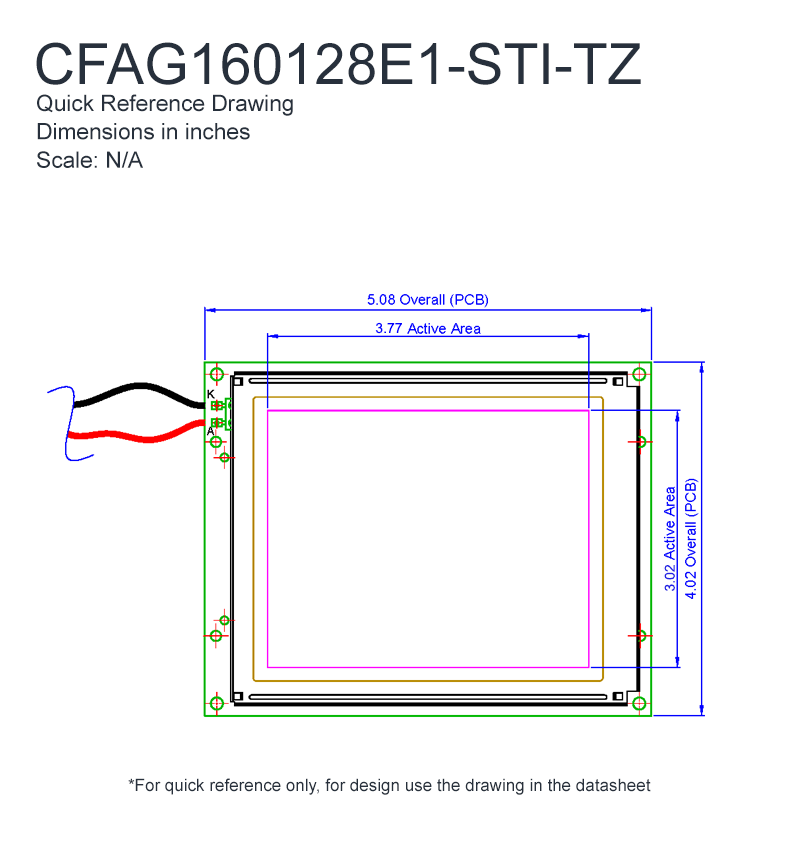

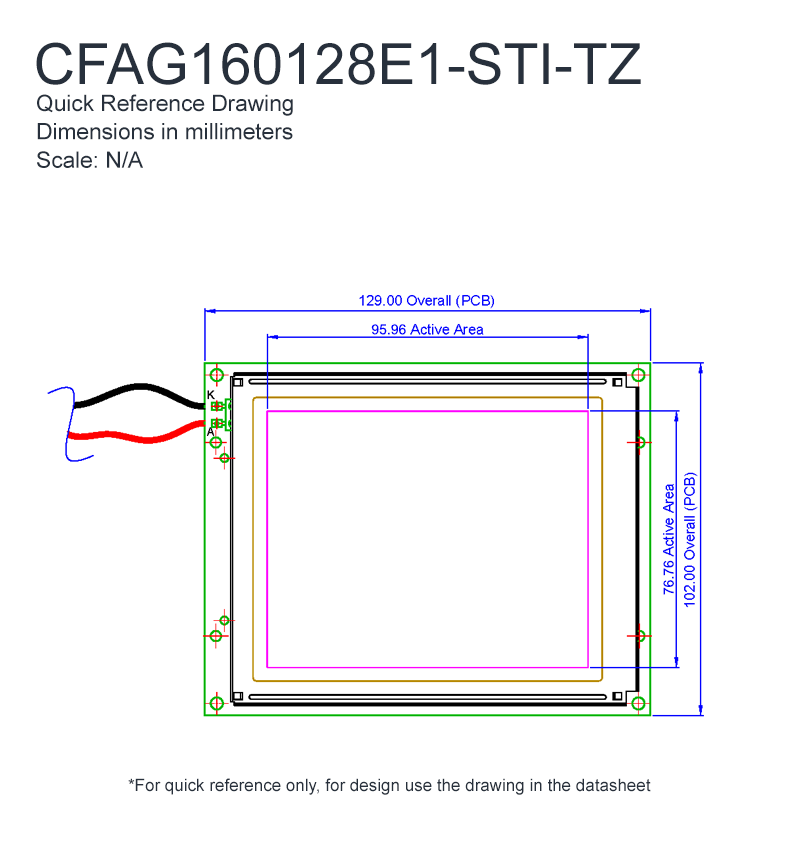

Module Metric Imperial
Overall Width
129.00 mm
5.079 in
Overall Height
102.00 mm
4.016 in
Overall Depth
16.50 mm
0.650 in
Weight
200 g
Display Area Metric Imperial
Active Area Width
95.96 mm
3.778 in
Active Area Height
76.76 mm
3.022 in
Viewing Width
101.00 mm
3.976 in
Viewing Height
82.00 mm
3.228 in
Character Geometry Metric Imperial
Character Width
0.56 mm
0.022 in
Character Height
0.56 mm
0.022 in
Dot Geometry Metric Imperial
Dot Pitch Width
0.60 mm
0.024 in
Dot Pitch Height
0.60 mm
0.024 in
Dot Size Width
0.56 mm
0.022 in
Dot Size Height
0.56 mm
0.022 in
Connectors
Module Connector Pitch
2.54 mm (0.10 in)
Technology
Display Technology
LCD
Display Addressing
Passive
Glass Type
FSTN
Mode
Transmissive
Polarizer
Negative
Viewing
View Direction
6:00 o'clock
Display Colors
Foreground Color
White
Background Color
Dark
Glass Color
Dark
Backlight
Backlight Type
LED
Backlight Color
White
Display Min Typ Max Unit
Supply Voltage - Logic
Supply Voltage for Logic
3
—
5.5
V
Supply Voltage - Panel
Supply Voltage for Driving Panel
—
19
—
V
Supply Current
40
45
55
mA
Backlight Min Typ Max Unit
Voltage
Forward Voltage
3.4
3.5
3.6
V
Current
Forward Current
40
128
160
mA
Available Interfaces
Standard Interface(s)
8-bit Parallel
Temperature
Min (°C) Max (°C) Min (°F) Max (°F)
Operating Temperature
-20°C
70°C
-4°F
158°F
Storage Temperature
-30°C
80°C
-22°F
176°F
Humidity
Relative Humidity 0% to 90% RH (non-condensing)
