This product has reached end of life

The recommended migration path for the CFAG160160B-TMI-VZ is the dark-on-light gray CFAG160160D5-TFH-VGB. Engineers should review the datasheet and evaluate for any project impact. Please contact Technical Support if you have any questions about adapting a new display to your product or would like to special order this display in yellow or blue.

160x160 Parallel Graphic LCD

Part Number: CFAG160160B-TMI-VZ

160x160  Parallel Graphic LCD (CFAG160160B-TMI-VZ)

Description

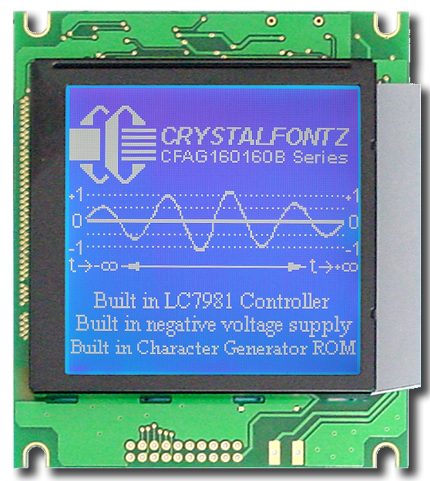

The CFAG160160B-TMI-VZ is a 160x160 graphic LCD module.

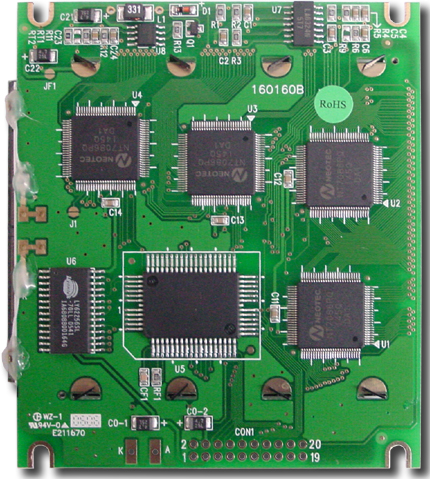

  • Built-in Neotec NT7086 controller (Sanyo LC7981 compatible)
  • 160x160 graphic mode --or-- 27 x 20 text mode using built-in 5x7 Character Generator ROM.
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Wide temperature range: -20°C to 70°C.
  • All of our LCD display modules are RoHS compliant.
  • Crystalfontz America Incorporated is ISO 9001:2008 certified.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Column Dots x Row Dots 160 x 160

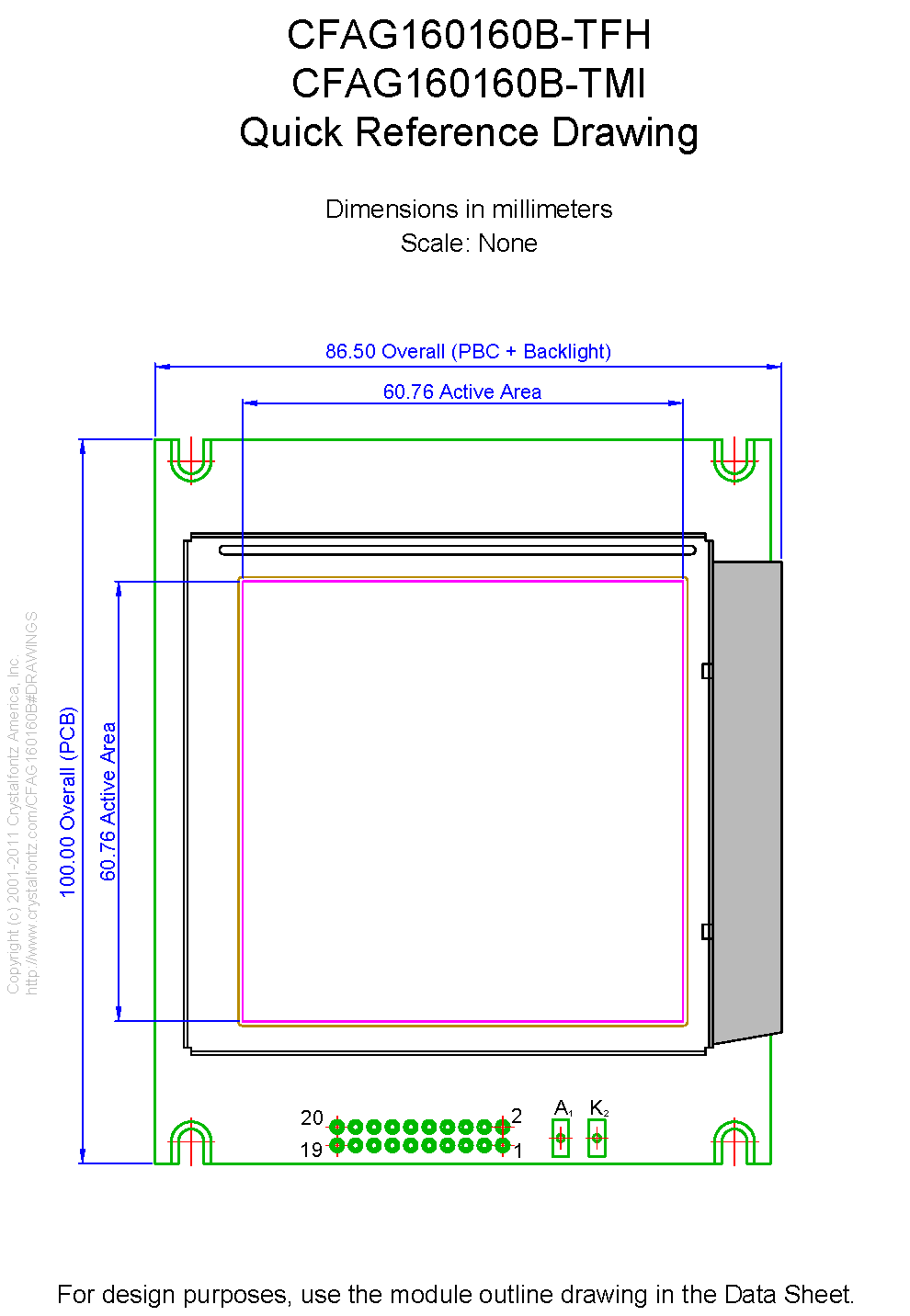

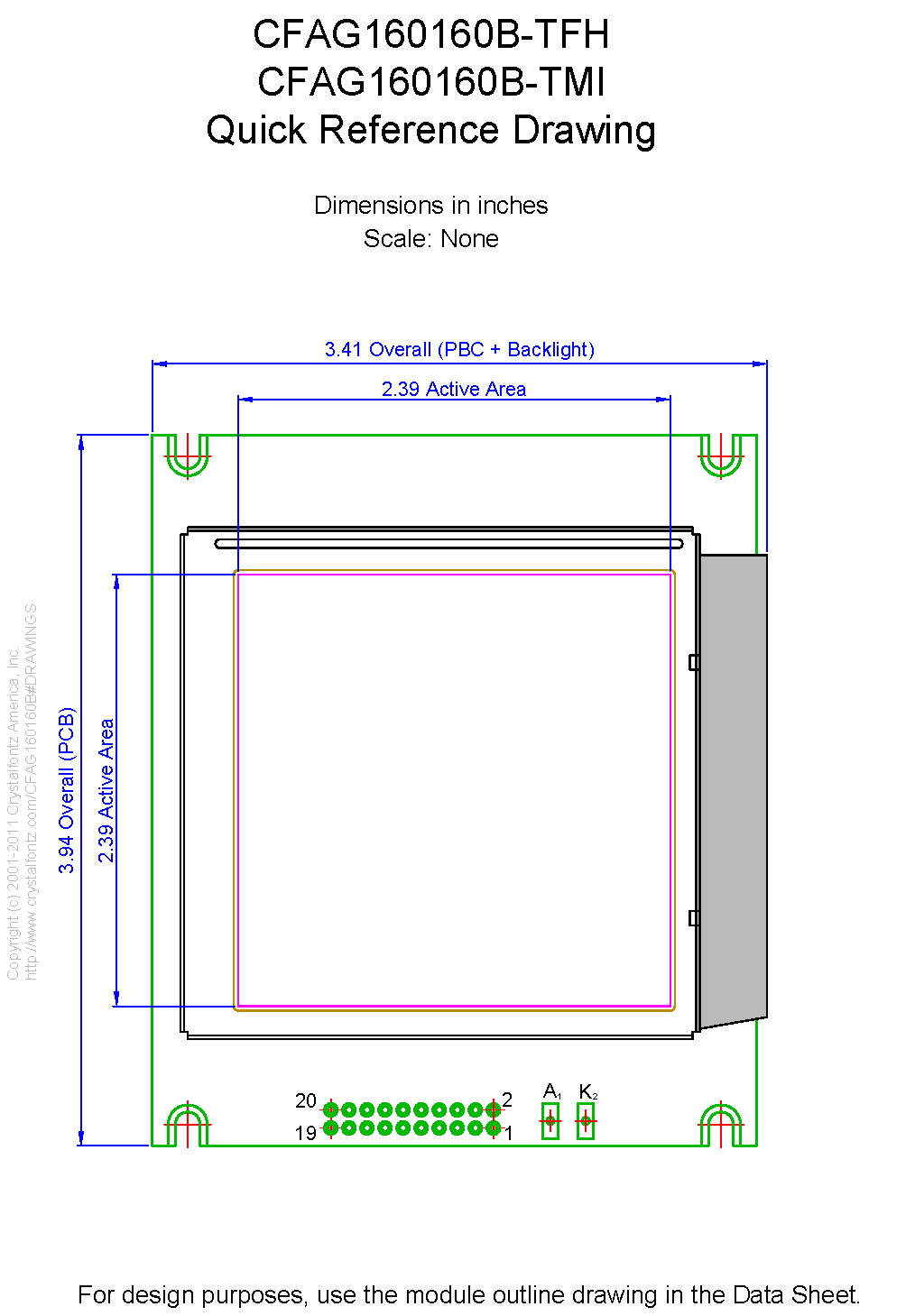

Module Overall width height depth
millimeters 85 100 14.5
inches 3.346 3.937 0.571
PCB Outline width height depth
millimeters 85 100 14.5
inches 3.346 3.937 0.571
Viewing Area width height
millimeters 62 62
inches 2.441 2.441
Active Area width height
millimeters 60.76 60.76
inches 2.392 2.392
Dot Size width height
millimeters 0.34 0.34
inches 0.013 0.013
Dot Pitch width height
millimeters 0.38 0.38
inches 0.015 0.015
Weight 92g

Optical Characteristics

Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color White
Background Color Blue

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Neotec Nt7086
Interface 8-bit Parallel

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG160160B-TMI-VZ or RSS RSS feed for changes to CFAG160160B-TMI-VZ

Product Update #10463: (New Product) CFAG160160B-TMI-VZ

New Product: CFAG160160B-TMI-VZ
Date Issued: March 29, 2013
Summary: (New Product) CFAG160160B-TMI-VZ
Description: Under Standard Graphic Modules: 160x160 Graphic LCD, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

Product Update #10458: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.

Products Affected: CFAG128128B-TFH-VZ, CFAG128128B-TMI-VZ, CFAG128128B-YYH-VZ, CFAG160160B-YYH-VU, CFAG160160B-TFH-VZ, CFAG160160B-TMI-VZ, CFAG16080A-TMI-TZ, CFAG16080A-YYH-TZ, CFAG240128D-FMI-T, CFAG240128D-TMI-TZ, CFAG240128D-YYH-TZ, CFAG128128B-TTI-VZ, CFAG192128A-TMI-TZ
Date Issued: March 29, 2013
Summary: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.
Description: SANYO Semiconductor has announced product discontinuance of the LC7981 LCD Controller. At this time SANYO has no plans to provide a replacement for the LC7981 which is used in several products as an LCD controller. Our partner factory is making a lifetime buy of the LC7981.
Reason: SANYO Semiconductor has announced the end of life of the LC7981 LCD Controller.
Impact: Below are the product families that are affected by this end of life notice.

CFAG128128B
CFAG160160B
CFAG16080A
CFAG240128D
CFAG192128A


Recommendation: We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements.
Availability: At this time we have no suitable replacements for the following product families:

CFAG192128A
CFAG160160B


The following product families have parts available with the same active area, however; these parts would require changes in your product:

EOL Product / Potential Replacement
CFAG128128B / CFAG128128C
CFAG16080A / CFAG16080C1 (additional data forthcoming)
CFAG240128D / CFAG240128B/E/T3

Updated: 2013-04-15
Response: We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements.
Attachment: ProductDiscontinuanceSTNDriver130116.pdf (11KB)
For reference only. For design purposes, please use the specifications in the datasheet.
