This display is not recommended for new designs. Once our stock is depleted it will no longer be available. If you are looking for alternative parts, please see our other graphic LCD displays.

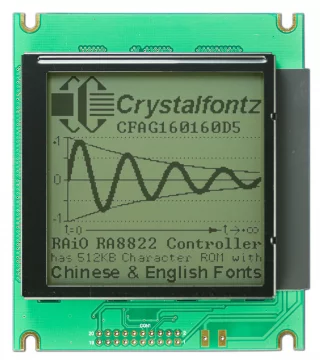

160x160 Graphic FSTN LCD
Part Number: CFAG160160D5-TFH-VGB
Pricing
| Quantity | Price ea. |
|---|---|
| 1 * | $62.41 |
| 10 * | $60.60 |
| 20 * | $56.32 |
| 50 * | $52.71 |
| 100 * | $47.96 |
| 200 * | $44.00 |
| 500 * | $36.63 |
| 1000 * | $33.66 |
* Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Datasheet
Compliance Documents
Description
Dark images and characters are easy to see on the light gray background. This graphic LCD display has FSTN neutral glass, a transflective polarizer, and a white LED backlight.
Features- 4-bit or 8-bit parallel interface.
- RAiO Technology RA8803-8822 or compatible controller.
- English and Chinese (BIG5 and GB) character support with built-in character generator ROM.
- Built-in negative voltage generator, eliminating need for a second, negative, power supply.
- -20°C to +70°C operating temperature range.
- RoHS compliant.
TECHNICAL SPECS

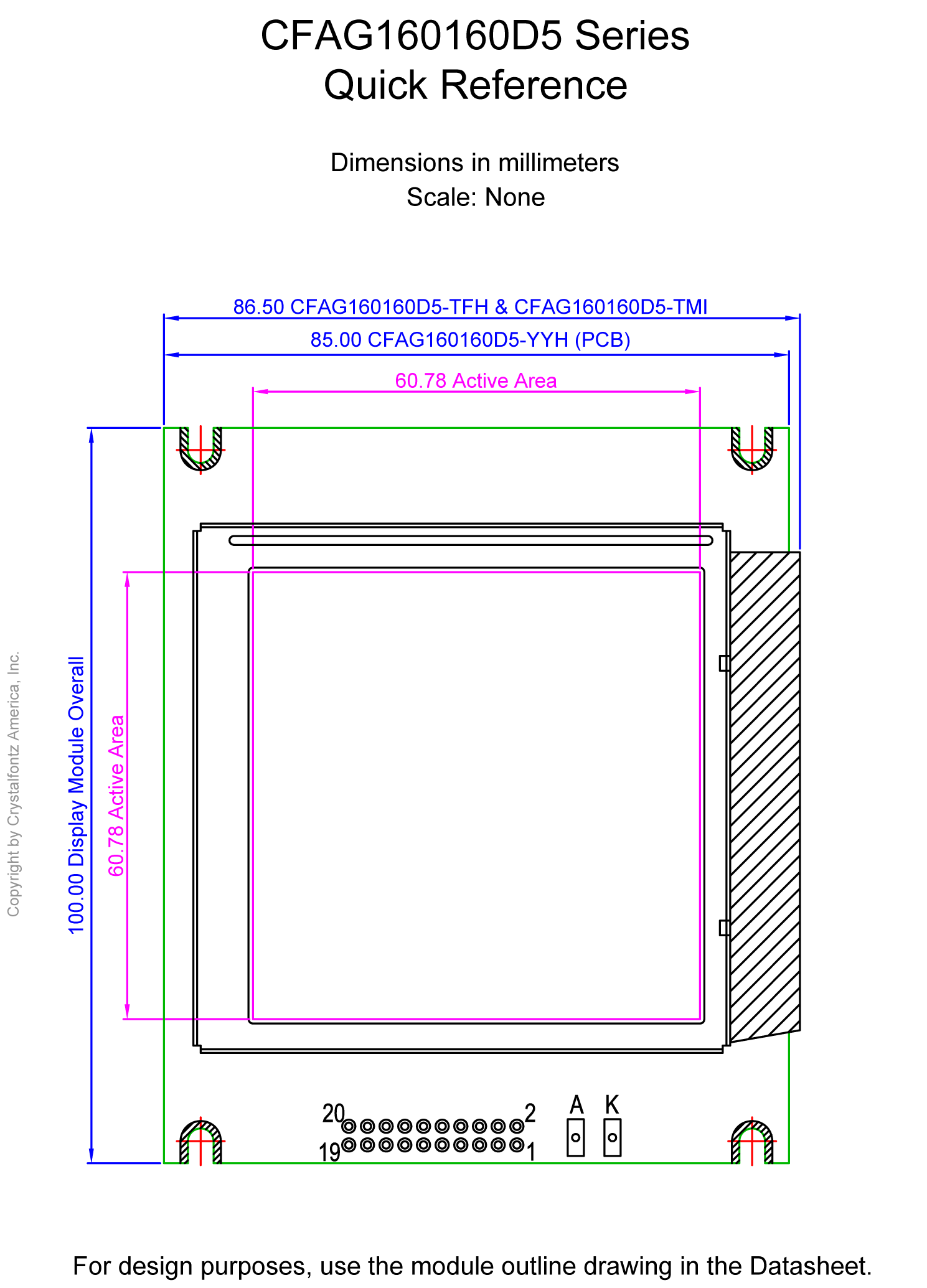

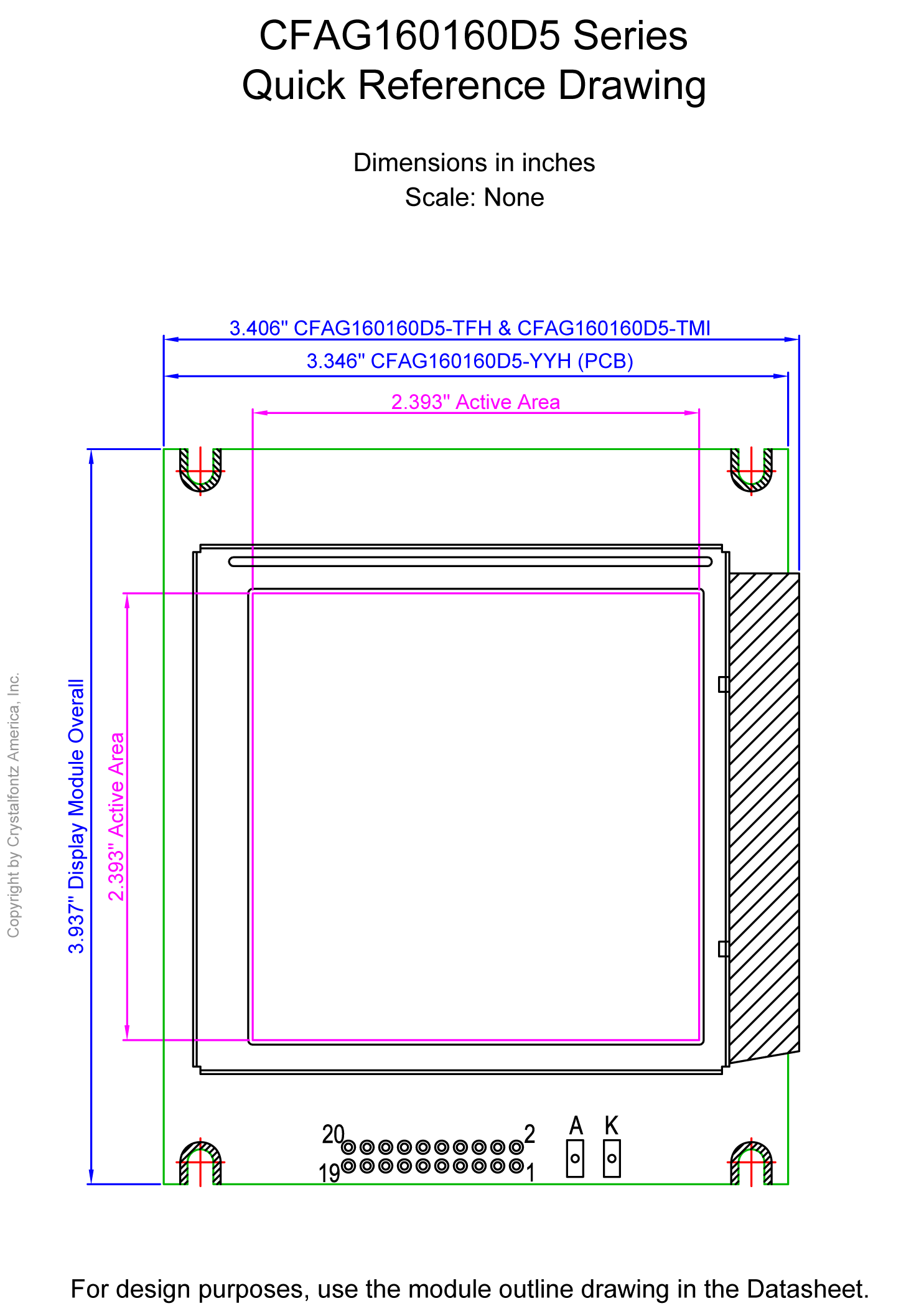

Physical Characteristics
| Column Dots x Row Dots | 160 x 160 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 86.5 | 100 | 14.5 |
| inches | 3.406 | 3.937 | 0.571 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 86.5 | 100 | 14.5 |
| inches | 3.406 | 3.937 | 0.571 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 62 | 62 |
| inches | 2.441 | 2.441 |
| Active Area | width | height |
|---|---|---|
| millimeters | 60.78 | 60.78 |
| inches | 2.393 | 2.393 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.36 | 0.36 |
| inches | 0.014 | 0.014 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.38 | 0.38 |
| inches | 0.015 | 0.015 |
| Weight | 90g |
Optical Characteristics
| Glass Type/Glass Color | FSTN/Neutral |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | White |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Light Gray |
Electrical Specifications
| Supply Voltage for Logic Minimum | 4.75V |
| Supply Voltage for Logic Maximum | 5.25V |
| Supply Voltage for Logic Typical | 5V |
| Supply Voltage for Driving LCD Typical | 18V |
| Supply Current Typical | 116mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | max |
|---|---|
| Non-condensing | 90% |
Electronics
| Controller Documents | Raio Technology RA8803-8822 RA8803/8822 Two Layers Character/Graphic LCD Controller |
| Interface | 4-bit Parallel, 8-bit Parallel |
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #11064: End-of-life Notification
| Product Affected: | CFAG160160D5-TFH-VGB |
| Date Issued: | June 3, 2020 |
| Summary: | End-of-life Notification |
| Description: | The controller chip used in this part - RA8822, has been discontinued by the manufacturer. |
| Reason: | The manufacturer cited low demand |
| Impact: | The parts listed will not be available after June 26, 2020. Last time buys may be made until that date. Orders received after June 26, 2020 will not be accepted. |
| Recommendation: | Customers using this product should purchase parts to cover anticipated usage. At this time, a replacement part is not available. Crystalfontz will make every effort to find a suitable replacement, but we cannot guarantee that one will be found. |
| Availability: | Last time buy orders only |
For reference only. For design purposes, please use the specifications in the datasheet.
