[EOL] Yellow-Green 160x80 Parallel Graphic LCD
Part Number: CFAG16080A-YYH-TZ
(EOL)Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00 viewing angle. Negative Voltage Generator, Temperature Compensation
- 160x80 graphic LCD module
- Built-in Sanyo LC7981 or compatible controller and 4Kbyte SRAM
- 160x80 graphic mode --or-- 26 x 10 text mode using built-in 5x7 Character Generator ROM.
- Available in several variations of backlight and polarizer (minimum order may be required)

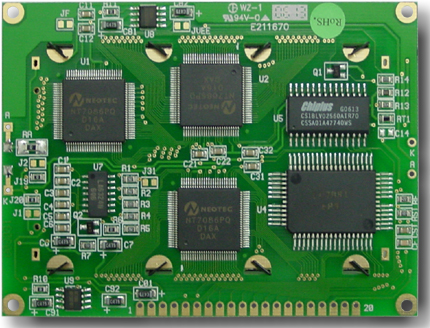

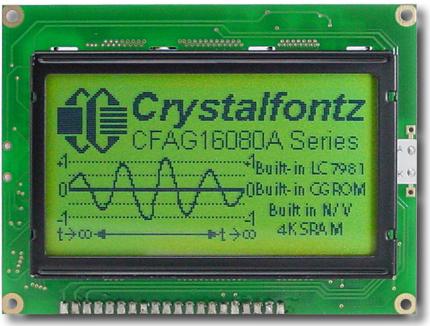

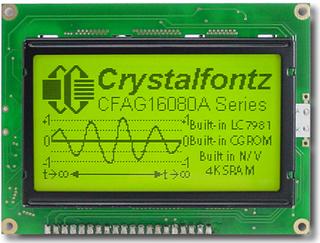

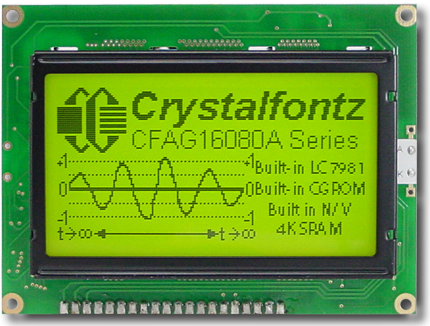

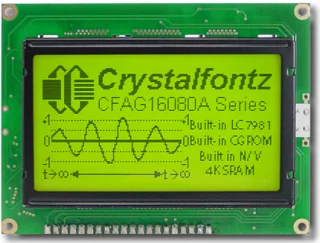

![[EOL] Yellow-Green 160x80 Parallel Graphic LCD (CFAG16080A-YYH-TZ)](/images/products/CFAG16080AYYHTZ/CFAG16080AYYH_430.jpg)
Datasheet
TECHNICAL SPECS
Physical Characteristics

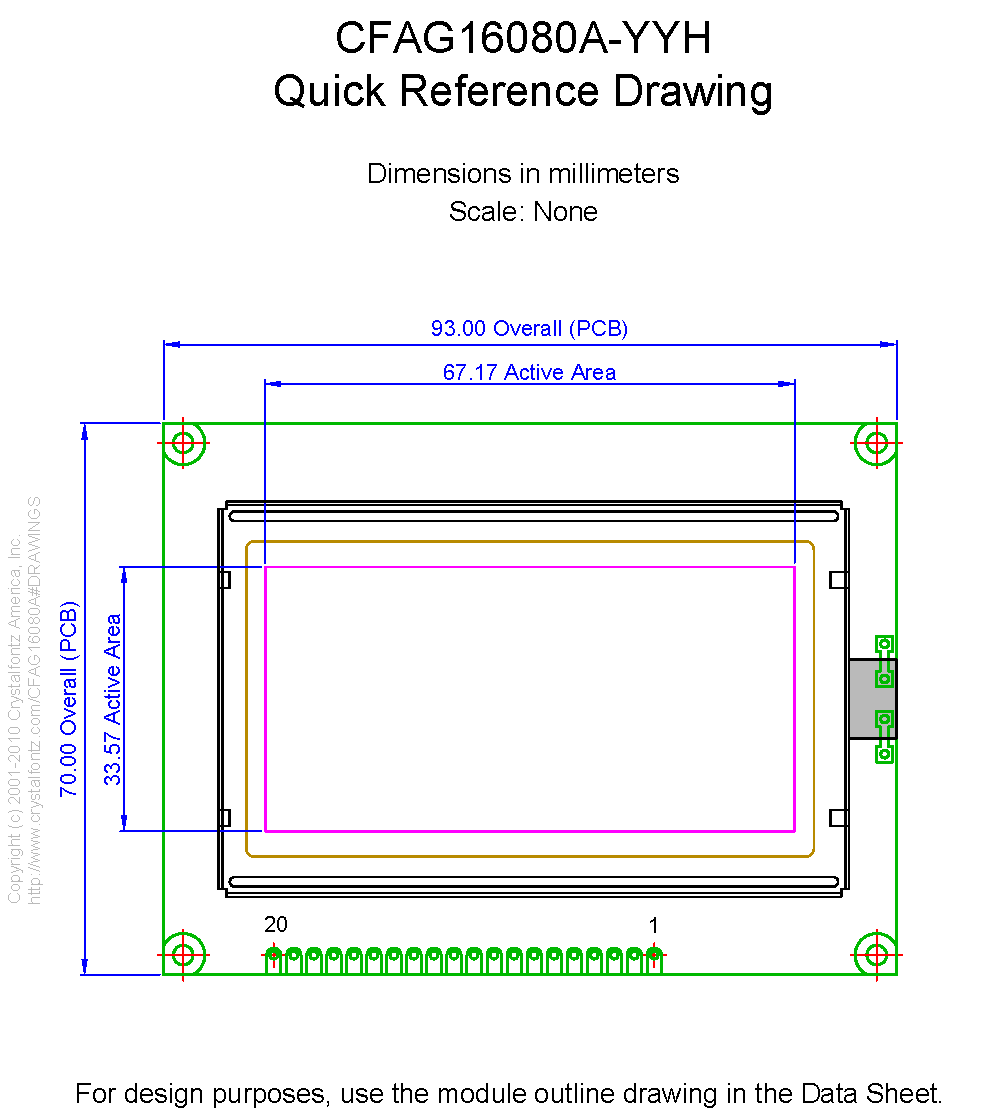

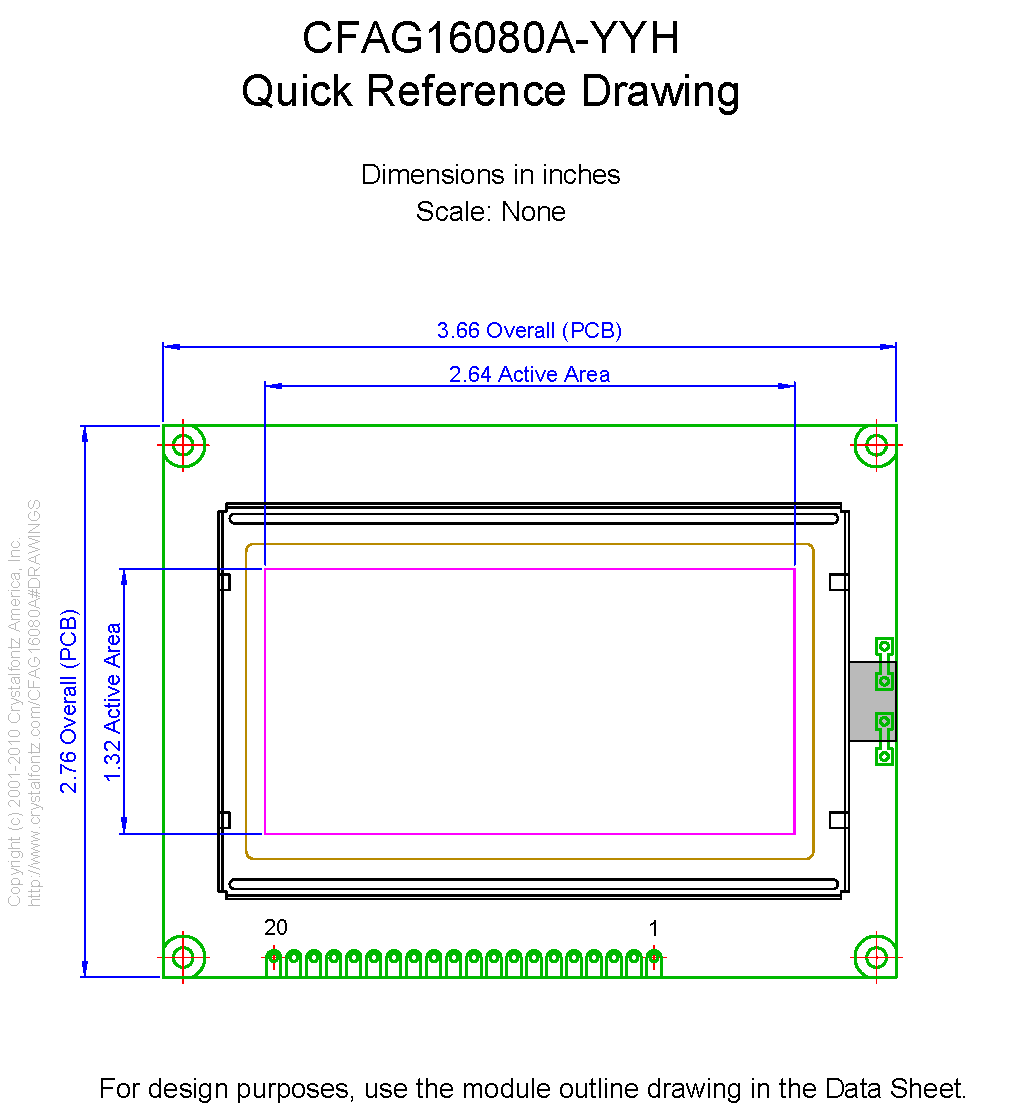

| Column Dots x Row Dots | 160 x 80 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 93 | 70 | 13.6 |
| inches | 3.661 | 2.756 | 0.535 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 93 | 70 | 13.6 |
| inches | 3.661 | 2.756 | 0.535 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 72 | 40 |
| inches | 2.835 | 1.575 |
| Active Area | width | height |
|---|---|---|
| millimeters | 67.17 | 33.57 |
| inches | 2.644 | 1.322 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.39 | 0.39 |
| inches | 0.015 | 0.015 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.42 | 0.42 |
| inches | 0.017 | 0.017 |
| Weight | 93g |
Optical Characteristics
| Glass Type/Glass Color | STN/Yellow-Green |
| Polarizer | Transflective |
| View Direction | 6 o'clock |
| Sunlight Readable | Yes |
| Backlight Color | Yellow-Green |
| Backlight Type | LED |
| Mode | Positive |
| Foreground Color | Dark |
| Background Color | Yellow-Green |
Electrical Specifications
| Module Connector Pitch | 0.1mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sanyo LC7981 LC7981 Controller for LT Dot Matrix Graphic Display |
| Interface | 8-bit Parallel |
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #10458: SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor.
| Products Affected: | CFAG128128B-TFH-VZ, CFAG128128B-TMI-VZ, CFAG128128B-YYH-VZ, CFAG160160B-YYH-VU, CFAG160160B-TFH-VZ, CFAG160160B-TMI-VZ, CFAG16080A-TMI-TZ, CFAG16080A-YYH-TZ, CFAG240128D-FMI-T, CFAG240128D-TMI-TZ, CFAG240128D-YYH-TZ, CFAG128128B-TTI-VZ, CFAG192128A-TMI-TZ |
| Date Issued: | March 29, 2013 |
| Summary: | SANYO Semiconductor has announced a product discontinuance of the LC7981 LCD Controller. Please see the attachment below for the official release from SANYO Semiconductor. |
| Description: | SANYO Semiconductor has announced product discontinuance of the LC7981 LCD Controller. At this time SANYO has no plans to provide a replacement for the LC7981 which is used in several products as an LCD controller. Our partner factory is making a lifetime buy of the LC7981. |
| Reason: | SANYO Semiconductor has announced the end of life of the LC7981 LCD Controller. |
| Impact: | Below are the product families that are affected by this end of life notice. CFAG128128B CFAG160160B CFAG16080A CFAG240128D CFAG192128A |
| Recommendation: | We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements. |
| Availability: | At this time we have no suitable replacements for the following product families: CFAG192128A CFAG160160B The following product families have parts available with the same active area, however; these parts would require changes in your product: EOL Product / Potential Replacement CFAG128128B / CFAG128128C CFAG16080A / CFAG16080C1 (additional data forthcoming) CFAG240128D / CFAG240128B/E/T3 Updated: 2013-04-15 |
| Response: | We are requesting that you provide us with a forecast of what your company would need to make it through the end of 2014. This would be considered a life time buy and would require 100% payment up front. We would need to have all final Purchase Orders submitted to us by no later than April 15th 2013 so we can make proper allocation and purchasing arrangements. |
| Attachment: | ProductDiscontinuanceSTNDriver130116.pdf (11KB) |
For reference only. For design purposes, please use the specifications in the datasheet.
