EOL Sunlight Readable 320x240 Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

                This product has reached end of life

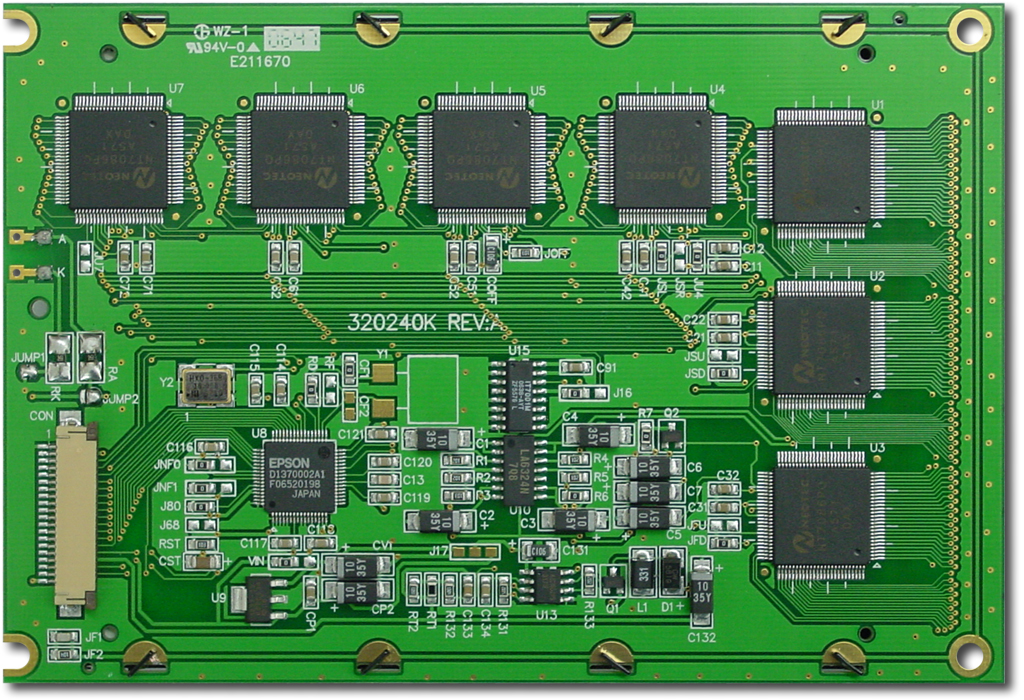

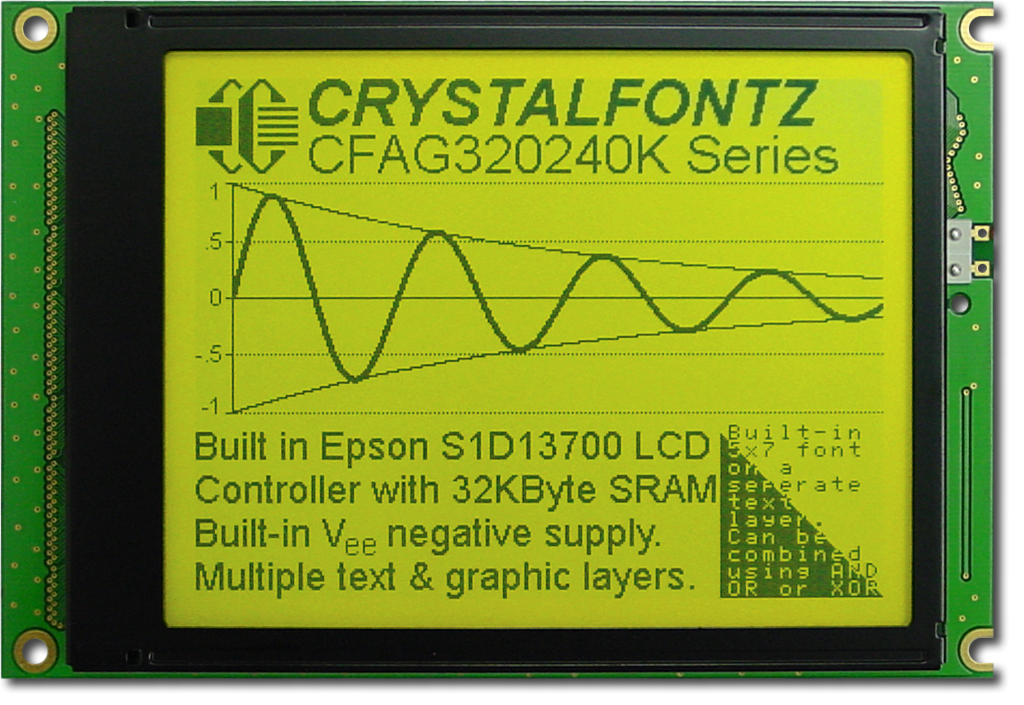

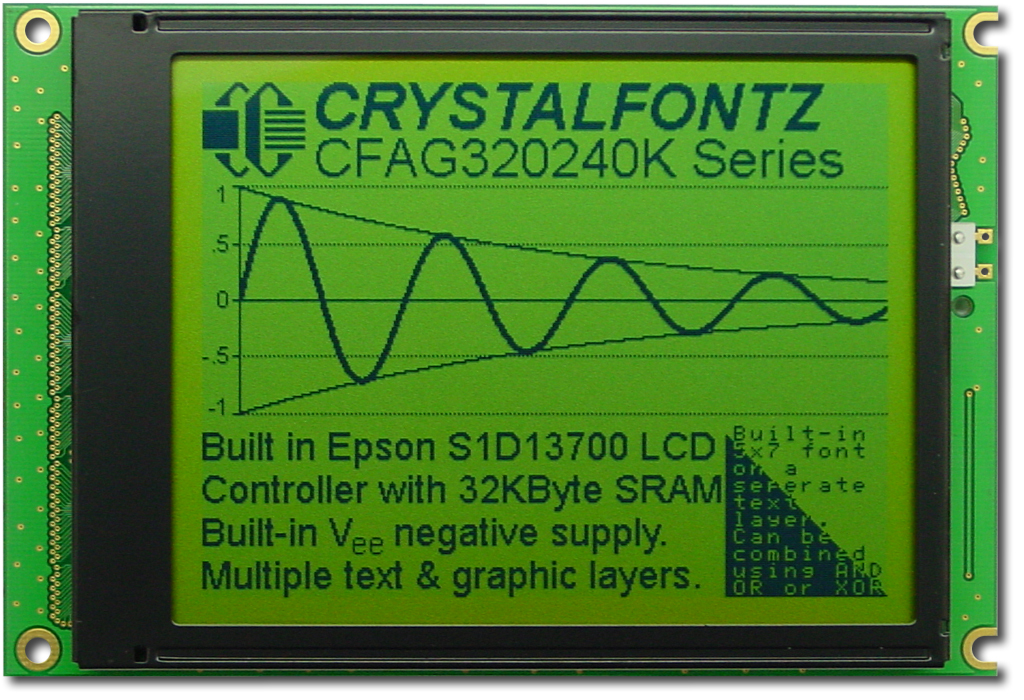

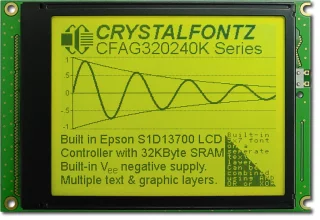

EOL Sunlight Readable 320x240 Graphic LCDPart Number: CFAG320240K-YYH-TZSunlight readable 320x240 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 320x240 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Epson S1D13700
Operating Temp: -20°C to +70°C
CGRAM: 40x30 text mode using built-in 5x7 Character Generator ROM
Compliance: REACH & RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240

    Module Overall        width
        height
        depth

        millimeters
        142
        96
        13.1

        inches
        5.59
        3.78
        0.52

    PCB Outline        width
        height
        depth

        millimeters
        142
        96
        13.1

        inches
        5.59
        3.78
        0.52

        Diagonal Dimension
            4.72"

    Viewing Area        Width
        Height

        millimeters
        104
        79.3

        inches
        4.09
        3.12

    Active Area        Width
        Height

        millimeters
        95.97
        71.97

        inches
        3.78
        2.83

    Dot Size        Width
        Height

        millimeters
        0.27
        0.27

        inches
        0.011
        0.011

    Dot Pitch        Width
        Height

        millimeters
        0.3
        0.3

        inches
        0.012
        0.012

        Weight
            174g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Epson S1D13700
Hardware Functional Specification

Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG320240K-YYH-TZ Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG320240K 2D CAD
picture_as_pdf 1 to 1 Template - CFAG320240K 1 to 1.pdf

Module Overall	width	height	depth
millimeters	142	96	13.1
inches	5.59	3.78	0.52

PCB Outline	width	height	depth
millimeters	142	96	13.1
inches	5.59	3.78	0.52

Viewing Area	Width	Height
millimeters	104	79.3
inches	4.09	3.12

Active Area	Width	Height
millimeters	95.97	71.97
inches	3.78	2.83

Dot Size	Width	Height
millimeters	0.27	0.27
inches	0.011	0.011

Dot Pitch	Width	Height
millimeters	0.3	0.3
inches	0.012	0.012

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10910: End-of-Life Notification

Products Affected:	CFAG14432A-YYH-TT, CFAG20232C-YYH-TT, CFAG14432A-TFH-TT, CFAG320240K-YYH-TZ, CFAG14432C-TFH-TT, CFAG12864I-TMI-TN, CFAG12864F-STI-TY, CFAG12864F-TMI-TY, CFAG12864G-STI-TY, CFAH0801Z-YYH-JP, CFAG19264A-STI-TN
Date Issued:	December 13, 2017
Summary:	End-of-Life Notification
Description:	The parts listed have been set to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	No replacements have been identified
Recommendation:	These parts are not recommended for new designs.
Availability:	Once current stock is depleted, these parts will no longer be available
Price Change:	N/A
