42x65 One Inch Graphic LCD

Part Number: CFAG4265A0-TDL

42x65 Graphic LCD – White On Dark

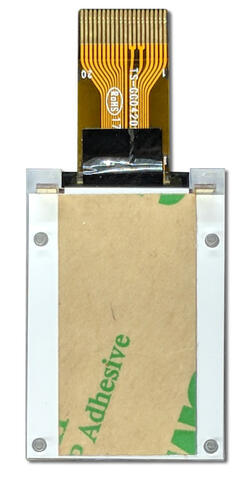

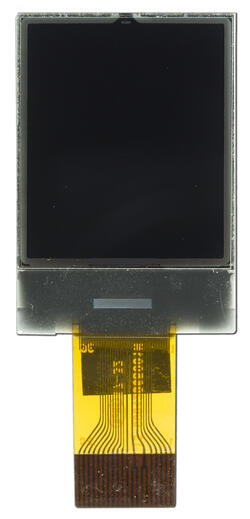

We designed this 42 x 65 graphic LCD display module so it fits on the face of 1-inch wide devices such as blade servers, disk drive carriers, and expansion cards.

The 0.88-inch (22.40 mm) width leaves room for the metalwork and mechanical clearance.

This economical COG (Chip-On-Glass) FFSTN transmissive display is suitable for typical office lighting and is easy to see in dimly lit areas.

This small graphic LCD display uses three long-life white LEDs for its backlight. The forward voltage is 9.6v to 10.8v. For long life, we recommend driving the backlight at 12mA

• 42 by 65 pixels.
• 12 o'clock viewing direction can be used in portrait or landscape mode.
• SPI interface (4-wire Serial Peripheral Interface).
• Sitronix ST7565R or compatible controller.
• The FFC/FPC flexible tail is easy to connect with any standard 20 pin 0.5mm pitch ZIF connector.
• Show off your creativity by tiling multiple displays on 1-inch centers.
• An additional color choice in the CFAG4265A0 series is the CFAO4265A0-TFK, which is dark pixels on a light gray background

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  42 x 65

  Module Overall	width	height	depth
  millimeters	22.4	32.85	4.8
  inches	0.882	1.293	0.189
  *width / height does not include Foldable Tab

  Diagonal Dimension

  1."

  Viewing Area	Width	Height
  millimeters	19	23.35
  inches	0.748	0.919

  Active Area	Width	Height
  millimeters	13.84	21.43
  inches	0.545	0.844

  Dot Size	Width	Height
  millimeters	0.31	0.31
  inches	0.012	0.012

  Dot Pitch	Width	Height
  millimeters	0.33	0.33
  inches	0.013	0.013

  Weight

  6g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type/Glass Color	FFSTN/Black
  Polarizer	Transmissive
  View Direction	12 o'clock

  Backlight Color	White
  Backlight Type	LED
  Mode	Negative
  Foreground Color	White
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Maximum	3.3V
  Supply Voltage for Logic Typical	3.3V

  Supply Voltage for Driving Panel Typical	9.5V
  Supply Current Typical	0.5mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Maximum	10.8V
  Forward Voltage Typical	9V

  Forward Current Typical

  16mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

  Humidity	min	max
  Non-condensing	0%	90%

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7565R ST7565R 65 x 132 Dot Matrix LCD Controller/Driver
  Interface	SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAG4265A0-TDL Datasheet


• download Files and Downloads
  folder_zip Software Source - Arduino SPI Demo Code


  link Fork this on Github
