128x22 Parallel Graphic OLED [EOL]

Part Number: CFAL12822A-Y-B1

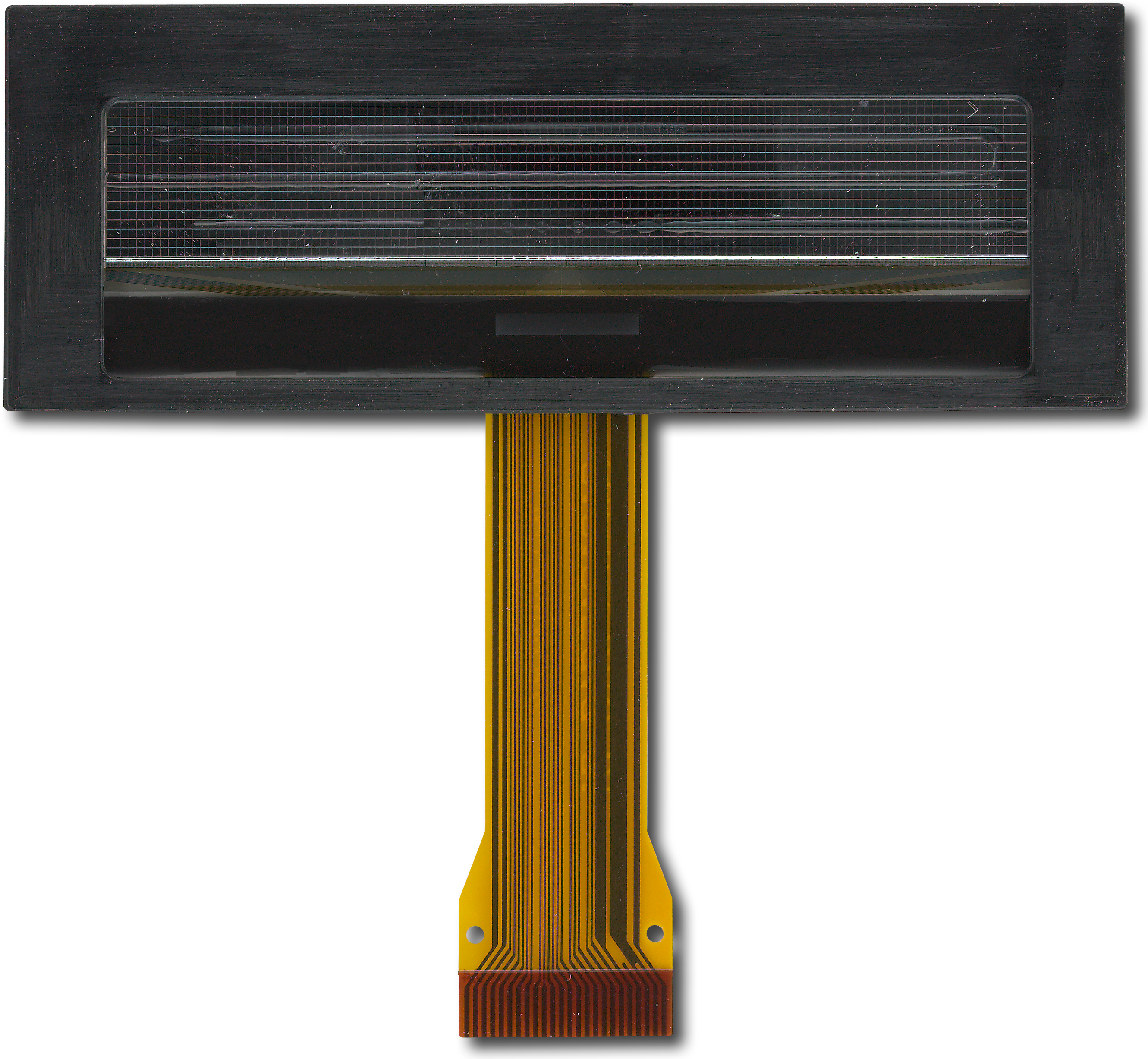

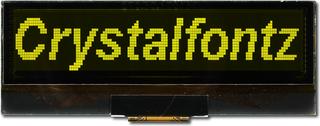

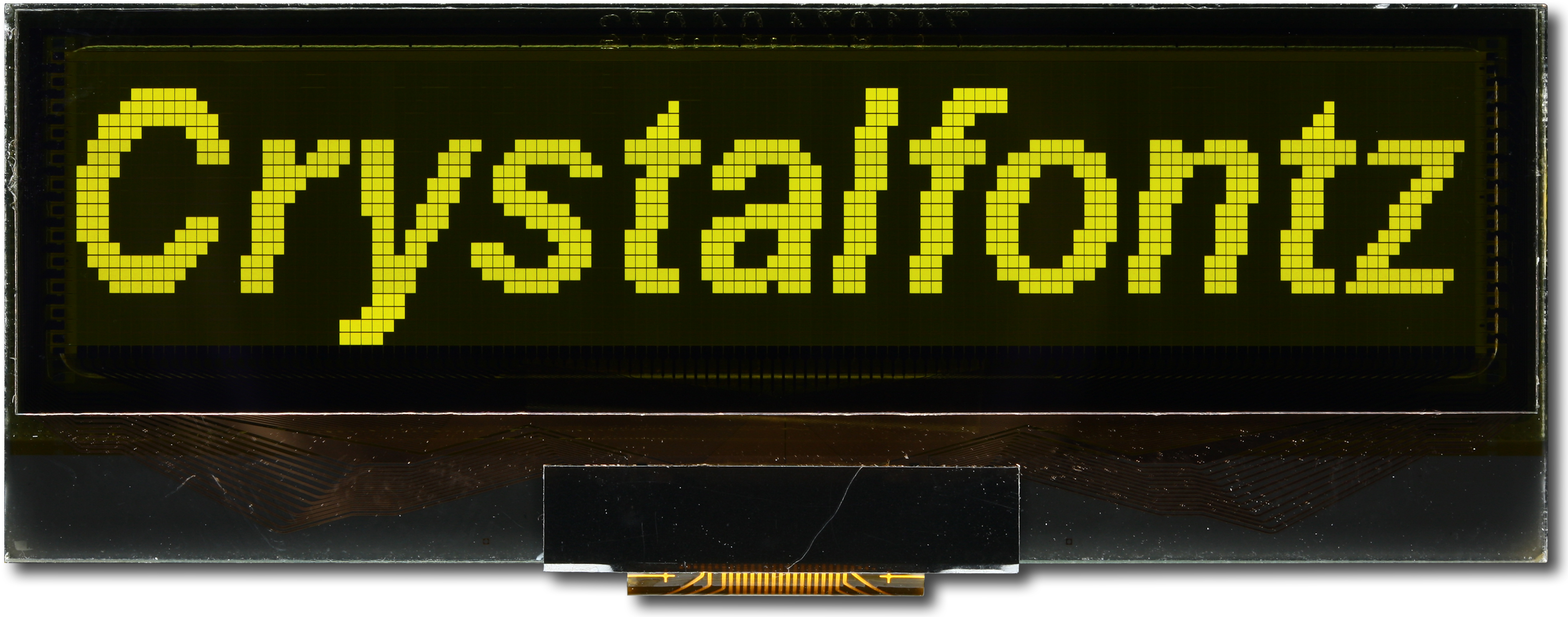

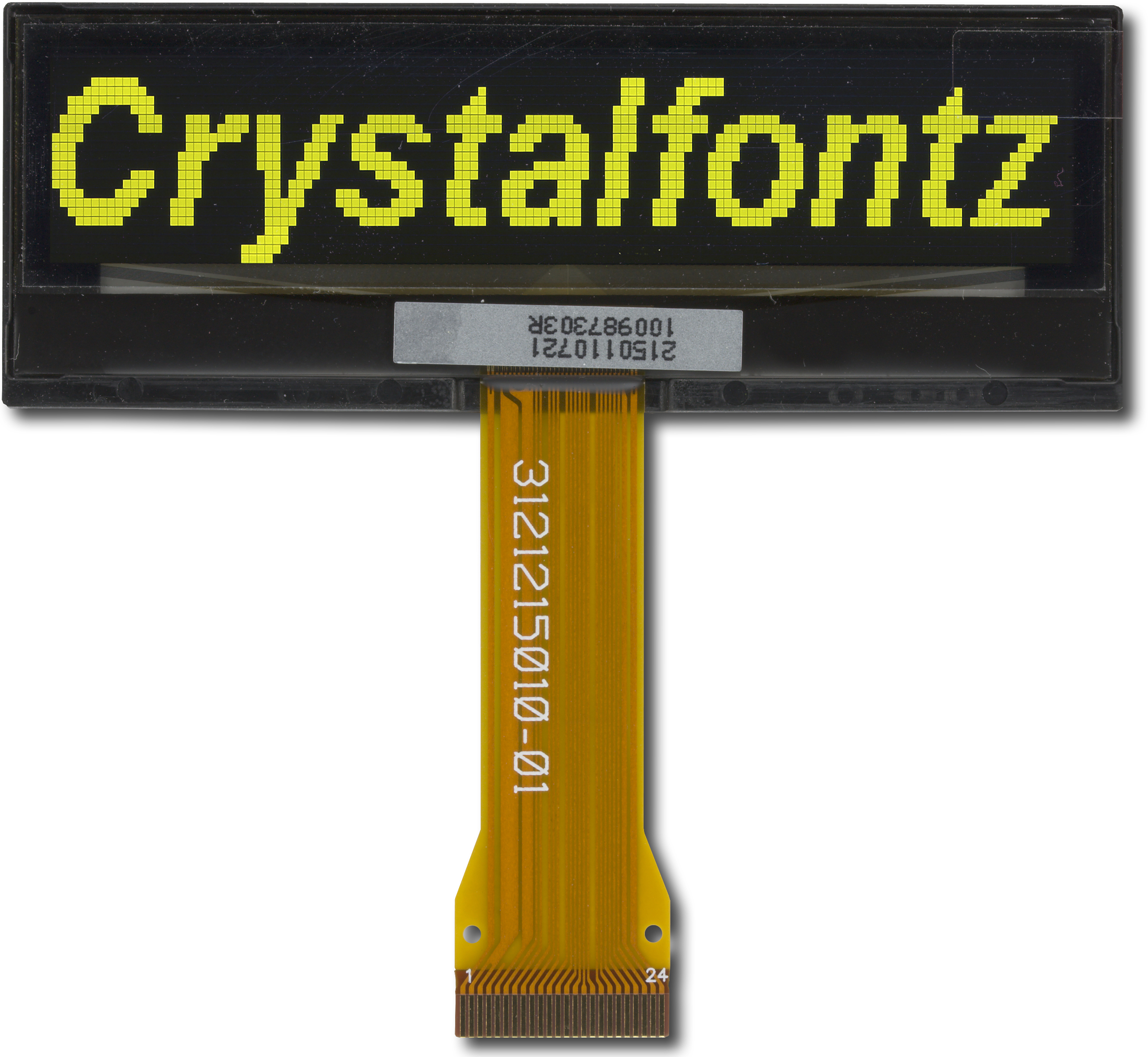

This 128x22 graphic OLED Display module is less than one inch high overall, and is vibrant in its appearance. Very thin and extremely aesthetically pleasing, this display is suitable for any number of applications where power consumption and overall depth both need to be minimized.

This version of the display mates with standard 0.5mm 24 pin ZIF sockets such as OR721CT-ND, OR709CT-ND and OR877CT-ND.

Not recommended for new designs. Available in small quantities only.

  • 128x22 graphic OLED display module
  • 3v logic levels
  • Extremely wide viewing angles
  • Very high contrast ratio
  • Built-in Solomon SSD1305 or compatible controller
  • 8-bit parallel interface or SPI Interface
  • RoHS Compliant
128x22 Parallel Graphic OLED [EOL] (CFAL12822A-Y-B1)

Datasheet

CFAL12822A-Y-B1 Data Sheet v2.1.pdf
(Datasheet V 2.1, Hardware 1.1)
CFAL12822A-Y-B1 Data Sheet v2.0.pdf
(Datasheet V 2.0, Hardware 1.1)
CFAL12822AYB1 v1.1.pdf
(Datasheet V 1.1, Hardware A)
CFAL12822AYB1 v1.0.pdf
(Datasheet V 1.0, Hardware A)

Files

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 128 x 22

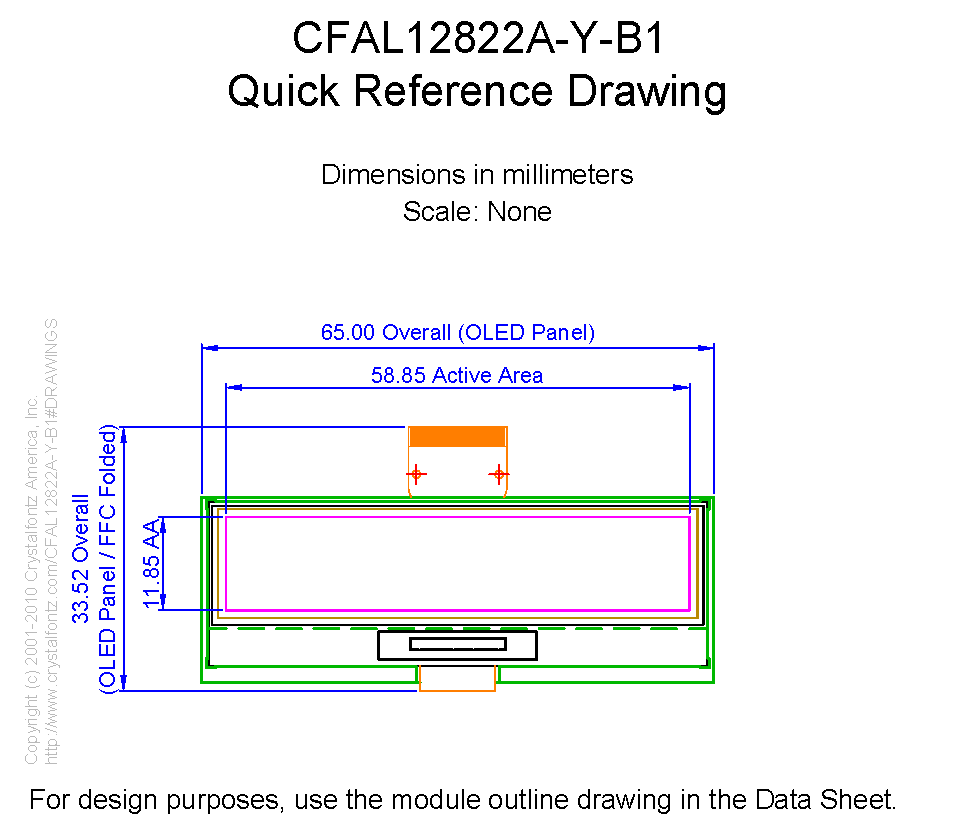

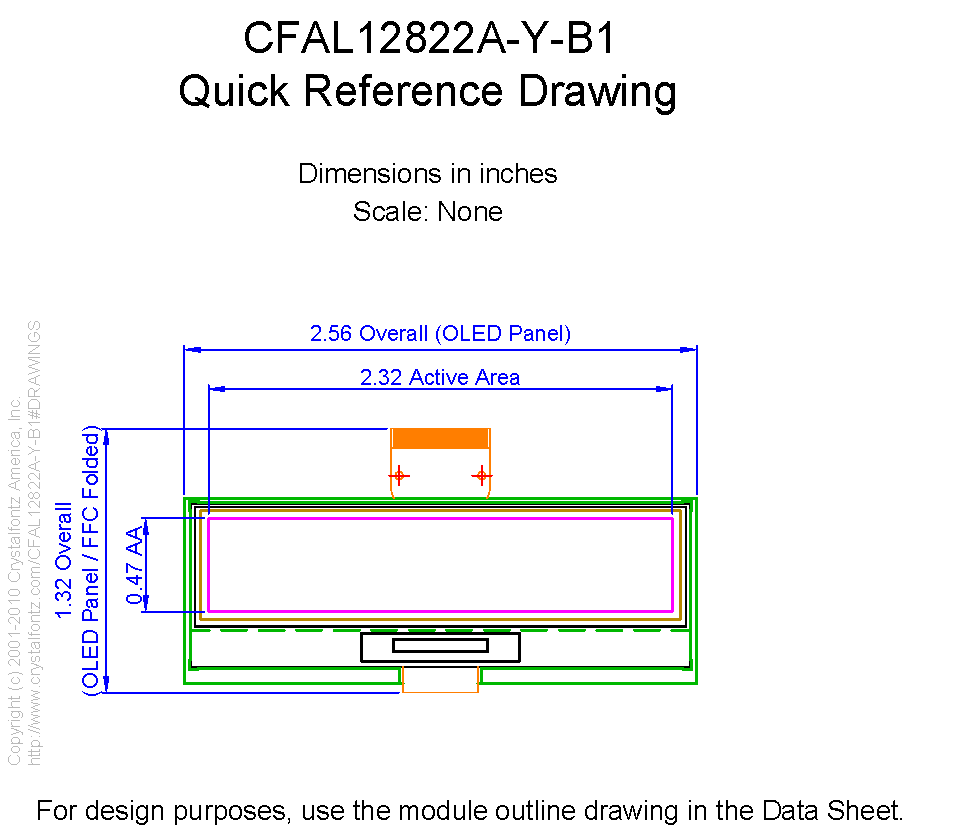

Module Overall width height depth
millimeters 65 23.5 2.15
inches 2.559 0.925 0.085
*width / height does not include Foldable Tab
Diagonal Dimension 2.36"
Viewing Area width height
millimeters 60.85 13.85
inches 2.396 0.545
Active Area width height
millimeters 58.85 11.85
inches 2.317 0.467
Dot Size width height
millimeters 0.43 0.51
inches 0.017 0.020
Dot Pitch width height
millimeters 0.46 0.54
inches 0.018 0.021
Weight 4g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
Backlight Type None
Mode Positive
Foreground Color Yellow
Background Color Dark

Electrical Specifications

Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface 8-bit Parallel, SPI

Miscellaneous

Foldable Tab Yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12822A-Y-B1 or RSS RSS feed for changes to CFAL12822A-Y-B1

Part Change Notice #10344: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected: CFAL12822A-Y-B, CFAL12864L-Y-B2, CFAL12864L-G-B2, CFAL12864L-Y-B4, CFAL12864L-G-B4, CFAL12822A-Y-B1, CFAL12864S-Y-B1, CFAL160128B-F-B2, CFAL12832C-B-B1
Date Issued: April 21, 2011
Summary: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Part Change Notice #10284: CFAL12822A series of OLED module improvements

Products Affected: CFAL12822A-Y-B, CFAL12822A-Y-B1
Date Issued: August 23, 2010
Summary: CFAL12822A series of OLED module improvements
Description: The panel has been reduced in size from 65mm x 23.5mm to 63.3mm x 20.8mm. For the CFAL12822A-Y-B1, there has been added a carrier to bring the overall dimensions to 64.8mm x 23.5mm.

The CFAL12822A-Y-B1 now has a driving voltage of 12v instead of 14v, and the brightness has increased from 80cd/m² to 100cd/m².

Improvements in the organic material design has also increased the efficiency of the CFAL12822A series.

Lifetime of CFAL12822A series is increased from 10,000 hours to 50% brightness to 20,000 hours to 50% brightness.

The shape but not length or pitch of the FPC tail on the CFAL12822A-Y-B1 module has also changed.
Reason: Manufacturing improvements.
Impact: In the initialization for the module, a change will need to be made for command Set Lower Column Start Address from 0x10+0 to 0x10+4.
Price Change: N/A

Part Change Notice #10026: * Wherever listed, corrected specification of overall module depth in inches. Module dimensions did not change. - Changed maximum from “0.89” to “0.09” inches. - Changed nominal from “0.85” to “0.08” inches. * Fixed broken cross-reference for Absolute Maximum Ratings (Pg. 15). * Corrected mention of “TFT” to “OLED” in APPENDIX C: OLED MODULE TERMS AND SYMBOLS (Pg. 31).

Product Affected: CFAL12822A-Y-B1
Date Issued: December 21, 2009
Summary: * Wherever listed, corrected specification of overall module depth in inches. Module dimensions did not change.
- Changed maximum from “0.89” to “0.09” inches.
- Changed nominal from “0.85” to “0.08” inches.

* Fixed broken cross-reference for Absolute Maximum Ratings (Pg. 15).

* Corrected mention of “TFT” to “OLED” in APPENDIX C: OLED MODULE TERMS AND SYMBOLS (Pg. 31).
Last revision: 1.0
Description: Datasheet changes
Reason: Correct accuracy

Part Change Notice #10023: Datasheet changes

Product Affected: CFAL12822A-Y-B1
Date Issued: November 24, 2009
Summary: Datasheet changes
Description: * In Physical Characteristics (previously “General Specifications”):
o Corrected “Viewing Area” height from “13.7” to “13.85” millimeters. Viewing Area is unchanged and was correct in the 2009/04/13 Contour Drawing of the Preliminary version. It was just in the General Specifications table that it was wrong.
o Changed “Module Dimension” height from “23.5” millimeters (which is OLED panel height) to “33.52” (OLED panel plus FFC fold) and “59.50” (OLED panel with FFC unfolded).
o Expanded “Module Dimension” depth description from “2.15” to nominal depth “2.15” and maximum depth “2.25” millimeters.
* In Absolute Maximum Ratings:
o Changed Vlogic (Logic Supply Voltage) minimum from “-0.3v” to “2.4v’.
* In DC Characteristics, slight change in Vih specification from “+2.4v” to “+2.64v”.
For reference only. For design purposes, please use the specifications in the datasheet.

Product Notes

While we do not offer any direct replacements for this product, perhaps one of our many other CFAL displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
