This display is no longer available and has been replaced with this small white monochrome OLED display.

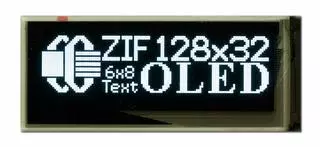

128x32 I2C Graphic OLED Module with ZIF Connector

Part Number: CFAL12832D-B

Super popular small oled! This white-on-black OLED is perfect for display panels that have little space and need a high resolution 128x32 graphic display. With a 24.38mm x 7.58mm viewing area, this is one of the smallest OLEDs available.

  • Thin form factor! 1.45mm
  • Solomon Systech SSD1306 or compatible controller communicates with I2C, 3-wire SPI, or 4-wire SPI
  • Only 3.3v
  • Easy ZIF connection. The FPC mates with a 12-pin ZIF connector, which can be processed through your normal SMT reflow.
  • Typical mating ZIF connectors can be found here: Bottom Contact and Top Contact.

The Solomon Systech SSD1306 controller needs only a single 3.3v supply for power and logic levels for communication, making it a top choice in low power or battery powered applications. The 3 wire / 4 wire SPI or I2C serial interfaces require only 12 lines. Coupled with a ZIF connection (0.50mm pitch), connecting this module to your host device is a simple task.

Do you need a carrier board to speed up your development? We have the CFA10054 OLED carrier board for this display.

This OLED display has the same connector as these other displays: 64x48 Small Graphic OLED and Small 48x64 .71inch OLED Display.

Product Variations


Additional Options

In addition to the white-on-black OLED above, the CFAL12832D-B* series includes the two variants shown below.
