64x48 Small Graphic OLED

Part Number: CFAL6448A-066BW

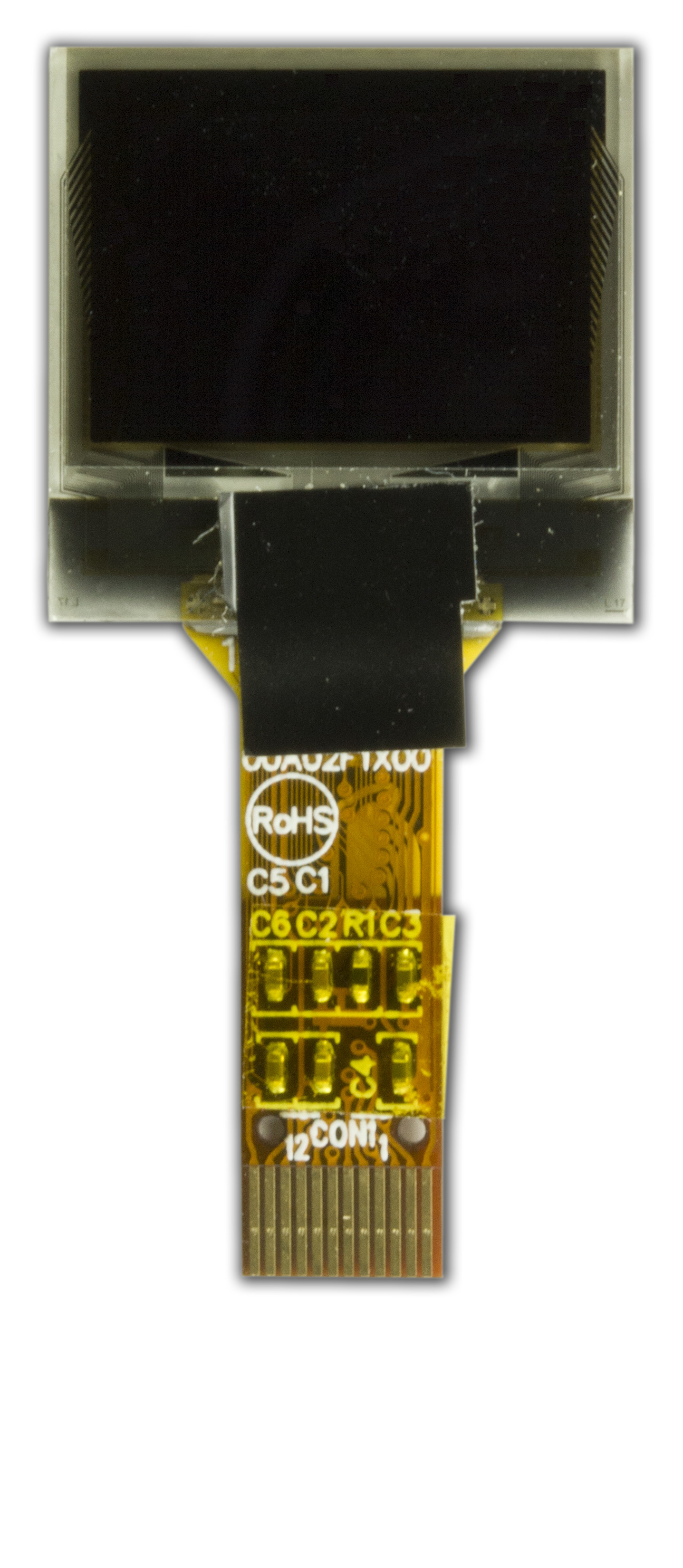

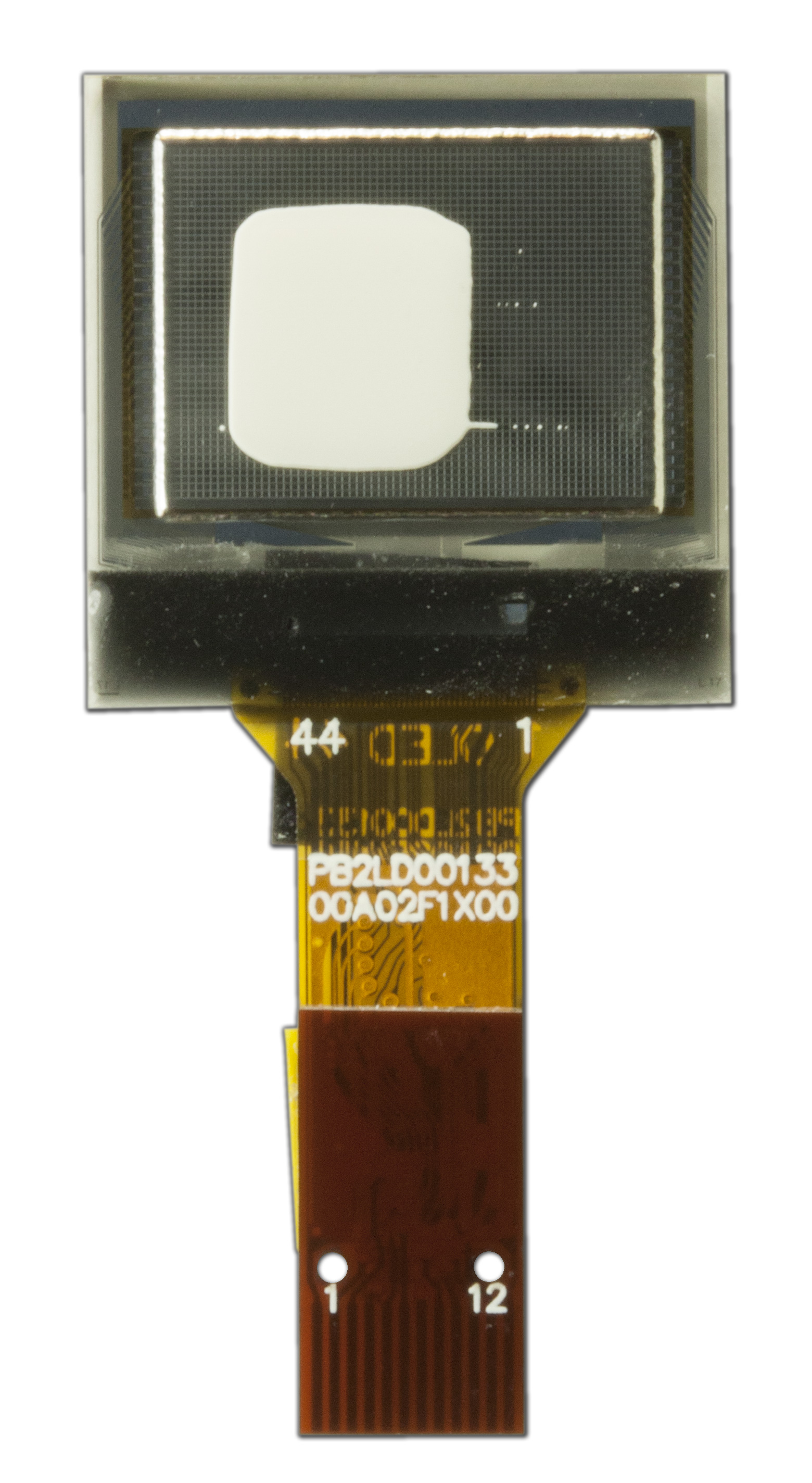

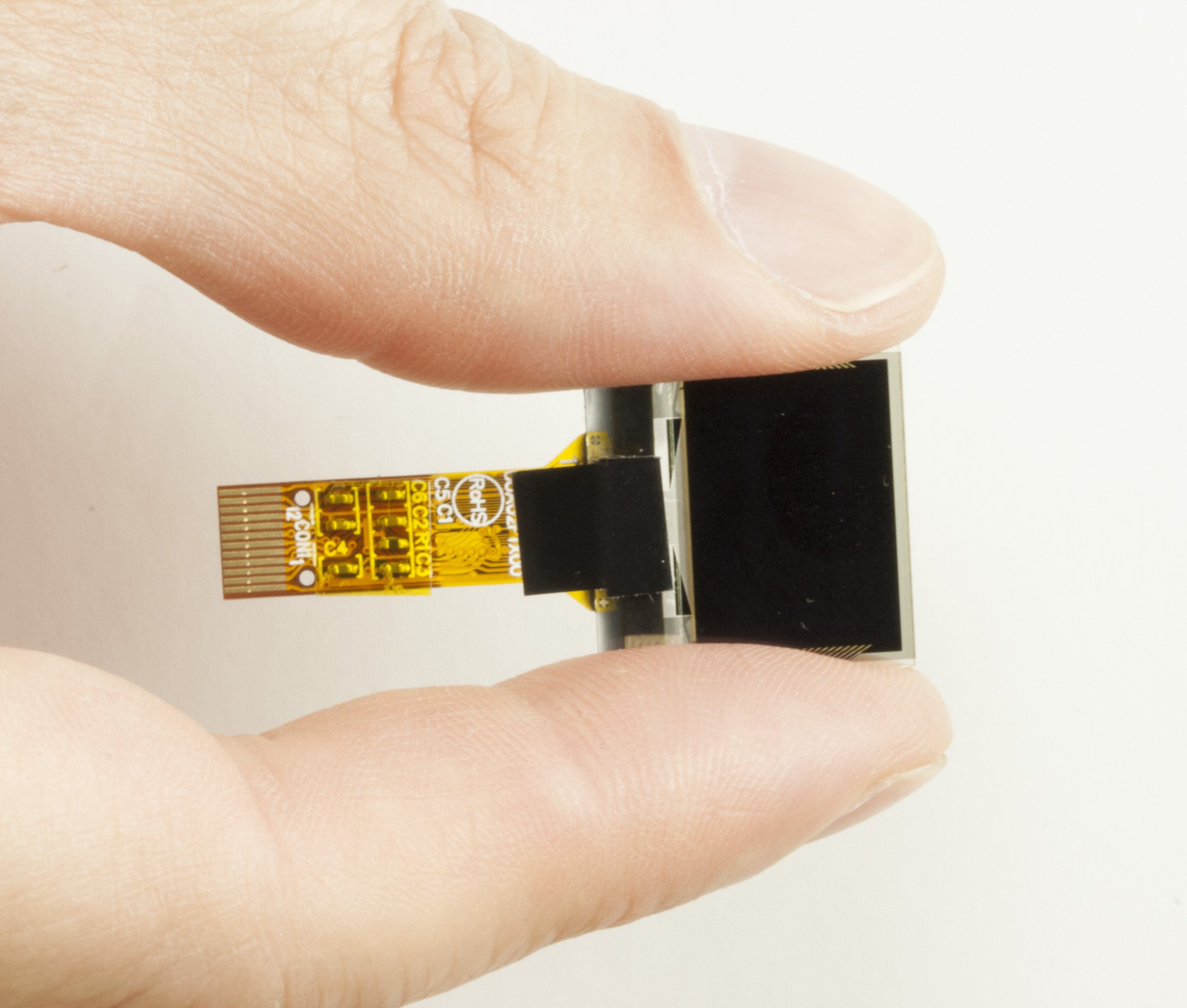

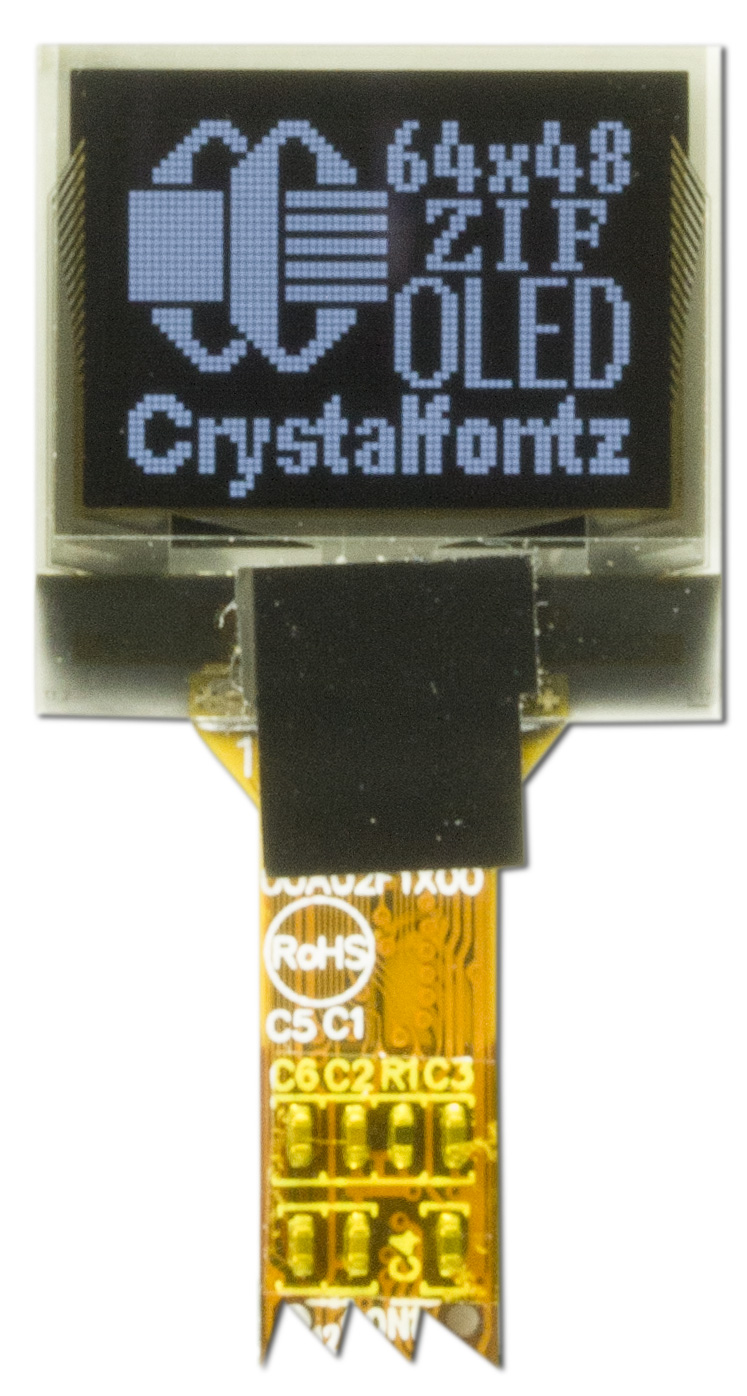

This small 64x48 graphic OLED is perfect for whatever you're designing that requires awesome readability in a tiny footprint. Chip-on-glass technology keeps this display super thin and perfect for small or handheld devices. Controlled with the popular Solomon Systech SSD1306 controller you should have no problem getting this little OLED up and running in your device. This little OLED display has the same connector as these other small OLED displays: Small 48x64 .71inch OLED Display and all of our 128x32 OLEDs with ZIFs

Qty:
Quantity Price
1 $5.88
10 $5.12
20 $4.93
50 $4.75
100 $4.67
200 $4.60
500 $4.57
1000 $4.53
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
1856 SSD1306 OLED Breakout Board
Speed up development $7.82 ea.
4625 12 Position, 0.5mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $0.70 ea.
4824 12-Position ZIF Breakout Board
Add a 12-pin ZIF Breakout Board? $6.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL6448A-066BW or RSS RSS feed for changes to CFAL6448A-066BW for CFAL6448A-066BW

Video Demonstrations

64x48 pixel OLED product preview

Ever wonder what will happen if you submerge an OLED display in water? Well we tried it, we also tried coating the components with various sealants to see if we can help protect them in high humidity, or high-water level scenarios.

TECHNICAL SPECS

Physical Characteristics

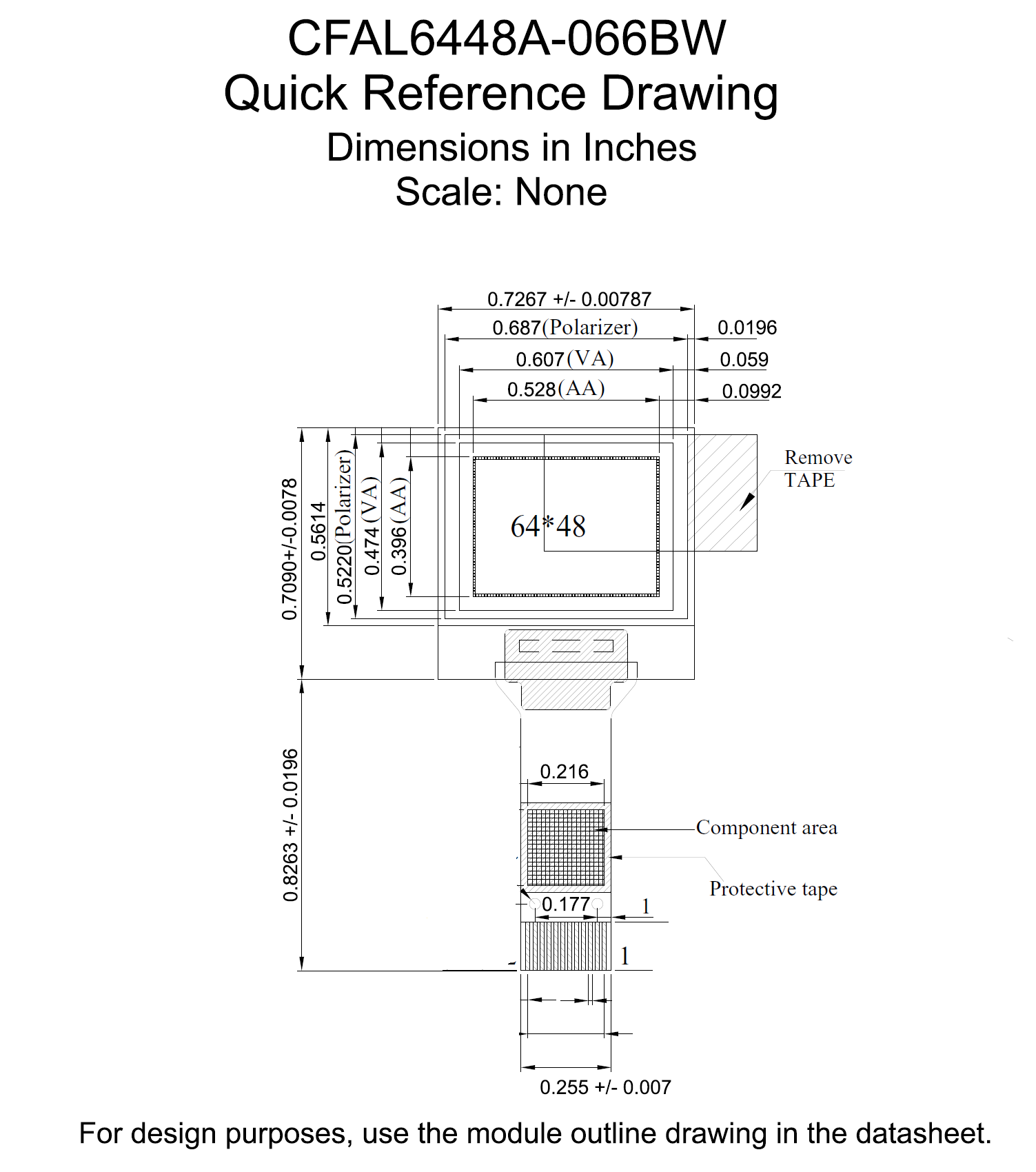

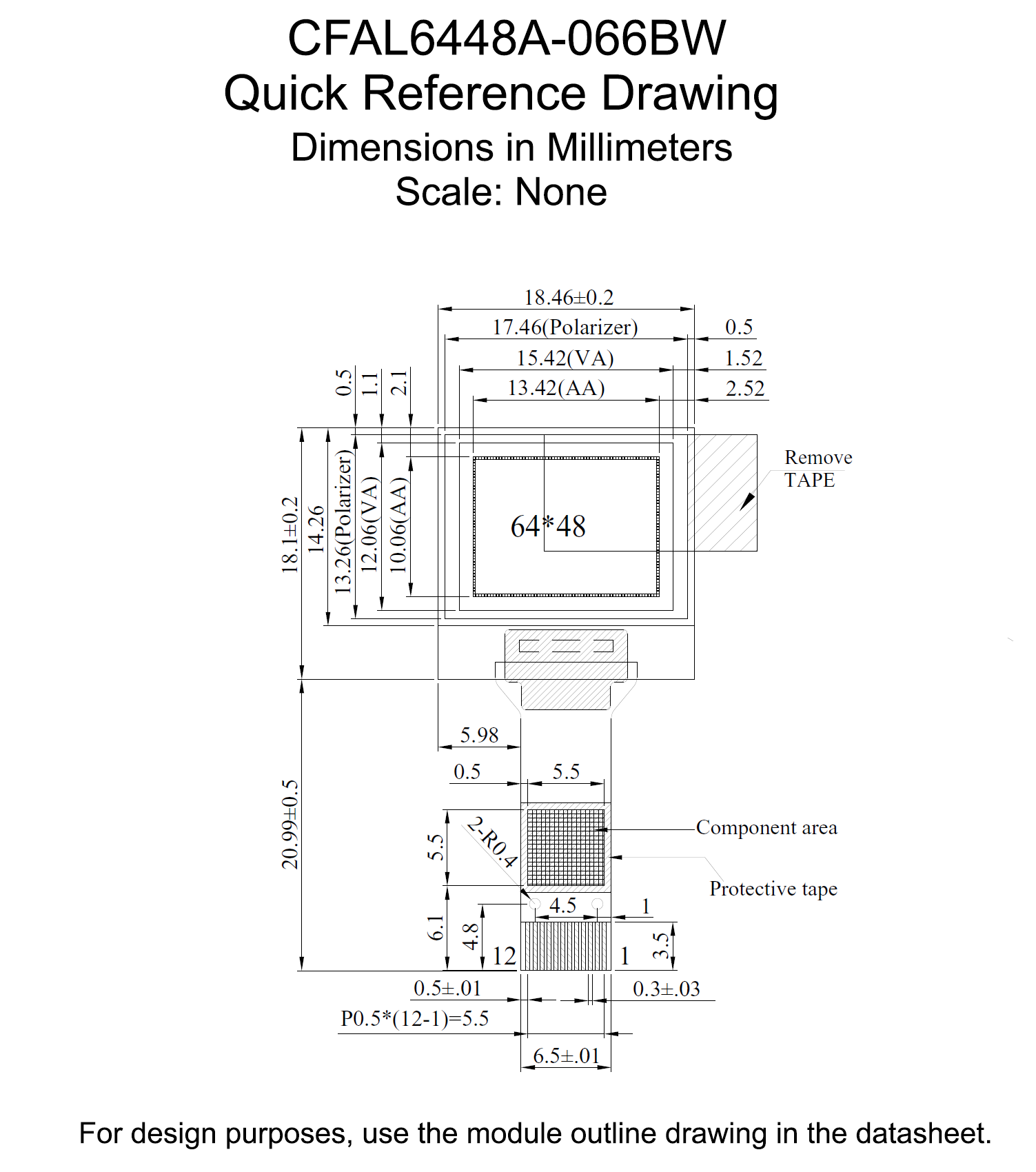

Column Dots x Row Dots 64 x 48
Module Overall width height depth
millimeters 18.46 18.1 1.26
inches 0.727 0.713 0.050
*width / height does not include Foldable Tab
Diagonal Dimension 0.66"
Viewing Area width height
millimeters 15.42 12.06
inches 0.607 0.475
Active Area width height
millimeters 13.42 10.06
inches 0.528 0.396
Dot Size width height
millimeters 0.185 0.185
inches 0.0073 0.0073
Dot Pitch width height
millimeters 0.21 0.21
inches 0.008 0.008
Optional Connectors CS050Z12GA0
Flexible Cable (FFC/FPC) length
millimeters 20.99
inches 0.826
Weight 0.9g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle 160°
Foreground Color White
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 2.8V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 7.5V
Supply Current Maximum 30mA
Supply Current Typical 15mA

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Solomon Systech SSD1306
SSD1306 128 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface I2C, SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Purchase this display in a development kit and speed up your product development.

64x48 Graphic OLED Development Kit
Part Number: CFAL6448A-066BW-E1-2

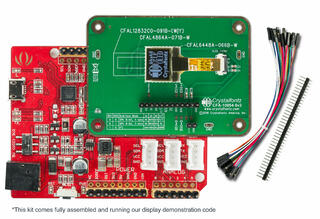

The development kit is perfect for getting started with the white SPI/I2C OLED display. The kit includes the display connected the CFA10054 breakout board, all wired up to a Seeeduino running demo code. Just supply power via a USB cable to see the display in action.

This kit contains:

OLED Breakout Board Features
  • PCB jumpers allow quick configuration for 3-wire SPI, 4-wire SPI, or I2C interface
  • Two 12 pin 0.10" ZIF connectors enable mounting a display on the front or back.
  • Four 3.2mm diameter mounting holes
  • Headers for easy connection
OLED Display Features:
  • Small form factor (0.66" diagonal)
  • Solomon Systech SSD1306 or compatible controller
  • Only 3.3v
  • Easy ZIF tail

Details
Quantity 1
Price $34.13
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL6448A-066BW or RSS RSS feed for changes to CFAL6448A-066BW

Product Update #10865: (Awesome New Product) CFAL6448A-066BW

New Product: CFAL6448A-066BW
Date Issued: July 17, 2017
Summary: (Awesome New Product) CFAL6448A-066BW
Description: OLED Displays: This is a really small 64x48 graphic OLED, measuring .66 inches diagonally. SSB1306 controller, Low price, and high availability.

This OLED module is perfect for any device requiring a small highly readable low power display.

Learn more about this OLED display here: https://www.crystalfontz.com/product/cfal6448a066bw-64x48-small-graphic-oled

For reference only. For design purposes, please use the specifications in the datasheet.
