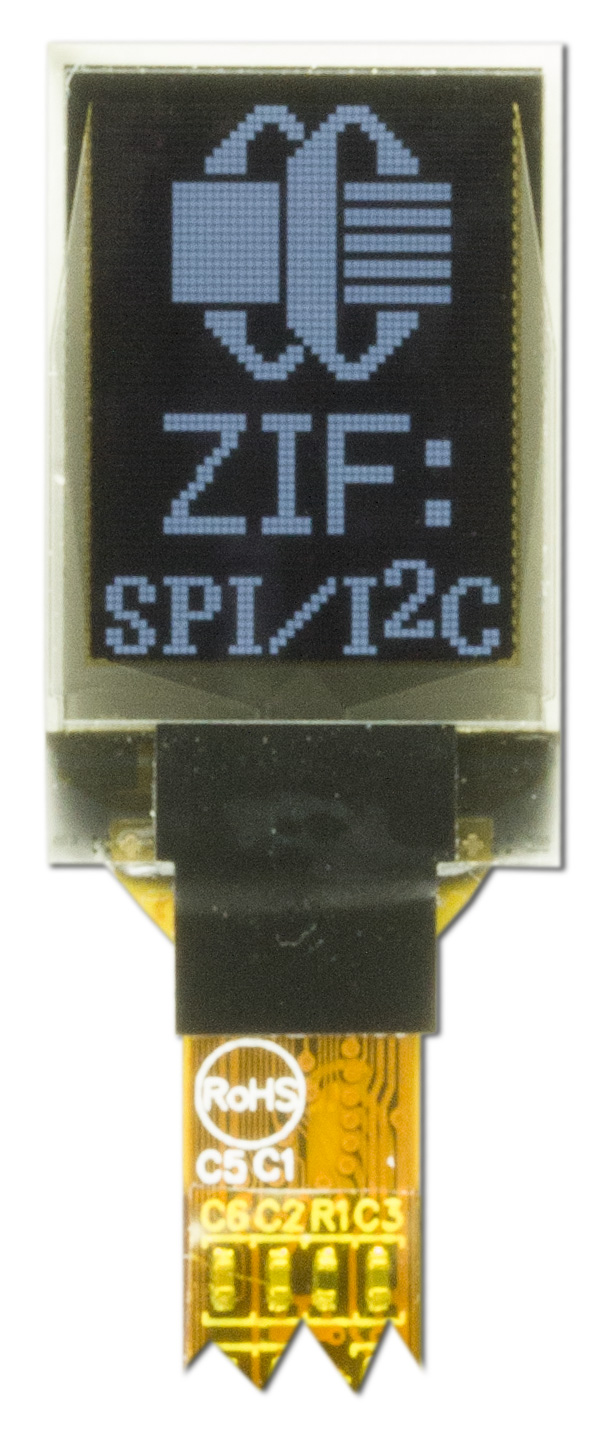

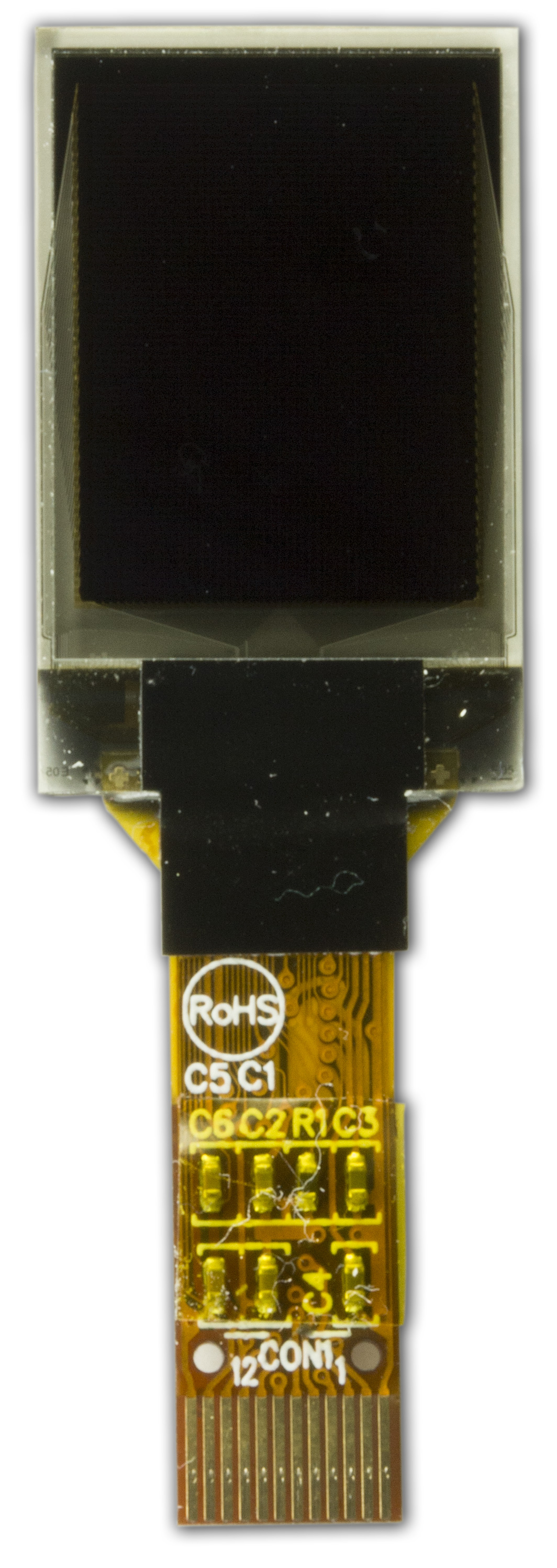

Small 48x64 .71inch OLED Display

Part Number: CFAL4864A-071BW

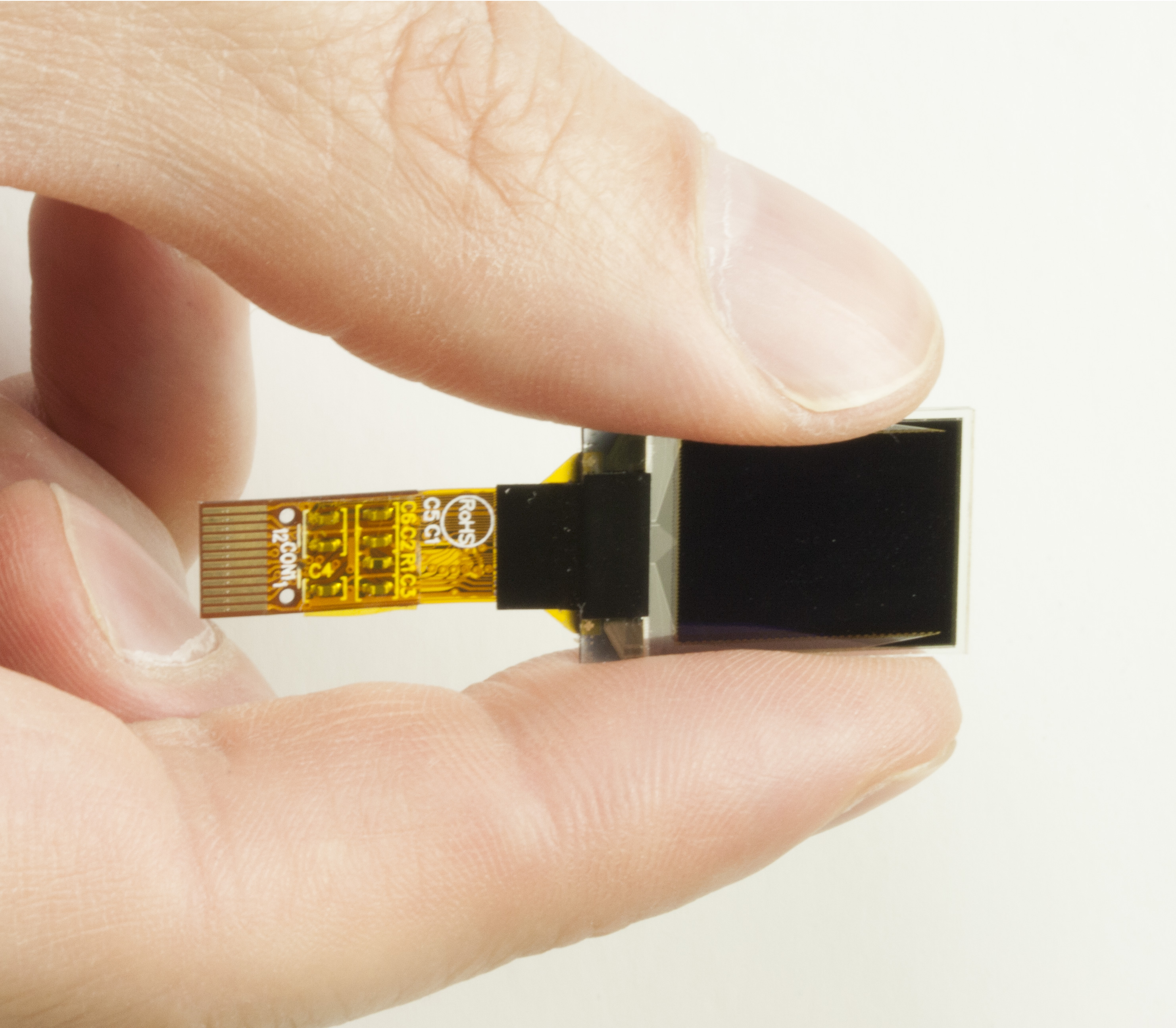

This is the smallest OLED screen we carry at .71 inches. This tiny OLED is perfect for small, handheld devices that require superior readability in a very small area. only 48x64 pixels but your message is clearly displayed with high contrast white lettering on a perfect OLED black background. This OLED module uses the popular Solomon Systech SSD1306 controller. Quickly and easily interface with i2C or 3 or 4 wire SPI.

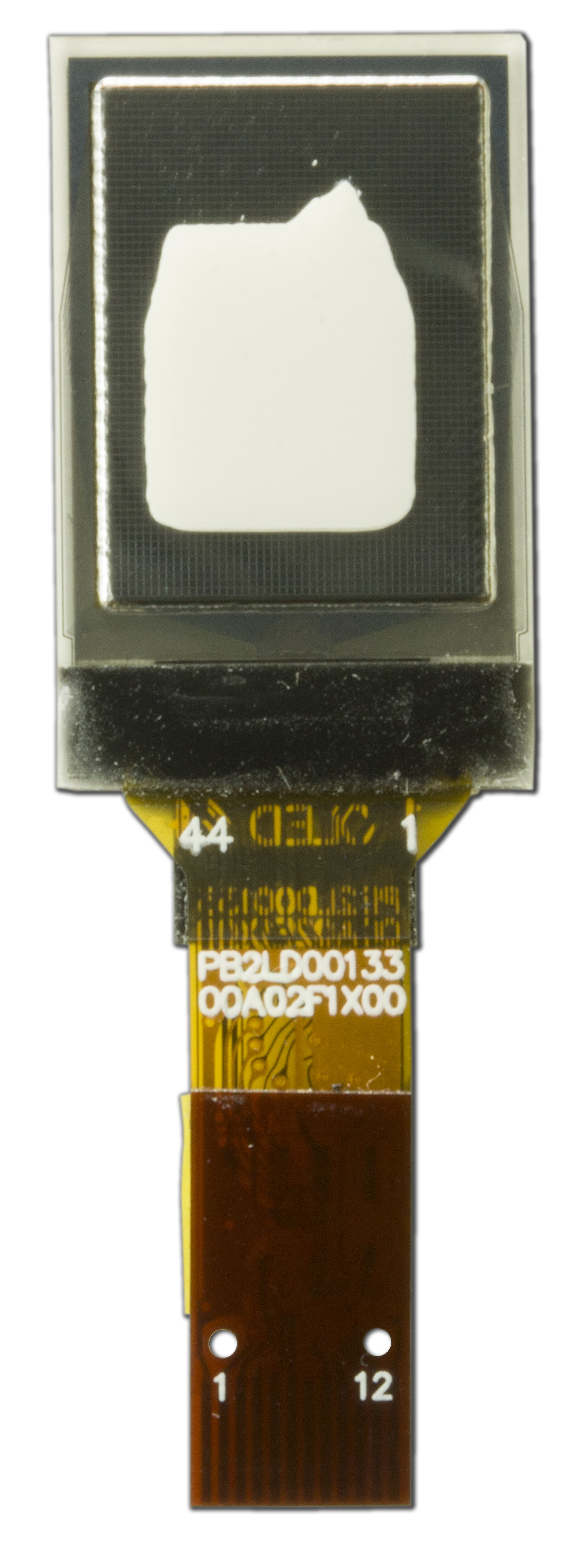

  • This OLED module has an FPC that connects with a 12-pin ZIF connector (TE Connectivity A100294TR-ND)
  • Thin form factor! Only 1.45mm
  • Super Low power! Only requires 3.3v
  • A breakout board is available here: CFA10054 OLED Breakout Board
This small OLED has the same connector as these other OLED displays: 64x48 Small Graphic OLED and all of our 128x32 OLEDs with ZIFs

Qty:
Quantity Price
1 $6.24
5 $5.22
10 $5.08
20 $4.91
50 $4.74
100 $4.67
200 $4.63
300 $4.60
500 $4.57
1000 $4.23
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
1856 SSD1306 OLED Breakout Board
Speed up development $7.82 ea.
4625 12 Position, 0.5mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $0.70 ea.
4824 12-Position ZIF Breakout Board
Add a 12-pin ZIF Breakout Board? $6.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL4864A-071BW or RSS RSS feed for changes to CFAL4864A-071BW for CFAL4864A-071BW

Video Demonstrations

48x64 OLED display preview.

TECHNICAL SPECS

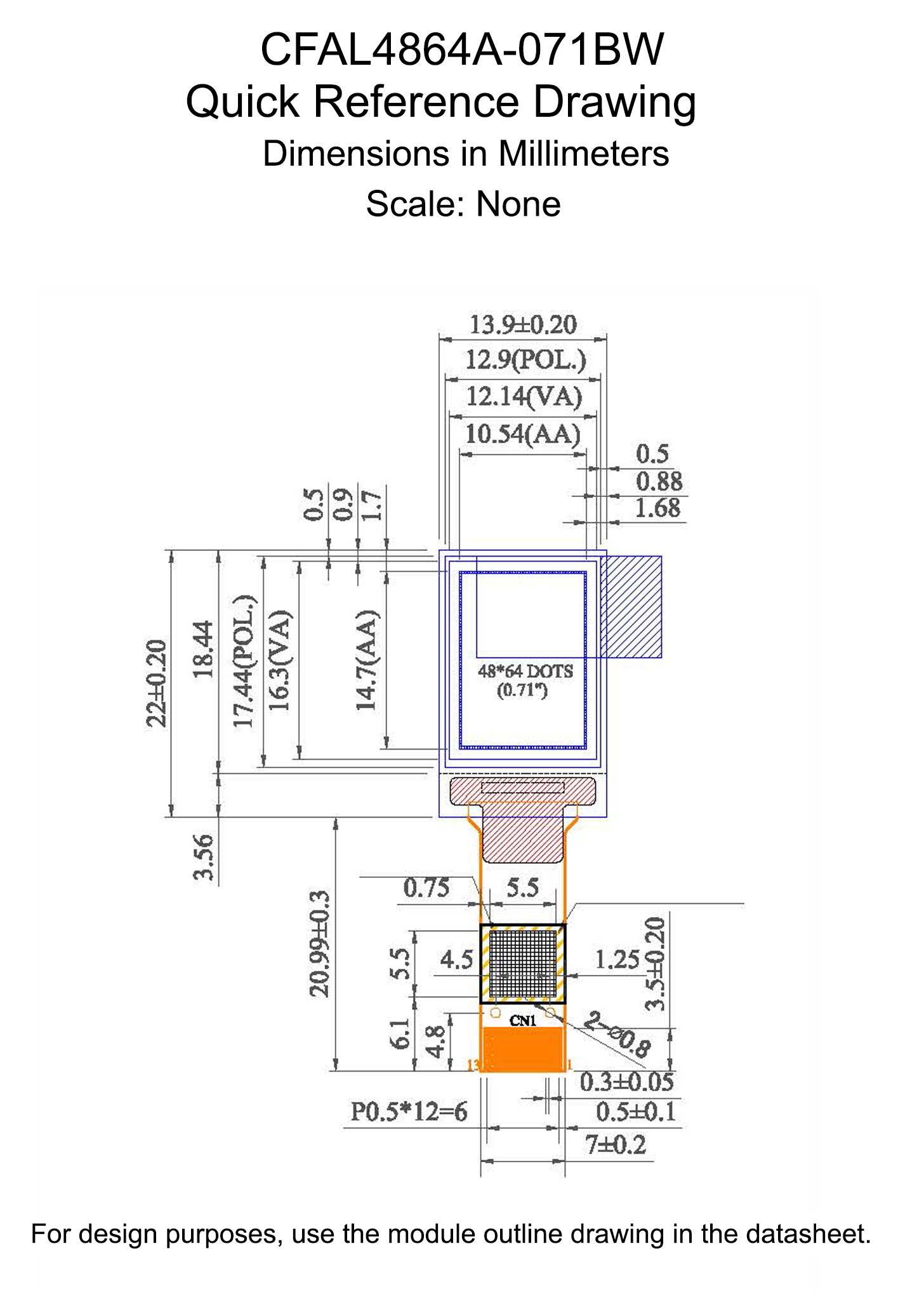

Physical Characteristics

Column Dots x Row Dots 48 x 64
Module Overall width height depth
millimeters 13.9 22 1.26
inches 0.547 0.866 0.050
*width / height does not include Foldable Tab
Diagonal Dimension 0.71"
Viewing Area width height
millimeters 12.14 16.3
inches 0.478 0.642
Active Area width height
millimeters 10.54 14.7
inches 0.415 0.579
Dot Size width height
millimeters 0.198 0.208
inches 0.0078 0.0082
Dot Pitch width height
millimeters 0.22 0.23
inches 0.009 0.009
Optional Connectors CS050Z12GA0
Flexible Cable (FFC/FPC) length
millimeters 20.99
inches 0.826
Weight 0.8g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle 160°
Foreground Color White
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 2.8V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 7.5V
Supply Current Maximum 25mA
Supply Current Typical 12:00mA
Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Solomon Systech SSD1306
SSD1306 128 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface I2C, SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Purchase this display in a development kit to speed up your development time.

48x64 Graphic OLED Develpment Kit
Part Number: CFAL4864A-071BW-E1-2

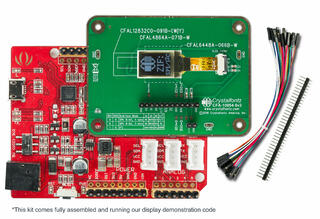

The development kit is perfect for getting started with the white SPI/I2C OLED display. The kit includes the display connected the CFA10054 breakout board, all wired up to a Seeeduino running demo code. Just supply power via a USB cable to see the display in action.

This kit contains:

OLED Breakout Board Features
  • PCB jumpers allow quick configuration for 3-wire SPI, 4-wire SPI, or I2C interface
  • Two 12 pin 0.10" ZIF connectors enable mounting a display on the front or back.
  • Four 3.2mm diameter mounting holes
  • Headers for easy connection
OLED Display Features:
  • Small form factor (0.71" diagonal)
  • Solomon Systech SSD1306 or compatible controller
  • Only 3.3v
  • Easy ZIF tail

Details
Quantity 1
Price $34.36
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL4864A-071BW or RSS RSS feed for changes to CFAL4864A-071BW

Product Update #10864: (Rad New Product) CFAL4864A-071BW Small OLED Display

New Product: CFAL4864A-071BW
Date Issued: July 17, 2017
Summary: (Rad New Product) CFAL4864A-071BW Small OLED Display
Description: OLED Display: Tiny .71inch white on black OLED display. Perfect for small handheld devices. Low power. High readability.

With a viewing angle of over 160 degrees and ultra high contrast, these displays are easy to read from any direction.

Order your samples now and start developing tomorrow!

Read more about them here: https://www.crystalfontz.com/product/cfal4864a071bw-48x64-71inch-oled-display
For reference only. For design purposes, please use the specifications in the datasheet.
