      SSD1306 OLED Breakout Board
      Part Number: CFA10054
         This breakout / carrier board allows quick integration of many small Crystalfontz OLED displays including:

The CFAL12832 series

The CFAL6448 series

The CFAL4864 series

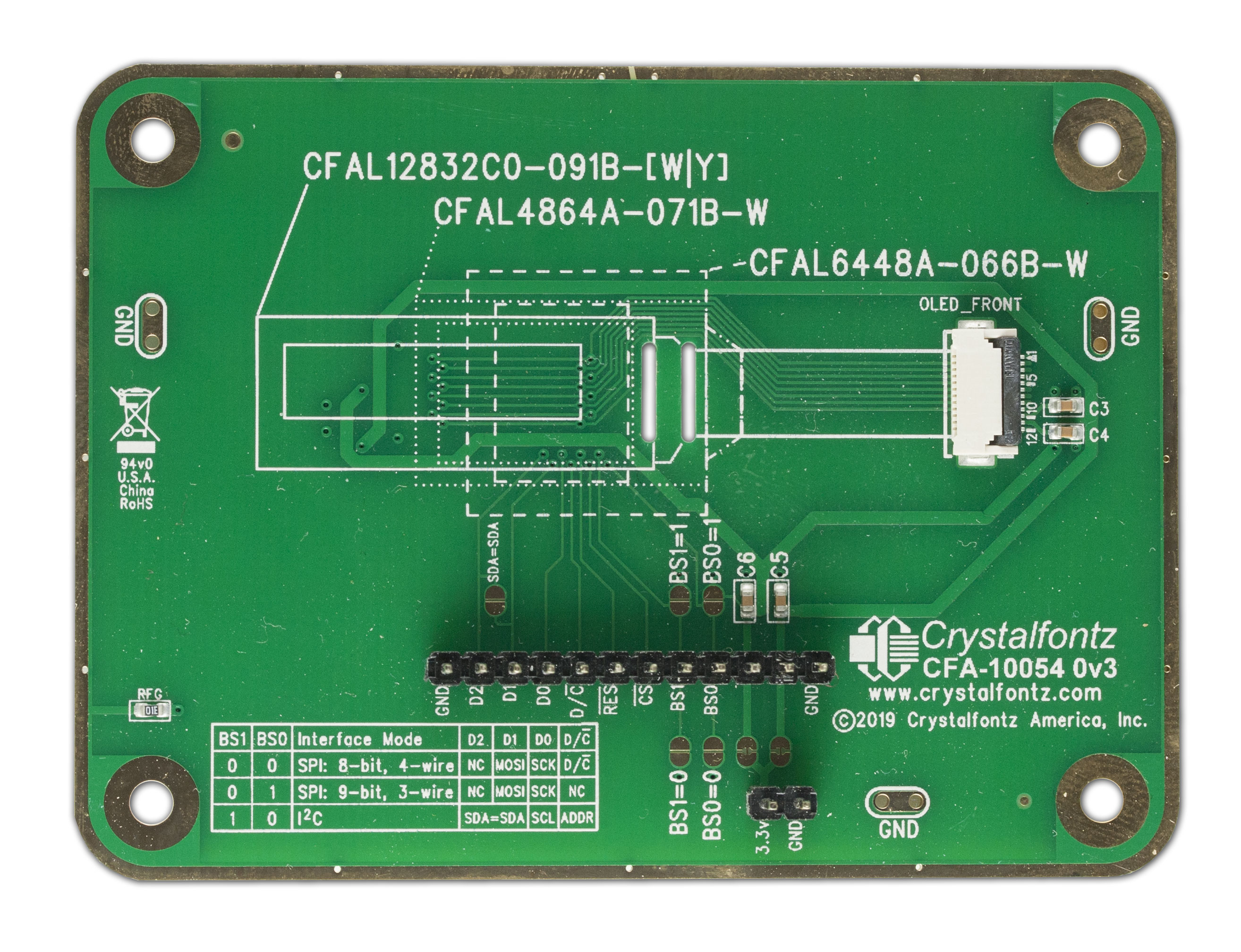

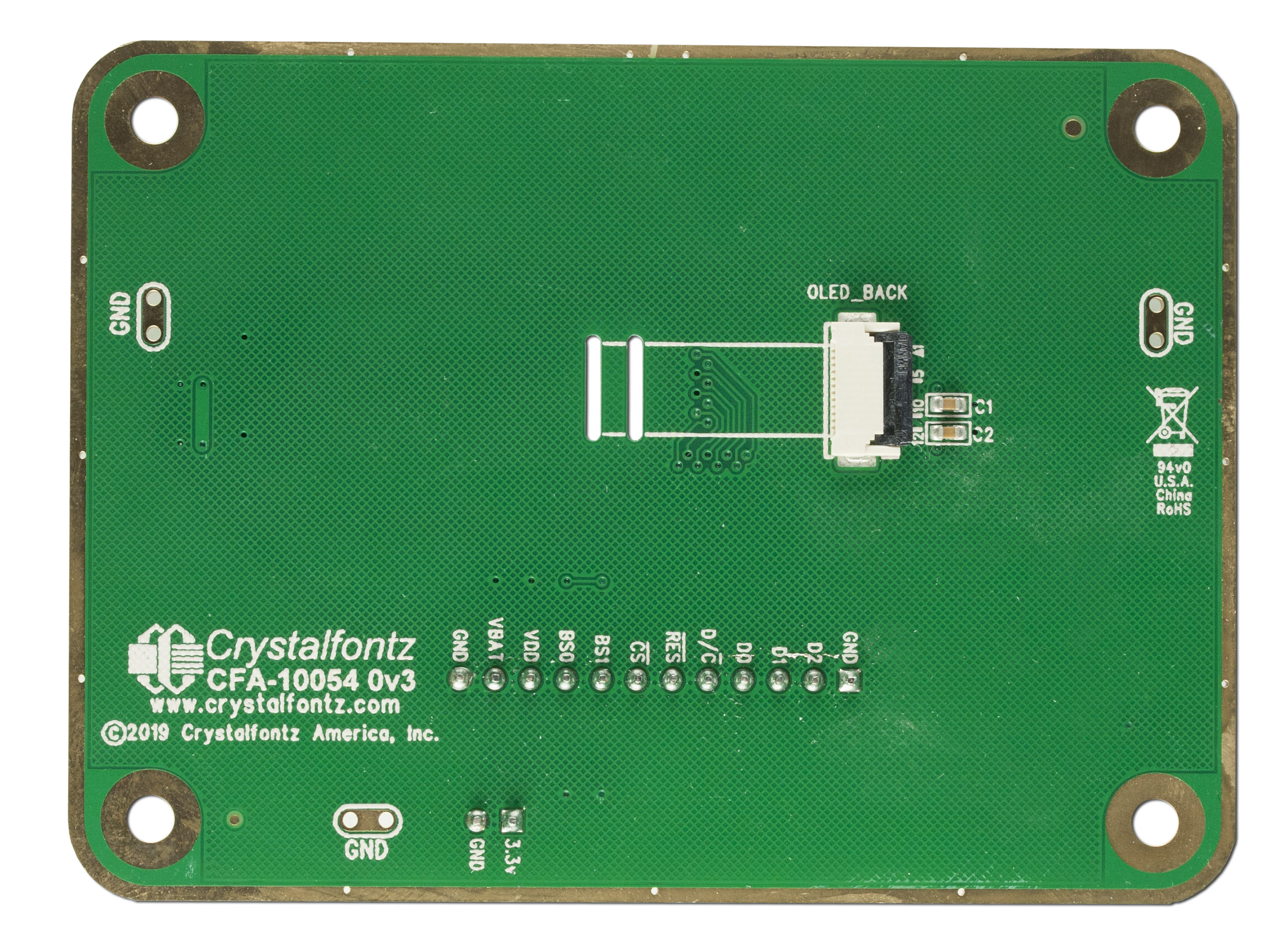

It is designed with an FPC slot to allow mounting a compatible OLED display on either side of the PCB. This board comes fully-loaded with components, replacing a previous version of the board that required component soldering and sourcing. This board includes all needed capacitors, ZIF connectors, and headers pre-loaded. This board also has jumpers to enable switching between different interface modes without the need for external wires.

Features:
PCB jumpers (BS0 / BS1) allow quick configuration for 3 wire SPI, 4 wire SPI, or I2C interface
Two 12 pin 0.10 ZIF connectors enable mounting a display on the front or back.
Four 3.2mm diameter mounting holes
Headers for easy connection

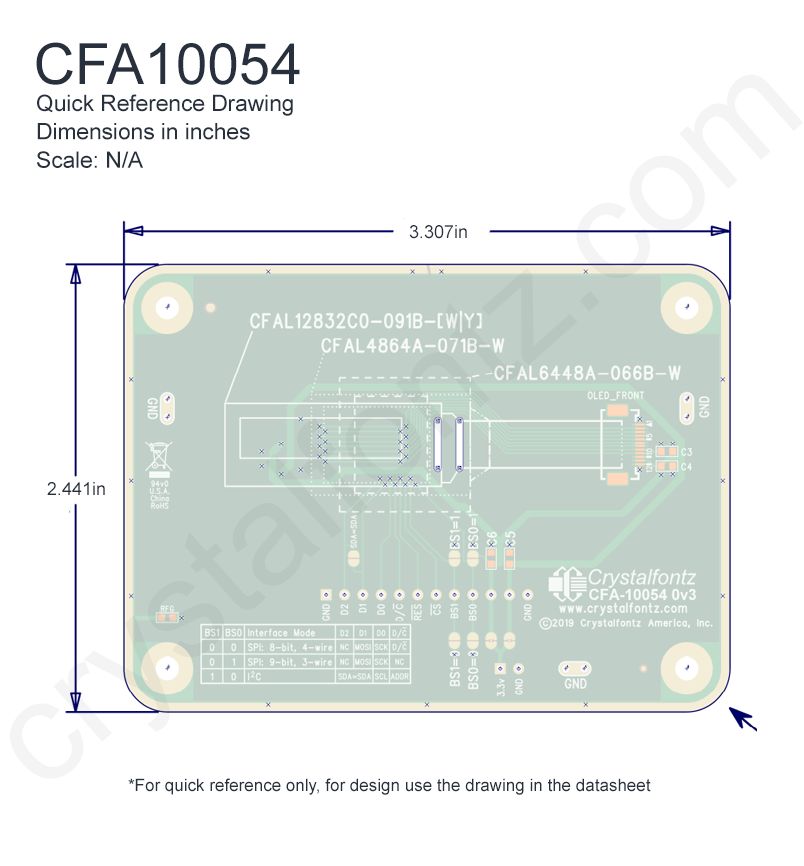

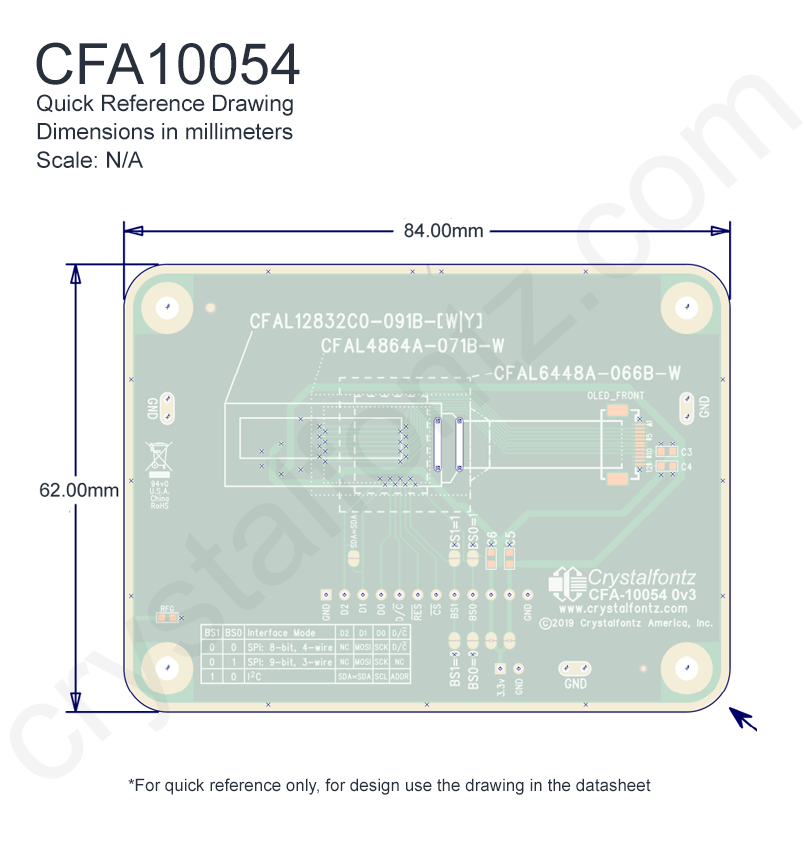

 square_foot Physical Characteristics
Physical Characteristics

        Weight
            17.5g

 picture_as_pdf Datasheets
picture_as_pdfCFA10054 Datasheet

 download Files and Downloads
folder_zip Other Document - PDF Schematic, PADS Schematic, PADS PCB, Gerber files
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $7.82

            10
            $6.36

            20
            $6.14

            50
            $5.92

            100
            $5.84

            200 *
            $5.80

            300 *
            $5.75

            500 *
            $5.72

            1000 *
            $5.67

149 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Quantity	Unit Price
1	$7.82
10	$6.36
20	$6.14
50	$5.92
100	$5.84
200 *	$5.80
300 *	$5.75
500 *	$5.72
1000 *	$5.67

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11060: The CFA10054 breakout board has been revised

Product Affected:	CFA10054
Date Issued:	January 24, 2020
Summary:	The CFA10054 breakout board has been revised
Description:	Version 0v3 is now ready for sale. The previous version was an un-populated PCB. We've revised this product to include all components necessary for use.
Impact:	Version 0v2 is no longer available
Availability:	Version 0v3 is available now

Product Update #10432: (New Product) CFA10054

New Product:	CFA10054
Date Issued:	October 5, 2012
Summary:	(New Product) CFA10054
Description:	Break out carrier board for the CFAL12832D family OLED modules
