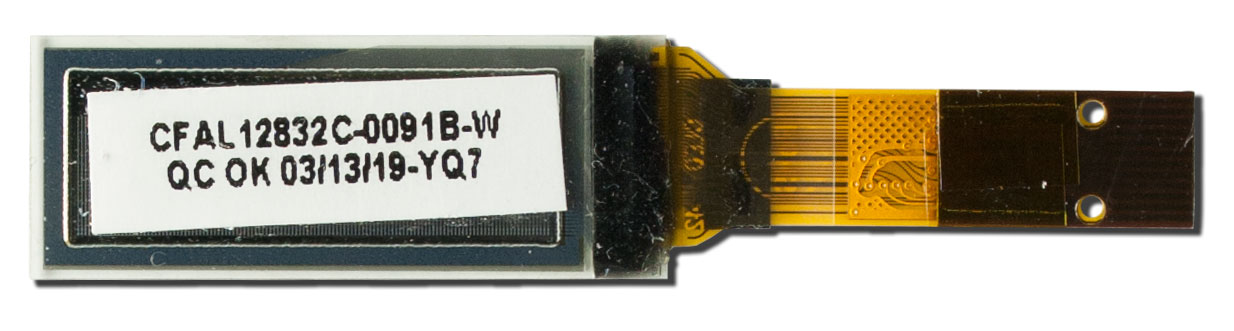

Monochrome 128x32 I2C OLED graphic display

Part Number: CFAL12832C0-091B-W

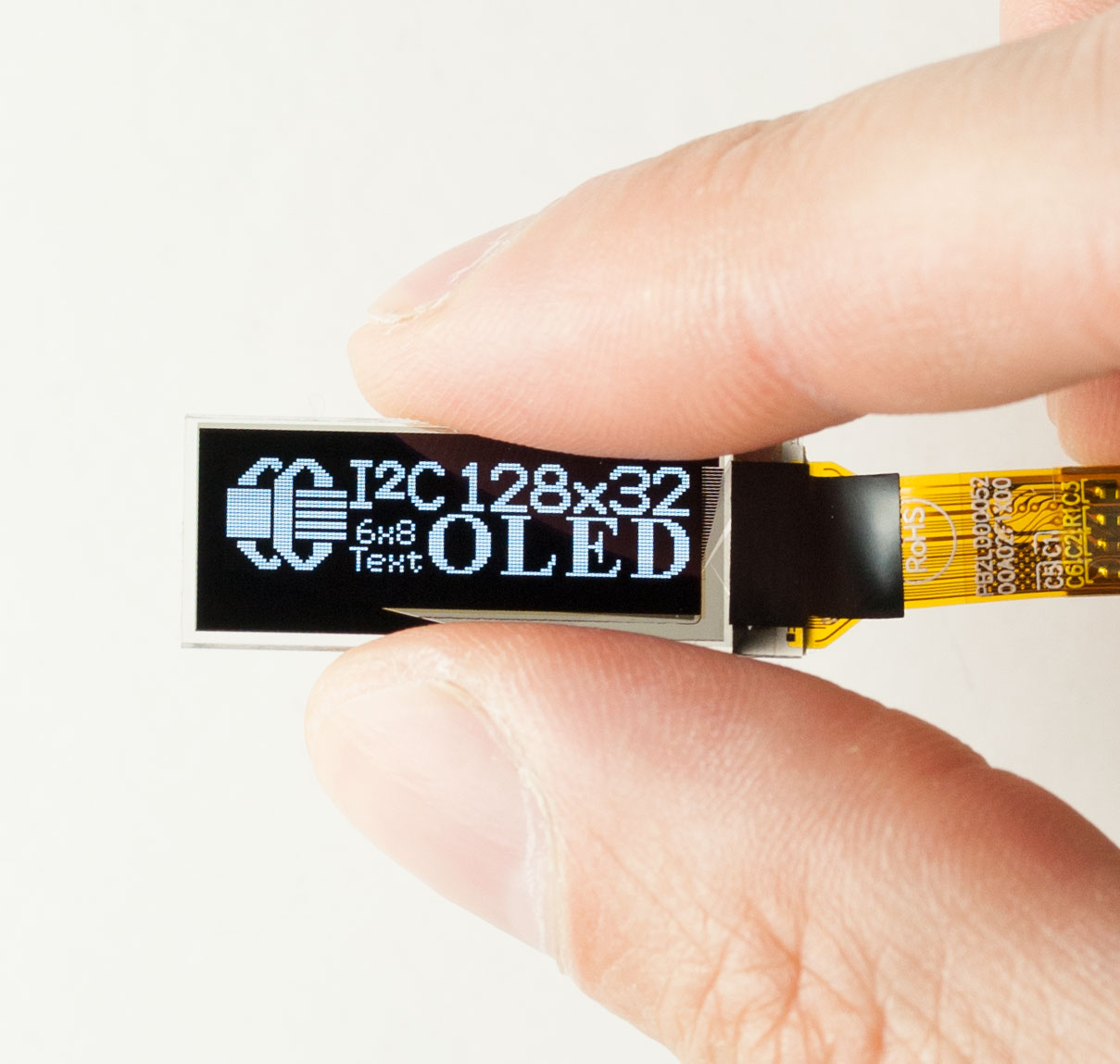

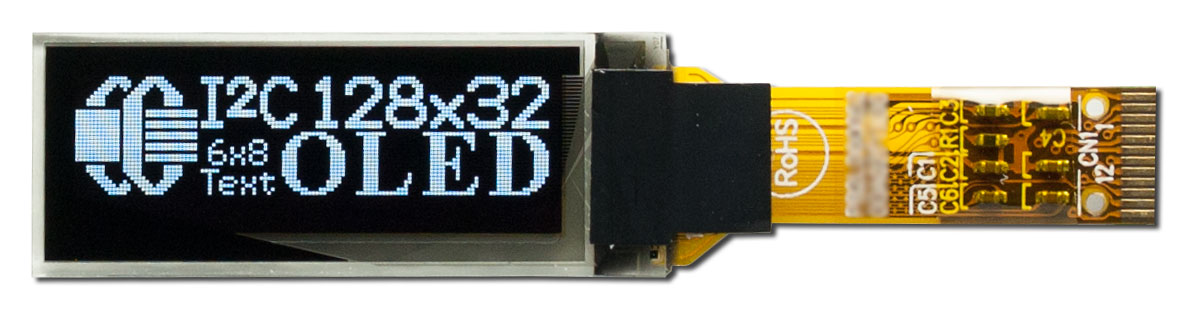

128x32 small graphic white monochrome OLED display. Have limited space but need a high resolution, easily readable display? This little OLED could be a perfect display solution for you.
  • 1.26mm thick! Super thin form factor
  • Single 3.3v
  • Solomon Systech SSD1306 or compatible controller communicates with I2C, 3-wire SPI, or 4-wire SPI
  • Easy ZIF connection. The FPC mates with a 12-pin ZIF connector, which can be processed through your normal SMT reflow.
Need a breakout/carrier board to speed up your development? We have the CFA10054 OLED carrier board for this display.

This small white OLED has the same connector as these other tiny OLED displays: 64x48 Small Graphic OLED and Small 48x64 .71inch OLED Display.

Product Variants


SPI

CFAL12832D-PYYellow 128x32 Graphic SPI OLED Module
CFAL12832B-0091P-WWhite 128x32 Small Graphic OLED Display

I2C

CFAL12832D-CW128x32 Graphical OLED Module
CFAL12832D-CY128x32 Graphic OLED Module

I2C / SPI

CFAL12832C0-091B-YSmall 128x32 Graphic OLED Display
CFAL12832C0-091B-WMonochrome 128x32 I2C OLED graphic display
Monochrome 128x32 I2C OLED graphic display (CFAL12832C0-091B-W)
Qty:
Quantity Price
1 $6.59
5 $5.51
10 $5.36
20 $5.18
50 $5.00
100 $4.92
200 $4.89
300 $4.85
500 $4.82
1000 $4.78
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
1856 SSD1306 OLED Breakout Board
Speed up development $7.82 ea.
4625 12 Position, 0.5mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $0.70 ea.
4824 12-Position ZIF Breakout Board
Add a 12-pin ZIF Breakout Board? $6.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12832C0-091B-W or RSS RSS feed for changes to CFAL12832C0-091B-W for CFAL12832C0-091B-W

Compliance Documents

TECHNICAL SPECS

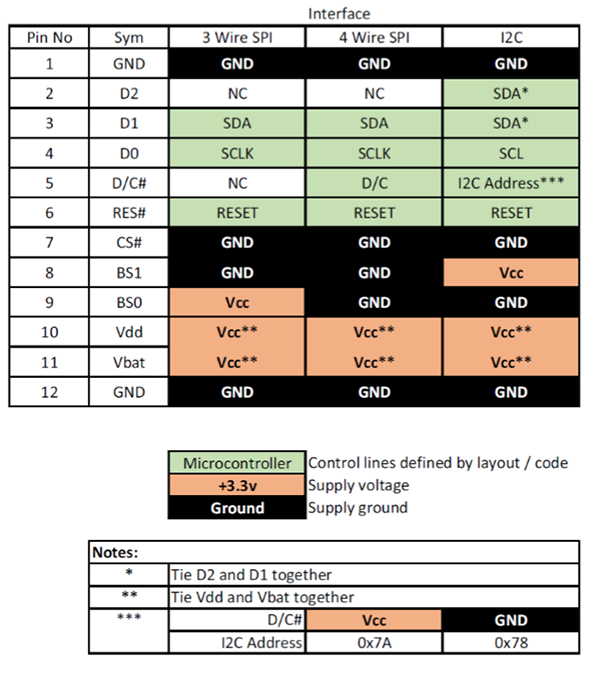

Physical Characteristics

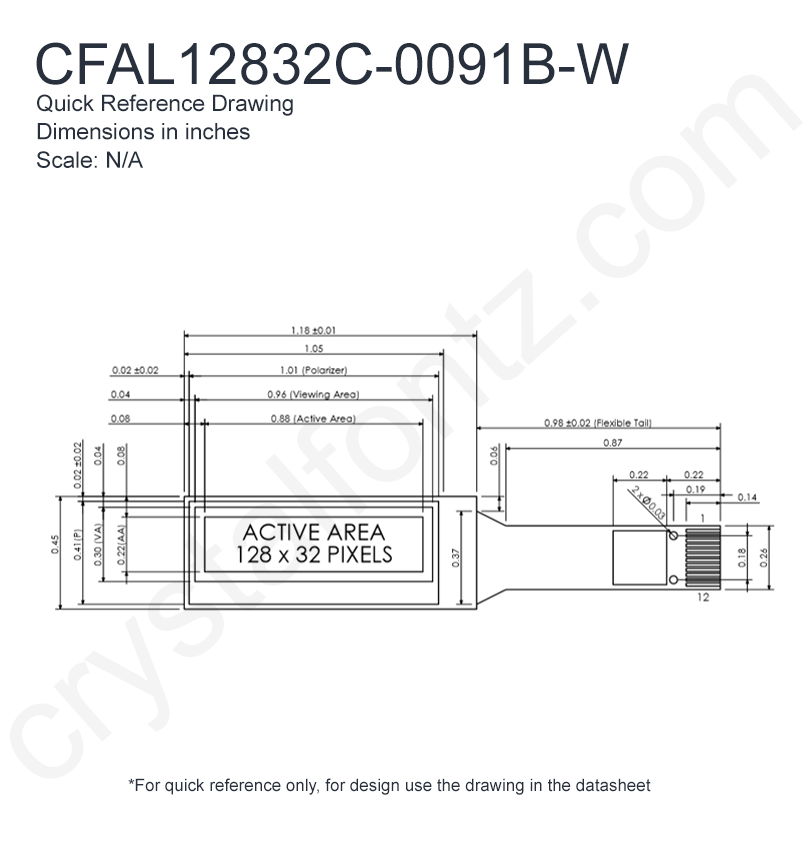

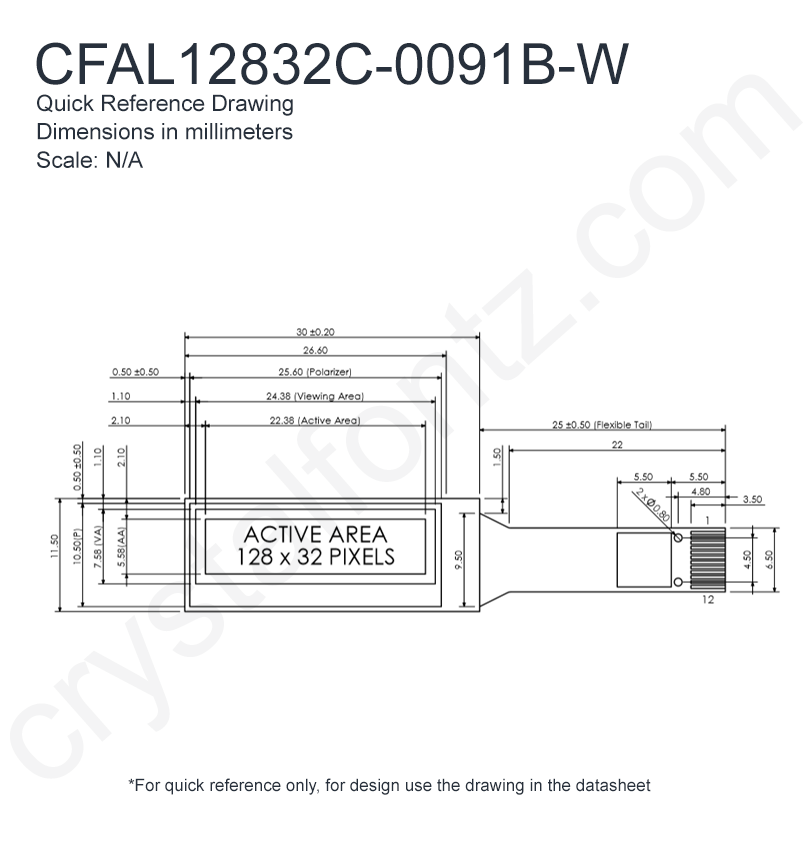

Column Dots x Row Dots 128 x 32
Module Overall width height depth
millimeters 30 11.5 1.26
inches 1.181 0.453 0.050
*width / height does not include Foldable Tab
Diagonal Dimension 0.91"
Viewing Area width height
millimeters 24.38 7.58
inches 0.960 0.298
Active Area width height
millimeters 22.38 5.58
inches 0.881 0.220
Dot Size width height
millimeters 0.152 0.152
inches 0.0060 0.0060
Dot Pitch width height
millimeters 0.175 0.175
inches 0.0069 0.0069
Optional Connectors CS050Z12GA0
Flexible Cable (FFC/FPC) length
millimeters 22
inches 0.866
Weight 1g
Pin Count 0.5

Optical Characteristics

Glass Type/Glass Color OLED/Black
View Angle 160°
Foreground Color White
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 2.8V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Maximum 16mA
Supply Current Typical 13mA

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°

Electronics

Controller Documents Solomon Systech SSD1306
SSD1306 128 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface I2C, SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Purchase this display in a development kit to speed up your design process.

128x32 OLED Development Kit
Part Number: CFAL12832C0-091BW-E1-2

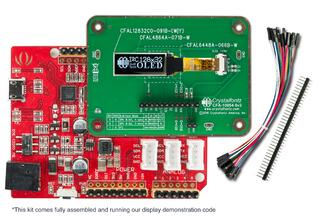

The development kit is perfect for getting started with the white SPI/I2C OLED display. The kit includes the display connected the CFA10054 breakout board, all wired up to a Seeeduino running demo code. Just supply power via a USB cable to see the display in action.

This kit contains:

OLED Breakout Board Features
  • PCB jumpers allow quick configuration for 3-wire SPI, 4-wire SPI, or I2C interface
  • Two 12 pin 0.10" ZIF connectors enable mounting a display on the front or back.
  • Four 3.2mm diameter mounting holes
  • Headers for easy connection
OLED Display Features:
  • Small form factor
  • Solomon Systech SSD1306 or compatible controller
  • Only 3.3v
  • Easy ZIF tail

Details
Quantity 1
Price $34.72
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
