This part is no longer available. Contact support@crystalfontz.com for replacement options.

128x32 Graphic OLED Module

Part Number: CFAL12832D-CY

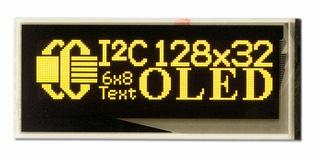

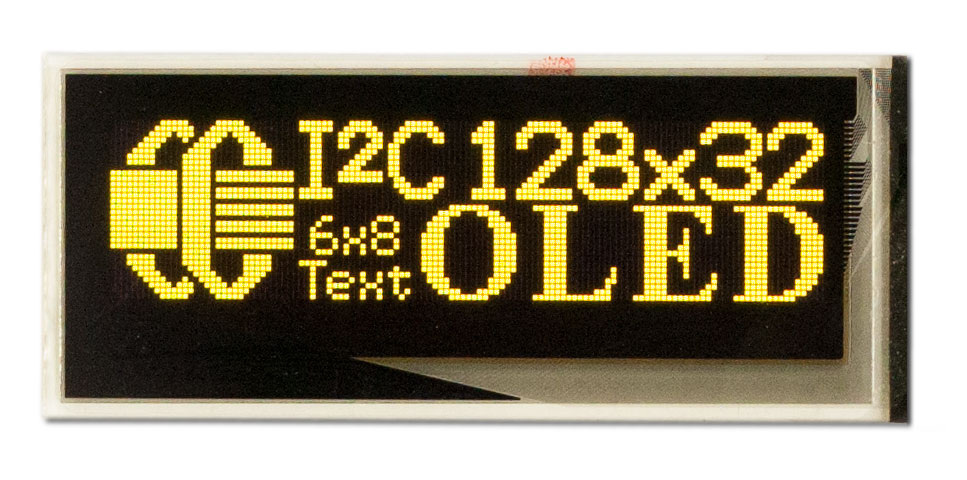

This 0.91-inch diagonal graphic OLED display module has a 2000:1 contrast ratio, with a true black background in dramatic contrast to the bright yellow lit-up pixels.

Features

I2C interface

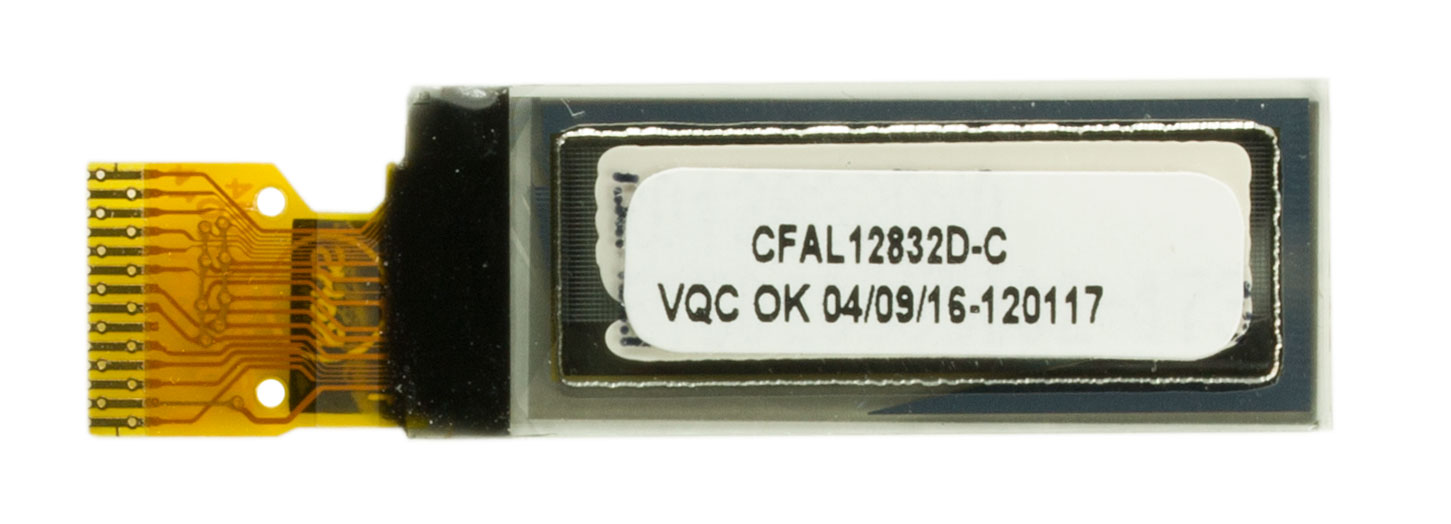

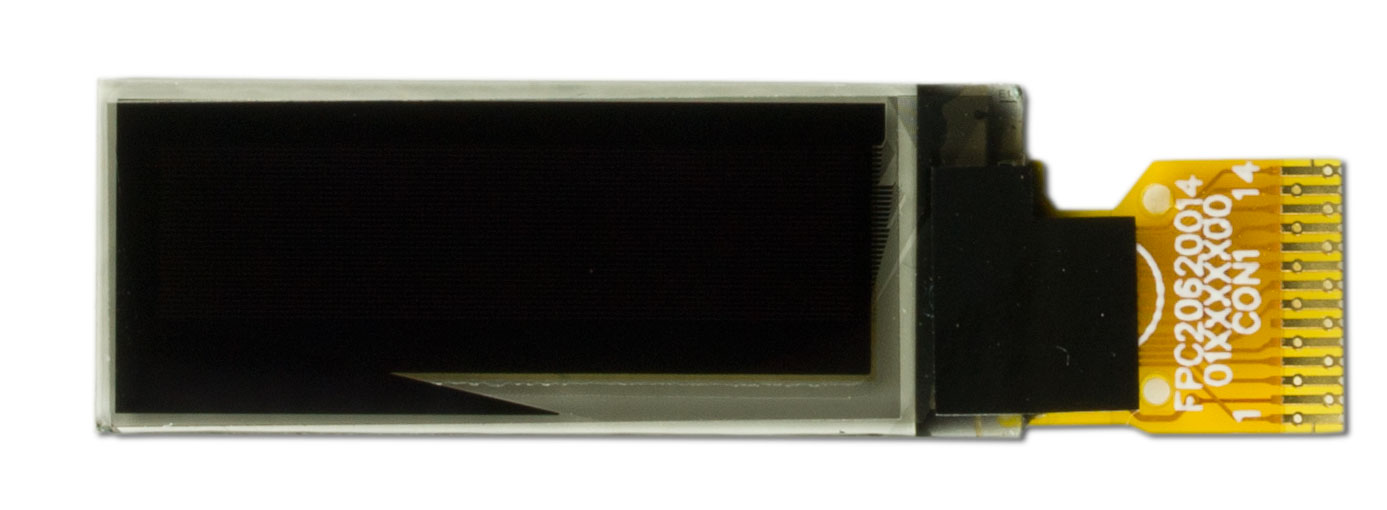

14-pin TAB style flex tail
Integrated Solomon Systech SSD1306 or compatible controller.
Operating temperature range from -20°C to +*80°C
RoHS compliant

Need this display with SPI interface? Click on one of the CFAL12832D-P* photos in the Product Variant table above (upper right). Prefer an easy ZIF connection? Click on one of the CFAL12832D-B* photos. The CFAL12832D-B* displays have both SPI and I2C interfaces.

In business since 1998, Crystalfontz America, Incorporated is ISO 9001:2015 certified. Please contact technical support for questions regarding this product.

Physical Characteristics

Column Dots x Row Dots

128 x 32

Module Overall	width	height	depth
millimeters	30	11.5	1.45
inches	1.18	0.45	0.06
*width / height does not include Foldable Tab

Diagonal Dimension

0.91"

Viewing Area	Width	Height
millimeters	24.38	7.58
inches	0.96	0.30

Active Area	Width	Height
millimeters	22.38	5.58
inches	0.88	0.22

Dot Size	Width	Height
millimeters	0.152	0.152
inches	0.0060	0.0060

Dot Pitch	Width	Height
millimeters	0.175	0.175
inches	0.0069	0.0069

Weight

1.1g

Optical Characteristics
Optical Characteristics

Glass Type OLED

Polarizer Emissive

View Angle >160°

Foreground Color Yellow

Background Color Black

Electrical Specification

Electrical Specifications

Supply Voltage for Logic Minimum	2.8V
Supply Voltage for Logic Maximum	3.3V
Supply Voltage for Logic Typical	3V
Supply Voltage for Driving Panel Typical	7.25V

Supply Current Minimum	5mA
Supply Current Maximum	7mA
Supply Current Typical	6mA
Module Connector Pitch	0.62mm

Environmental
Environmental

Operating Temperatures min max

Celsius -40° 80°

Fahrenheit -40° 176°

Storage Temperatures min max

Celsius -40° 80°

Fahrenheit -40° 176°

Humidity min max

Non-condensing 0% 90%
Electronics
Electronics

Controller Documents Solomon Systech SSD1306
SSD1306 128 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller

Interface I2C
Datasheets

picture_as_pdf
CFAL12832DCY Datasheet
Files and Downloads

folder_zip Software Source - Seeeduino v4.2 (3.3v Arduino) SPI/ I2C Sketch
folder_zip Software Source - ATMega2561 Demo Code for all interfaces
picture_as_pdf Hardware Design - CFAL12832D-C series DC-DC circuit
picture_as_pdf 1 to 1 Template - CFAL12832D-C Series 1 to 1 Module Outline

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Additional Options
Note
Change Notices

Additional Options

In addition to the yellow-on-black OLED above, the CFAL12832D-C* series also has a white-on-black variant.

Product Note:

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a thin display. The TAB connector must soldered directly to corresponding pads on your PCB using a hot-bar soldering machine, or bonded with anisotropic adhesive using heat and pressure. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.

Part Change Notice #11020: Part Change Notification

Products Affected:	CFAL12832D-B, CFAL12832D-CW, CFAL12832D-CY, CFAL12832D-PW, CFAL12832D-PY, CFAL12832D-BY, CFAL12832D-BB
Date Issued:	November 1, 2018
Summary:	Part Change Notification
Description:	The parts listed are being replaced by new part numbers.
Reason:	The glass used in these displays is being replaced by thinner more efficient glass.
Impact:	The part numbers listed will be replaced by new part numbers. The operation of the displays will not change. The overall thickness of each of the displays will decrease by 0.05mm. The part number changes are: CFAL12832D-CW - EOL CFAL12832D-PY - EOL CFAL12832D-PW - CFAL12832B-0091P-W CFAL12832D-B - CFAL12832B-0091B-W CFAL12832D-BB - CFAL12832B-0091B-B CFAL12832D-BY - CFAL12832B-0091B-Y CFAL12832D-CY - EOL
Recommendation:	Users are recommended to verify that the change in the thickness dimension will not affect the installation of the displays.
Availability:	The new parts will be available when current stock is depleted.

Product Update #10697: (New Product) CFAL12832D-CY

New Product:	CFAL12832D-CY
Date Issued:	April 29, 2016
Summary:	(New Product) CFAL12832D-CY
Description:	OLED Modules: 0.91" diagonal 128x32 yellow-on-black OLED graphic display, Solomon Systech SSD1306 controller, 3.3v, I2C interface, TAB connector.
