This product has reached end of life. Please take a look at the similar active 128x32 OLED displays

128x32 Parallel Graphic OLED

Part Number: CFAL12832E-W-B1

Description

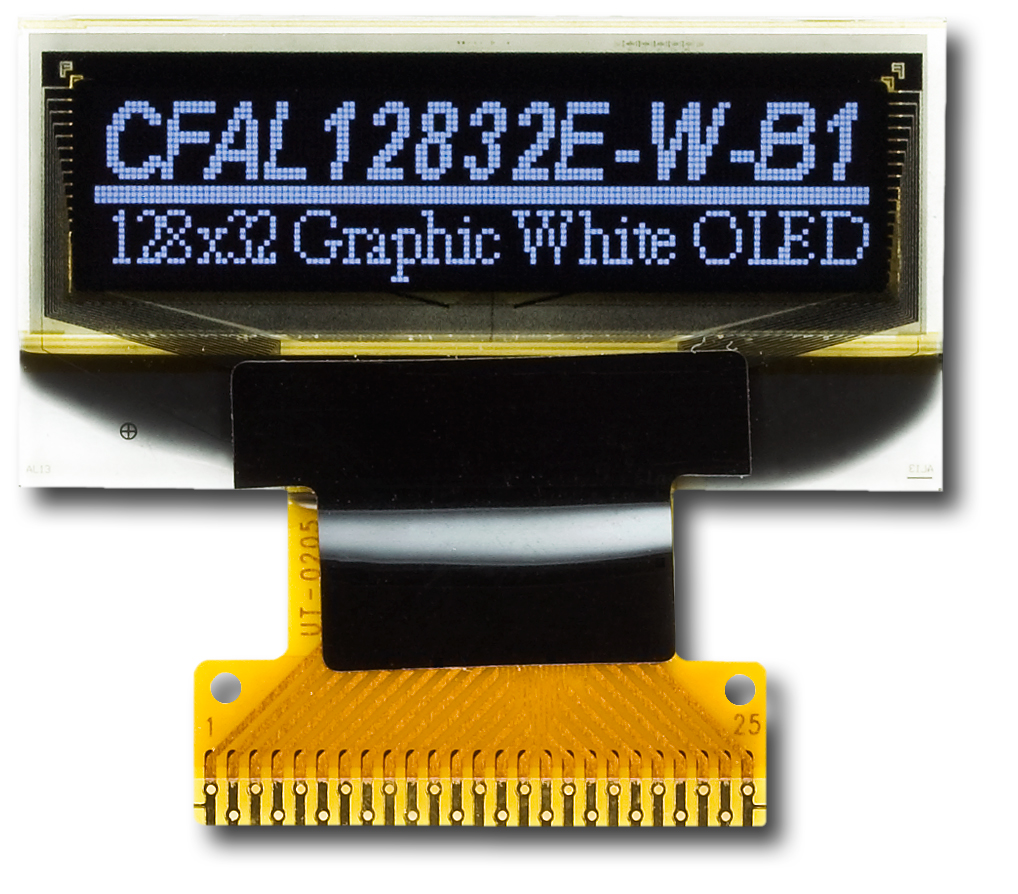

128 x 32 Graphic OLED module, White OLED.

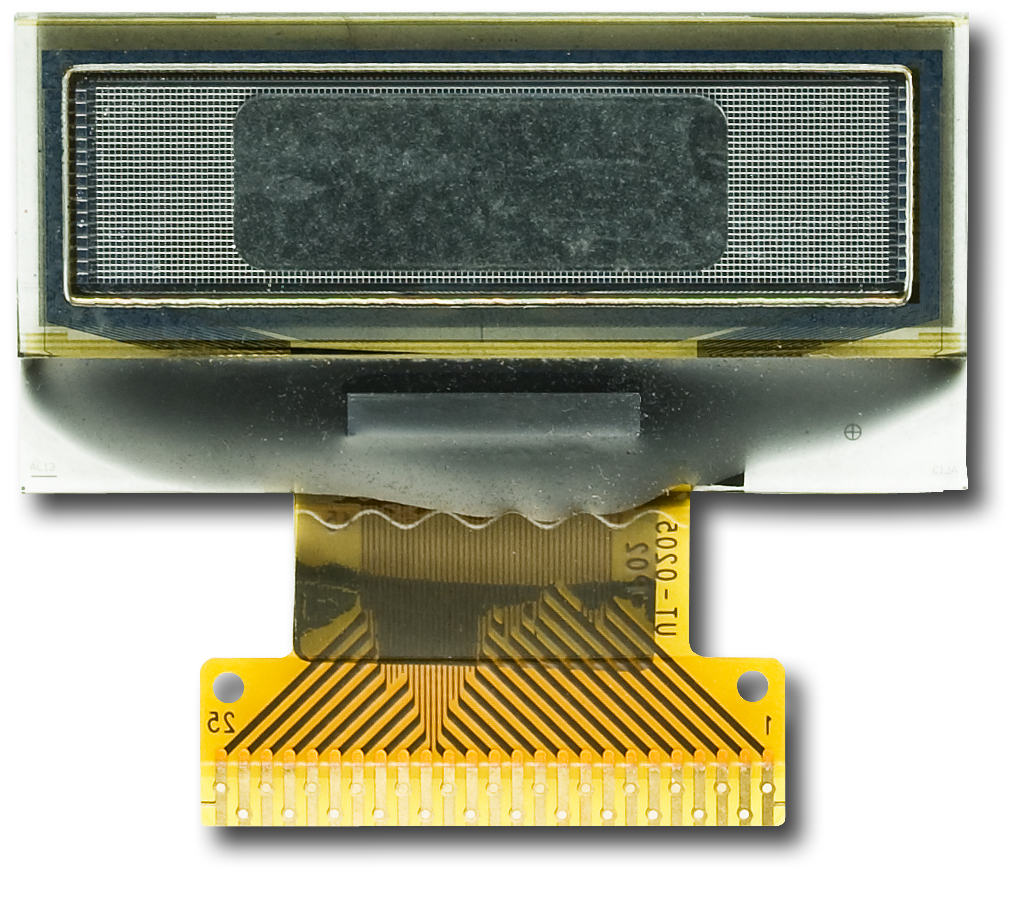

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.

  • 128x32 graphic OLED display module
  • Very small form factor
  • Extremely wide viewing angles
  • Very high contrast ratio
  • Built-in Solomon SSD1305 or compatible controller
  • 8-bit parallel interface or SPI Interface
  • RoHS Compliant
  • Can be used with the CFA10053 Breakout Carrier Board

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

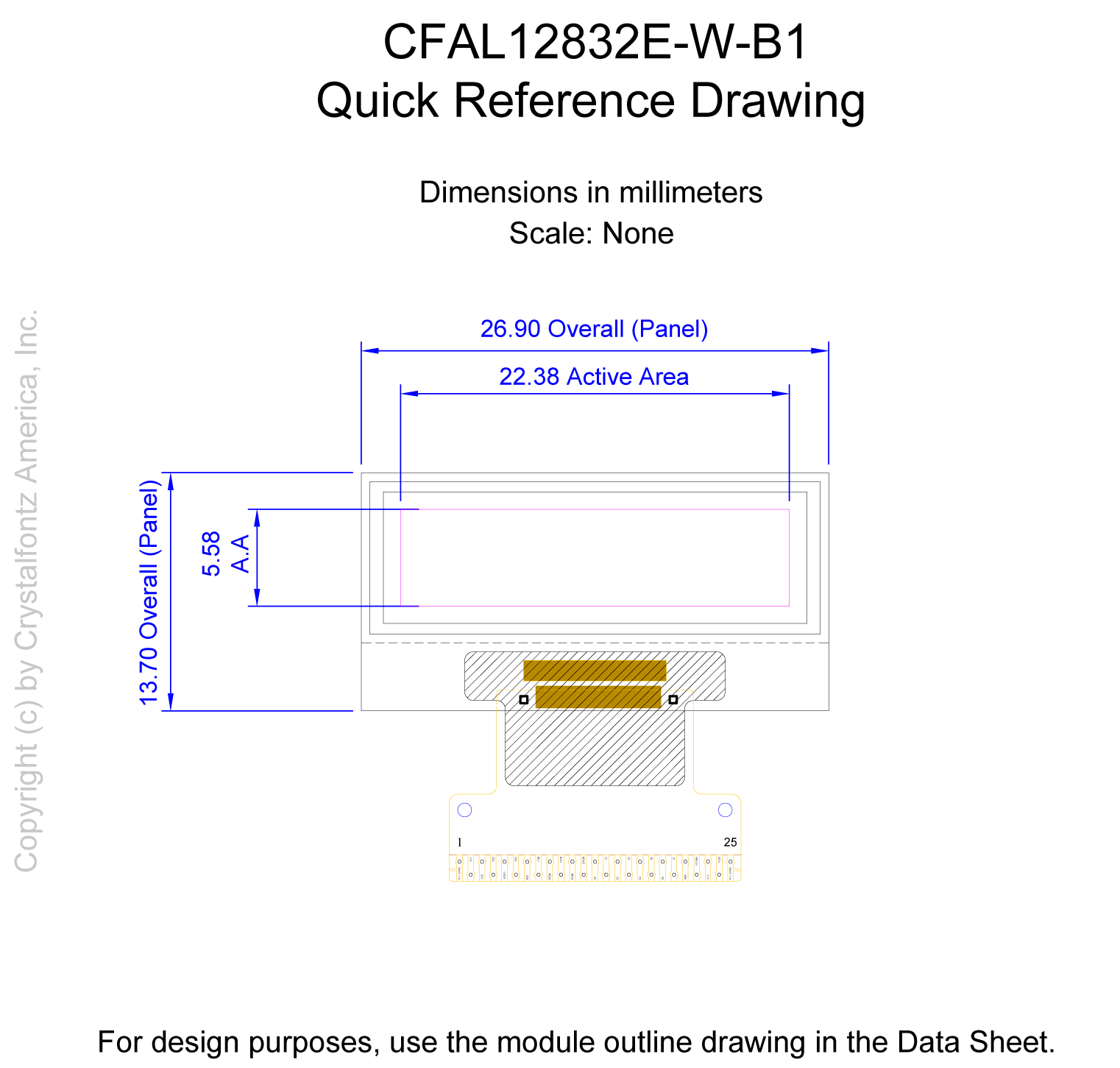

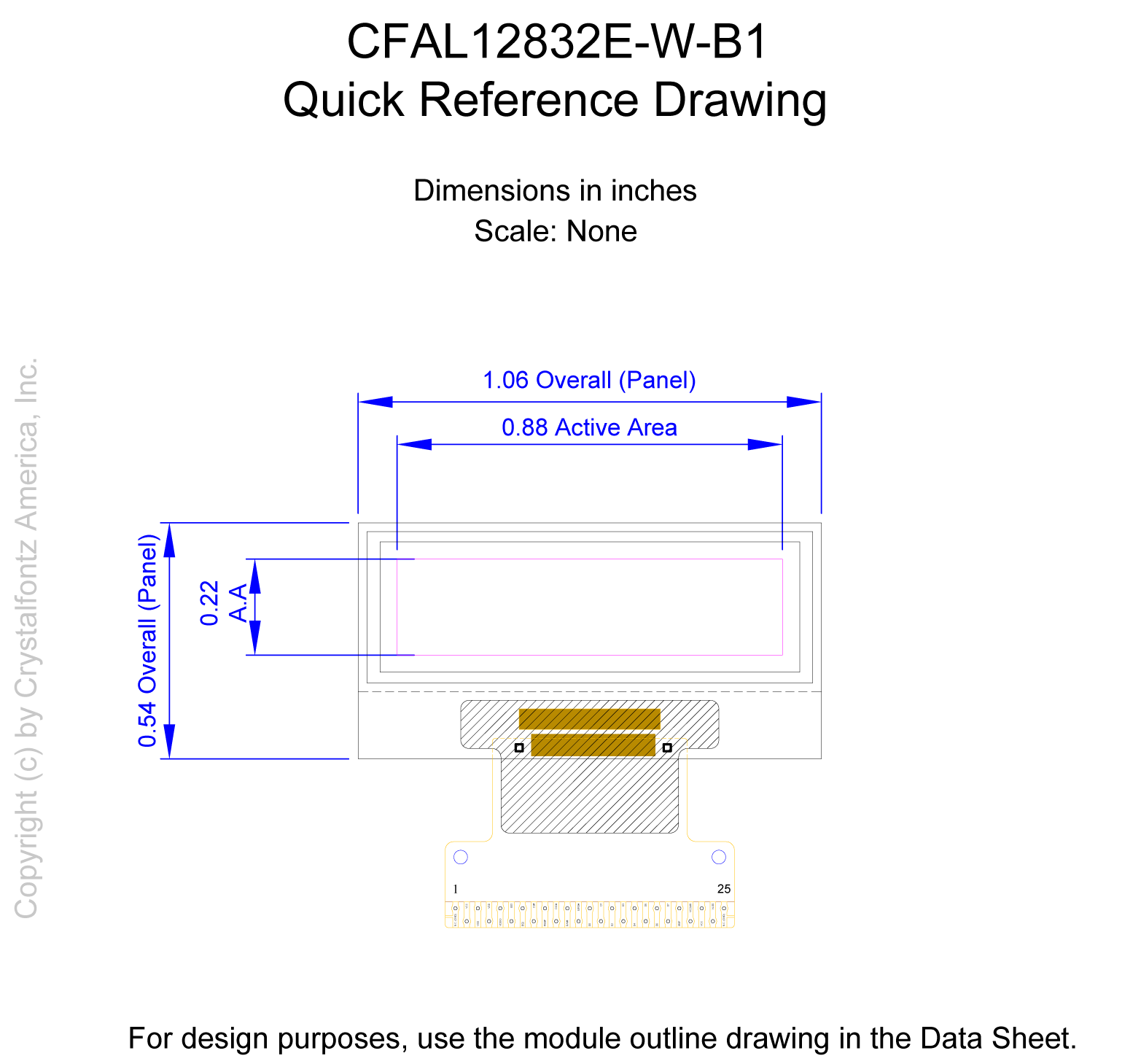

Physical Characteristics

Column Dots x Row Dots 128 x 32
Module Overall width height depth
millimeters 26.9 15.26 1.45
inches 1.059 0.601 0.057
*width / height does not include Foldable Tab
Viewing Area width height
millimeters 24.38 7.58
inches 0.960 0.298
Active Area width height
millimeters 22.38 5.58
inches 0.881 0.220
Dot Size width height
millimeters 0.16 0.16
inches 0.006 0.006
Dot Pitch width height
millimeters 0.18 0.18
inches 0.007 0.007
Weight 1.17g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
Backlight Type none
Mode positive
Foreground Color White
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.4V
Supply Voltage for Logic Maximum 3.5V
Supply Voltage for Logic Typical 2.8V
Supply Voltage for Driving LCD Typical 7.5V
Module Connector Pitch 0.6mm

Environmental

Operating Temperatures min max
Celsius -30° 70°
Fahrenheit -22° 158°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Solomon Systech SSD1305
Interface 8-bit Parallel, SPI

Miscellaneous

Foldable Tab Yes

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12832E-W-B1 or RSS RSS feed for changes to CFAL12832E-W-B1

Product Update #10414: (New Product) CFAL12832E-W-B1

New Product: CFAL12832E-W-B1
Date Issued: May 1, 2012
Summary: (New Product) CFAL12832E-W-B1
Description: Under OLED Modules: 128 x 32 Graphic OLED module, White OLED
For reference only. For design purposes, please use the specifications in the datasheet.

Production Notes

While we do not offer any direct replacements for this product, perhaps one of our many other CFAL displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
