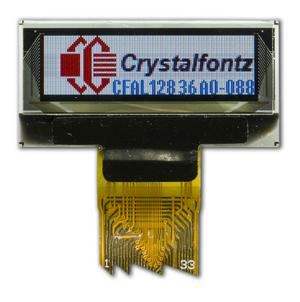

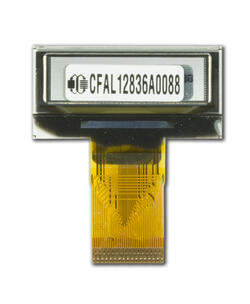

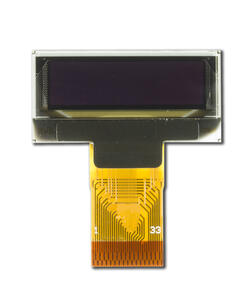

128x36 Color OLED Display Module

Part Number: CFAL12836A0-088

This is a small, full-color OLED display module with 128x36 dot matrix. This OLED display has high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, a wide temperature range, and super-low power consumption.

• 65k Full Color!
• 128x36 pixel
• LDT LD7138 (SP9230) Integrated Controller
• 8-bit 8080, Serial Interface (SPI)
• Wide Temperature Range: -40°C to 70°C
• Super Small! only 26.59mm (W) x 13mm (H)
• Compatible connector 33 Position, 0.3mm Pitch

If you're looking for a high contrast, pixel dense small oled display, this is perfect for your project or application.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  128 x 36

  Module Overall	width	height	depth
  millimeters	26.59	13	1.285
  inches	1.05	0.51	0.05
  *width / height does not include Foldable Tab

  Diagonal Dimension

  0.88"

  Viewing Area	Width	Height
  millimeters	22.88	7.428
  inches	0.90	0.29

  Active Area	Width	Height
  millimeters	21.48	6.028
  inches	0.85	0.24

  Dot Size	Width	Height
  millimeters	0.032	0.148
  inches	0.0013	0.0058

  Dot Pitch	Width	Height
  millimeters	0.056	0.168
  inches	0.0022	0.0066

  Optional Connectors

  CS030Z33GA0

  Flexible Cable (FFC/FPC)	length
  millimeters	17
  inches	0.669

  Weight

  0.9g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	OLED
  Polarizer	Emissive

  Foreground Color	RGB
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	1.65V
  Supply Voltage for Logic Maximum	3.3V

  Supply Voltage for Logic Typical	2.8V
  Supply Voltage for Driving Panel Typical	14V

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-40°	70°
  Fahrenheit	-40°	158°

  Storage Temperatures	min	max
  Celsius	-40°	85°
  Fahrenheit	-40°	185°

• cable Electronics

  Electronics

  Controller Documents	LDT LD7138 OLED Display Controller And Driver IC
  Interface	8-bit Parallel, SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAL12836A0088 Datasheet


  (Datasheet V 1.0)

• download Files and Downloads

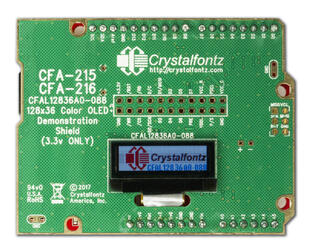

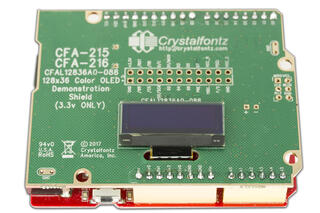

  folder_zip Software Source - 3.3v Seeeduino / Arduino Demonstration Code


  folder_zip Hardware Design - 3D Model


  picture_as_pdf 1 to 1 Template


  picture_as_pdf Other Document - CFA-10082 v1 Schematic

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
