CFAL12836A0-088 OLED display mounted on a CFA-10082 demonstration shield.
Home » Products » Accessories » Dev Kits » OLED Development Kits

128x36 Full Color OLED with carrier board.

Part Number: CFA215

Pricing

Quantity Price
1 $23.63
10 $21.48
20 $16.58
50 $16.44
100 $16.31
200 * $16.18
500 * $16.04
1000 * $15.91
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA215 or RSS RSS feed for changes to CFA215 for CFA215

Compliance Documents

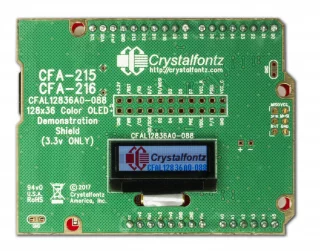

128x36 Full Color OLED with carrier board. (CFA215)
128x36 Full Color OLED with carrier board.
Close
Bundle includes 128x36 OLED display mounted on a demonstration shield. Easily plugs into Seeeduino.
Bundle includes 128x36 OLED display mounted on a demonstration shield. Easily plugs into Seeeduino.
Bundle includes 128x36 OLED display mounted on a demonstration shield. Easily plugs into Seeeduino.
Close

Description

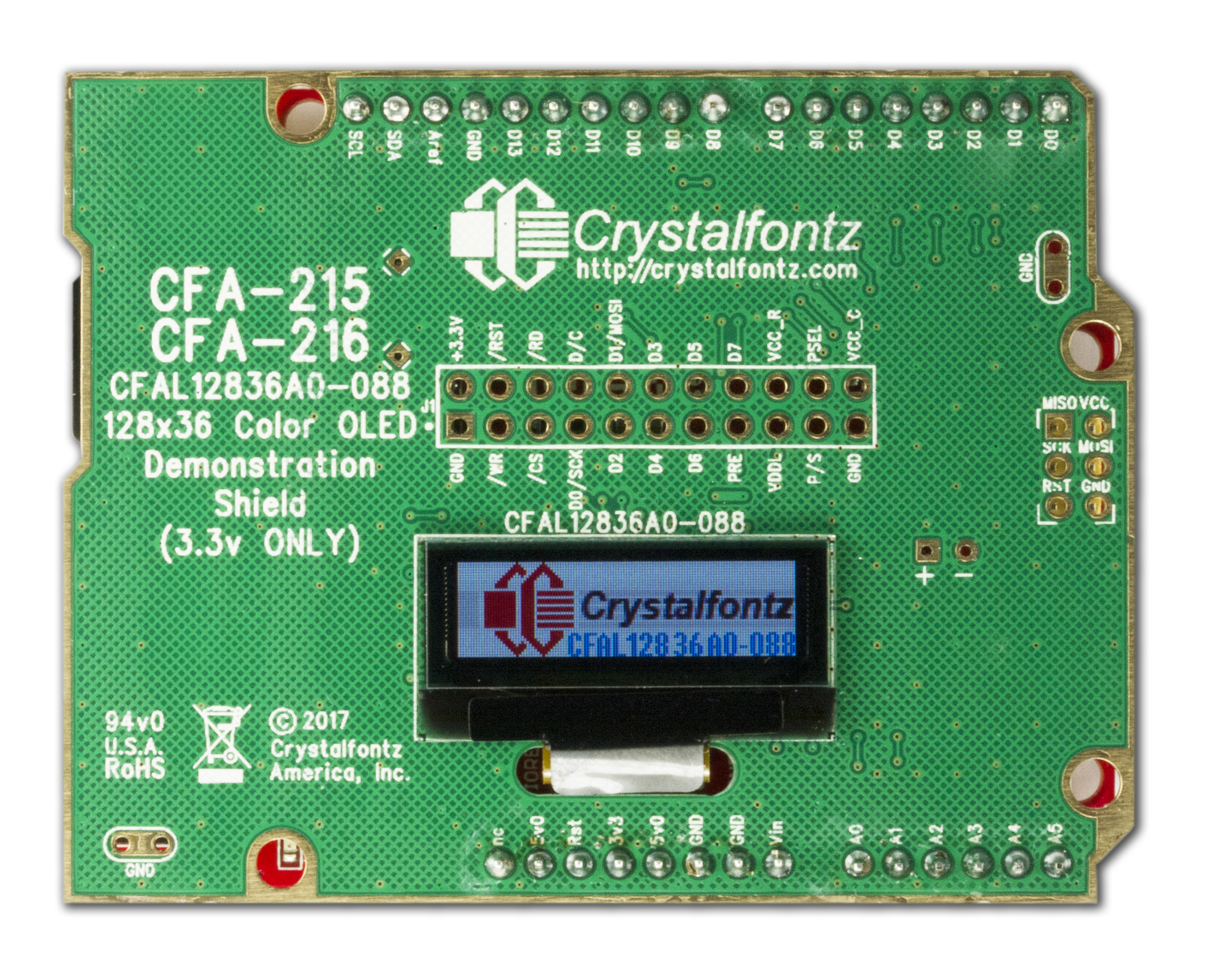

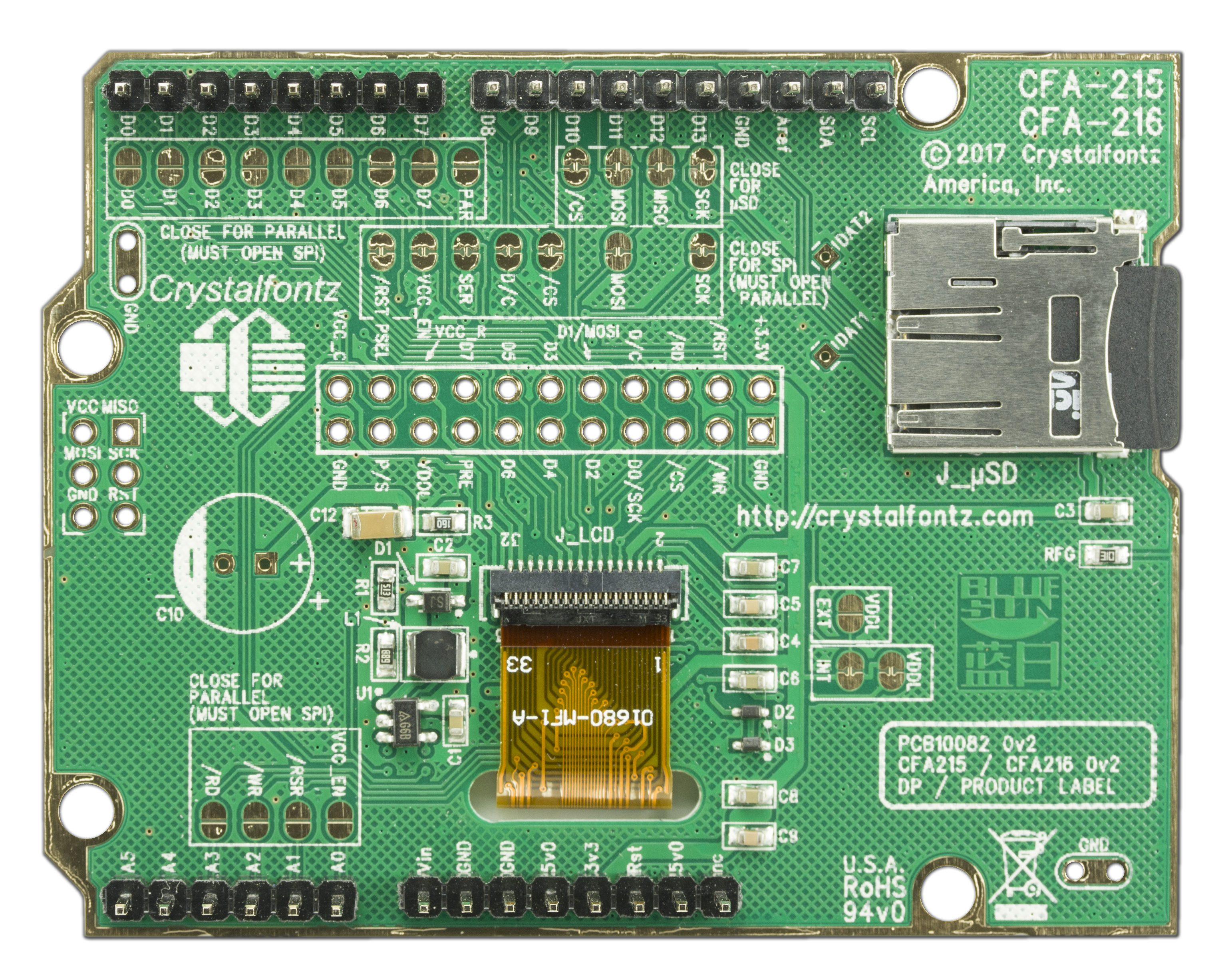

This OLED development kit consists of our 128x36 Color OLED Display Module mounted on a CFA-10082 Arduino shield.

The Demonstration shield includes:
MicrosSD card
Backlight Driver
Jumpable for multiple configuration options
Same physical outline as a Seeeduino/Arduino
Only 3.3v

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 128 x 36
PCB Outline width height
millimeters 68.6 53.3
inches 2.701 2.098
Active Area width height
millimeters 21.48 6.028
inches 0.846 0.2373
Dot Size width height
millimeters 0.032 0.148
inches 0.0013 0.0058
Dot Pitch width height
millimeters 0.168 0.168
inches 0.0066 0.0066
Flexible Cable (FFC/FPC) length
millimeters 17
inches 0.669
Weight 31.2g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle >160°
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving LCD Typical 14V
Supply Current Typical 80mA

Environmental

Operating Temperatures min max
Celsius -40° 70°
Fahrenheit -40° 158°
Storage Temperatures min max
Celsius -40° 85°
Fahrenheit -40° 185°

Electronics

Controller Documents LD7138
Interface 8-bit Parallel, SPI

Miscellaneous

Foldable Tab No

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA215 or RSS RSS feed for changes to CFA215

Product Update #10862: (New Product) CFA215: 128x36 Full Color OLED w/Breakout Board (Seeeduino shield)

New Product: CFA215
Date Issued: June 23, 2017
Summary: (New Product) CFA215: 128x36 Full Color OLED w/Breakout Board (Seeeduino shield)
Description: OLED Modules: This bundle consists of a CFAL12836A0-088 Full Color OLED display mounted on a CFA-10082 demonstration shield.

The Demonstration shield includes:
MicrosSD card
Backlight Driver
Jumpable for multiple configuration options
Same physical outline as a Seeeduino/Arduino
Only 3.3v

See the display with bundles here: https://www.crystalfontz.com/product/cfal12836a0088-128x36-small-oled-display
