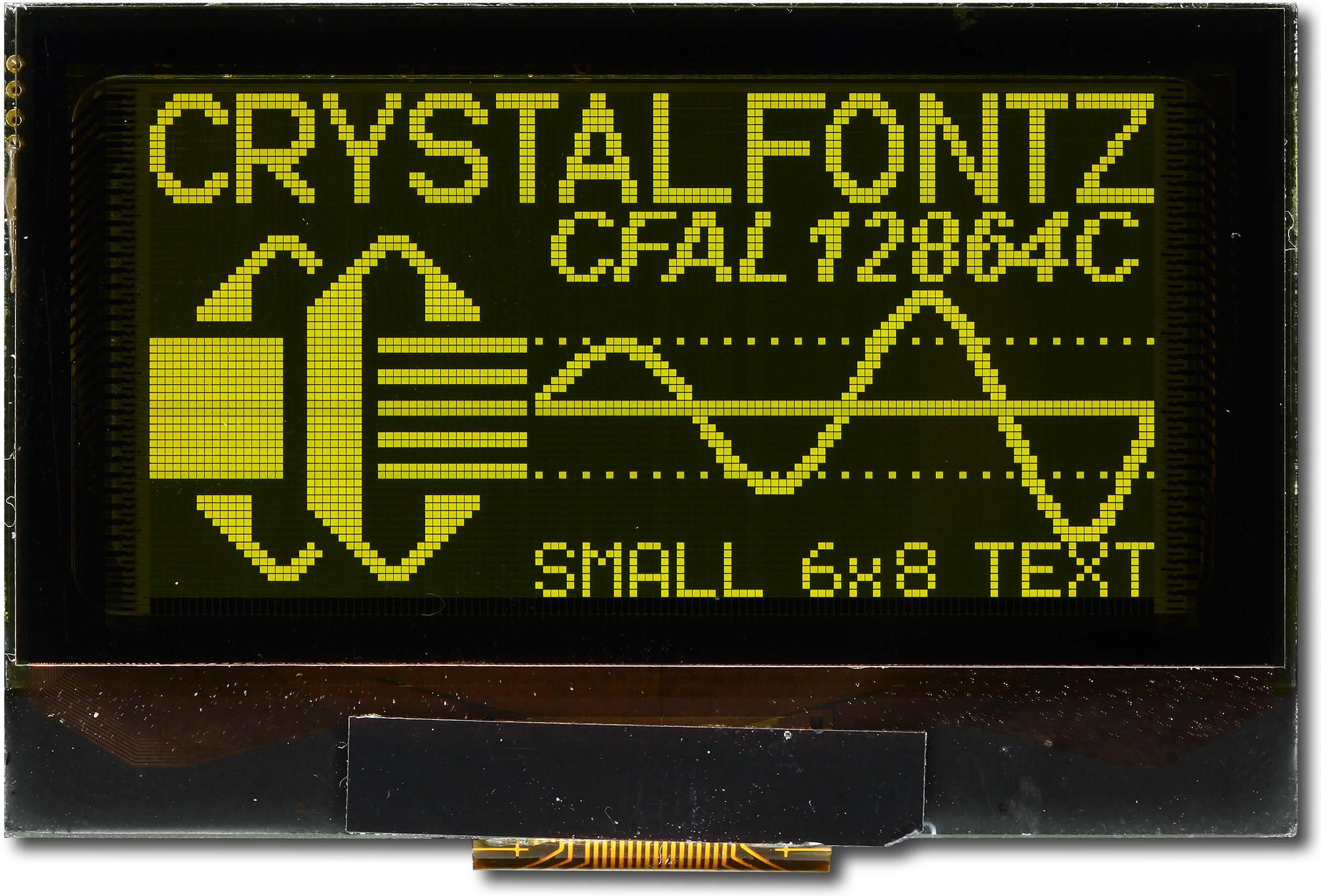

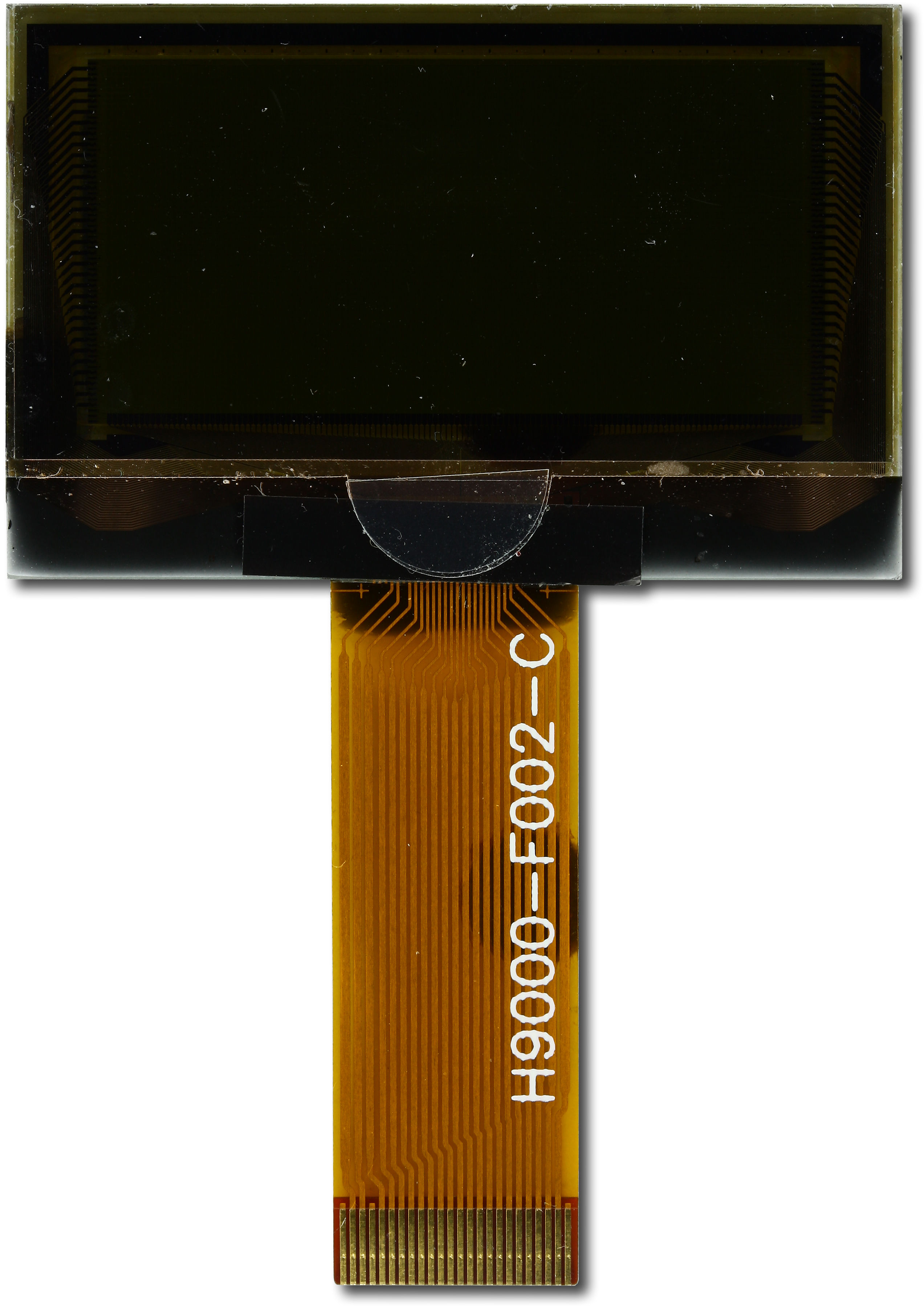

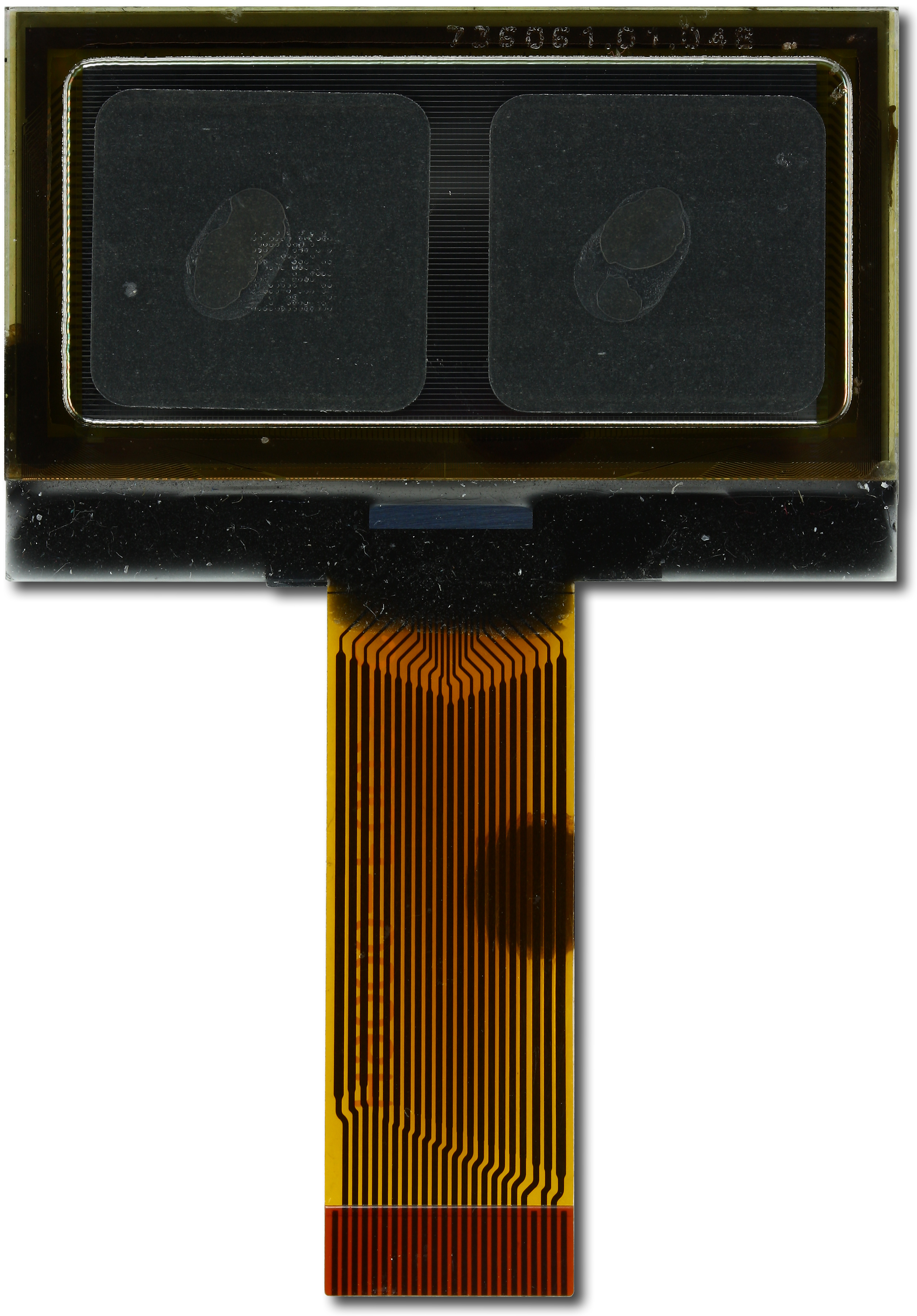

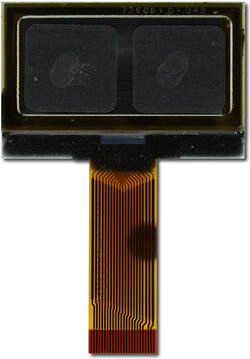

[EOL] 128x64 Yellow Graphic OLED DisplayPart Number: CFAL12864C-Y-B1This 128 x 64 Graphic Yellow OLED module offers a crisp clean image.
	Extremely wide viewing angles.
	Very high contrast ratio.
	Built-in Solomon SSD1305 or compatible controller.
	8-bit parallel, SPI or I2C Interfaces.
	This display is RoHS Compliant.
	Crystalfontz America, Incorporated is ISO 9001:2015 certified.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        45.24
        29.14
        2.2

        inches
        1.78
        1.15
        0.09

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.54"

    Viewing Area        Width
        Height

        millimeters
        37.04
        19.51

        inches
        1.46
        0.77

    Active Area        Width
        Height

        millimeters
        35.04
        17.51

        inches
        1.38
        0.69

    Dot Size        Width
        Height

        millimeters
        0.24
        0.24

        inches
        0.009
        0.009

    Dot Pitch        Width
        Height

        millimeters
        0.27
        0.27

        inches
        0.011
        0.011

        Weight
            6g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive

        Mode
            Positive
Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            3.3V
Supply Voltage for Driving Panel Typical
            12:00V

        Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Storage Temperatures        min
        max

        Celsius
        -40°
        80°

        Fahrenheit
        -40°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1305
SSD1305 132 x 64 Dot Matrix

OLED/PLED Segment/Common Driver with Controller
Interface
            8-bit Parallel, I2C, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAL12864C-Y-B1 Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAL12864CYB1.pdf

 download Files and Downloads
folder_zip Software Source - 8080 ATmega2561 Demonstration Code
folder_zip CAD Export - CFAL12864C-Y-B1 2D CAD
picture_as_pdf 1 to 1 Template - cfal12864c-y-b1

Module Overall	width	height	depth
millimeters	45.24	29.14	2.2
inches	1.78	1.15	0.09
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	37.04	19.51
inches	1.46	0.77

Active Area	Width	Height
millimeters	35.04	17.51
inches	1.38	0.69

Dot Size	Width	Height
millimeters	0.24	0.24
inches	0.009	0.009

Dot Pitch	Width	Height
millimeters	0.27	0.27
inches	0.011	0.011

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11021: Part Change Notification

Products Affected:	CFAL12864C-Y-B1, CFAL12864CW-B1
Date Issued:	November 1, 2018
Summary:	Part Change Notification
Description:	The parts listed are being replaced by new part numbers
Reason:	The glass used in these displays is being replaced by thinner more efficient glass.
Impact:	The part numbers listed will be replaced by new part numbers. The operation of the displays will not change. The overall thickness of each of the displays will decrease by 0.05mm. The part numbers changes are: CFAL12864C-Y-B1 - CFAL12864D-0154M-Y CFAL12864C-W-B1 - CFAL12864D-0154M-W
Recommendation:	Users are recommended to verify that the change in the thickness dimension will not affect the installation of the displays.
Availability:	The new parts will be available when current stock is depleted.

Product Update #10415: (New Product) CFAL12864C-Y-B1

New Product:	CFAL12864C-Y-B1
Date Issued:	May 3, 2012
Summary:	(New Product) CFAL12864C-Y-B1
Description:	Under OLED Modules: 128 x 64 Graphic OLED module, Yellow OLED
