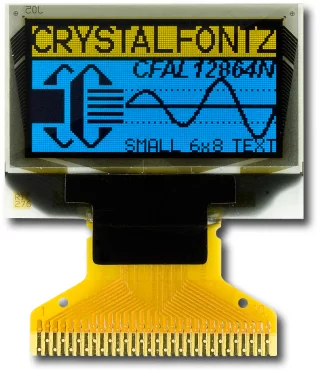

128x64 Graphic SPI OLED Display

Part Number: CFAL12864N-A-B4

Two separate colors (yellow and blue) make this 128x64 SPI graphic OLED module unique. Customers like the two areas as a convenient way to show lots of information in an easy-to-read display. Less than an inch diagonal, this thin lightweight display uses super low power, making it great for handheld devices powered by batteries.

  • 128x64 graphic OLED display module.
  • The 0.96" diagonal display is handy for designs that require small form factor.
  • Two color areas on the display: yellow for the 2-16 pixel rows and blue for the bottom 18-48 pixel rows.
  • Built-in Solomon Systech SSD1306 controller.
  • Supports I2C, 3 or 4 wire SPI, and 8-bit parallel interfaces.
  • Extremely wide viewing angle is ideal for handheld devices.
  • Very high contrast ratio.
Qty:
Quantity Price
1 $8.17
10 $7.10
20 $6.84
50 $6.58
100 $6.20
200 * $6.10
300 * $5.77
500 * $5.73
1000 * $5.13
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12864N-A-B4 or RSS RSS feed for changes to CFAL12864N-A-B4 for CFAL12864N-A-B4

TECHNICAL SPECS

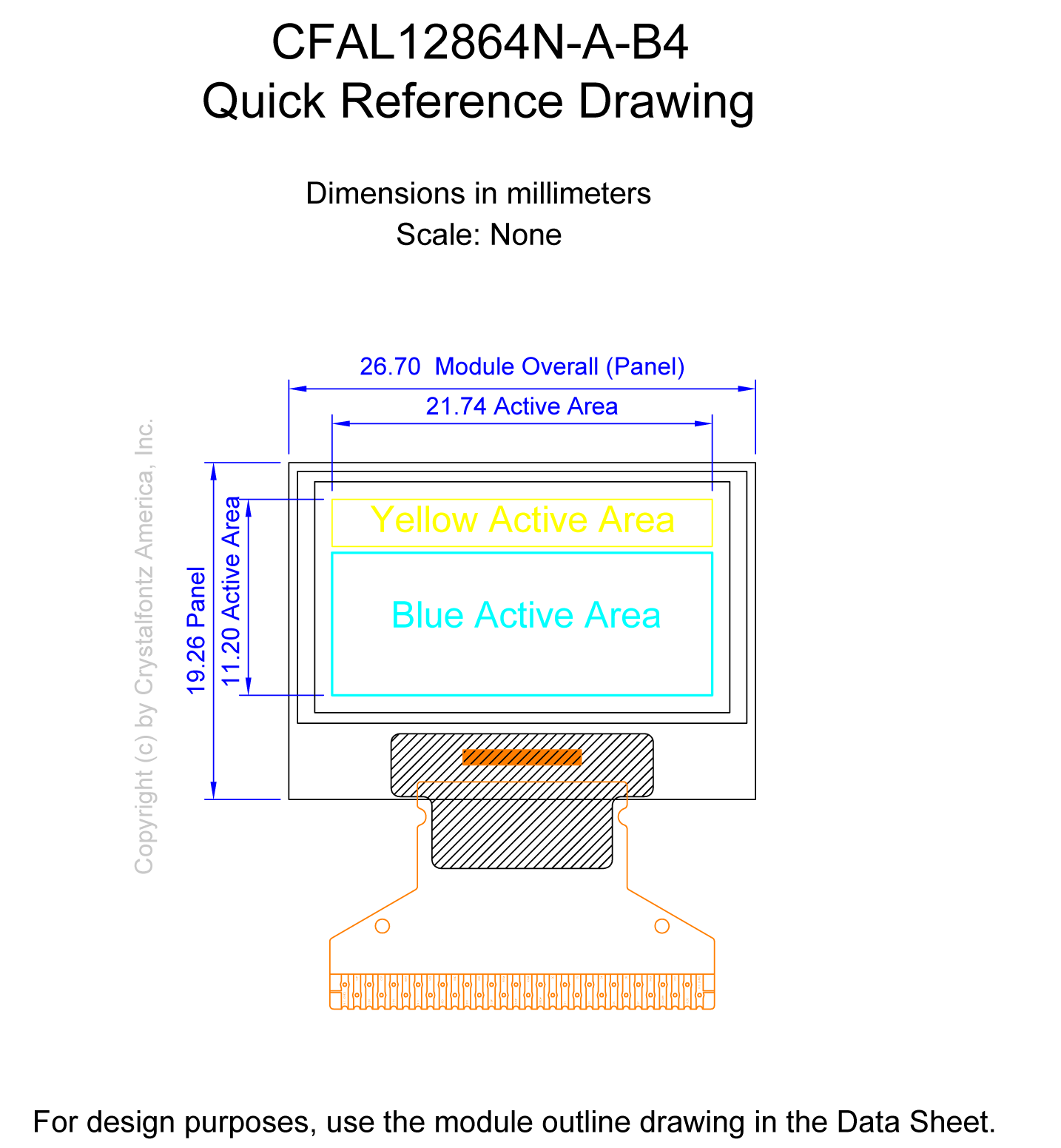

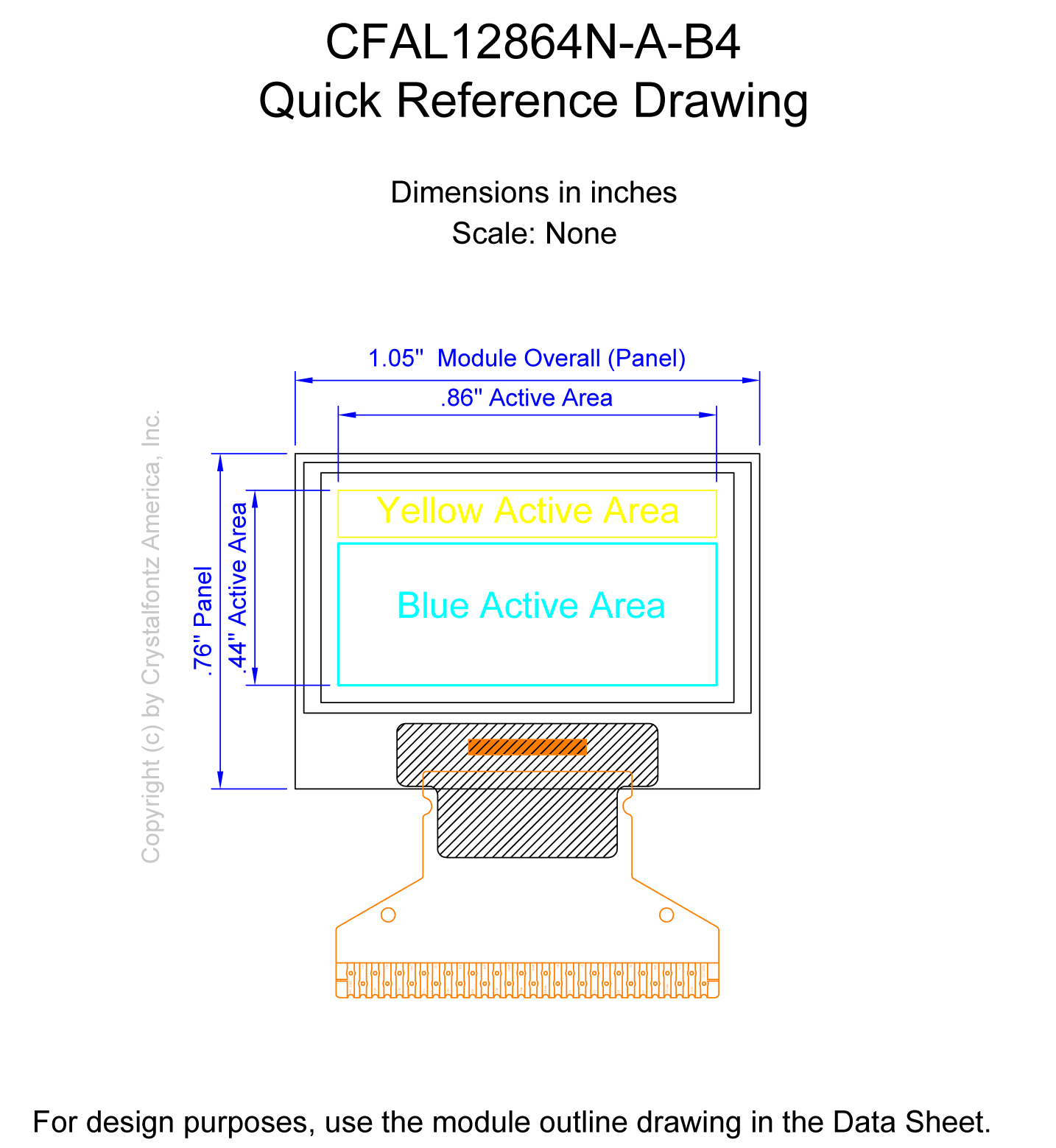

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall width height depth
millimeters 26.7 19.26 1.26
inches 1.051 0.758 0.050
*width / height does not include Foldable Tab
Diagonal Dimension 0.96"
Viewing Area width height
millimeters 23.74 13.2
inches 0.935 0.520
Active Area width height
millimeters 21.74 11.2
inches 0.856 0.441
Dot Size width height
millimeters 0.148 0.148
inches 0.0058 0.0058
Dot Pitch width height
millimeters 0.17 0.17
inches 0.007 0.007
Weight 2g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Direction >160 o'clock
View Angle Black°
Mode Positive
Foreground Color Rows 2-16 Yellow
Background Color Rows 18-64 Blue

Electrical Specifications

Supply Voltage for Logic Maximum 2.8V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3V
Supply Current Minimum 12:00mA
Supply Current Typical 16mA
Touchscreen Connector Pitch 0.85mm

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 85°
Fahrenheit -40° 185°
Humidity min max
Non-condensing 80% 0%

Electronics

Controller Documents Solomon Systech SSD1306
SSD1306 128 x 64 Dot Matrix
OLED/PLED Segment/Common Driver with Controller
Interface 4-bit Parallel, 9-bit Parallel, USB

Miscellaneous

Foldable Tab Yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL12864N-A-B4 or RSS RSS feed for changes to CFAL12864N-A-B4

Part Change Notice #11058: The thickness of the glass is being changed from 0.7mm to 0.55mm

Product Affected: CFAL12864N-A-B4
Date Issued: January 15, 2020
Summary: The thickness of the glass is being changed from 0.7mm to 0.55mm
Description: The overall thickness will change from 1.65mm to 1.5mm. The part number will not
Recommendation: Customers should verify that the thickness change will not have a detrimental effect on any installations.
Availability: Parts with the new thickness will be available after current stocks have been depleted. For more information please contact sales@crystalfontz.com

Product Update #10590: OLED thickness has changed from 1.2mm to 1.4mm

Product Affected: CFAL12864N-A-B4
Date Issued: June 13, 2014
Summary: OLED thickness has changed from 1.2mm to 1.4mm
Description: OLED thickness has changed from 1.2mm to 1.4mm
Reason: Due to thinner glass substrate no longer available.

No other changes were made on part.
Impact: Slight change in overall depth. 0.20mm overall.

Product Update #10514: CFAL12864N-A-B4 Improvements

Product Affected: CFAL12864N-A-B4
Date Issued: July 29, 2013
Summary: CFAL12864N-A-B4 Improvements
Last revision: CFAL12864N-A-B4
Description: 1) The thickness of the CFAL12864N-A-B4 module has changed from 1.45mm to 1.2mm. This change is 0.25mm difference.

2) The luminosity of the module has been improved from:
80nits(min.) to 150nits(min.)

3) Additionally it is important to note that while they have not changed physically, we would like bring attention to dimensions for Active Area and Viewing Area that we have had in our documentation. They have been corrected in the newest revision and now reflect the accurate dimensions for these measurements.

AA from 10.86mm to 11.2mm
VA From 12.86mm to 13.2mm

This is a difference of 0.34mm.


Reason: We are issuing this PUN to inform our valued customers of the improvements to the CFAL12864N-A-B4's construction, and to provide more accurate and updated technical support documentation.
Impact: If your application is ultra precise on the thickness of the module, there could possibly be a 0.25mm tolerance issue. Apart from that, little to no impact on any existing application should be evident.
Recommendation: Customers interested in the continued use of this bi-color OLED module should simply continue to order the CFAL12864N-A-B4 module as they always have.

We encourage you to examine the drawing of the improved and corrected characteristics of the module in the attached PDF.


Availability: Quantity orders will be available by October 1, 2013.

*Sample quantities available while supplies last*
Price Change: No change in the cost for the module.
Attachment: CFAL12864N-A-B4_Module_Outline_pg1.pdf (25KB)

Product Update #10411: (New Product) CFAL12864N-A-B4

New Product: CFAL12864N-A-B4
Date Issued: April 16, 2012
Summary: (New Product) CFAL12864N-A-B4
Description: Under OLED Modules: Small, efficient 128x64 Graphic OLED module with two areas of color, yellow and blue
For reference only. For design purposes, please use the specifications in the datasheet.

Product Notes

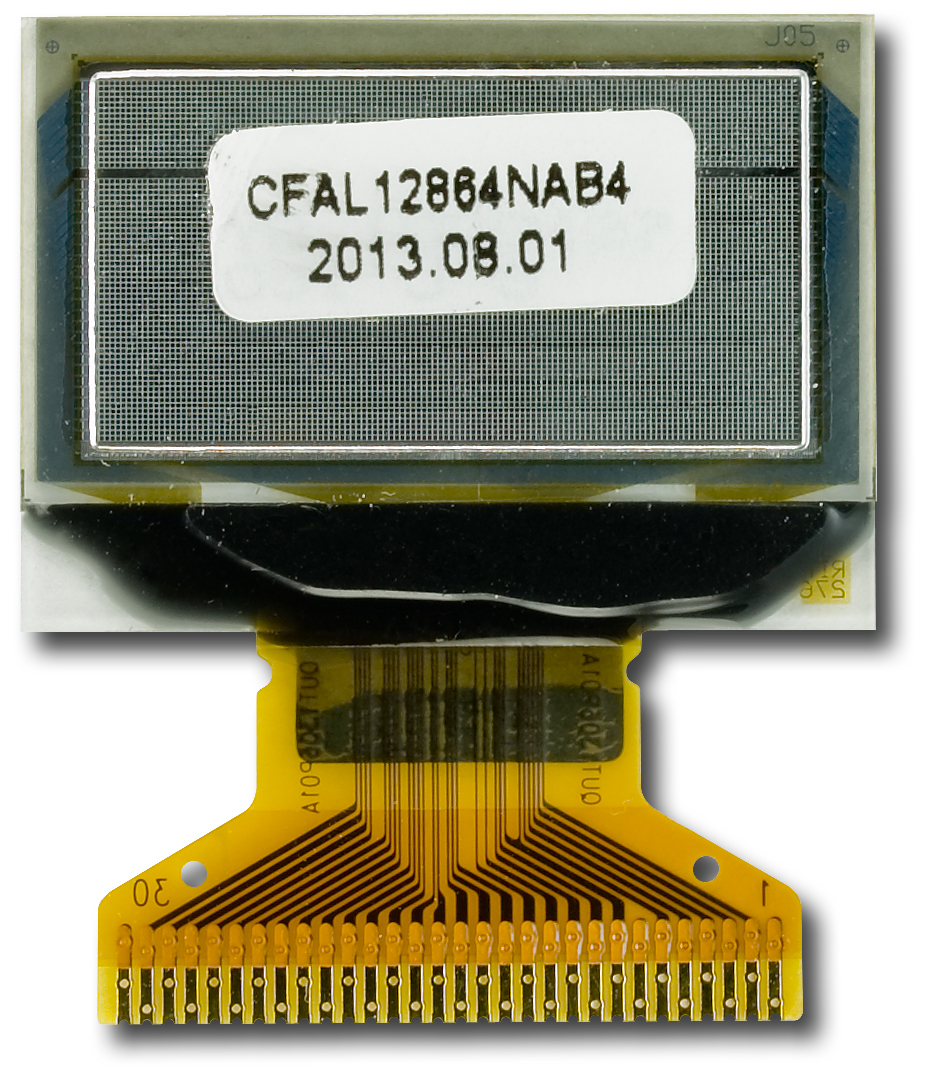

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail mated with a "COG" (chip on glass) display. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.
