Color Graphic OLED Display

Part Number: CFAL12896A0-0127-F

Pricing

Quantity Price
1 $16.69
10 $14.20
20 $13.71
50 $13.21
100 $13.00
200 $12.81
300 $12.71
500 $12.61
1000 * $12.42
* Contact us about potential lead times.
Qty:
Components worth considering

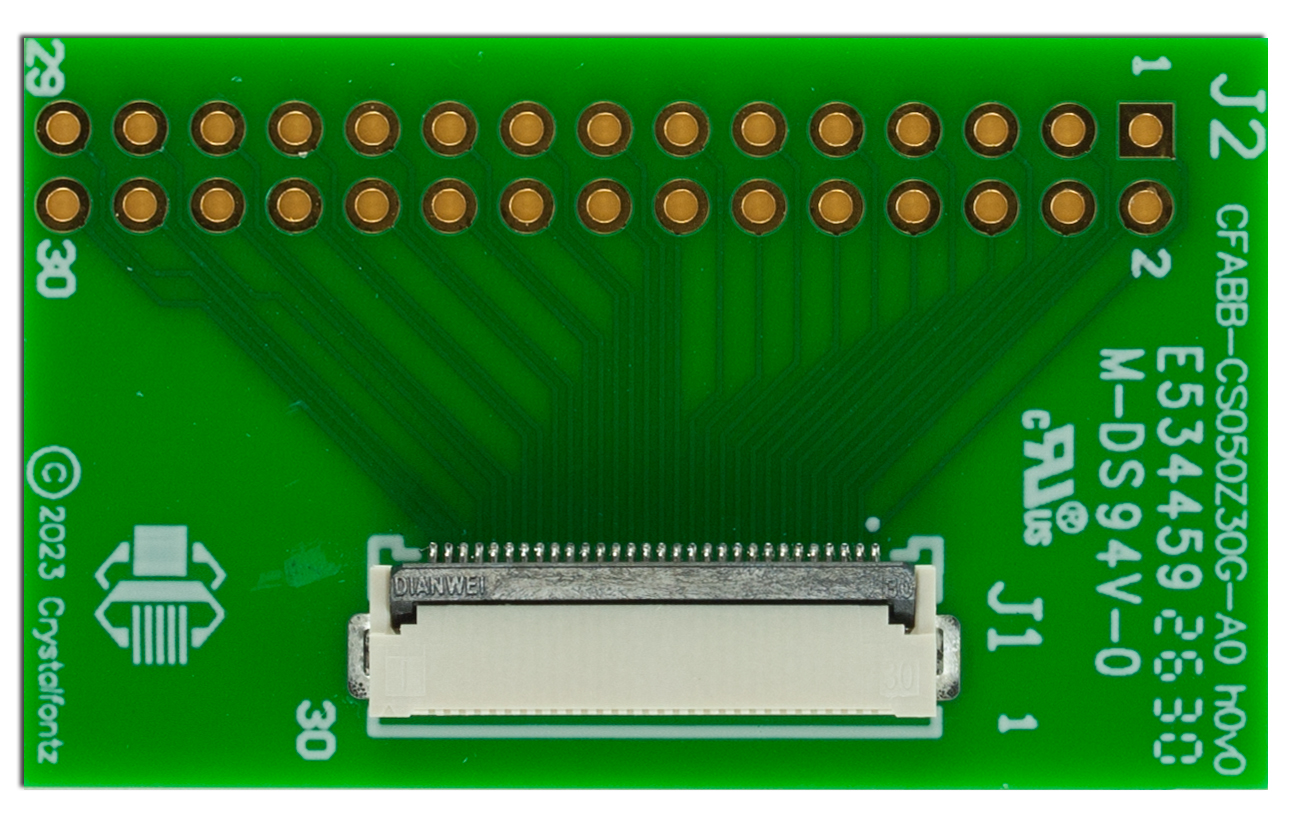

4635 30 Position, 0.50mm Pitch, Gold, FPC FCC ZIF connector
Add 5 ZIF Connectors $0.99 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL12896A0-0127-F or RSS RSS feed for changes to CFAL12896A0-0127-F for CFAL12896A0-0127-F

Compliance Documents

Color Graphic OLED Display (CFAL12896A0-0127-F)

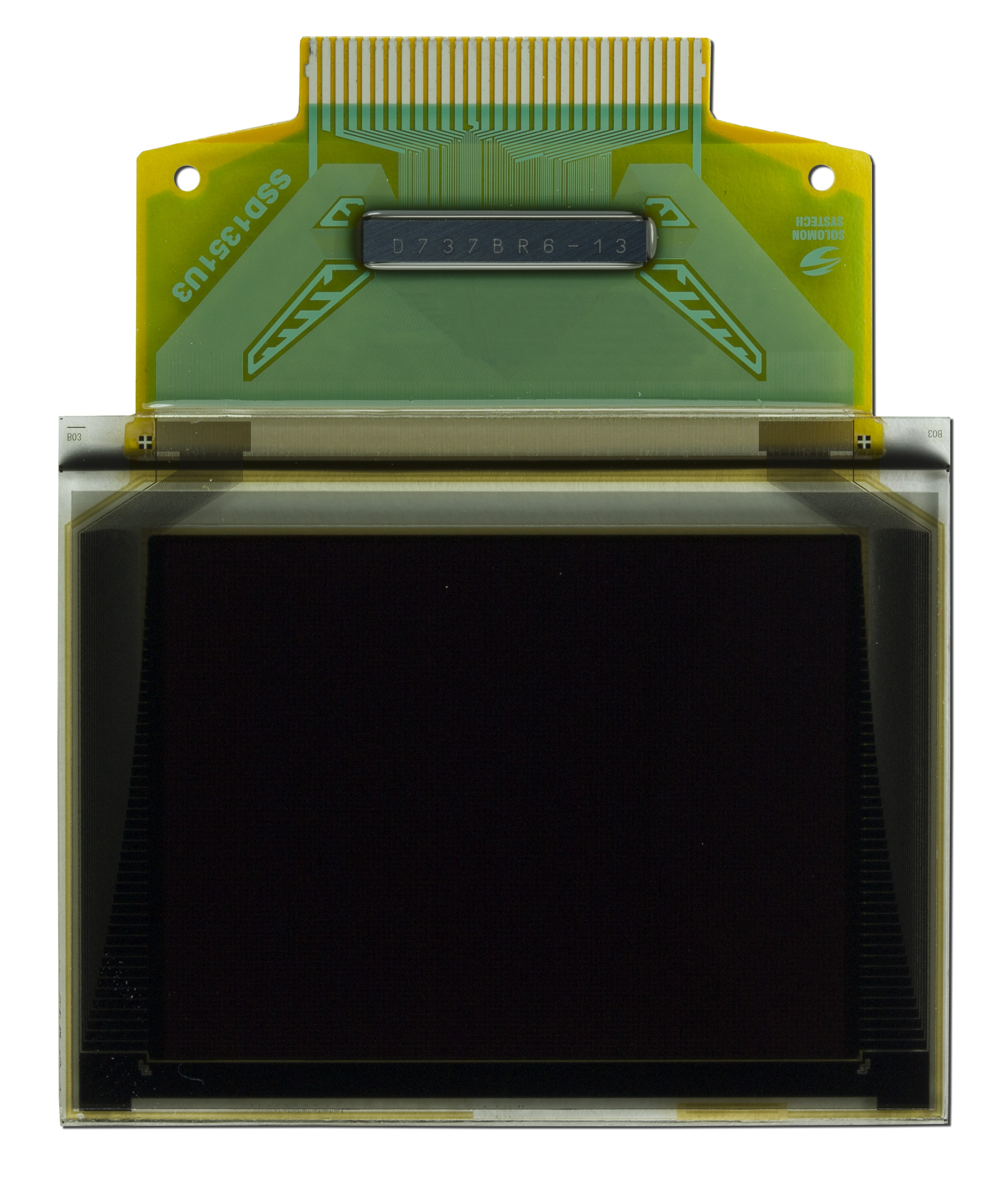

128x96 Graphic Oled, Front view, turned off. 128x96 Graphic Oled, back view.

Description

When you need to squeeze a few more pixels into a small area, this little OLED display fits the bill. Only have enough pins remaining for SPI? No problem. Have pins enough to hook it up using parallel? That works too! This 128x96 full-color graphic OLED is simple to drive either way!

This OLED module has a Solomon Systech SSD1351 Controller and we've wired it up with a Seeeduino / Arduino UNO clone and have provided the demonstration sketch in the files section.

The ZIF connector you need:
30-position 0.5mm pitch

Video Demonstrations

128x96 Full-Color Graphic OLED

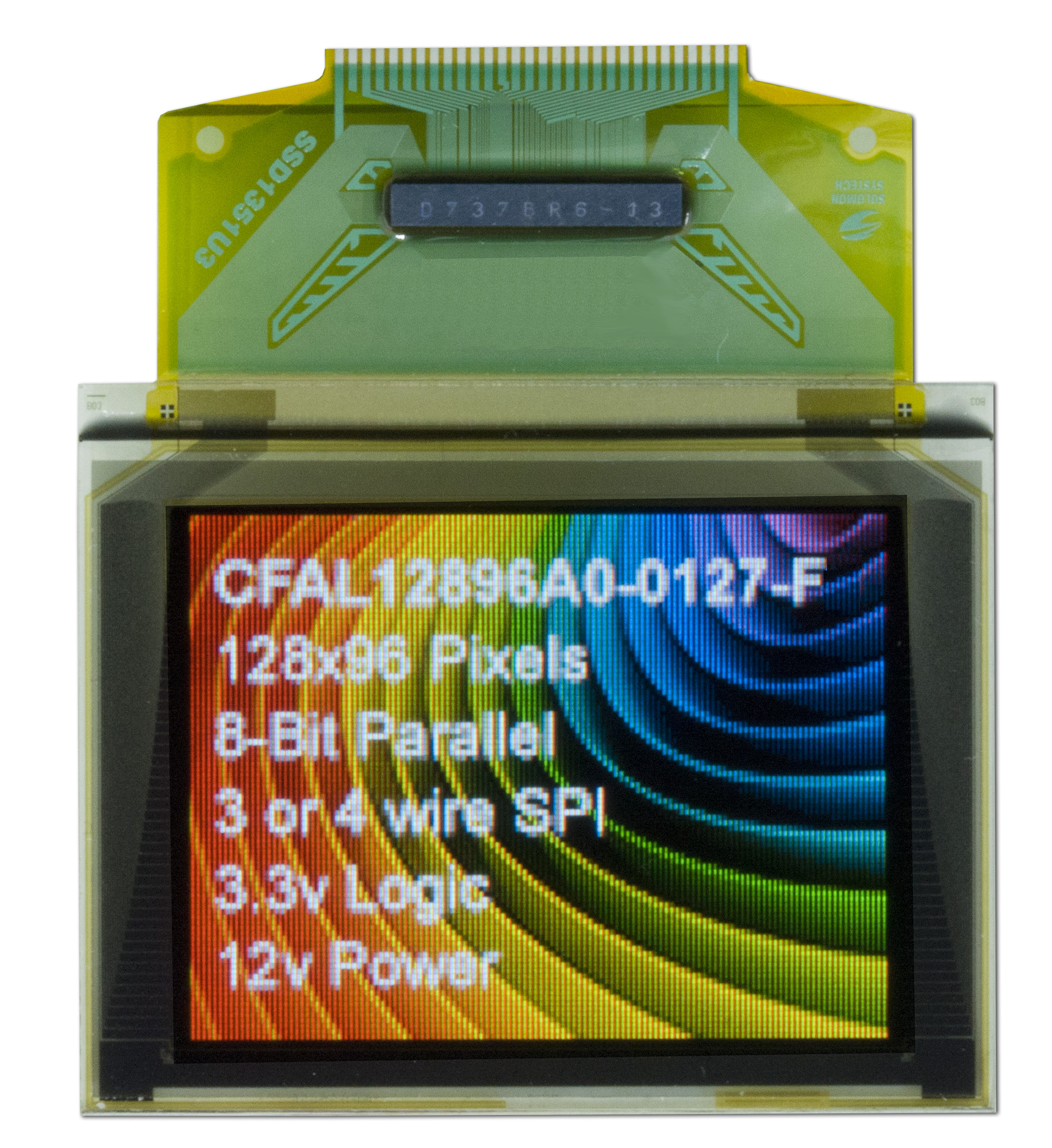

This is a quick product demonstration of our 128x96 full-color OLED display. We're demonstrating this little OLED on a Seeeduino 4.2.


TECHNICAL SPECS

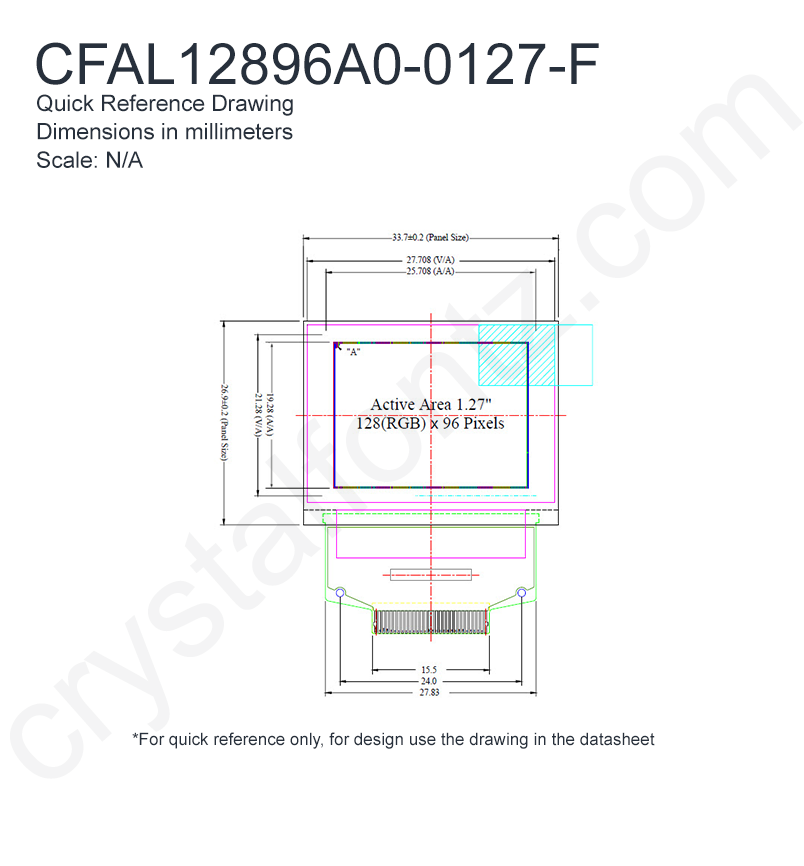

Physical Characteristics

Column Dots x Row Dots 128 x 96
Module Overall width height depth
millimeters 33.7 26.9 1.6
inches 1.327 1.059 0.063
*width / height does not include Foldable Tab
Viewing Area width height
millimeters 27.71 21.28
inches 1.091 0.838
Active Area width height
millimeters 25.71 19.28
inches 1.012 0.759
Dot Size width height
millimeters 0.047 0.185
inches 0.0019 0.0073
Dot Pitch width height
millimeters 0.067 0.201
inches 0.0026 0.0079
Optional Connectors CS050Z30GA0
Flexible Cable (FFC/FPC) length
millimeters 14.35
inches 0.565
Weight 3g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 2.4V
Supply Voltage for Logic Maximum 2.6V
Supply Voltage for Logic Typical 2.5V
Supply Voltage for Driving Panel Typical 2.8V
Supply Current Typical 8.6mA

Environmental

Operating Temperatures min max
Celsius -40° 70°
Fahrenheit -40° 158°
Storage Temperatures min max
Celsius -40° 85°
Fahrenheit -40° 185°

Electronics

Controller Documents Solomon Systech SSD1351
128 RGB x 128 Dot Matrix OLED/PLED Segment/Common Driver with Controller
Interface 8-bit Parallel, SPI

Miscellaneous

Foldable Tab Yes
For reference only. For design purposes, please use the specifications in the datasheet.
