30 Position, 0.50mm Pitch, Gold, FPC FCC ZIF connector

Part Number: CS050Z30G-A0

Pricing

Quantity Price ea.
5 $0.99
100 $0.59
1500 $0.49
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z30G-A0 or RSS RSS feed for changes to CS050Z30G-A0 for CS050Z30G-A0

Compliance Documents

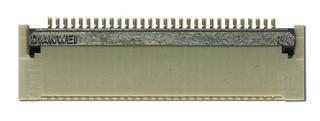

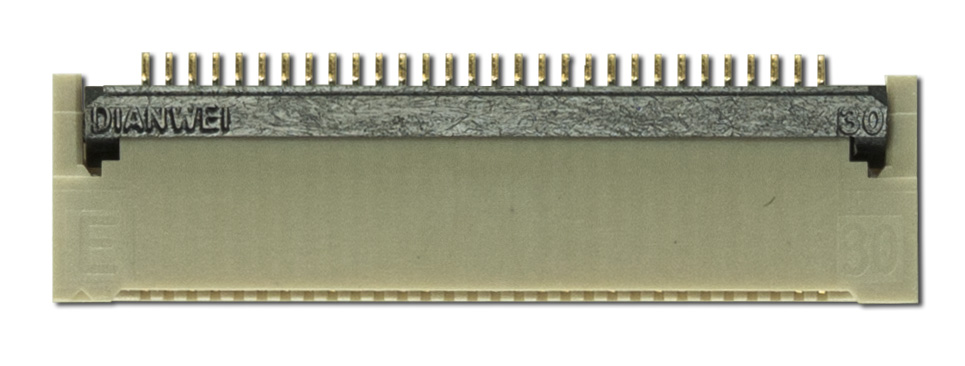

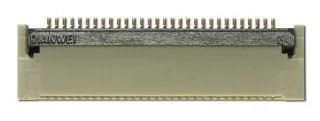

30 Position, 0.50mm Pitch, Gold, FPC FCC ZIF connector (CS050Z30G-A0)

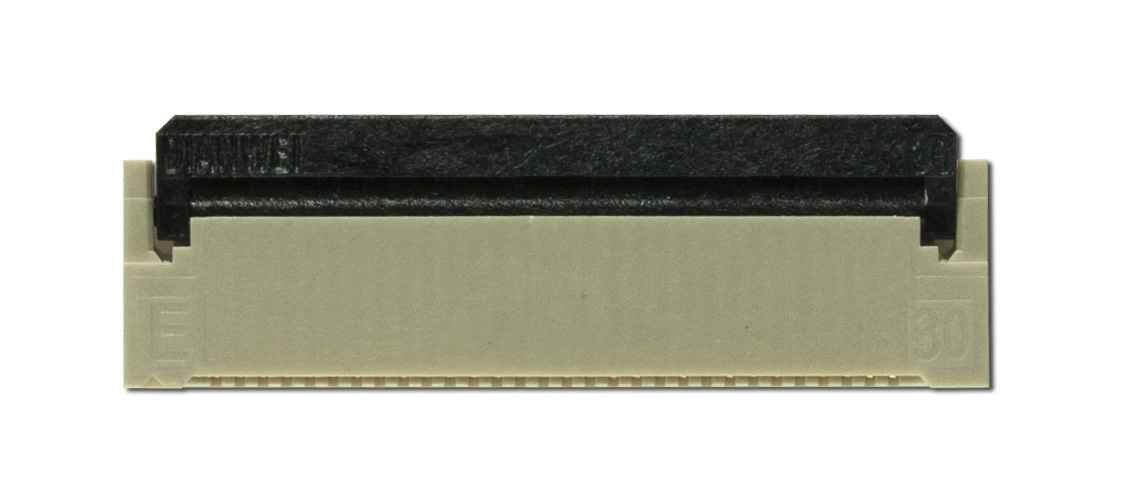

30 Position, 0.50mm Pitch ZIF connector. Closed position.

Description

This 30 position, 0.50mm pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 30 Position
  • 0.50 Pitch
  • Gold Plated
  • Top & Bottom Contacts

TECHNICAL SPECS

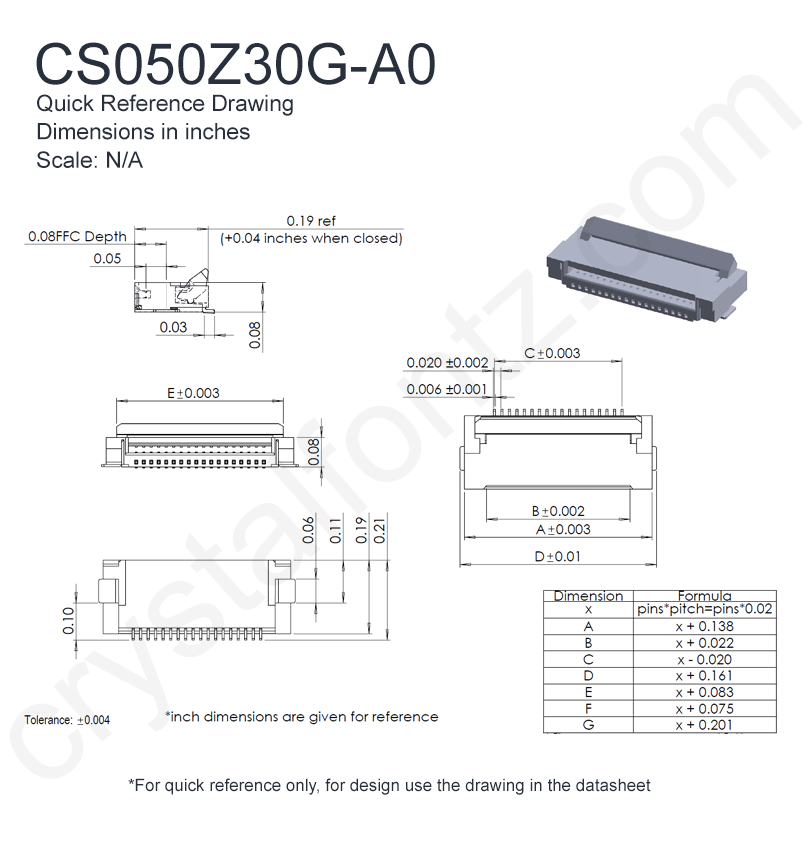

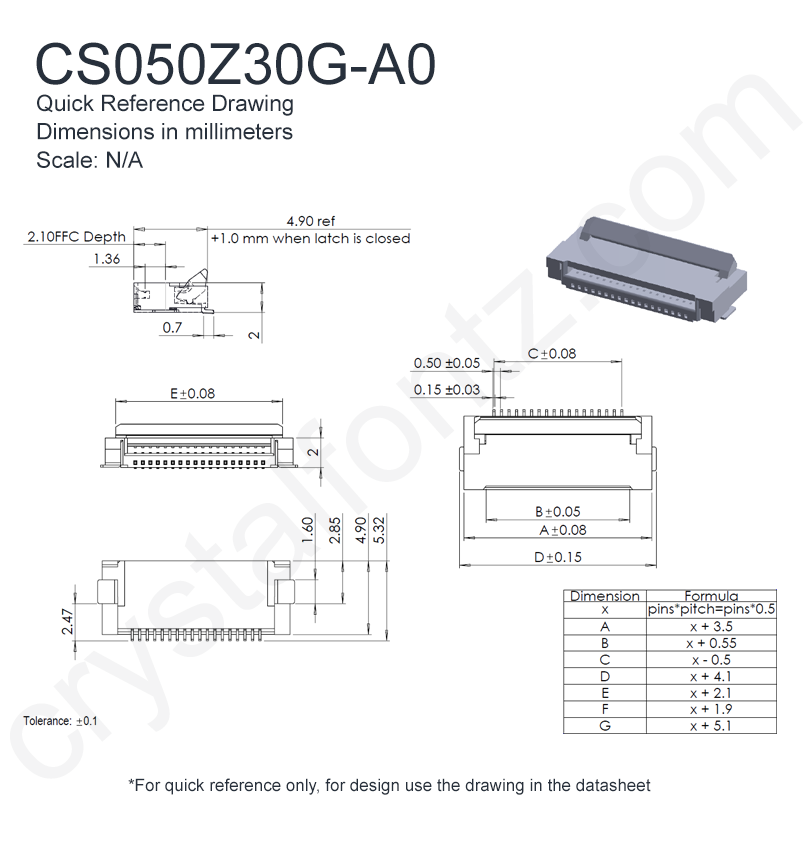

Physical Characteristics

Module Overall width height
millimeters 18.5 2
inches 0.728 0.079
Weight 0.625g
Pin Count 30

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
