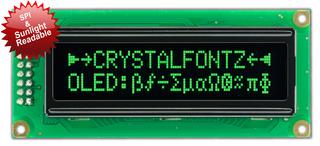

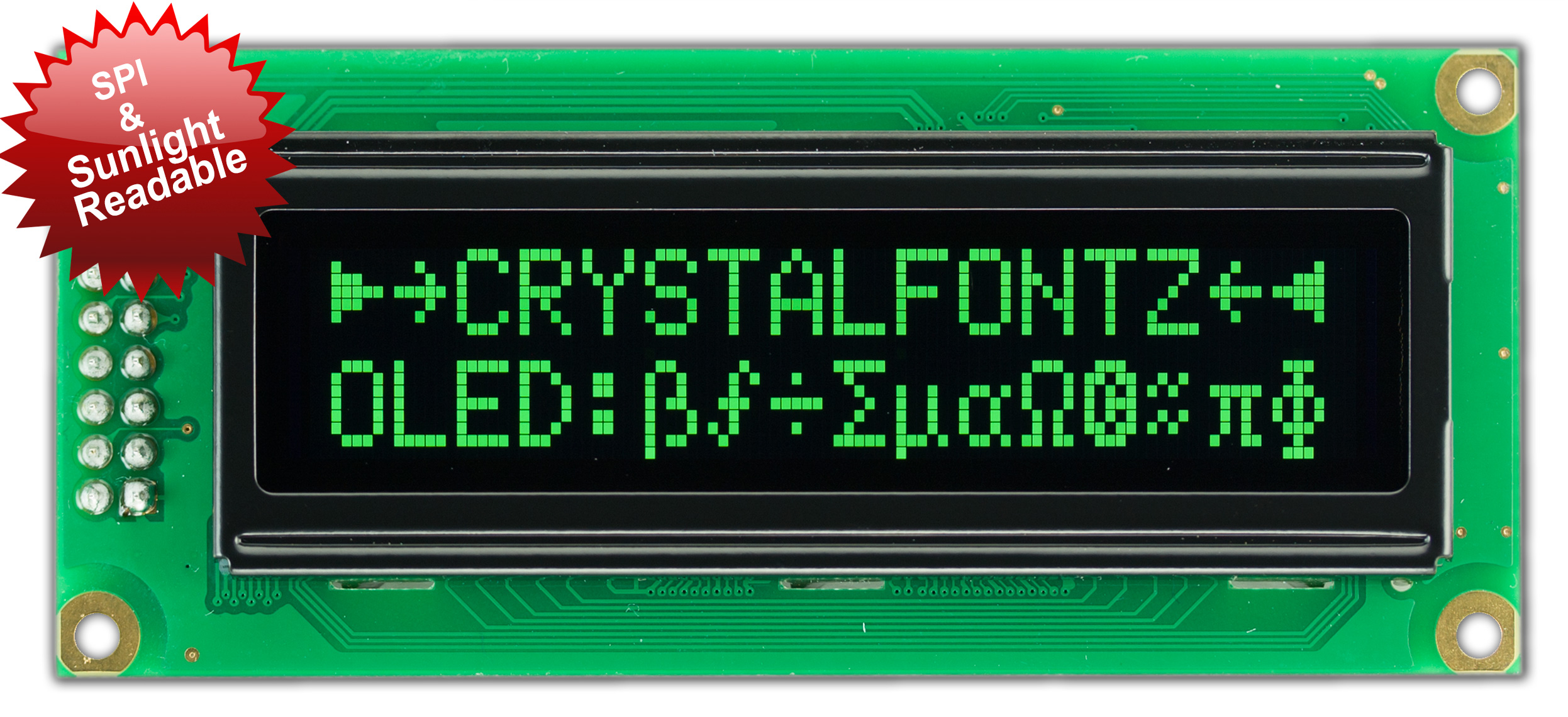

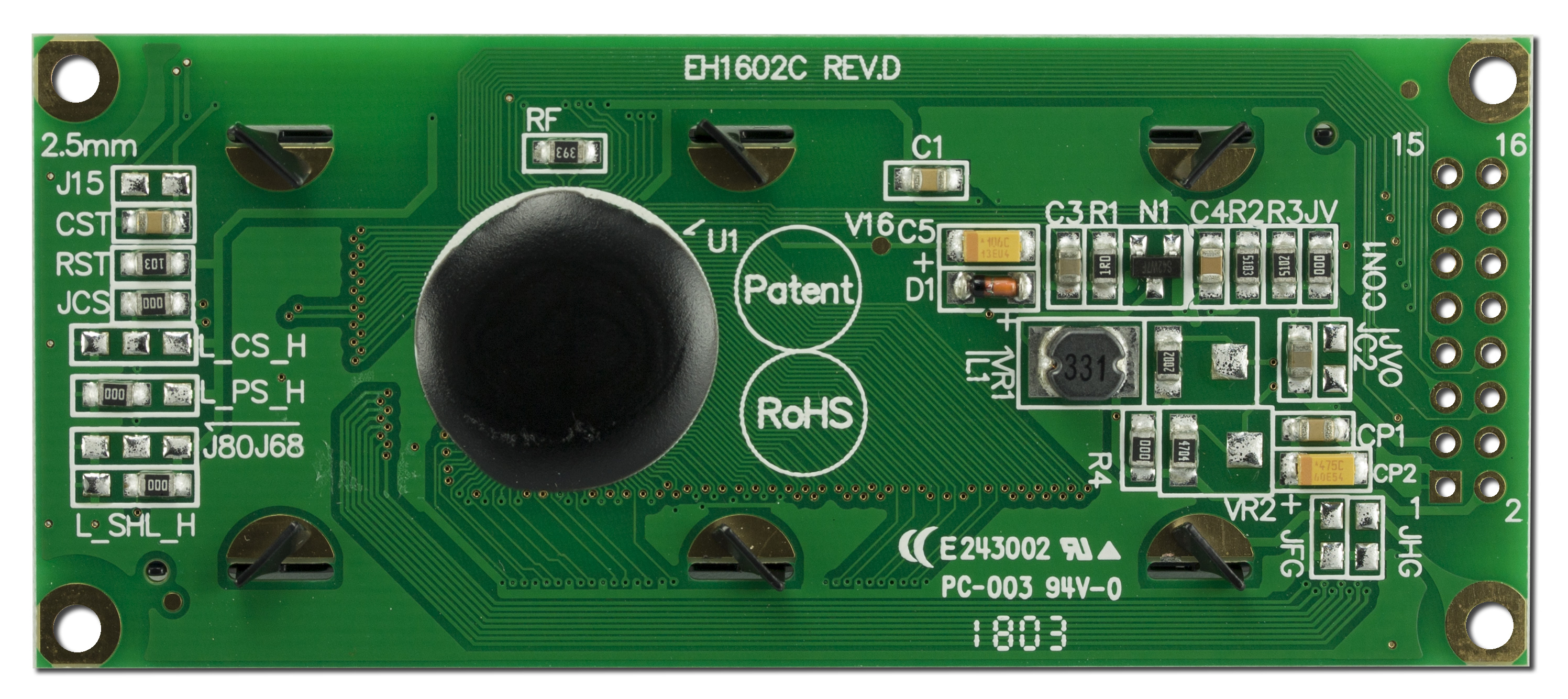

16x2 SPI Sunlight Readable Green OLED

Part Number: CFAL1602C-PGT

Pricing

Quantity Price
1 $19.48
10 * $16.94
20 * $16.34
50 * $15.06
100 * $14.18
200 * $13.95
300 * $13.21
500 * $13.10
1000 * $11.64
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAL1602C-PGT or RSS RSS feed for changes to CFAL1602C-PGT for CFAL1602C-PGT


Description

Sunlight Readable SPI Interface OLED

The OLED technology of the green-on-black CFAL1602C-PGT provides a striking, high contrast visual appearance that stays consistent from -40°C to 80°C (-40°F to 176°F). Since OLEDs are emissive, there is no backlight, resulting in a thinner package that is ideal when you need a reliable 16x2 character display and space is at a premium. The modern look of the CFAL1602C-PGT OLED display provides a very wide 160° viewing angle, keeping the same crisp view from nearly any direction.

The command set of the built-in WS0010 controller is similar to the industry standard Hitachi HD44780 and compatibles, reducing the adoption time of the CFAL1602C-PGT into your project. With four built-in font tables, multi-language support is a easy.

Do you want to change the look of your existing product that uses our STN LCD CFAH1602C? The CFAL1602C-PGT has the same physical footprint.

  • Sunlight readable!
  • True black background with green characters is a high contrast OLED character display.
  • Very wide 160° viewing angle.
  • Extra wide range operating temperature: -40°C to 80°C (-40°F to 176°F).
  • Thin package, no backlight.
  • Sleek, modern visual appearance.
  • No visual change over entire operating temperature range.
  • Easy connectivity with standard 0.100" / 2.54mm connector.
  • Four built in font tables:
    • English / Japanese
    • English / Western European I
    • English / Western European II
    • English / Cyrillic
  • SPI sample code, Datasheet and RoHS/REACH Certificate of Compliance are under the Datasheets & Files tab.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 85 36 8.9
inches 3.346 1.417 0.350
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 56.95 11.85
inches 2.242 0.467
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.6 6.3
inches 0.142 0.248
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 24g

Optical Characteristics

Glass Type OLED
Polarizer Emissive
View Angle >160°
Sunlight Readable Yes
Foreground Color Green
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 4.8V
Supply Voltage for Logic Maximum 5.3V
Supply Voltage for Logic Typical 5V

Environmental

Operating Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Storage Temperatures min max
Celsius -40° 80°
Fahrenheit -40° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Winstar Display WS0010
Interface SPI

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAL1602C-PGT or RSS RSS feed for changes to CFAL1602C-PGT

Product Update #10747: (New Product) CFAL1602C-PGT

New Product: CFAL1602C-PGT
Date Issued: December 9, 2016
Summary: (New Product) CFAL1602C-PGT
Description: OLED Modules: 16x2 OLED Character, SPI,Sunlight Readable, Green
For reference only. For design purposes, please use the specifications in the datasheet.
