In order to keep this display in production over the long term, we are revising it. Any back orders placed now will be fulfilled with the new part when it becomes available. Please contact sales with any questions.

128x296 ePaper Dev Kit

Part Number: CFAP128296D0-E1-2

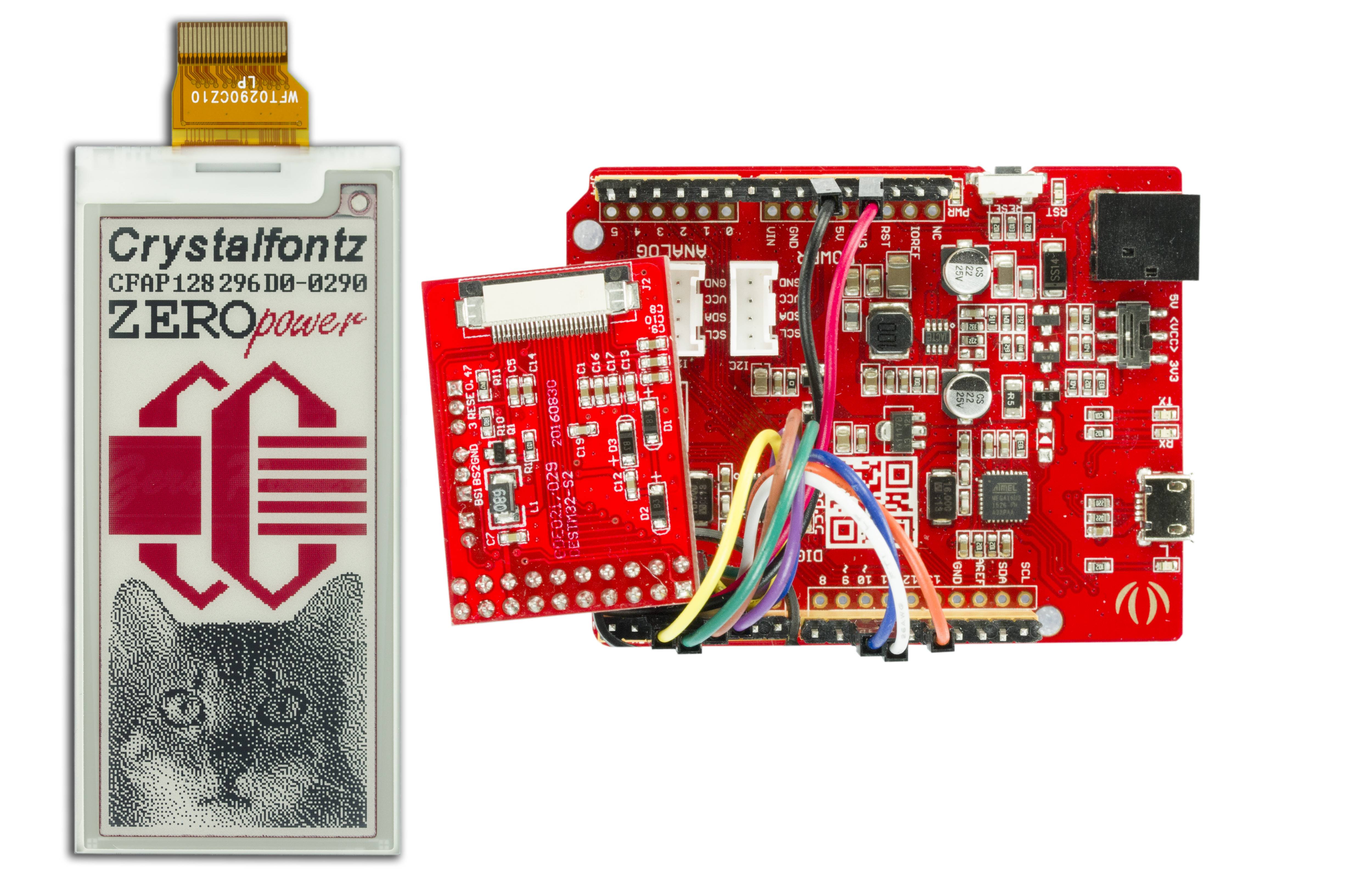

128x296 ePaper with Seeduino and converter board.


Physical Characteristics

Column Dots x Row Dots 128 x 296
Module Overall width height depth
millimeters 36.7 79 1.18
inches 1.445 3.110 0.046
*width / height does not include Foldable Tab
Diagonal Dimension 2.900"
Active Area width height
millimeters 29.06 66.9
inches 1.144 2.634
Dot Size width height
millimeters 0.194 0.0194
inches 0.0076 0.0008
Dot Pitch width height
millimeters 0.226 0.227
inches 0.0089 0.0089
Flexible Cable (FFC/FPC) length
millimeters 14.3
inches 0.563
Weight 70g

Optical Characteristics

Glass Type e ink / ePaper
Polarizer Reflective
Sunlight Readable Yes
Foreground Color Black
Background Color White

Electrical Specifications

Supply Voltage for Logic Typical 3.3V
Supply Current Typical 10mA


Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 70°
Fahrenheit -13° 158°


Interface SPI


Foldable Tab yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP128296D0-E1-2 or RSS RSS feed for changes to CFAP128296D0-E1-2

Part Change Notice #10953: End-of-Life Notification

Products Affected: CFA214A0-0154, CFAP128296D0-E1-2, CFAP122250A0-E1-2, CFAP122250A0-E1-1, CFAP128296C0-E1-1, CFAP128296C0-E1-2, CFAP128296D0-E1-1, CFAP176264A0-E1-1, CFAP176264A0-E1-2, CFAP104212C0-E1-1, CFAP104212C0-E1-2, CFAP152152A0-E1-1, CFAP152152A0-E1-2
Date Issued: June 4, 2018
Summary: End-of-Life Notification
Description: The parts listed are being set to End of Life due to the unavailability of a critical part.
Reason: The Red adapter board - CFA part number CFAPN15087 has been discontinued and is no longer available
Impact: The listed parts cannot be purchased. All stocks of the CFAPN15087 have been depleted.
Recommendation: Products using the listed parts will have to be re-designed to use the replacement adapter board.

Products still in the design phase should be placed on hold until the new adapter board is available.
Availability: A new adapter board is being designed - CFA part number CFA-10084. This part has the same functionality as the CFAPN15087. This part will be available after July 1, 2018. The parts listed will be revised to include the use of this new adapter board and will be available by mid-July 2018
Price Change: TBD
Response: None Required
