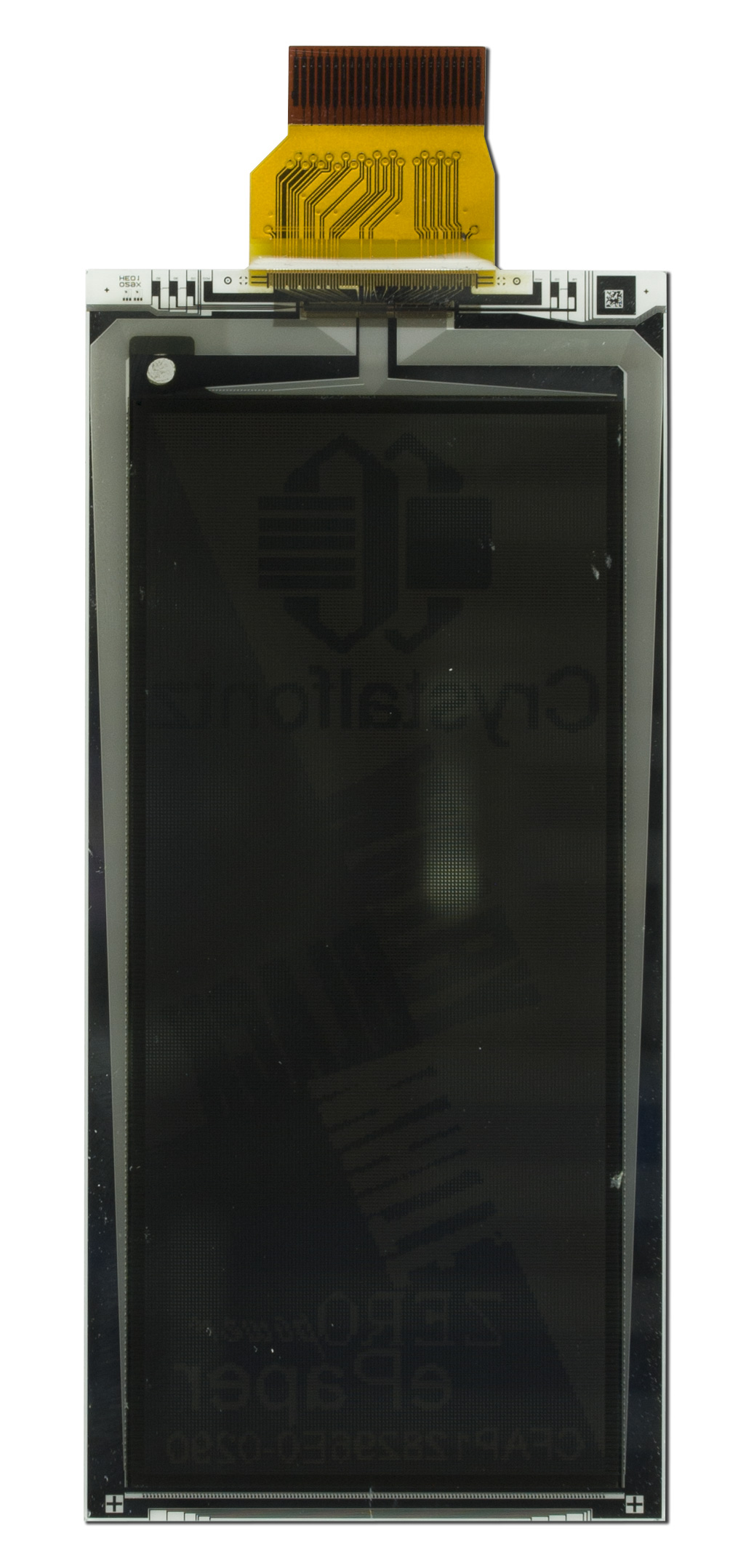

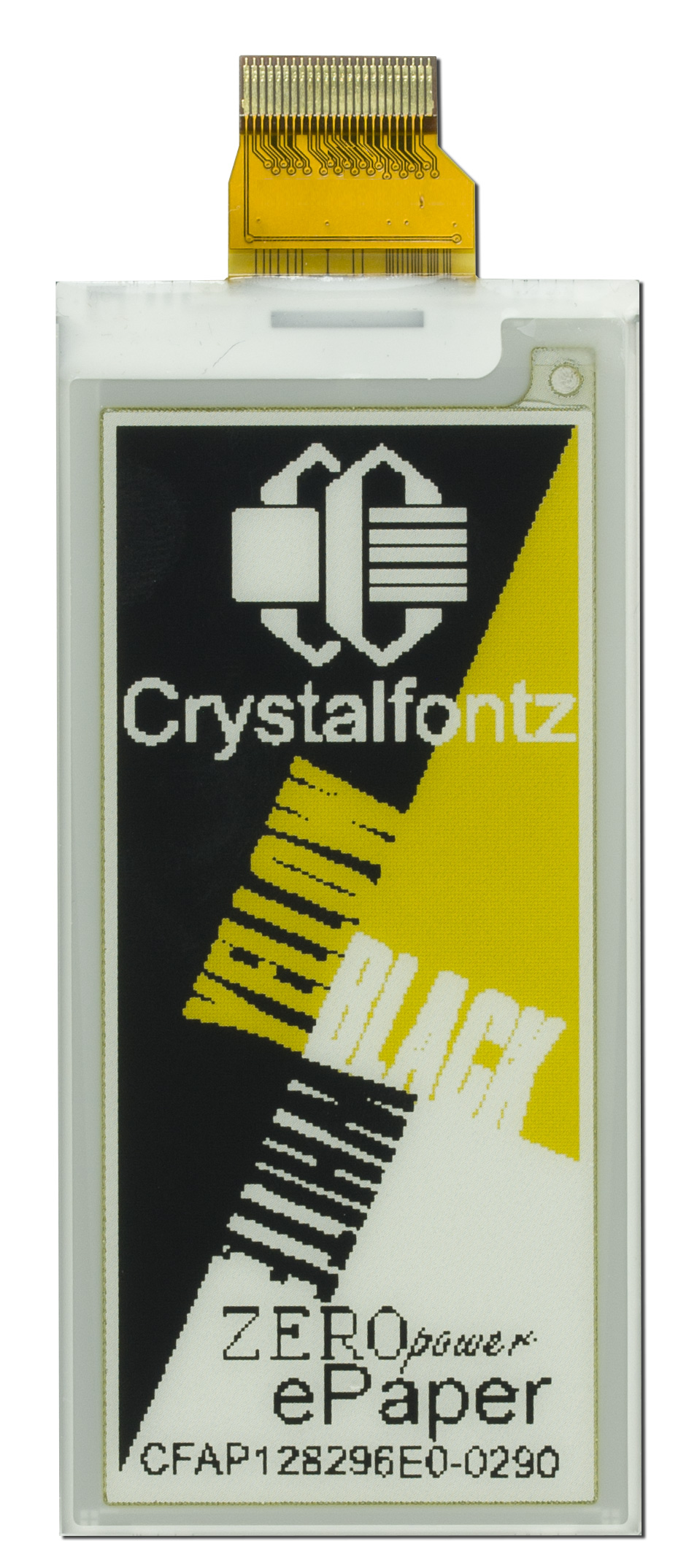

128x296 3-color ePaper Display

Part Number: CFAP128296E0-0290

Pricing

Quantity Price
1 $18.27
10 $14.93
20 $14.42
50 $13.91
100 * $13.81
200 * $13.70
500 * $13.60
1000 * $13.49
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP128296E0-0290 or RSS RSS feed for changes to CFAP128296E0-0290 for CFAP128296E0-0290


Description

128x296 ePaper display module with 3-colors, White, Yellow, Black. This ePaper display module is perfect for attention-grabbing signage, electronic labeling and many other cool applications that require very low power and a slow refresh rate.

This 3-color ePaper display is a TFT active matrix electrophoretic display with interface and a reference system design.
The 2.9" active area contains 128x296 pixels and has 1-bit white/black and 1-bit yellow full display capabilities. An integrated circuit contains a gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each module.

Features
  • High Contrast
  • High Reflectance
  • Ultra-Wide Viewing Angle
  • Ultra-Low Power Consumption
  • Pure Reflective Mode
  • Bi-Stable Display
  • Commercial Temperature Range
  • Landscape or Portrait Mode
  • Antiglare Hard-Coated Front-Surface
  • Low Current Deep Sleep Mode
  • On-Chip Display RAM
  • Waveform Stored in On-Chip OTP
  • Serial Peripheral Interface Available
  • On-Chip Oscillator
  • On-Chip Booster and Regulator Control for Generating VCOM, Gate and Source Driving Voltage
  • I2C Signal Master Interface to Read External Temperature Sensor

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

The ZIF connector you need is a standard 24-position 0.5mm pitch. Here are some possible connectors:
Top Connector
Bottom Connector

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Column Dots x Row Dots 128 x 296

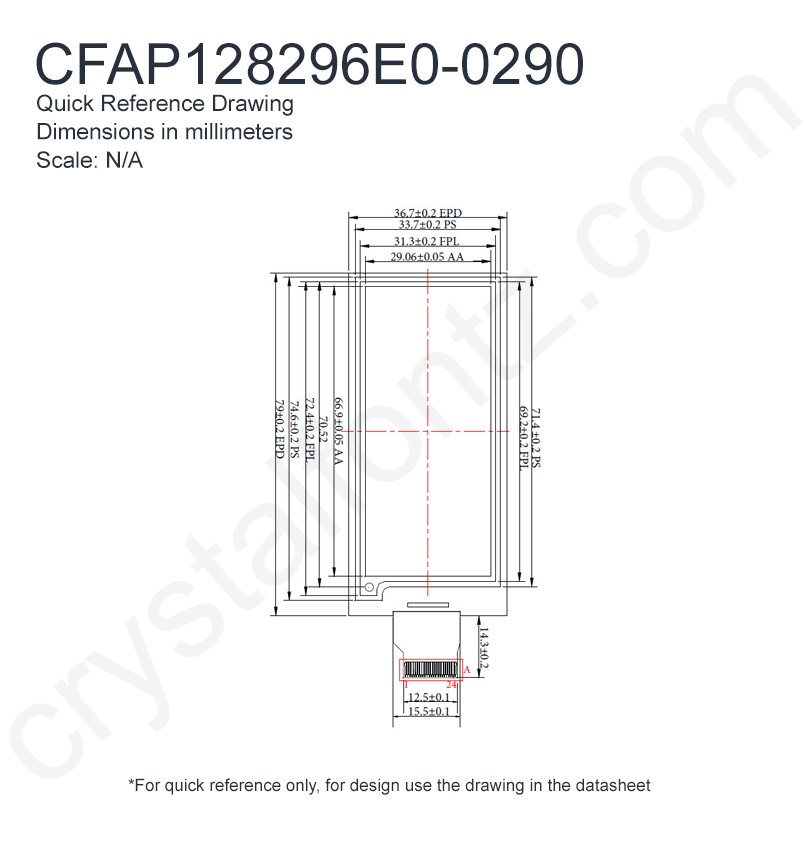

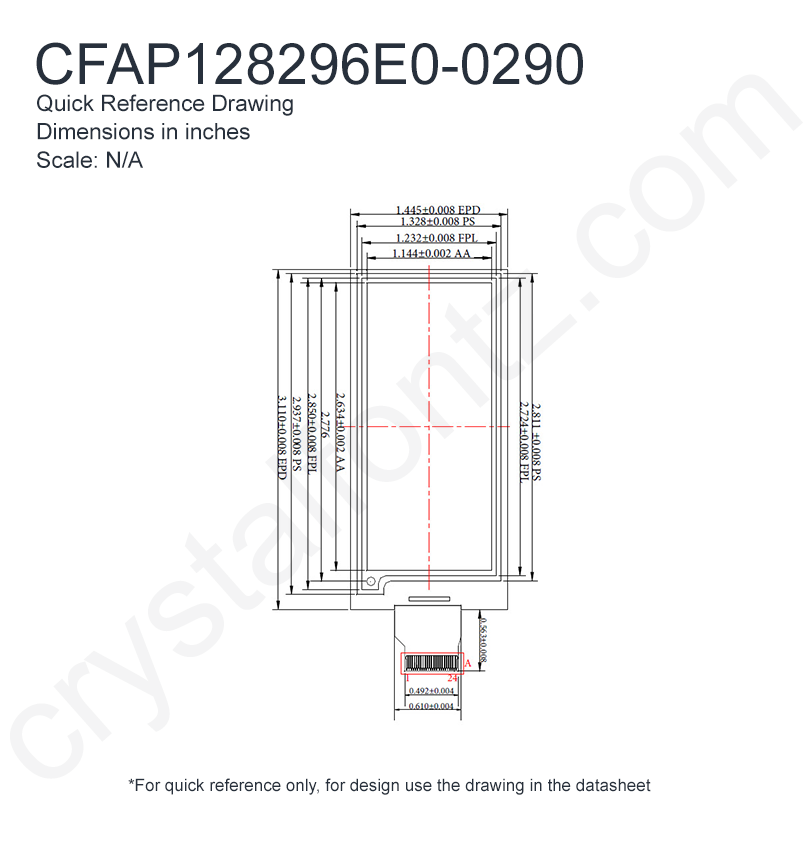

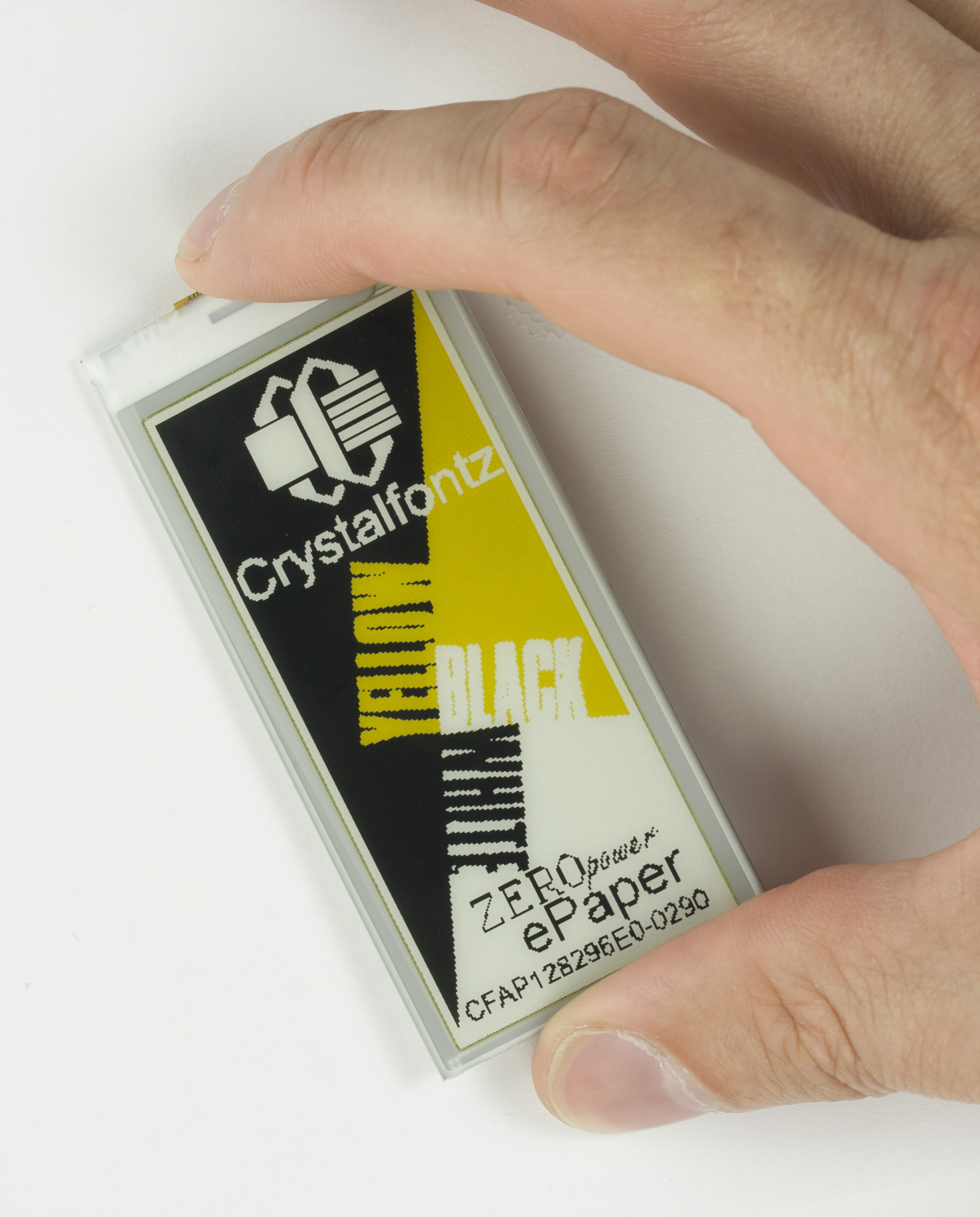

Module Overall width height depth
millimeters 36.7 79 1.18
inches 1.445 3.110 0.046
*width / height does not include Foldable Tab
Diagonal Dimension 2.900"
Active Area width height
millimeters 29.06 66.9
inches 1.144 2.634
Flexible Cable (FFC/FPC) length
millimeters 14.3
inches 0.563
Weight 6.8g

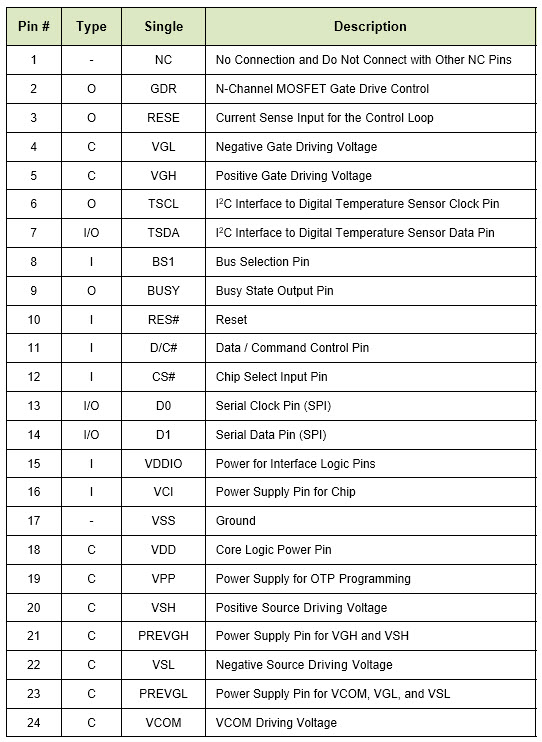

Pin Count 24

Optical Characteristics

View Angle Ultra-Wide°
Foreground Color Black / Yellow
Background Color White

Electrical Specifications

Supply Voltage for Logic Minimum 2.3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V

Environmental

Operating Temperatures min max
Celsius 40°
Fahrenheit 32° 104°
Storage Temperatures min max
Celsius -25° 60°
Fahrenheit -13° 140°
Humidity min max
Non-condensing 40% 70%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes

*Suggest a Correction

Additional Options

Purchase these ePaper Displays in a development bundle and save time! They come completely assembled and ready to go.

2.9" 3-Color ePaper Display
Part Number: CFAP128296E0-E2-1

This ePaper bundle comes with our 128x296 pixel ePaper with 3-colors (yellow, black and white) and our CFA10084 ePaper adapter board. Simply plug it in, wire it to your 3.3v Arduino or Seeduino and run our sample sketch to see it in action.

Details
Quantity 1 10 20 50 100 200 500 1000 *
Price $25.65 $22.30 $22.12 $21.94 $21.77 $21.58 $21.41 $21.26
Quantity:
128x296 ePaper Dev Kit
Part Number: CFAP128296E0-E2-2

Complete ePaper development kit. Includes our 128x296 3-color epaper display with our ePaper adapter board and a Seeeduino. Kit comes assembled and ready for use.

Details
Quantity 1
Price $49.05
Quantity:

For reference only. For design purposes, please use the specifications in the datasheet.
