1.54" 3-Color Square ePaper Display

Part Number: CFAP152152B0-0154

Pricing

Quantity Price
1 $10.80
10 $8.45
20 $8.18
50 $7.90
100 * $7.85
200 * $7.79
500 * $7.74
1000 * $7.68
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP152152B0-0154 or RSS RSS feed for changes to CFAP152152B0-0154 for CFAP152152B0-0154

1.54
1.54" 3-Color Square ePaper Display
Close

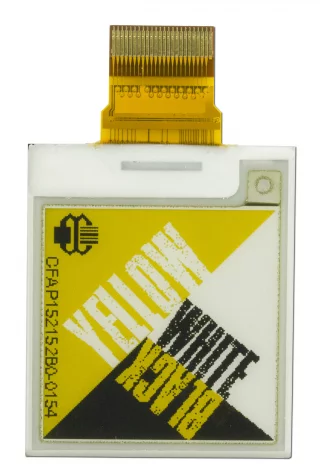

1.52 inch ePaper display module. Black, white and yellow. Back view
1.52 inch ePaper display module. Black, white and yellow. Back view
1.52 inch ePaper display module. Black, white and yellow. Back view
Close
1.52 inch ePaper display module. Black, white and yellow. In hand to show perspective.
1.52 inch ePaper display module. Black, white and yellow. In hand to show perspective.
1.52 inch ePaper display module. Black, white and yellow. In hand to show perspective.
Close

Description

Beautiful, high-contrast 3-color e-paper display module. This e-paper display is perfect for products that require slow updates or semi-static content such as price tags, electronic shelf labels or signage.

Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely.

Speed up your development by purchasing an Arduino e-paper development kit below.

E-paper displays are a TFT active matrix electrophoretic displays with interface and a reference system design. These e-paper displays have an integrated circuit that has a gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each e-paper.

Use our free ePaper software to load your bitmap image on to this display.

* This e-paper display module DOES NOT support partial updates
The ZIF connector you need is a standard 24-position 0.5mm pitch. Here are some possible connectors:
Top Connector
Bottom Connector

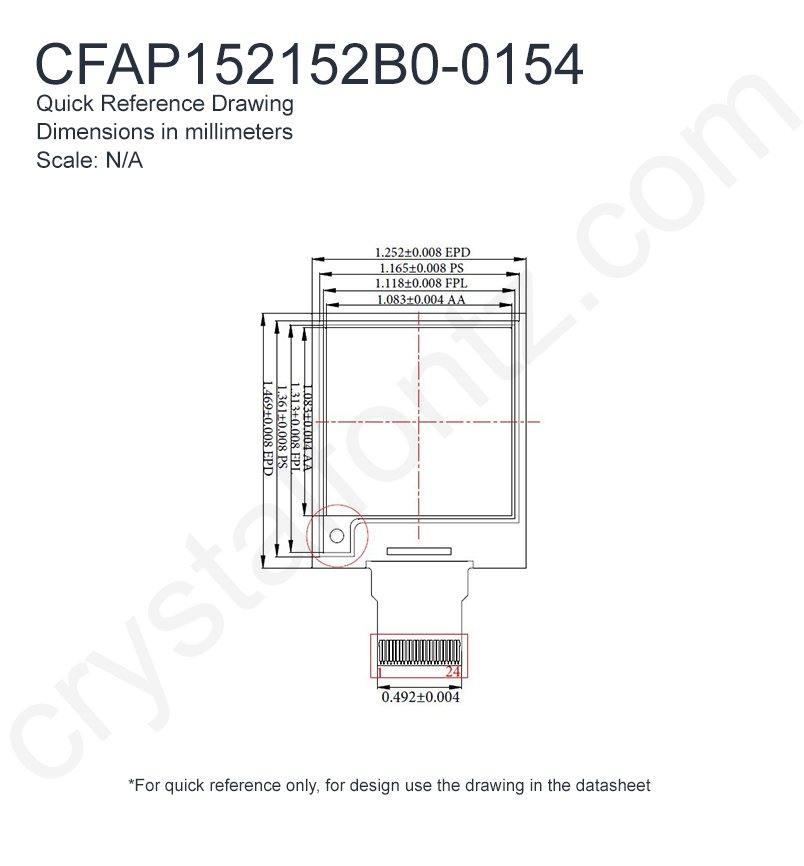

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 152 x 152
Module Overall width height depth
millimeters 31.8 37.32 0.98
inches 1.252 1.469 0.039
*width / height does not include Foldable Tab
Diagonal Dimension 1.540"
Active Area width height
millimeters 27.51 27.51
inches 1.083 1.083
Dot Pitch width height
millimeters 0.181 0.181
inches 0.0071 0.0071
Flexible Cable (FFC/FPC) length
millimeters 14.3
inches 0.563
Weight 2.4g
Pin Count 24

Optical Characteristics

View Angle Ultra-Wide°
Foreground Color Black / Yellow
Background Color White

Electrical Specifications

Supply Voltage for Logic Minimum 2.3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 60°
Fahrenheit -13° 140°
Humidity min max
Non-condensing 40% 70%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Full Screen Update Time 26s
Time Between Updates 180s

Additional Options

Add and ePaper Adapter board or a 3.3v Arduino (Seeediuno) development kit to speed up product development. Kits come assembled.

1.54" ePaper Arduino Development Kit
Part Number: CFAP152152B0-E2-2

1.54" Yellow, Black, White ePaper display module with an ePaper adapter board and a 3.3v Seeediuno (3.3v Arduino clone).

Details
Quantity 1
Price $42.51
Quantity:
Quantity 1 10 20 50 100 * 200 * 500 * 1000 *
Price $18.74 $16.30 $16.16 $16.03 $15.90 $15.77 $15.64 $15.53
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
