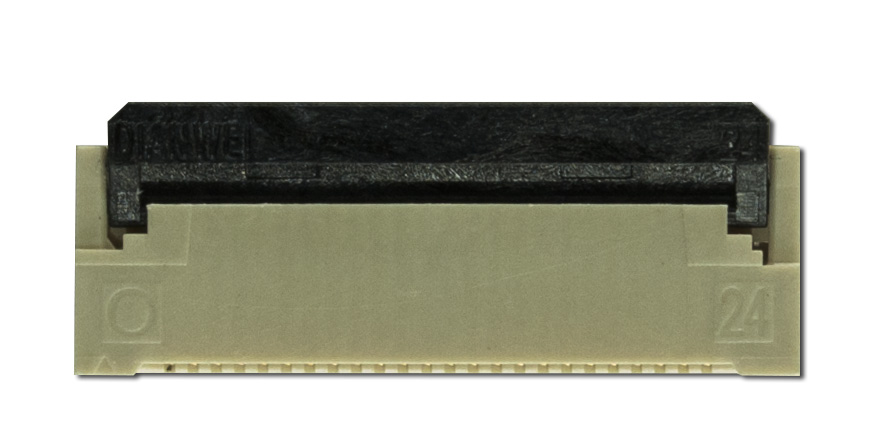

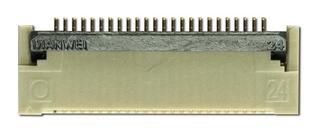

24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector

Part Number: CS050Z24G-A0

This 24 Position, 0.5mm Pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 0.5mm Pitch
  • 24 position
  • Gold plated
  • Top and Bottom contacts
24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector (CS050Z24G-A0)
Qty:
Quantity Price
5 $0.97
100 $0.58
1500 $0.47
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z24G-A0 or RSS RSS feed for changes to CS050Z24G-A0 for CS050Z24G-A0

Compliance Documents

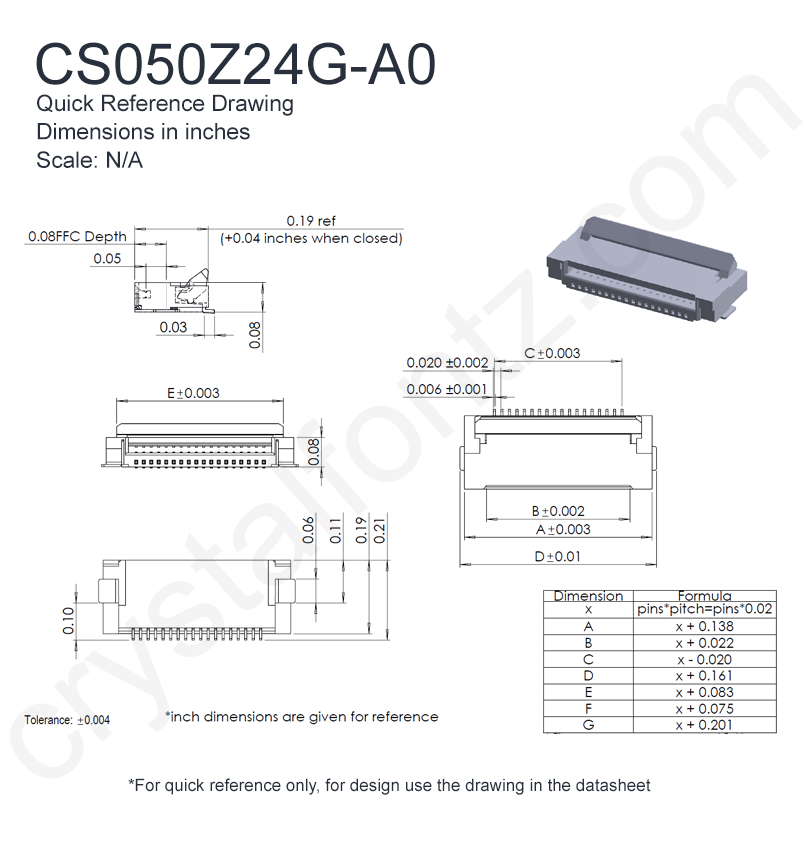

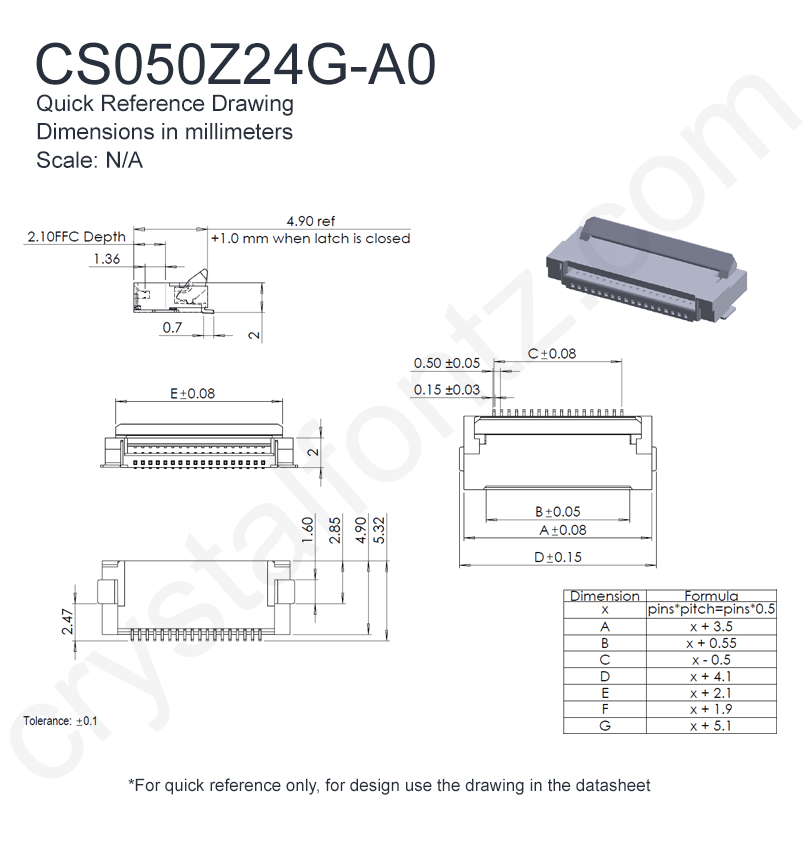

TECHNICAL SPECS

Physical Characteristics

Module Overall width height
millimeters 15.5 2
inches 0.610 0.079
Weight 0.578g
Pin Count 24

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
