176x264 ePaper Development Bundle

Part Number: CFAP176264A0-E2-2

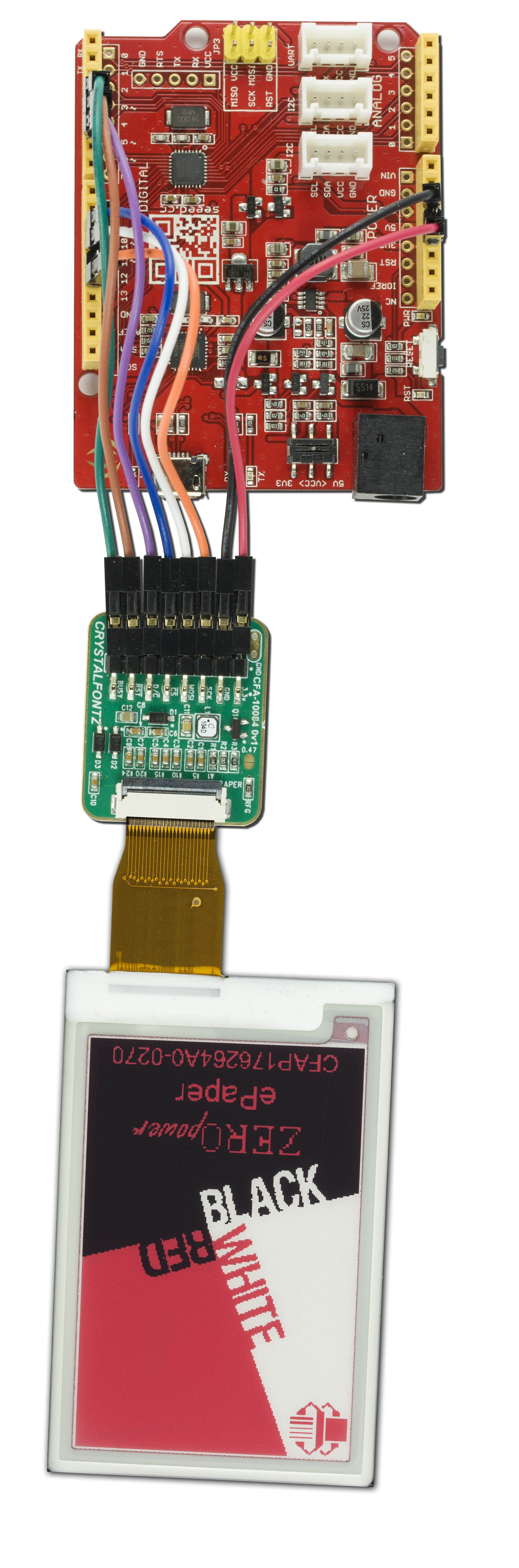

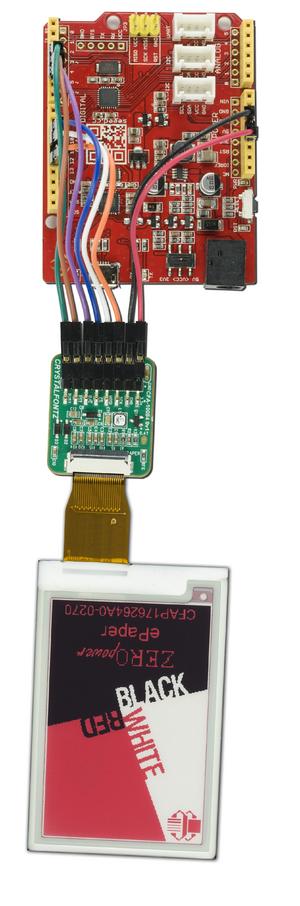

This ePaper development bundle consists of our 176x264 3-color ePaper display with our CFA10084 ePaper adapter board

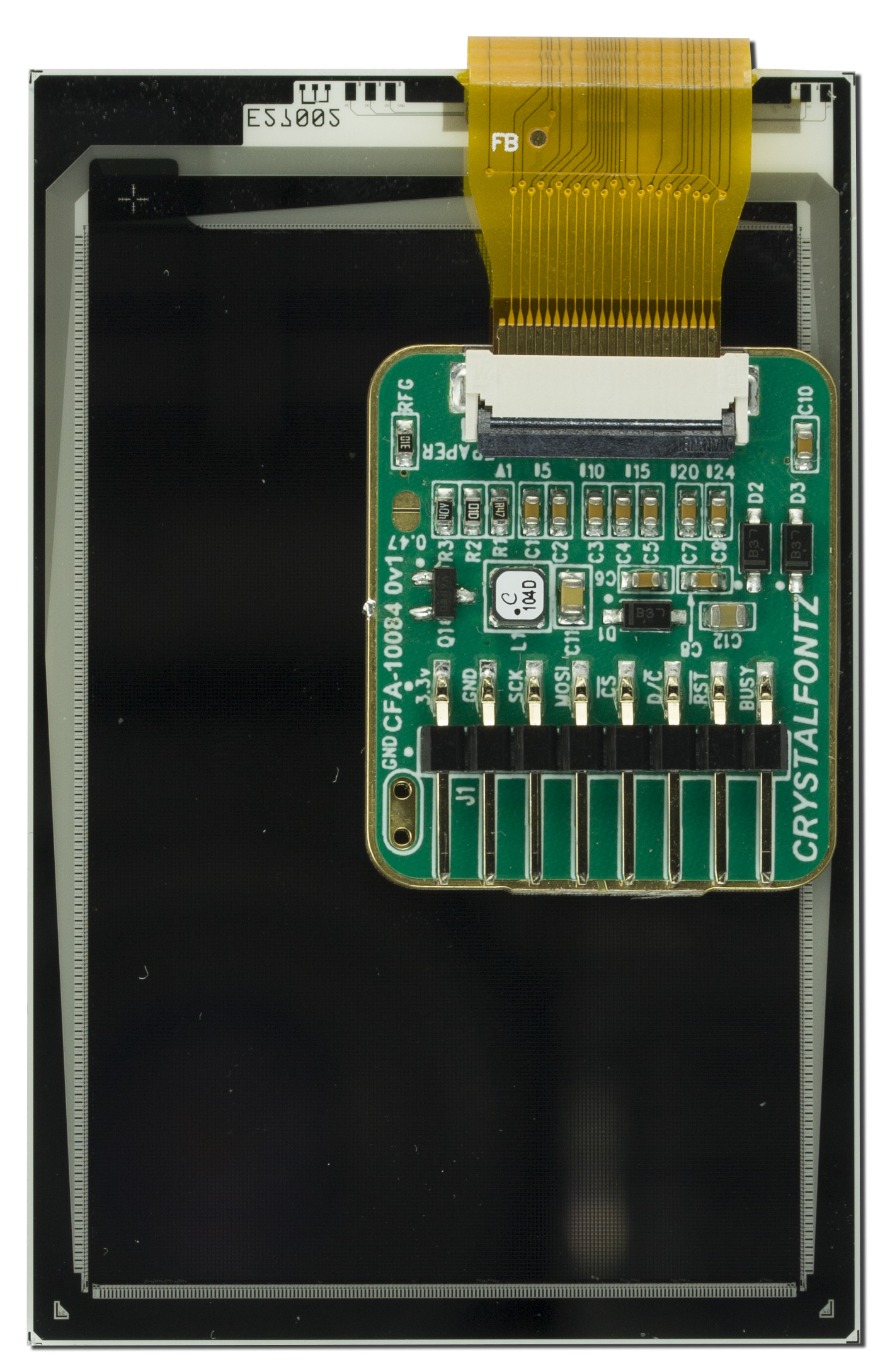

The CFA10084 ePaper adapter board is designed to attach to the back of the ePaper display.

*Comes fully assembled and tested.

Physical Characteristics
Physical Characteristics

Diagonal Dimension 2.71"

Weight 30.2g
Electrical Specification
Electrical Specifications

Module Connector Pitch 2.54mm
Files and Downloads

picture_as_pdf Hardware Design - CFA10084 Schematic

Change Notices

Part Change Notice #11378: Global Demand Increasing Lead Times on ePaper Modules.

Products Affected:	CFAP200200A0-0154, CFAP104212B0-0213, CFAP104212A0-0213, CFAP128296B0-0290, CFAP128296A0-0290, CFAP122250A0-0213, CFAP128296C0-0290, CFAP128296D0-E1-2, CFAP122250A0-E1-2, CFAP122250A0-E1-1, CFAP128296C0-E1-1, CFAP128296C0-E1-2, CFAP128296D0-E1-1, CFAP176264A0-0270, CFAP176264A0-E1-1, CFAP176264A0-E1-2, CFAP104212C0-0213, CFAP104212C0-E1-1, CFAP104212C0-E1-2, CFAP152152A0-0154, CFAP152152A0-E1-1, CFAP152152A0-E1-2, CFAP200200A1-0154, CFAP176264B0-0270, CFAP640384A0-0750, CFAP400300C0-0420, CFAP104212D0-0213, CFAP400300B0-0420, CFAP104212E0-0213, CFAP600448A0-0583, CFAP176264A0-E2-1, CFAP200200A1-E2-2, CFAP176264A0-E2-2, CFAP128296E0-0290, CFAP128296E0-E2-1, CFAP128296E0-E2-2, CFAP122250A0-E2-2, CFAP122250A0-E2-1, CFAP128296C0-E2-2, CFAP152152C0-0154, CFAP152152C0-E2-1, CFAP152152C0-E2-2, CFAP152152B0-0154, CFAP152152B0-E2-1, CFAP152152B0-E2-2, CFAP128296C0-E2-1, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP104212C0-E2-2, CFAP104212C0-E2-1, CFAP104212D0-E2-2, CFAP104212D0-E2-1, CFAP104212E0-E2-2, CFAP104212E0-E2-1, CFAP176264B0-E2-2, CFAP176264B0-E2-1, CFAP128296D0-E2-1, CFAP128296D0-E2-2, CFAP400300C0-E2-2, CFAP400300C0-E2-1, CFAP400300B0-E2-2, CFAP400300B0-E2-1, CFAP600448A0-E2-2, CFAP600448A0-E2-1, CFAP640384A0-E2-2, CFAP640384A0-E2-1, CFAP200200A3-0154, CFAP200200A3-E2-1, CFAP200200A3-E2-2, CFAP400300B1-0420, CFAP400300B1-E2-1, CFAP400300B1-E2-2, CFAP122250A2-0213, CFAP122250A2-E2, CFAP122250A2-E2-2, CFAP200200A5-0154, CFAP104212D1-0213, CFAP200200A5-E2, CFAP200200A5-E2-2, CFAP104212D1-E2, CFAP104212D1-E2-2
Date Issued:	March 2, 2026
Summary:	Global Demand Increasing Lead Times on ePaper Modules.
Description:	Due to increased global demand for AI chips, semiconductor fabricators are prioritizing AI chip production, which is sidelining display controller manufacturing. Crystalfontz is currently experiencing extended lead times of six months or more on products utilizing EPD display controllers. We request that POs are placed well in advance and forecasts are provided to us so that we plan accordingly. We are actively monitoring the situation and working to reduce the impact this may have on customers.
Reason:	Global semiconductor fabrication capacity constraints driven by AI chip demand have significantly reduced display controller production allocations across the industry. This is an industry-wide condition outside of Crystalfontz's control.
Impact:	Extended lead times of up to six months on affected EPD products Additional display controller types may be impacted as the situation evolves Product availability is subject to change
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com. Customers who can provide purchase forecasts or updated order projections are strongly encouraged to do so.

Product Update #11084: Red ePaper End-of-Life notice.

Products Affected:	CFAP128296D0-0290, CFAP176264A0-0270, CFAP104212C0-0213, CFAP152152A0-0154, CFAP176264A0-E2-1, CFAP176264A0-E2-2, CFAP152152A0-E2-1, CFAP152152A0-E2-2, CFAP400300A0-0420, CFAP400300A0-E2-1, CFAP400300A0-E2-2, CFAP128296D0-E2-1, CFAP128296D0-E2-2
Date Issued:	April 28, 2021
Summary:	Red ePaper End-of-Life notice.
Description:	These products will no longer be stocked at our facility or offered for sale on our website.
Reason:	Due to quality issues with the red ink during storage, we have determined that we will no longer offer this line of products to our customers.

Part Change Notice #10980: ePaper adapter board now comes attached to displays in kits.

Products Affected:	CFAP176264A0-E2-1, CFAP200200A1-E2-2, CFAP200200A1-E2-1, CFAP176264A0-E2-2
Date Issued:	August 7, 2018
Summary:	ePaper adapter board now comes attached to displays in kits.
Description:	Product Development Kits containing the ePaper adapter board have been changed. Previously these kits were shipped with just the tail of the display connected to the adapter board by the ZIF connector. The kits will now be shipped with the displays also connected to the adapter board with double backed tape.
Reason:	To prevent damage to the tail during shipping and general handling.
Recommendation:	The display can be shipped without being attached to the adapter board. This must be requested as "special instructions" when the kit is ordered
Price Change:	N/A
