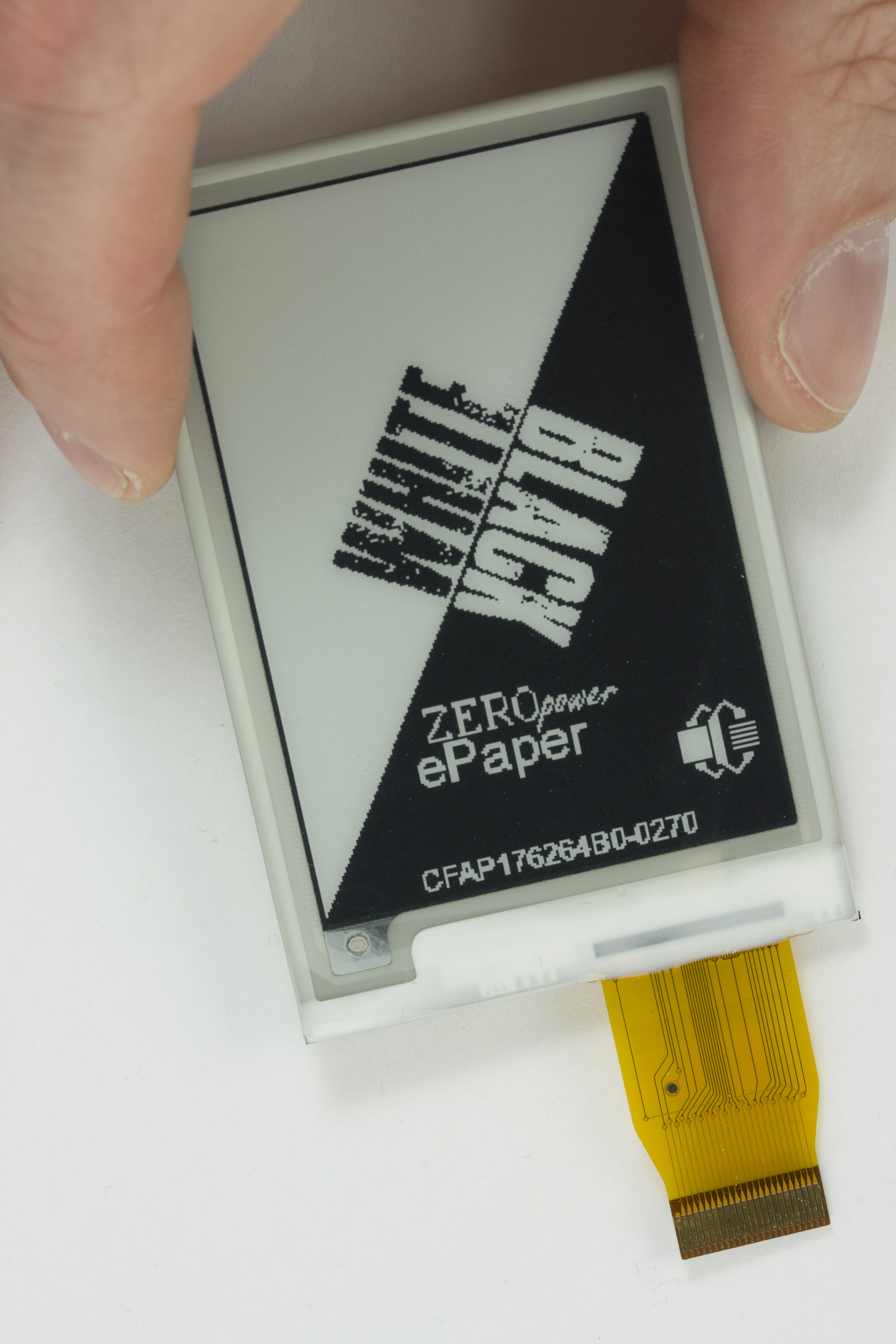

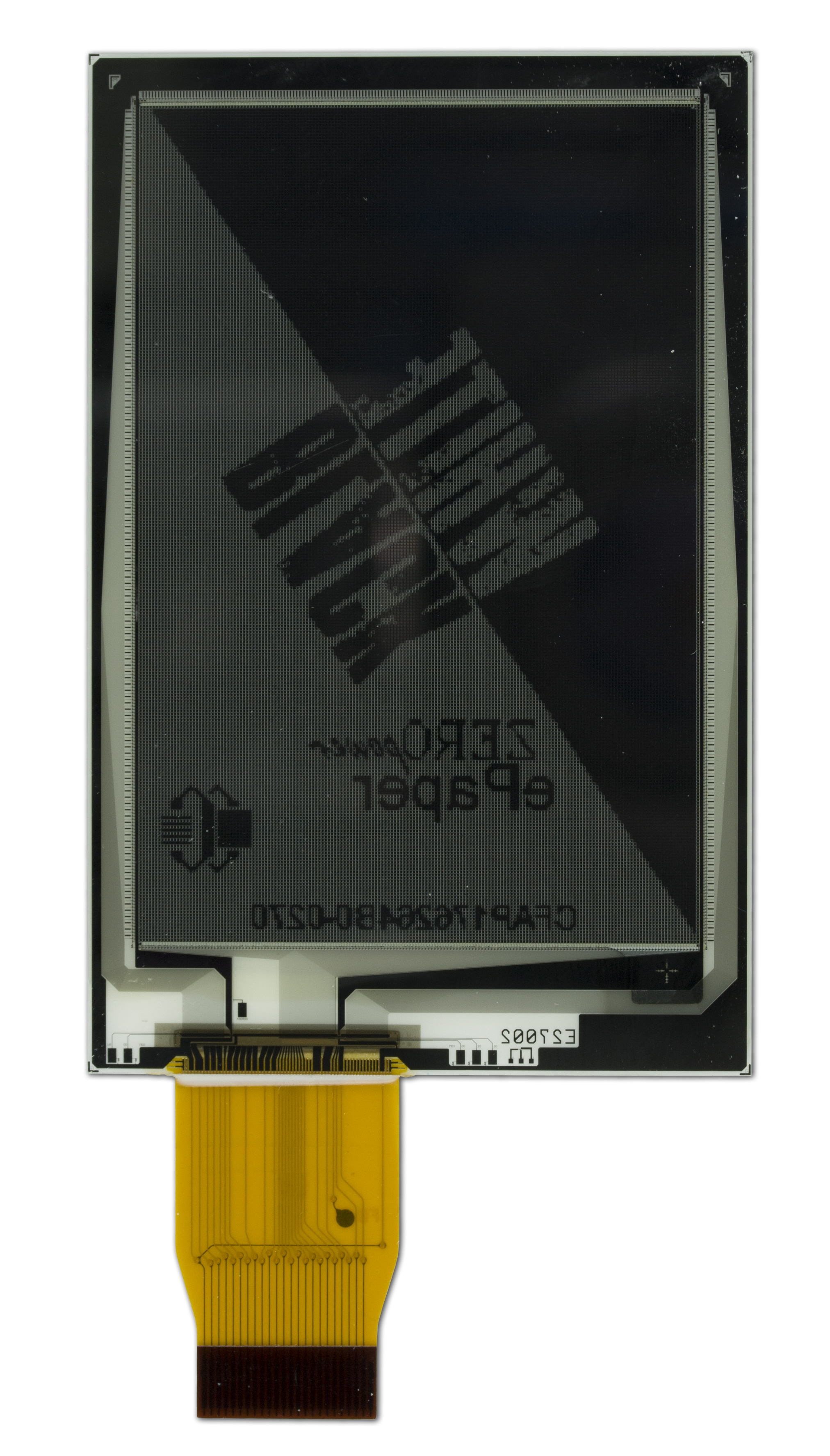

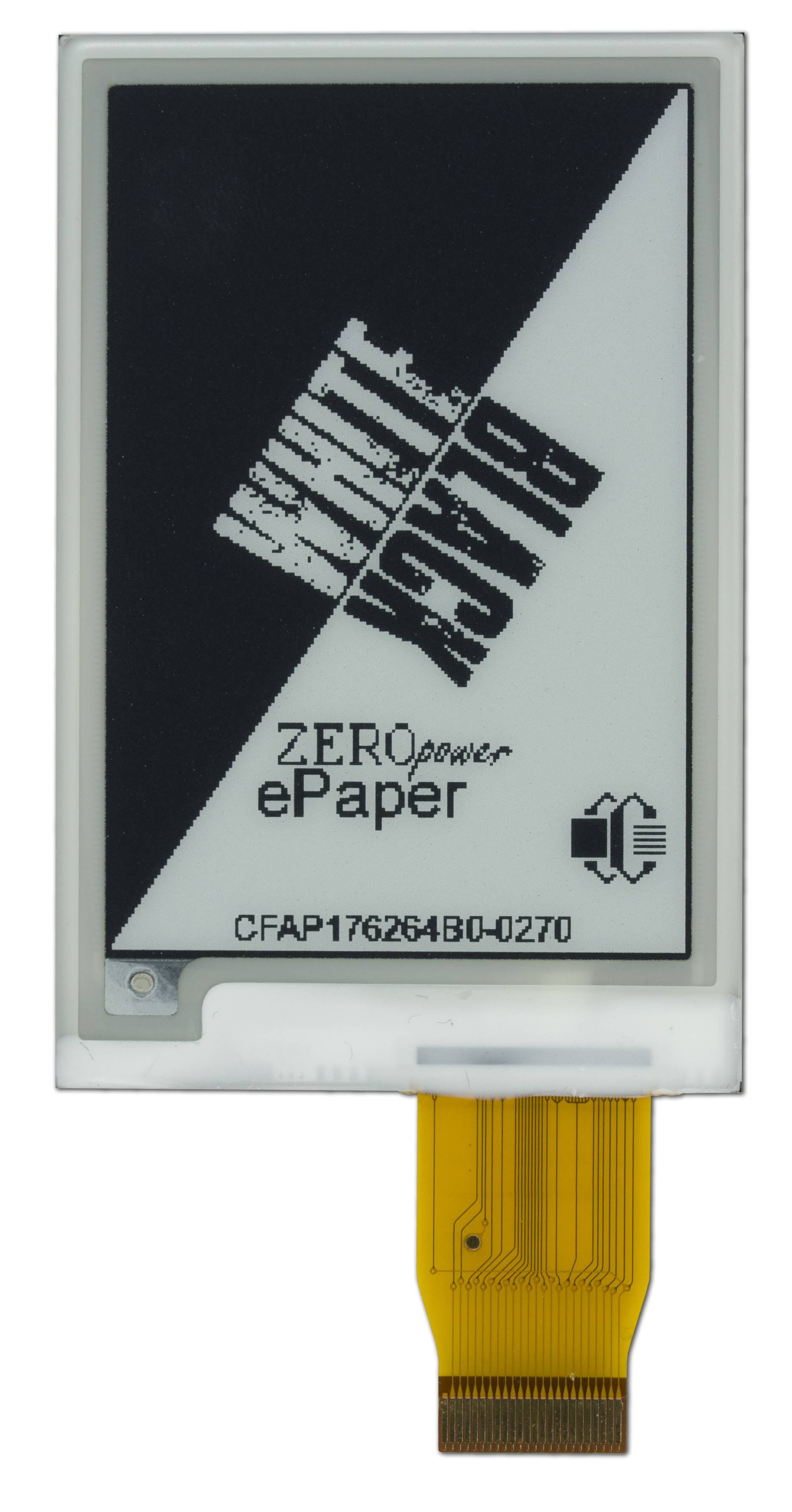

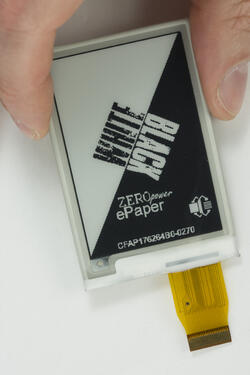

2.7 inch B&W ePaper Display
Part Number: CFAP176264B0-0270
Pricing
| Quantity | Price |
|---|---|
| 1 | $14.91 |
| 10 | $12.53 |
| 20 | $12.10 |
| 50 | $11.67 |
| 100 | $11.50 |
| 200 | $11.33 |
| 500 * | $11.24 |
| 1000 * | $10.35 |
* Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Datasheet
Description
This 2.7" Black and white ePaper display module provides you with a crisp, high-contrast, and highly readable viewing area and uses literally zero power after being updated. If your product or project requires an ultra-low power solution, that doesn't require a fast screen update, then this ePaper may be exactly what you're looking for.This ePaper display uses 3 or 4-wire SPI and you can get them up-and-running quickly using a Seediuno / Arduino and our demonstration code located in the files section.
This ePaper display DOES NOT support partial updates
Use our free ePaper software to prepare your bitmap image for this display.
The ZIF connector you need is a standard 24-position 0.5mm pitch. Here are some possible connectors:
Top Connector
Bottom Connector
Top Connector
Bottom Connector
Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.
TECHNICAL SPECS
For reference only. For design purposes, please use the specifications in the datasheet.

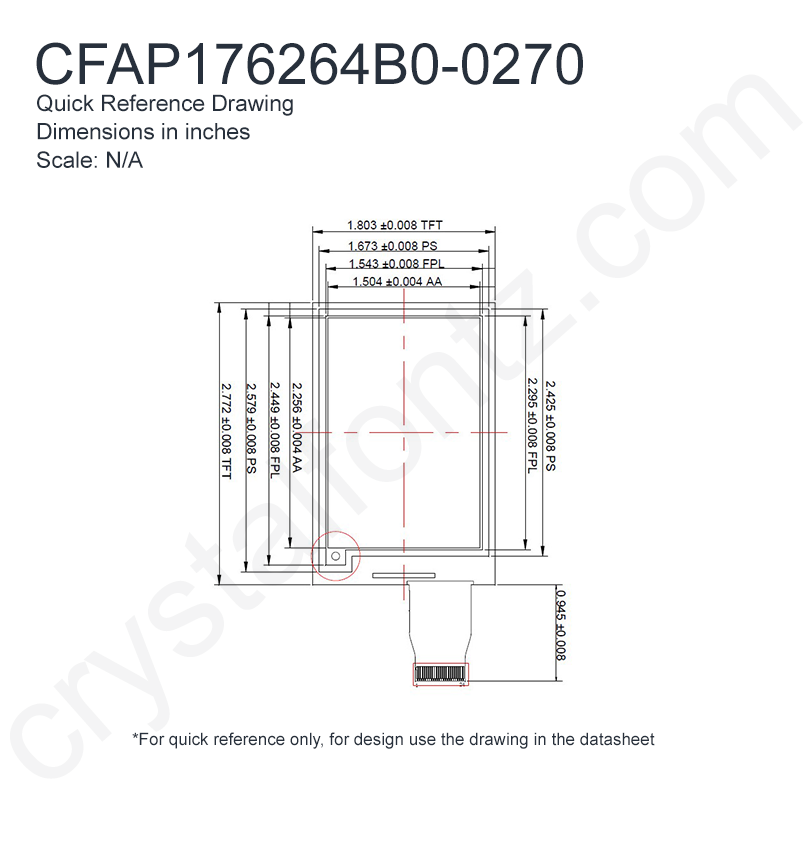

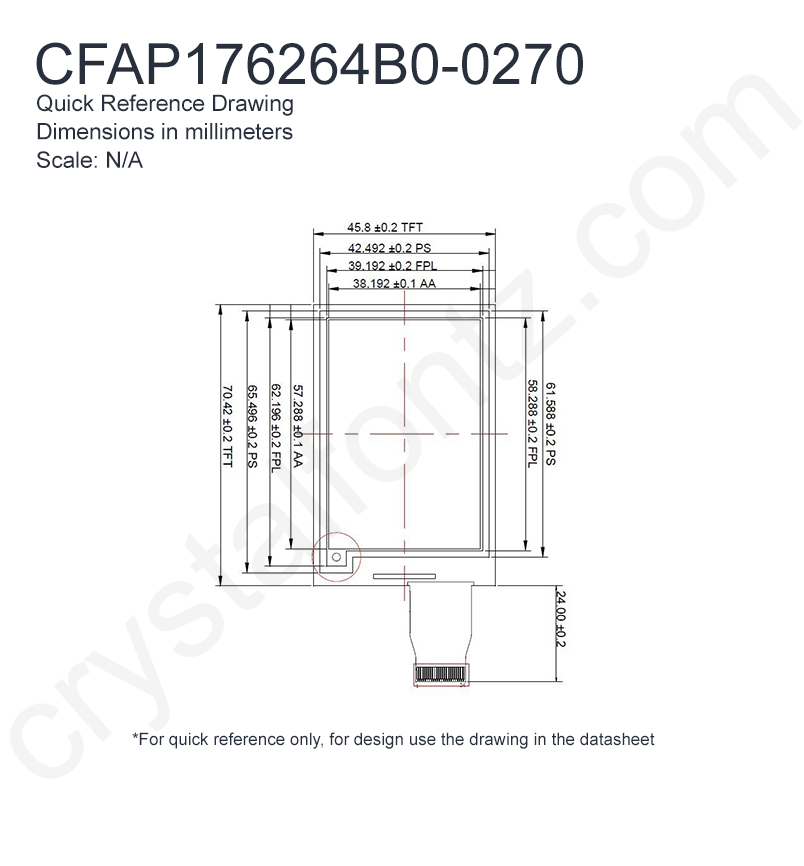

Physical Characteristics
| Column Dots x Row Dots | 264 x 176 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 45.8 | 70.42 | 0.98 |
| inches | 1.803 | 2.772 | 0.039 |
| Active Area | width | height |
|---|---|---|
| millimeters | 38.192 | 57.288 |
| inches | 1.5036 | 2.2554 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.217 | 0.217 |
| inches | 0.0085 | 0.0085 |
| Flexible Cable (FFC/FPC) | length |
|---|---|
| millimeters | 24 |
| inches | 0.945 |
| Weight | 6g |
Optical Characteristics
| Glass Type/Glass Color | ePaper/White |
| View Angle | Ultra-Wide° |
| Foreground Color | Black |
| Background Color | White |
Electrical Specifications
| Supply Voltage for Logic Minimum | 2.3V |
| Supply Voltage for Logic Maximum | 3.6V |
| Supply Voltage for Logic Typical | 3.3V |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | 0° | 50° |
| Fahrenheit | 32° | 122° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -25° | 70° |
| Fahrenheit | -13° | 158° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 40% | 70% |
Electronics
| Interface | SPI |
Miscellaneous
| Full Screen Update Time | 3s |
| Time Between Updates | 180s |
