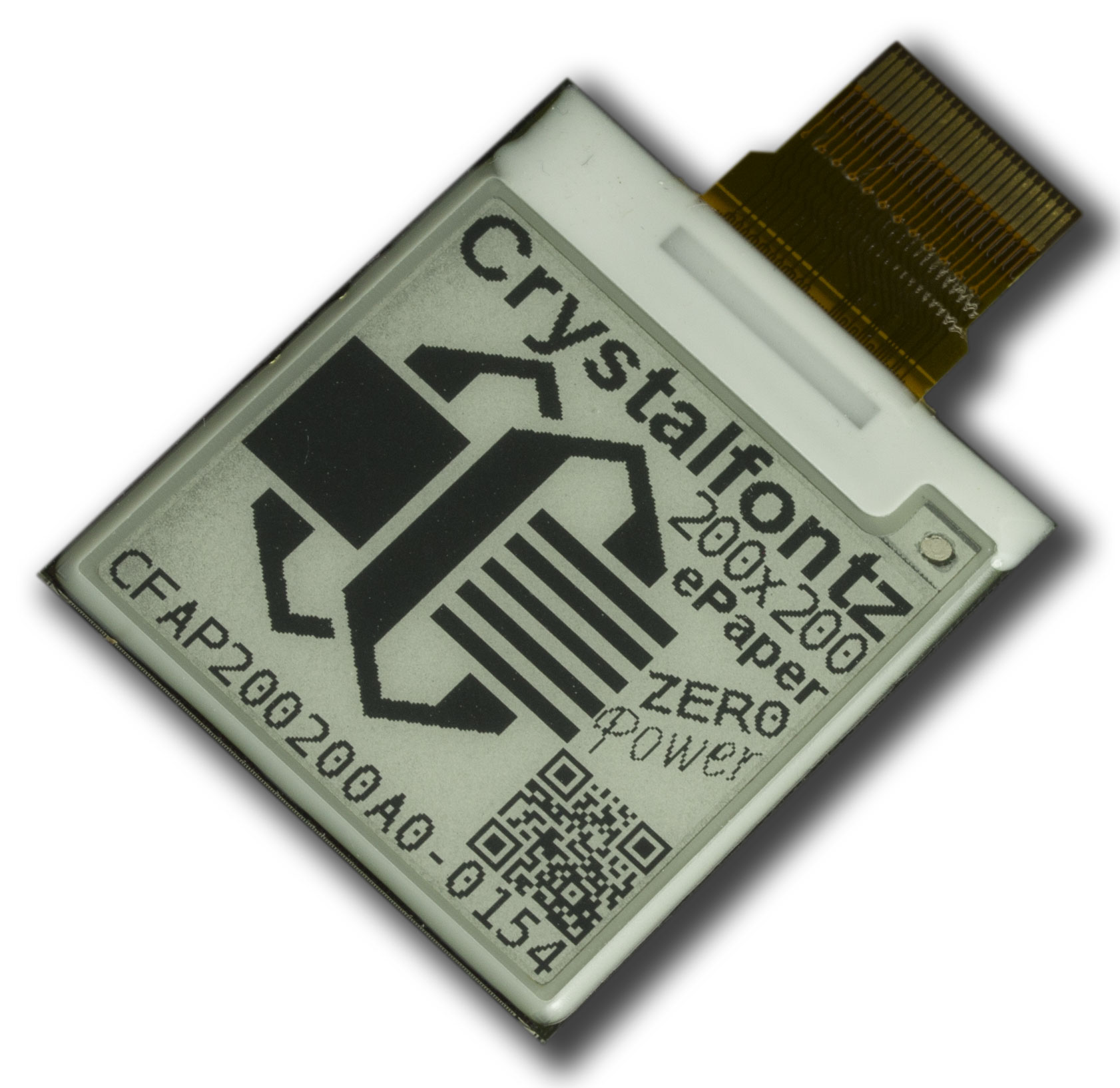

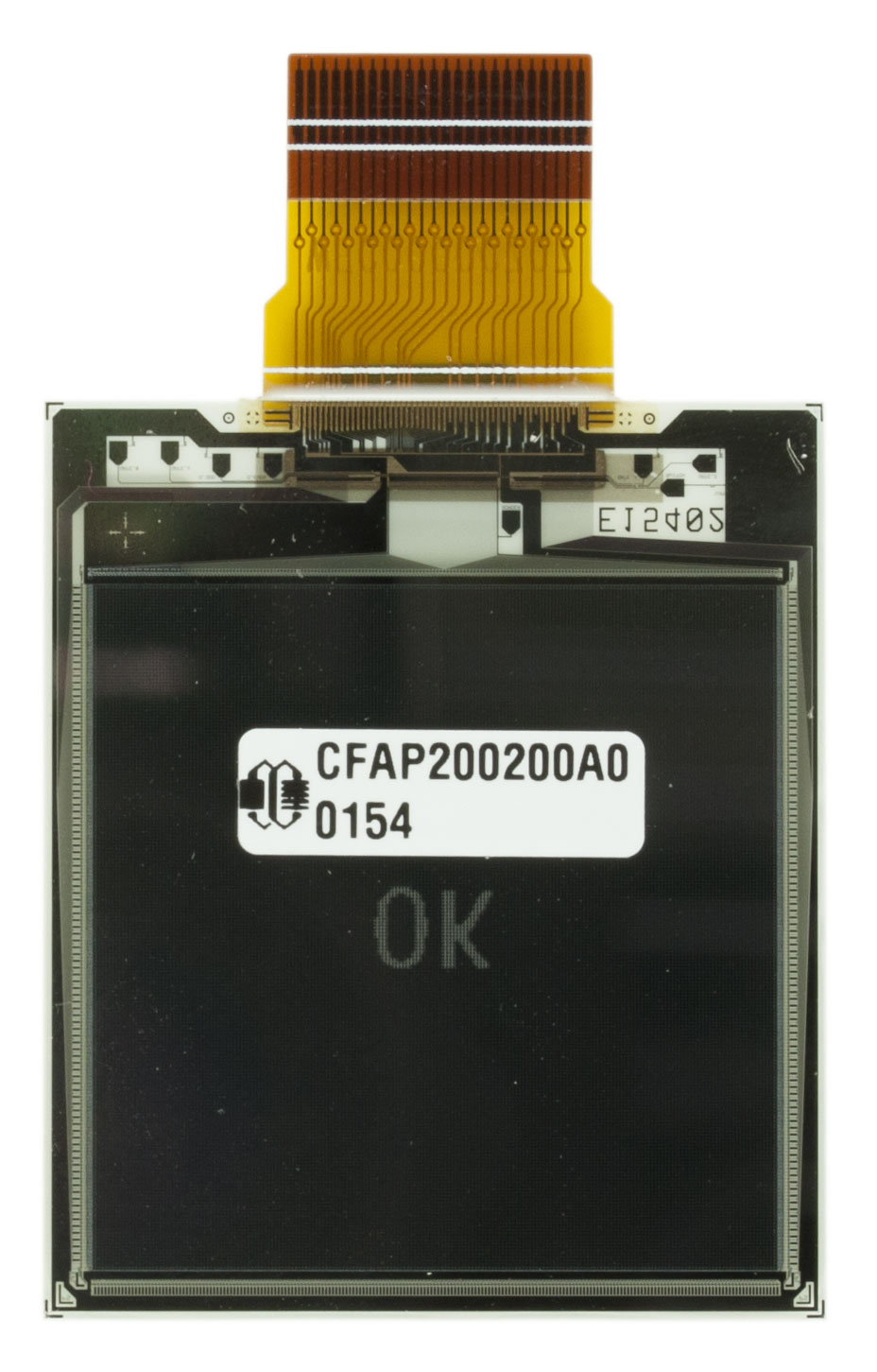

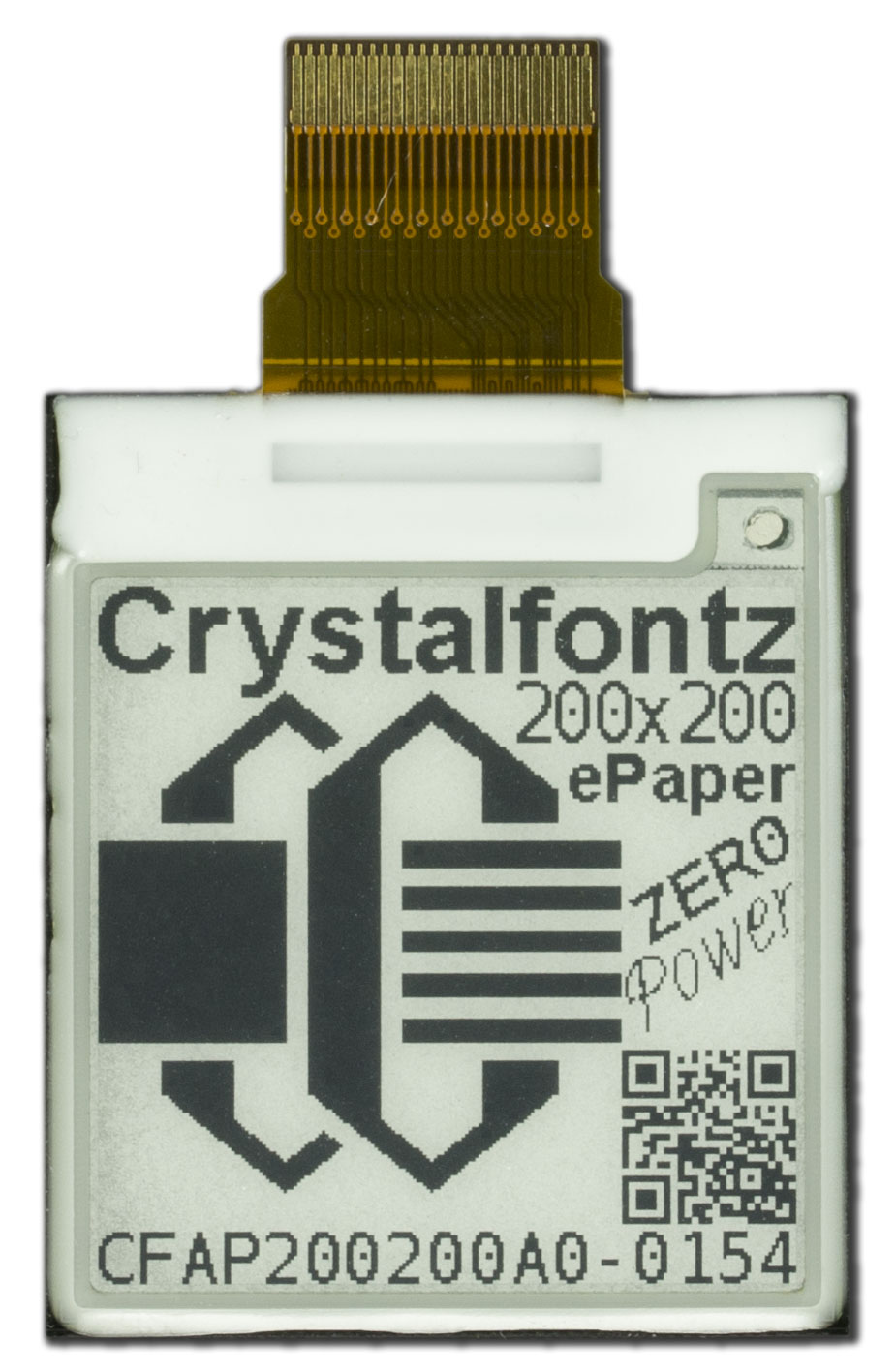

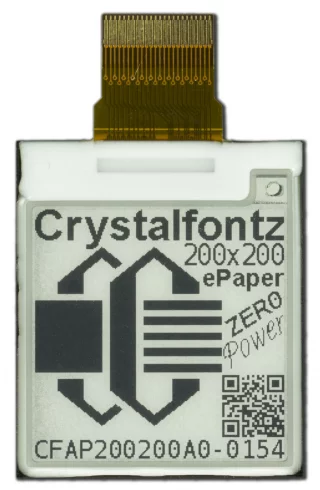

ePaper Display - 1.54" Black & White

Part Number: CFAP200200A0-0154

This black and white 200x200 epaper display module is a perfect size for small, low-power electronic shelf labels. Once the epaper's eink image is shown, it remains visible with zero additional power!

Built-in voltage generation requires only a few external components. Ultra thin with a depth of 1.05mm and weight of only 4 grams, epaper has a clear advantage over other display technologies for small handheld battery-operated devices or devices powered by solar. Epaper displays are growing rapidly in popularity and can be scanned by barcode readers.

• Wide viewing angle makes the display easily readable from all directions.
• Supports 4 wire SPI for communications
• Sunlight Readable! Displays reflect light like ordinary paper, making them easy to read in direct sunlight.
• Bi-stable image displays without any flickering.
• Supports partial screen updates
• Long lifetime: ~5 years / ~1M updates.

Use our sample code in the files section to display your own images. Our open-source demonstration code runs directly on a low cost Seeeduino v4.2 (3.3v Arduino clone) .

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  200 x 200

  Module Overall	width	height	depth
  millimeters	31.8	37.32	1.05
  inches	1.252	1.469	0.041
  *width / height does not include Foldable Tab

  Diagonal Dimension

  1.54"

  Active Area	Width	Height
  millimeters	27.6	27.6
  inches	1.087	1.087

  Dot Size	Width	Height
  millimeters	0.138	0.138
  inches	0.0054	0.0054

  Dot Pitch	Width	Height
  millimeters	0.138	0.138
  inches	0.0054	0.0054

  Optional Connectors

  CS050Z24GA0

  Weight

  4g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	e ink
  Polarizer	Reflective
  Sunlight Readable	Yes

  Foreground Color	black
  Background Color	white

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	3V
  Supply Voltage for Logic Maximum	3.6V

  Supply Voltage for Logic Typical	3.3V
  Module Connector Pitch	0.5mm

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	0°	50°
  Fahrenheit	32°	122°

  Storage Temperatures	min	max
  Celsius	-25°	70°
  Fahrenheit	-13°	158°

  Humidity	min	max
  Non-condensing	40%	70%

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAP200200A0-0154 Datasheet


• download Files and Downloads
  folder_zip Software Source - ePaper 3.3v Seeeduino / Arduino Demo Sketch


  picture_as_pdf Hardware Design - Adapter Board Schematic


  picture_as_pdf Hardware Design - CFA10084 Schematic

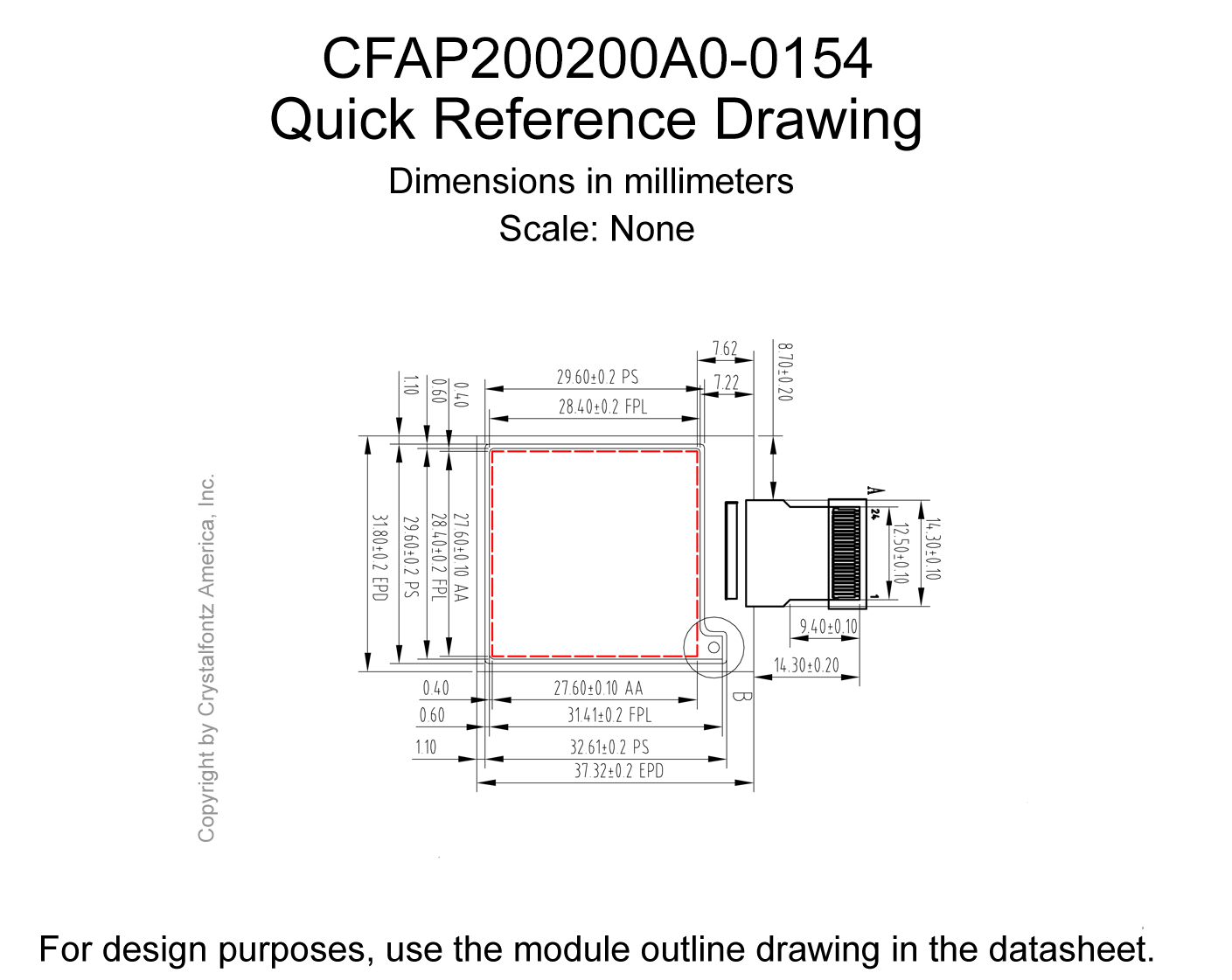

  picture_as_pdf 1 to 1 Template - CFAP200200A0-0154 1 to 1 Module Outline


  picture_as_pdf Other Document - Adapter Board Pinout
