In order to keep this display in production over the long term, we are revising it to the CFAP200200A3-0154. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact sales with any questions.

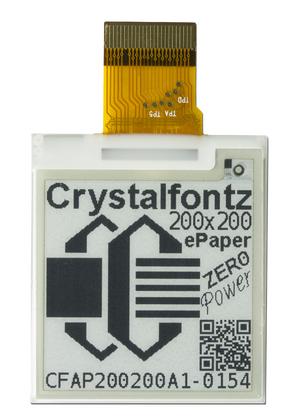

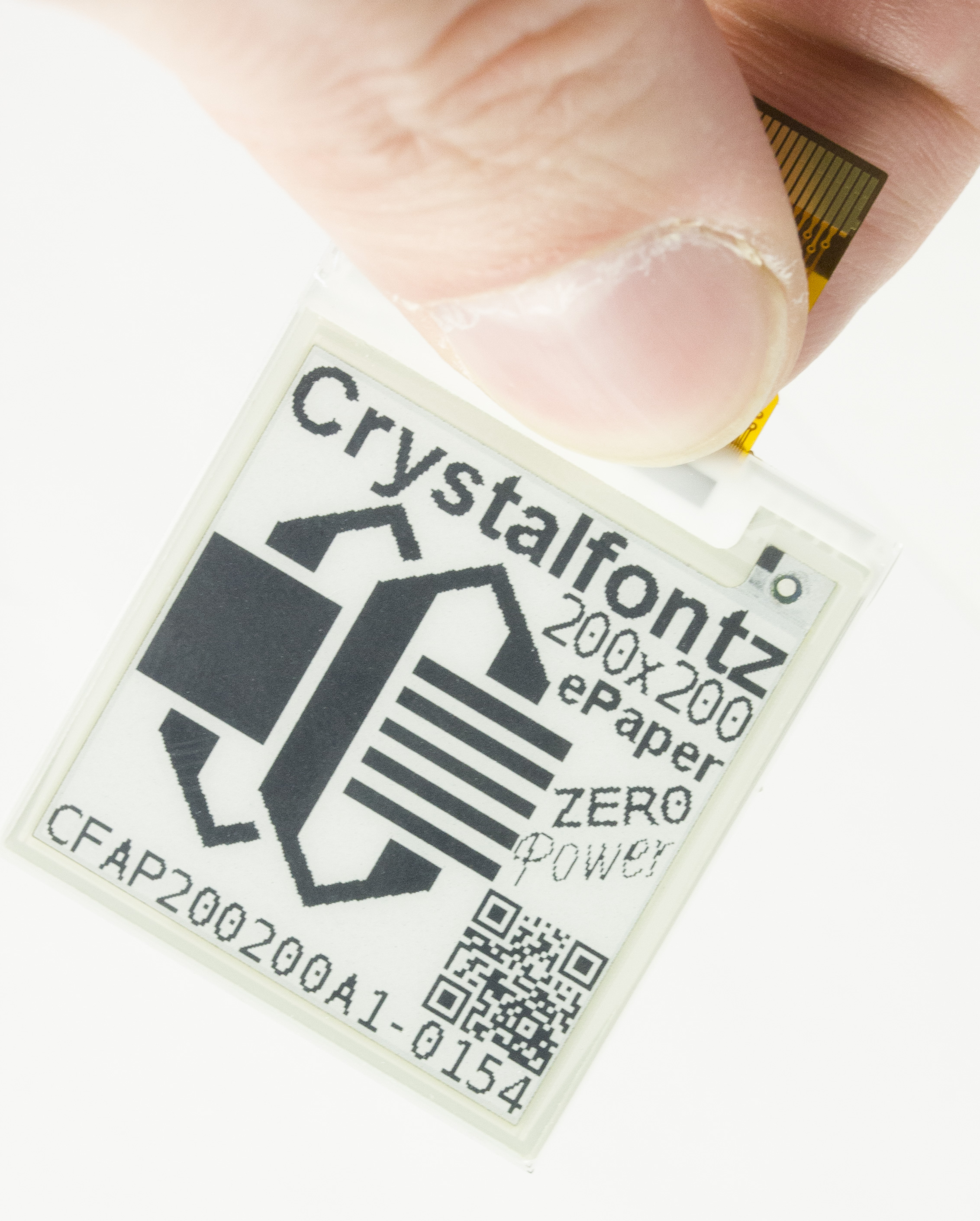

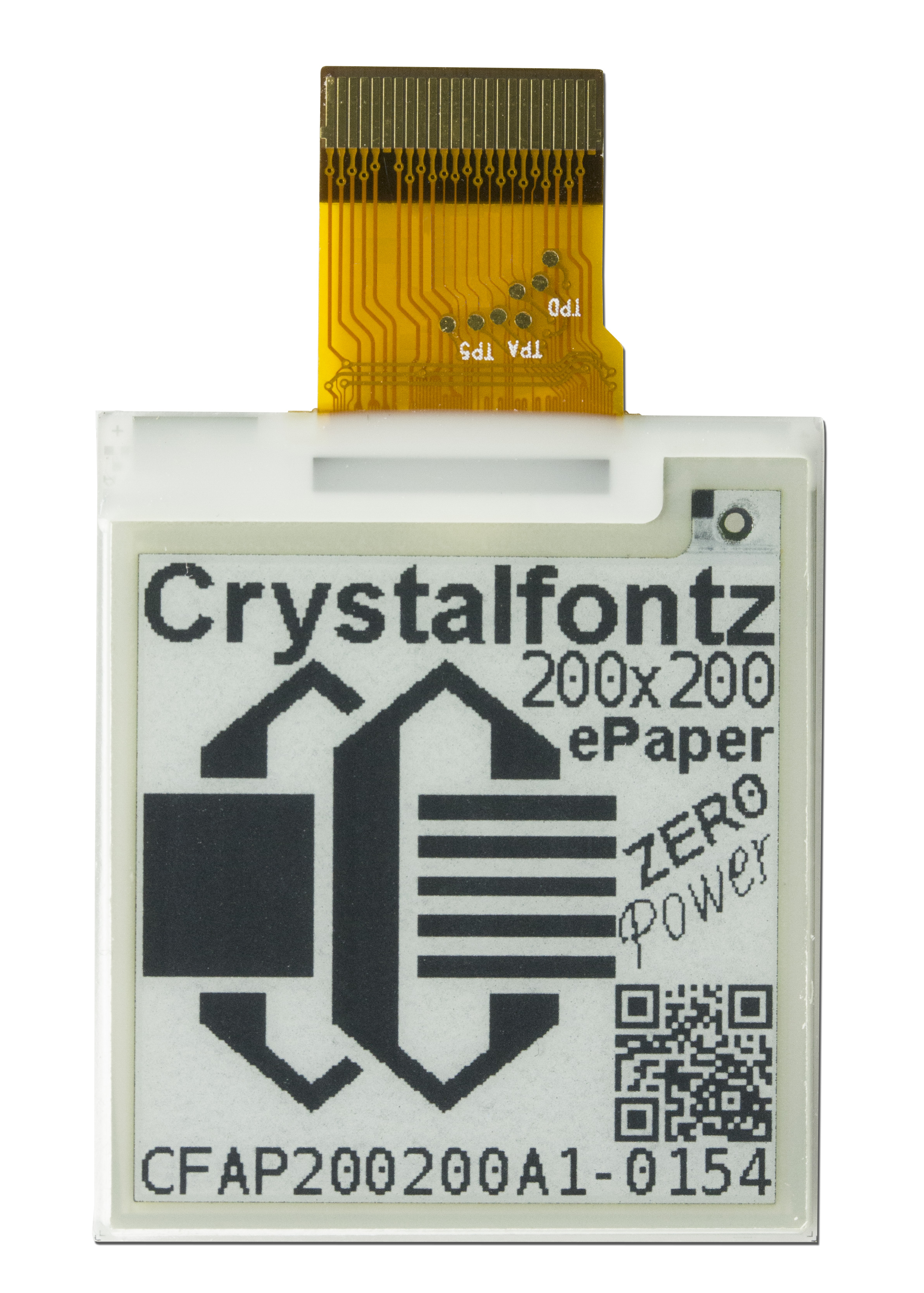

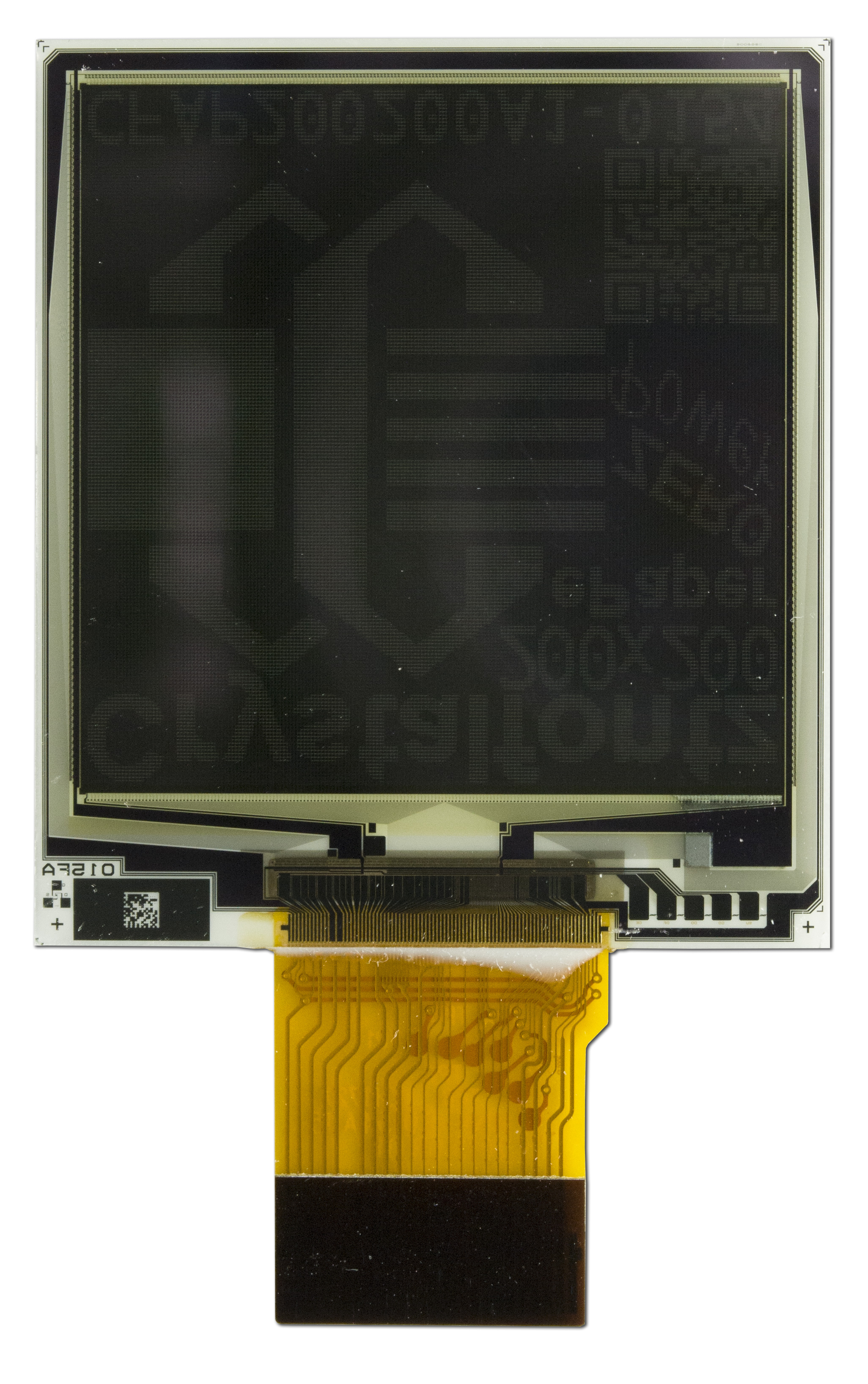

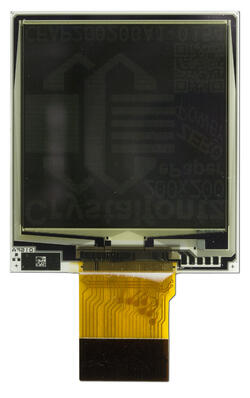

1.54" Square ePaper Display

Part Number: CFAP200200A1-0154

Pricing

Quantity Price ea.
1 $12.64
10 $10.47
20 $10.10
50 $9.73
100 * $9.67
200 * $9.59
500 * $9.51
1000 * $8.58
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP200200A1-0154 or RSS RSS feed for changes to CFAP200200A1-0154 for CFAP200200A1-0154

Description

This black and white square 200x200 pixel ePaper display module is a perfect size for small, low power electronic shelf labels. Once the ePaper's image is shown, it remains visible while entirely disconnected from power.

Built-in voltage generation requires only a few external components. Ultra thin with a depth of 1.05mm and weight of only 2.2 grams, epaper has a clear advantage over other display technologies for small handheld battery operated devices or devices powered by solar. Epaper displays are growing rapidly in popularity and can be scanned by barcode readers.

  • Wide viewing angle makes the display easily readable from all directions.
  • Supports 3 or 4 wire SPI for communications
  • Sunlight Readable! Displays reflect light like ordinary paper, making them easy to read in direct sunlight.
  • Bi-stable image displays without any flickering.
  • Supports partial screen updates
  • Long lifetime: ~5 years / ~1M updates.

* This ePaper display supports partial refresh

The ZIF connector you need is a standard 24-position 0.5mm pitch.

Use our sample code in files section to display your own images. Our open-source demonstration code runs directly on a low cost Seeeduino v4.2 (3.3v Arduino clone) .

Use our free ePaper software to prepare your bitmap image for this display.

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

Video Demonstrations

ePaper Demonstration

Demonstration of our 200x200 ePaper displays.


TECHNICAL SPECS

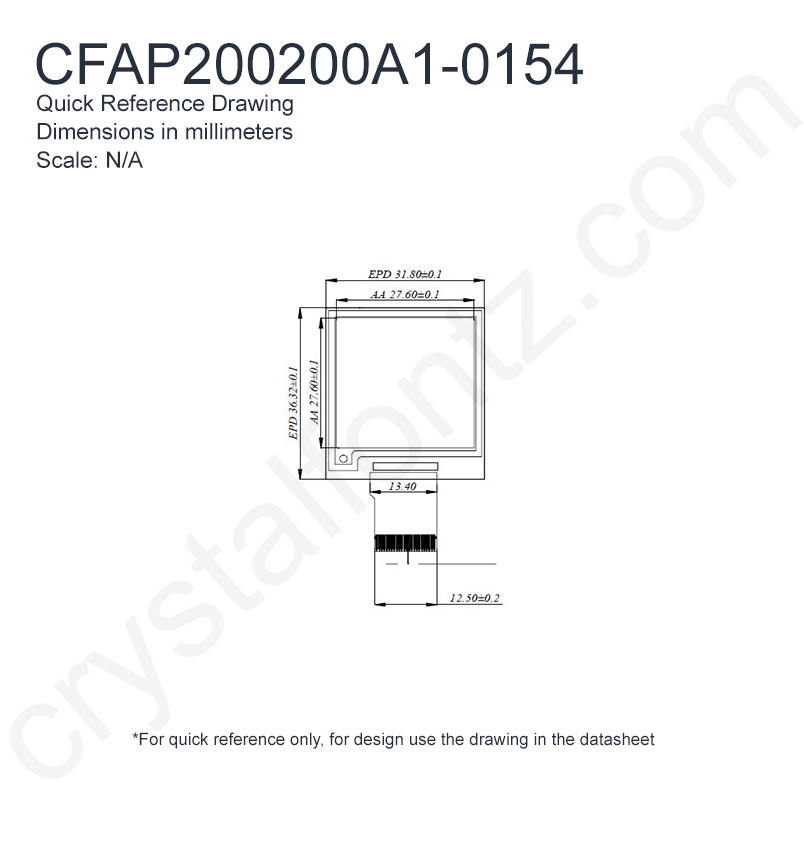

Physical Characteristics

Column Dots x Row Dots 200 x 200
Module Overall width height depth
millimeters 31.8 36.32 1.05
inches 1.252 1.430 0.041
*width / height does not include Foldable Tab
Diagonal Dimension 1.540"
Active Area width height
millimeters 27.6 27.6
inches 1.087 1.087
Dot Size width height
millimeters 0.138 0.138
inches 0.0054 0.0054
Dot Pitch width height
millimeters 0.138 0.138
inches 0.0054 0.0054
Optional Connectors CS050Z24GA0
Weight 2.2g
Pin Count 24

Optical Characteristics

Glass Type e ink
Sunlight Readable Yes
Foreground Color black
Background Color white

Electrical Specifications

Supply Voltage for Logic Minimum 2.4V
Supply Voltage for Logic Maximum 3.7V
Supply Voltage for Logic Typical 3.3V

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 60°
Fahrenheit -13° 140°
Humidity min max
Non-condensing 40% 70%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Full Screen Update Time 3s
Time Between Updates 180s

Additional Options

Add an ePaper Adapter board or a complete development kit for quickly showcasing this display.

200x200 ePaper with Adapter Board
Part Number: CFAP200200A1-E2-1

200x200 black and white ePaper display with our ePaper Adapter Board for a quick bring-up with a 3.3v Arduino or Seeeduino. Demo sketches are available in the Files Section.

Cables are NOT included.

Details
Quantity 1 10 20 50 100 * 200 * 500 * 1000 *
Price $21.62 $18.81 $18.66 $18.50 $18.35 $18.21 $18.06 $17.95
Quantity:
200x200 ePaper Development Kit
Part Number: CFAP200200A1-E2-2

This is a bundle of our 200x200 ePaper module with our CFA10084 ePaper adapter board and 3.3v Seeeduino / Arduino clone.
The CFA10084 ePaper adapter board is designed to attach to the back of the ePaper screen.

*Comes fully assembled and tested.

Details
Quantity 1
Price $50.62
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP200200A1-0154 or RSS RSS feed for changes to CFAP200200A1-0154

Part Change Notice #11067: The CFAP200200A1-0154 is being replaced by a new part number: CFAP200200A3-0154. The dimensions as well as the controller are being changed.

Product Affected: CFAP200200A1-0154
Date Issued: September 8, 2020
Summary: The CFAP200200A1-0154 is being replaced by a new part number: CFAP200200A3-0154.

The dimensions as well as the controller are being changed.
Description: Controller Change: The new part will have a different controller which will require a change to the code that is controlling the display.

Dimension Change: The new outer dimension of the display is 1mm longer and the tail is 1mm shorter. So, if using the display with the tail coming straight out of the bottom, there will be no dimension changes. If folding the tail behind the display, the tail will be 2mm shorter than it previously was.
Reason: The controller has gone EOL and must be replaced.
Impact: This impacts the form, fit, and function of the display.
Recommendation: Samples of the new display should be requested and verified as necessary.
Availability: Inventory is limited and once depleted, will not be available. The new part is available immediately.
Price Change: The price is subject to change.
For reference only. For design purposes, please use the specifications in the datasheet.
